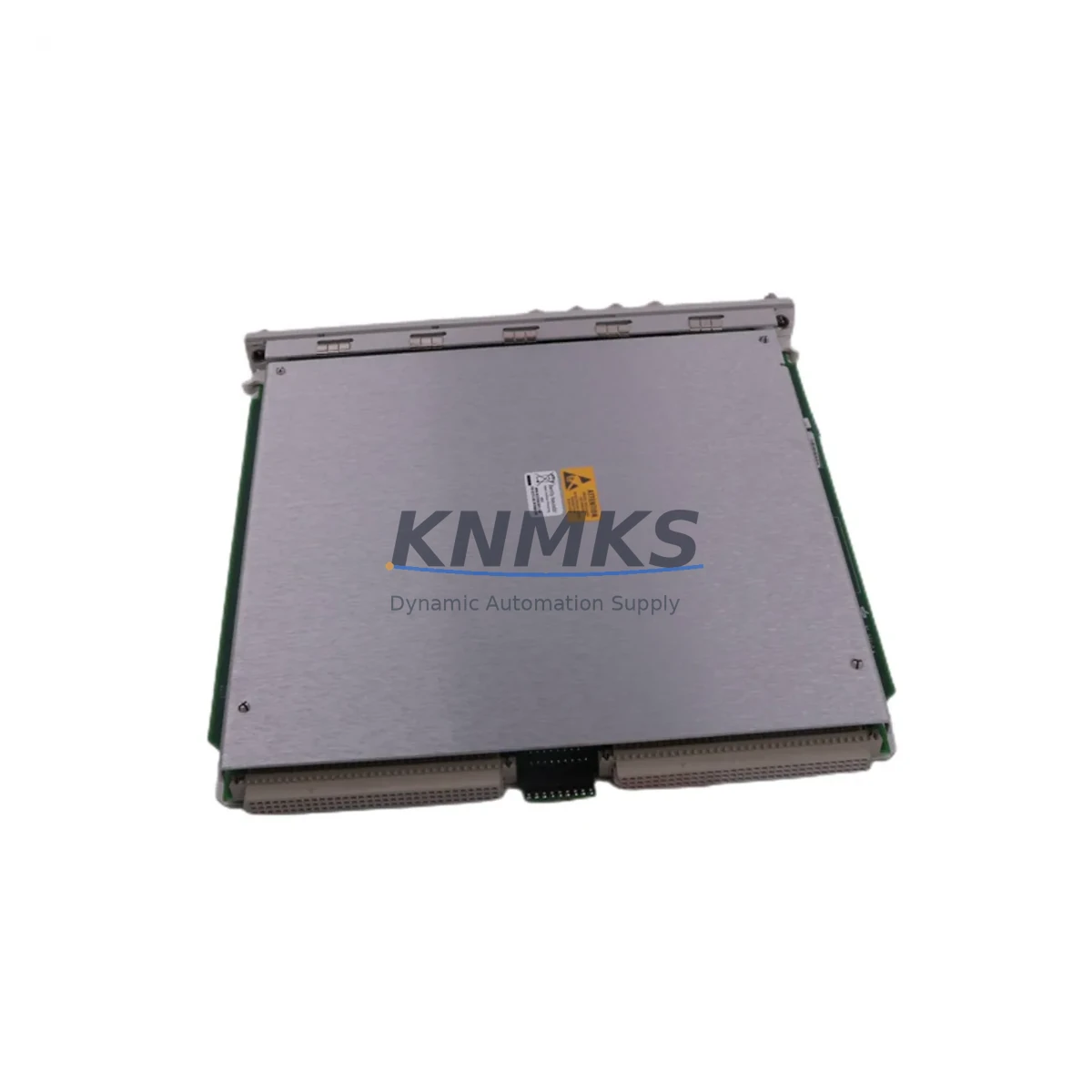

Bently Nevada 3500/64M 176449-05 Dynamic Pressure Monitor

Overview

Bently Nevada 3500/64M 176449-05: Migration-Ready Dynamic Pressure Monitor for Legacy Control Systems

The Bently Nevada 3500/64M 176449-05 is a rack-mounted dynamic pressure monitor designed for continuous machinery protection within the Bently Nevada 3500 Series platform. As legacy 3500 Series installations approach end-of-support milestones, plant engineers and reliability teams are increasingly sourcing verified replacement modules to sustain monitoring continuity without committing to a full system overhaul. This module provides a direct, migration-ready path for facilities operating aging 3500 racks that cannot be immediately decommissioned.

The 3500/64M accepts dynamic pressure transducer inputs and delivers continuous OK/Not OK status, alarm relay outputs, and buffered transducer drive signals compatible with existing 3500 rack backplane architectures. Its form factor, terminal assignments, and communication behavior align with the established 3500 Series module standard, making it a practical drop-in replacement for facilities where the original 176449-05 revision has been discontinued or is no longer available through the OEM channel.

Before installing a replacement 3500/64M 176449-05, engineers should confirm several critical parameters. Power supply capacity within the 3500 rack must be verified — the 3500/15 Power Supply module should be assessed for available headroom, particularly in fully populated racks where multiple I/O and monitor modules share the same rail. Terminal wiring at the I/O module connector must be mapped against the original installation drawing; transducer cable shielding, signal polarity, and barrier grounding practices should be preserved to avoid introducing noise into the measurement chain.

The backplane interface of the 3500/64M communicates with the 3500/20 Rack Interface Module (RIM) or 3500/22M Communication Gateway Module, depending on the host DCS or SCADA integration. If the existing rack uses a Modbus or Ethernet/IP gateway for data export to a control system such as a DeltaV or Ovation DCS, the replacement module’s channel address and rack slot assignment must be re-confirmed in the gateway configuration to avoid silent data gaps. Where the plant uses a 3500/92 Rack Configuration Module for local parameter storage, the configuration file should be backed up before the swap and reloaded post-installation to restore alarm setpoints, full-scale ranges, and OK relay logic.

Program compatibility is a key concern in any 3500 Series retrofit. If the upstream control system references specific Modbus register addresses or OPC tags tied to the original module’s slot position, those mappings must be validated before the replacement module is placed in service. HMI faceplate displays that show dynamic pressure trend data should be tested in simulation mode prior to live cutover to confirm that engineering unit scaling and alarm annunciation remain intact.

For facilities undertaking broader control cabinet upgrades, the 3500/64M retrofit is often performed alongside replacement of adjacent modules. The 3500/42M Proximitor/Seismic Monitor and 3500/45 Position Monitor are frequently replaced in the same maintenance window when a rack is partially depopulated for inspection. Similarly, the 3500/25 Keyphasor Module — which provides the phase reference signal used by multiple monitor channels — should be confirmed operational before dynamic pressure measurements are validated post-retrofit. If the Keyphasor module is also at end-of-life, replacing it concurrently eliminates a second planned outage.

Communication protocol migration is another dimension of 3500 Series modernization. Older racks relying on RS-232 or RS-485 serial links to a plant historian may benefit from upgrading the 3500/22M Communication Gateway to a version supporting Ethernet/IP or Modbus TCP, enabling integration with modern asset management platforms without replacing the entire rack. The 3500/64M 176449-05 is compatible with both legacy serial and current Ethernet gateway configurations, preserving investment in the existing rack infrastructure.

Installation space confirmation is straightforward for same-slot replacements: the 3500/64M occupies a standard single-slot position in the 3500 rack and requires no mechanical modification. Firmware version compatibility should be checked against the rack’s current System Software version; in most cases, the 176449-05 hardware revision is compatible with 3500 System Software versions in common field use, but the configuration software (Rack Configuration and Utilities Software, RCUS) should be used to verify module recognition before the rack is returned to service.

Field commissioning of the replacement 3500/64M 176449-05 should include a full channel OK verification, alarm relay function test at both Alert and Danger setpoints, and a buffered output signal check at the I/O terminal block. Where possible, a live transducer signal should be used to confirm end-to-end measurement integrity before the rack is returned to automatic protection mode. All commissioning results should be documented and retained as part of the plant’s machinery protection records.

KNMKS supplies the Bently Nevada 3500/64M 176449-05 from verified inventory, with each unit subject to pre-shipment functional inspection. Stock availability supports urgent replacement requirements, and a support terms confirmed by quotation is provided on all units. Lead time and quantity availability can be confirmed by contacting the sales team directly.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3500/64M 176449-05 retrofit begins with a rack-level audit. Before ordering the replacement module, document the current slot population of the 3500 rack, noting which positions are occupied by monitor modules such as the 3500/42M Proximitor/Seismic Monitor, 3500/45 Position Monitor, or 3500/40M Proximitor/Seismic Monitor, and which utility slots are used by the 3500/15 Power Supply and 3500/25 Keyphasor Module. This audit establishes the baseline for power budget verification and helps identify any adjacent modules that may be approaching end-of-life and could be replaced in the same planned outage.

Terminal block wiring should be photographed and documented before any module is removed. The 3500/64M uses a standard 3500 Series I/O terminal block; however, transducer cable routing, shield termination points, and any in-line signal conditioning components such as Zener barriers or galvanic isolators must be preserved exactly as installed to maintain measurement accuracy and intrinsic safety compliance where applicable.

If the plant’s control architecture routes dynamic pressure data through a 3500/22M Communication Gateway Module to a DCS historian or condition monitoring platform, the gateway’s channel mapping table should be exported before the swap. After the replacement module is installed and configured via RCUS, the gateway mapping should be re-imported and verified to confirm that all Modbus register addresses or OPC tag paths remain intact. This step prevents silent data loss in the historian and avoids false alarm conditions in the DCS.

For plants using a 3500/92 Rack Configuration Module, the rack configuration file — containing alarm setpoints, full-scale ranges, transducer sensitivity values, and OK relay logic — should be backed up to a PC running RCUS before the module swap. After installation, the configuration file is reloaded to the new module, eliminating the need to re-enter parameters manually and reducing the risk of setpoint transcription errors.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/64M 176449-05 replacement requires preparation at three levels: documentation, pre-staging, and cutover sequencing. Before the maintenance window opens, the replacement module should be on-site, pre-inspected, and confirmed functional. The RCUS configuration file should be loaded and verified on a laptop that will be available at the rack during the swap.

During the cutover, the rack should be placed in bypass mode for the affected channel to prevent spurious shutdown trips while the module is removed and replaced. The bypass status should be logged in the plant’s permit-to-work system and communicated to the control room operator. Module removal and insertion in a 3500 rack is a tool-free operation; however, care should be taken to avoid disturbing adjacent modules or terminal block wiring during the swap.

After the replacement module is seated and the configuration file is loaded, the channel should be brought out of bypass incrementally: first verifying the OK relay status, then confirming the live transducer signal at the buffered output terminal, and finally validating alarm relay operation at the Alert setpoint before restoring the Danger relay to automatic. This staged verification sequence protects the original program logic and maintains field control continuity throughout the commissioning process, reducing the risk of a protection gap during the transition.

Where the plant’s maintenance schedule permits, a parallel-run period — during which the replacement module operates alongside a temporary portable monitor on the same transducer — provides an additional layer of confidence before the original protection channel is fully decommissioned. This approach is particularly valuable in facilities where the dynamic pressure measurement is the primary protection input for a critical rotating machine.

Retrofit Support FAQ

Q1: Is the 3500/64M 176449-05 a direct replacement for earlier 3500/64M revisions?
The 176449-05 revision is the current production revision for the 3500/64M Dynamic Pressure Monitor. In most cases it is backward-compatible with earlier revisions in the same rack slot, but the RCUS configuration file from the original module should be used to restore alarm setpoints and transducer parameters. If the original configuration file is unavailable, setpoints should be re-entered from the plant’s machinery protection specification document.

Q2: What wiring changes are required when installing the replacement module?
For a same-revision replacement in the same rack slot, no wiring changes are typically required. The existing I/O terminal block and transducer cable can be reconnected directly. Shield termination and barrier grounding practices should be preserved as found. If the installation drawing is unavailable, the terminal block should be photographed before removal to guide reconnection.

Q3: How is the replacement module tested before shipment?
Each 3500/64M 176449-05 unit supplied by KNMKS undergoes a pre-shipment functional inspection covering power-up OK status, channel communication verification, and physical condition assessment. Units are shipped with protective packaging appropriate for sensitive electronic modules. A support terms confirmed by quotation is provided from the shipment date, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and is stock available for urgent requirements?
KNMKS maintains inventory of the Bently Nevada 3500/64M 176449-05 to support urgent replacement requirements. Lead time and current stock quantity can be confirmed by contacting the sales team at [email protected] or +86 18359268345. For critical plant situations, same-day shipping may be available subject to stock confirmation.
