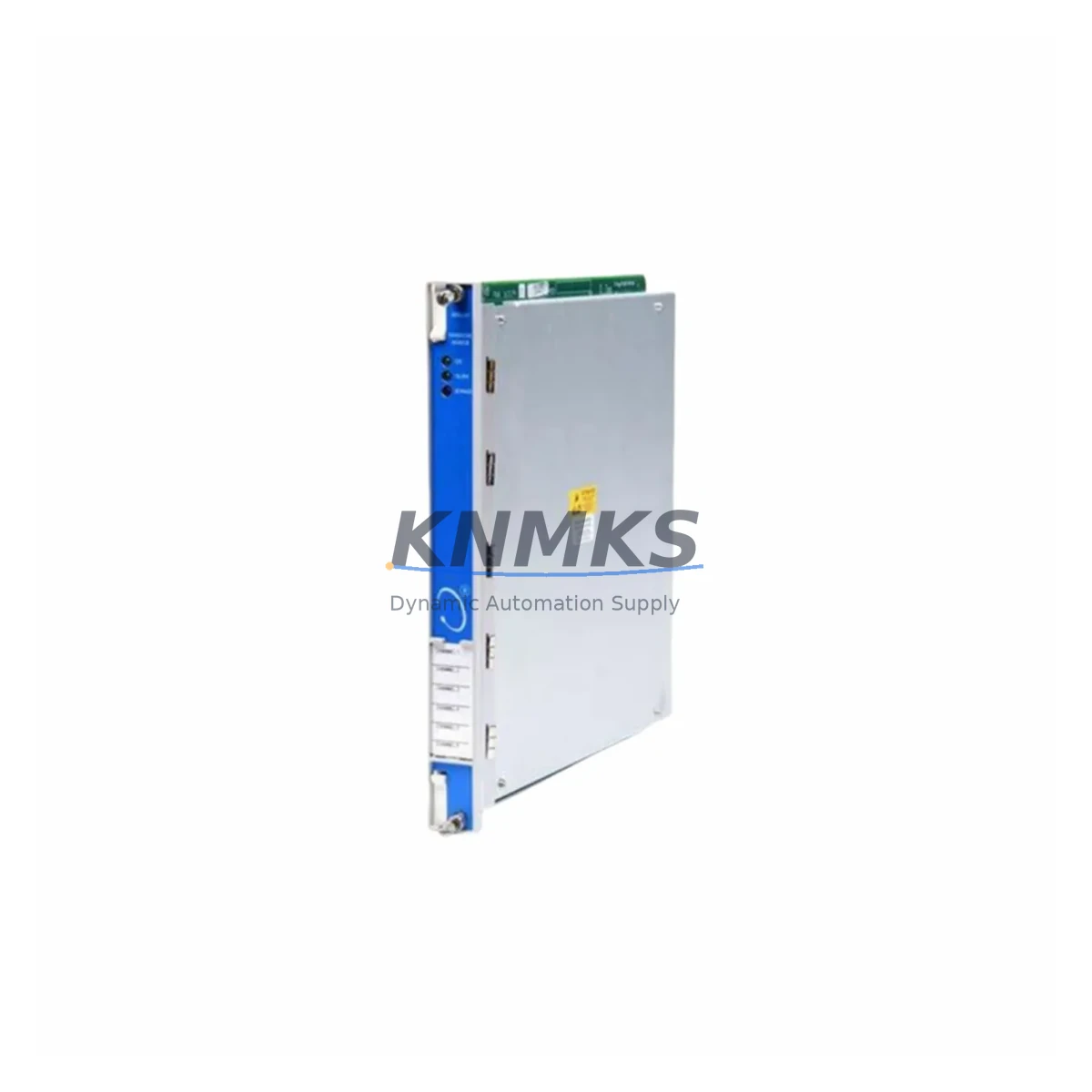

Bently Nevada 3500/64M 140734-05 Migration-Ready Machinery Protection Module: Legacy System Retrofit and Compatibility Upgrade

The Bently Nevada 3500/64M 140734-05 is a 16-channel dynamic data acquisition module designed for continuous machinery protection within the Bently Nevada 3500 Series rack-based monitoring platform. As legacy installations across energy, petrochemical, and rotating equipment sectors approach end-of-support cycles, this module has become a critical component in retrofit programs targeting discontinued or obsolete protection hardware. Whether you are replacing a failed 3500/64 variant, upgrading from an earlier 3300 Series system, or consolidating monitoring channels during a control cabinet modernization, the 3500/64M 140734-05 provides a verified migration path with minimal disruption to existing wiring infrastructure and alarm logic.

Before initiating any replacement, engineers must confirm several key parameters: the rack backplane slot assignment and available card slots within the 3500 rack chassis, the transducer input wiring termination at the I/O module or terminal block, the Keyphasor signal routing if phase-referenced measurements are required, and the existing channel configuration stored in the System 1 or rack configuration software. The 3500/64M accepts standard Bently Nevada proximity probe inputs and is compatible with the 3500/20 rack interface module, which handles communication to the plant DCS or historian via Modbus, Ethernet, or serial protocol depending on the installed gateway card.

Firmware version compatibility is a frequent concern during module swap-outs. The 3500/64M 140734-05 should be verified against the rack’s current firmware baseline before installation. In most retrofit scenarios, the rack configuration file can be exported from the existing System 1 software, modified to reflect the new module address, and re-downloaded without requiring a full system reconfiguration. This approach preserves alarm setpoints, transducer scale factors, and channel enable states, significantly reducing commissioning time and the risk of setpoint drift during the changeover window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3500/64M 140734-05 into an existing machinery protection system requires a structured approach to hardware inventory and signal path verification. Begin by auditing the current rack population: identify the slot positions of the 3500/20 rack interface module, any installed 3500/25 Keyphasor modules, and the 3500/15 power supply module that feeds the rack. Confirm that the power supply output capacity is sufficient to support the 3500/64M alongside existing modules — the 3500/15 or 3500/16 power supply must have adequate headroom for the additional channel load.

Wiring termination is the next critical checkpoint. The 3500/64M uses a dedicated I/O module that connects to the main card via the rack backplane. If the existing installation uses an older I/O termination block, verify that the connector pinout matches the 140734-05 variant’s I/O module before proceeding. In many legacy installations, the field wiring from proximity probes or velocity transducers terminates at a marshalling panel or junction box — these terminations typically do not require modification, but shield grounding and cable routing should be inspected for compliance with Bently Nevada installation guidelines.

For sites migrating from a 3300 Series platform, additional planning is required. The 3300 Series uses a different rack form factor and backplane architecture, meaning a full rack replacement — including a new 3500 rack chassis, 3500/20 rack interface module, and 3500/15 power supply — will be necessary. In this scenario, the 3500/64M 140734-05 is typically ordered alongside the rack infrastructure components as part of a complete system upgrade package. The 3500/22 Ethernet communication gateway module should also be included if the plant historian or DCS requires network-based data acquisition.

HMI screen updates are often overlooked during module replacements. If the plant uses a SCADA or DCS HMI that displays vibration, position, or speed data sourced from the 3500 rack, the tag addresses and scaling factors associated with the replaced module must be verified and updated in the HMI configuration. This is particularly important when the channel count or slot address changes between the old and new module variants. Coordinate with the control system engineer to schedule HMI validation as part of the commissioning sequence, not as an afterthought.

Downtime Control During System Migration

Minimizing unplanned downtime during a machinery protection module replacement requires pre-staging all replacement hardware and completing configuration work offline before the maintenance window begins. Export the current rack configuration from System 1 software and prepare the updated configuration file with the new module parameters — channel assignments, transducer types, alarm setpoints, and Keyphasor references — so that the download can be executed immediately after physical installation.

Where process continuity is critical, consider a phased channel migration: if the rack has sufficient spare slots, install the 3500/64M 140734-05 in an adjacent slot and migrate channels in groups, verifying each group before decommissioning the corresponding channels on the old module. This approach keeps the majority of protection channels active throughout the migration and limits the exposure window for unprotected machinery operation.

Before returning the system to service, perform a full loop check on each channel: verify transducer output at the field device, confirm signal level at the module input, validate alarm trip levels against the setpoint database, and confirm that the plant DCS or historian is receiving updated data from the rack. Document all as-found and as-left values for the maintenance record. The 3500/64M 140734-05 supplied by KNMKS is pre-tested prior to shipment to confirm functional operation, reducing the risk of commissioning delays caused by hardware defects.

Retrofit Support FAQ

Q: Is the 3500/64M 140734-05 a direct drop-in replacement for earlier 3500/64 variants?
A: In most cases, yes. The 140734-05 is the current production variant of the 3500/64M and is backward compatible with earlier -01, -02, and -03 suffix versions within the same rack. The I/O module and backplane connector are consistent across variants. However, always verify the firmware version of the rack and confirm that the System 1 configuration file supports the -05 variant before installation.

Q: What commissioning steps are required after installing the module?
A: After physical installation, download the updated rack configuration file via System 1 software, verify channel addresses and transducer scaling factors, perform a loop check on all active channels, confirm Keyphasor signal integrity if phase measurements are in use, and validate alarm outputs to the plant DCS or safety system. A full functional test under simulated trip conditions is recommended before returning the machinery to service.

Q: Can this module be used in a rack that also contains 3500/40M or 3500/42M modules?
A: Yes. The 3500 rack architecture supports mixed module populations. The 3500/64M 140734-05 can coexist in the same rack with 3500/40M radial vibration monitors, 3500/42M displacement monitors, 3500/45 position monitors, and other 3500 Series modules, provided the rack power budget and slot assignments are correctly managed.

Q: What does the support terms confirmed by quotation cover, and what is the lead time for stock units?
A: The support terms confirmed by quotation cover manufacturing defects and verified functional performance. Each unit is tested prior to shipment. KNMKS maintains inventory of the 3500/64M 140734-05 for immediate dispatch; standard lead time for in-stock units is 3–7 business days for international destinations. Contact [email protected] or +86 18359268345 for current stock confirmation and expedited shipping options.
