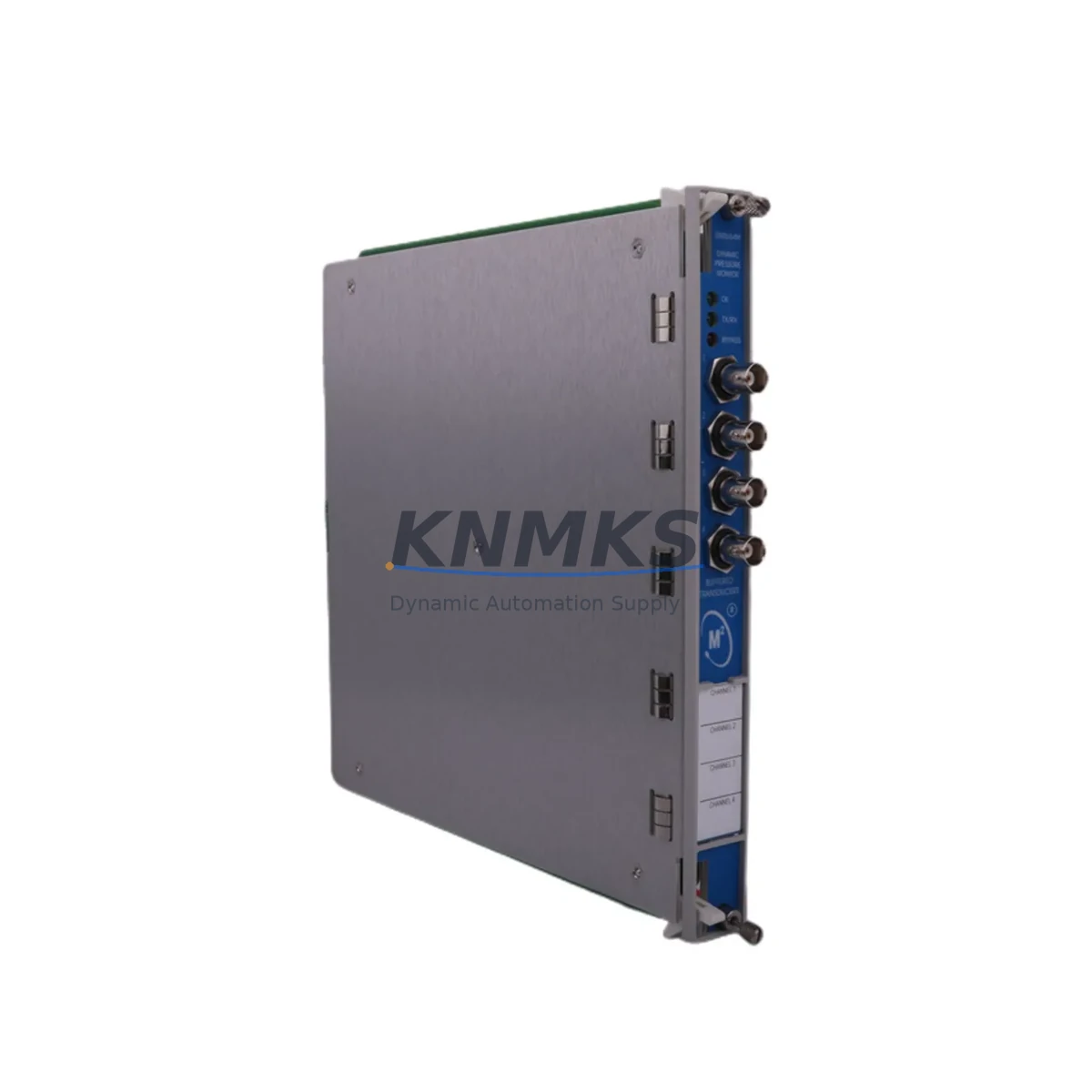

Bently Nevada 3500/61E 285694-02 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 3500/61E 285694-02 is a dynamic pressure monitor module designed for continuous machinery protection within the Bently Nevada 3500 Series monitoring system. For maintenance engineers and procurement teams managing rotating equipment health, this module is a critical spare that directly supports uninterrupted plant operation. Whether you are responding to an unplanned shutdown, executing a scheduled annual overhaul, or building a proactive spare parts inventory, the 3500/61E 285694-02 delivers the measurement accuracy and system compatibility required to restore and sustain factory uptime.

The 3500 Series platform is widely deployed across turbines, compressors, pumps, and other rotating machinery in oil and gas, power generation, petrochemical, and heavy manufacturing facilities. The 3500/61E module monitors dynamic pressure signals — a key parameter for detecting surge, cavitation, combustion instability, and other process-driven mechanical faults. A failed or degraded 3500/61E can mask critical process anomalies, increasing the risk of catastrophic equipment failure. Maintaining a verified spare on-site is therefore not optional for facilities operating under continuous-run or high-availability mandates.

Each unit supplied by KNMKS is sourced from authorized channels, individually inspected, and function-tested prior to shipment. All units carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Global shipping is available with lead times confirmed at order placement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3500/61E 285694-02 in the field, a disciplined maintenance workflow requires more than a module swap. The 3500 Series rack architecture means that adjacent modules and shared infrastructure must be evaluated concurrently to avoid repeat failures and to confirm system integrity after restoration.

Begin by inspecting the 3500/20 Rack Interface Module, which manages communication between the rack and the host monitoring system. A degraded rack interface can cause false alarms or data loss even after a module replacement. Next, verify the condition of the 3500/15 Power Supply Module — power quality directly affects measurement accuracy for dynamic pressure channels, and an aging or under-spec power supply is a common root cause of intermittent module faults.

Check all field wiring and transducer cables connected to the 3500/61E input channels. Dynamic pressure transducers are sensitive to cable shield integrity and connector condition; corroded or loose terminations will introduce noise that mimics sensor or module failure. Inspect terminal blocks and cable glands at the cabinet entry point as part of the same work order.

For facilities running mixed monitoring architectures, also review the status of any signal isolators or barriers installed between the field transducers and the 3500 rack inputs, particularly in hazardous area installations where galvanic isolation is mandatory. A failed isolator will degrade signal quality and may not trigger a module-level alarm.

If the 3500/61E is part of a larger turbine or compressor protection loop, cross-check the associated 3500/40M Proximitor/Seismic Monitor or 3500/42M Proximitor/Seismic Monitor channels that share the same machinery protection voting logic. A single-channel fault in a two-out-of-three (2oo3) voting configuration may not trip the machine but will reduce protection redundancy until resolved.

Finally, confirm that the System 1 software configuration or equivalent DCS historian reflects the correct channel assignment and alarm setpoints for the replacement module. Configuration drift between hardware and software is a common post-maintenance gap that can result in missed alarms during the next fault event.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement unit part number (285694-02) matches the installed module label and the rack configuration record. Do not substitute with earlier 3500/61 revisions without confirming firmware and rack compatibility with your site documentation.

Step 2 — Safe isolation: Follow your site’s lock-out/tag-out (LOTO) procedure for the affected rack slot. The 3500 Series supports hot-swap on some configurations, but dynamic pressure channels should be placed in bypass mode in the monitoring software before physical removal to prevent spurious trips.

Step 3 — Module removal and inspection: Remove the faulty 3500/61E and inspect the rack backplane connector for bent pins, corrosion, or debris. Clean the connector with approved contact cleaner before installing the replacement module.

Step 4 — Installation and configuration check: Seat the 3500/61E 285694-02 firmly into the rack slot. Power up and confirm the module status LED indicates normal operation. Verify channel configuration in the rack configuration software — alarm setpoints, full-scale range, and transducer type must match the previous configuration.

Step 5 — Functional test: Apply a known pressure signal or use the rack’s built-in self-test function to confirm the channel is reading correctly. Compare the live reading against an adjacent reference channel or portable instrument before returning the system to normal monitoring mode.

Step 6 — Documentation: Record the replacement in your CMMS, update the spare parts inventory, and flag the need to replenish the 3500/61E 285694-02 spare stock to maintain your minimum on-hand quantity.

Spare Parts Support FAQ

Q1: Is the 3500/61E 285694-02 compatible with all 3500 Series rack configurations?
The 3500/61E 285694-02 is designed for the Bently Nevada 3500 Series rack platform. Compatibility depends on rack firmware version and system configuration. We recommend confirming your rack revision and software version against the module datasheet before installation. Our technical team can assist with compatibility verification prior to order.

Q2: What testing is performed before shipment?
Each 3500/61E 285694-02 unit is individually inspected for physical condition and function-tested to verify channel operation and communication with the rack interface. A test report is available upon request. Units are packed to IEC transport standards to prevent damage in transit.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification. Support requests are processed with a replacement unit dispatched after fault confirmation.

Q4: Can you support long-term or repeat supply of the 3500/61E 285694-02?
Yes. KNMKS maintains ongoing sourcing relationships for 3500 Series modules including the 3500/61E 285694-02. For facilities requiring annual maintenance stock or multi-site procurement, we can provide scheduled supply agreements with price and lead time commitments. Contact [email protected] to discuss your inventory requirements.
