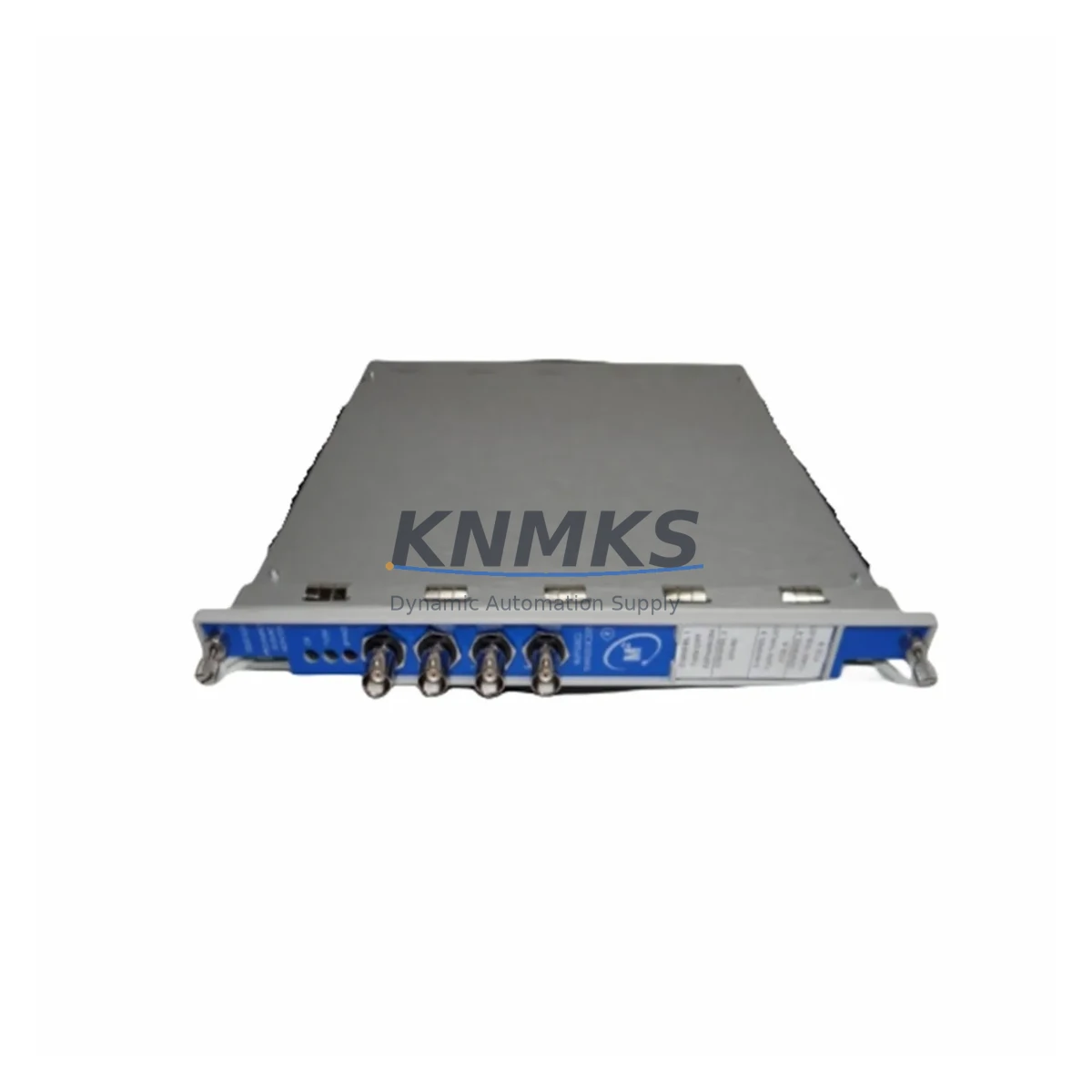

Bently Nevada 3500/61 163179-02 Migration-Ready Keyphasor Module: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 3500/61 163179-02 is a dual-channel Keyphasor module engineered for the 3500 Series machinery protection rack. As original equipment reaches end-of-life and OEM support for legacy configurations becomes increasingly limited, this module serves as a verified migration-ready replacement for facilities managing rotating machinery protection systems across turbines, compressors, pumps, and generators. Whether you are executing a planned control system upgrade or responding to an unplanned failure of a discontinued spare part, the 3500/61 163179-02 provides a direct-fit solution that preserves existing rack architecture and minimizes engineering rework.

The module installs into the standard 3500 Series backplane without modification to the rack chassis or adjacent I/O slots. Before installation, engineers should confirm available backplane power budget — the 3500 Series power supply module (such as the Bently Nevada 3500/15) must have sufficient capacity to support the Keyphasor alongside active monitor modules including vibration, axial position, and temperature channels. Terminal wiring from the existing field junction box should be verified against the 163179-02 pinout; in most retrofit scenarios, the original field wiring harness can be reused without re-termination, significantly reducing downtime during changeover.

Module address configuration is handled via the rack configuration software. When replacing a failed or discontinued Keyphasor in an existing rack, the replacement module must be assigned the same slot address and channel mapping as the original to maintain compatibility with the Bently Nevada 3500/22M transient data interface or any connected DCS/SCADA historian. Firmware version alignment between the 3500/61 and the rack’s System 1 software version should be confirmed prior to commissioning — mismatched firmware can result in communication faults on the rack’s RS-232 or Ethernet diagnostic port.

For facilities migrating from older 3300 Series or 7200 Series Bently Nevada platforms, the 3500/61 163179-02 represents a forward-compatible upgrade path. The 3500 rack accepts standard Proximitor/Seismic input signals, meaning existing field sensors and cabling typically remain serviceable. The Bently Nevada 3500/42M proximitor I/O module and 3500/40M proximitor monitor are commonly installed alongside the Keyphasor in turbine protection panels, and their slot assignments must be reviewed during any rack reconfiguration to avoid address conflicts.

HMI screen updates are a frequently overlooked step in Keyphasor replacement projects. If the facility uses a Bently Nevada System 1 operator display or a third-party HMI connected via Modbus or OPC, the Keyphasor channel tag assignments must be re-validated after module swap to ensure that speed and phase reference signals are correctly mapped to the display faceplate. Failure to update HMI tag bindings can result in erroneous speed readings or masked alarm conditions during post-commissioning verification.

Installation space within the control cabinet should be assessed before ordering. The 3500/61 occupies a single slot in the 3500 rack and does not require additional DIN rail mounting or external signal conditioning. However, if the retrofit involves expanding the rack with additional monitor modules — such as adding a Bently Nevada 3500/50M tachometer or a 3500/25 enhanced keyphasor — rack slot availability and backplane segment boundaries must be confirmed against the existing rack configuration drawing.

All units supplied by KNMKS are subject to pre-shipment functional testing, including power-on verification, channel continuity check, and communication handshake confirmation. Each module ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained to support both planned maintenance schedules and emergency replacement requirements, with lead times confirmed at time of order.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Keyphasor retrofit begins with a complete audit of the existing 3500 rack configuration. Retrieve the current rack configuration file from System 1 and document all occupied slot assignments before removing the failed module. The 3500/15 power supply module load calculation should be updated to reflect the replacement unit’s power draw. If the retrofit is part of a broader control system upgrade — for example, migrating from a legacy DCS to a modern platform — the Keyphasor’s speed and phase output signals may need to be re-routed through a signal isolator or terminal multiplier to interface with the new controller’s analog input cards.

In panels where the 3500/61 operates alongside a Bently Nevada 3500/22M transient data interface, the TDI’s channel mapping must be updated after module replacement to maintain historian data continuity. Similarly, if a 3500/42M proximitor I/O module is installed in the same rack segment, verify that the I/O module’s channel assignments do not conflict with the Keyphasor’s slot address after reconfiguration. For facilities using a Bently Nevada 3500/25 enhanced keyphasor module in parallel applications, confirm that both modules share a consistent phase reference to avoid speed measurement discrepancies across redundant protection channels.

Where the retrofit involves replacing multiple modules simultaneously — for example, upgrading both the Keyphasor and adjacent vibration monitor cards — a staged replacement approach is recommended to isolate variables during commissioning. Each module should be individually verified before the rack is returned to service. Programming cable access to the rack’s front-panel RS-232 port facilitates on-site configuration without requiring network connectivity to the System 1 server.

Downtime Control During System Migration

Minimizing unplanned downtime during a Keyphasor replacement requires pre-staging the replacement module with the correct firmware version and a pre-loaded configuration file matching the existing rack setup. Where possible, the rack configuration file should be exported from System 1 before the maintenance window begins, allowing the replacement module to be pre-configured on the bench and verified offline before installation.

During the physical swap, the original field wiring harness should be labeled and photographed before disconnection. Terminal block assignments on the 3500/61 are consistent across the 163179-02 revision, allowing direct re-termination without rewiring in most retrofit scenarios. After module installation, the rack should be powered up in diagnostic mode to confirm that the Keyphasor channel is recognized by the rack controller before enabling protection outputs. This staged power-up sequence protects the original program logic and prevents spurious trips during the commissioning phase.

For facilities with redundant protection channels, the standby channel can remain active during the primary Keyphasor replacement, maintaining continuous machinery protection coverage throughout the maintenance window. Once the replacement module is confirmed operational, the standby channel can be tested and returned to normal operating mode without interrupting the protected machine’s operation.

Retrofit Support FAQ

Q1: Is the 3500/61 163179-02 a direct replacement for earlier 3500/61 revisions?
Yes. The 163179-02 revision is backward-compatible with earlier 3500/61 variants within the 3500 Series rack. Slot assignment, terminal wiring, and backplane interface are consistent across revisions. Firmware version should be confirmed against the installed System 1 software version before commissioning.

Q2: What wiring changes are required during installation?
In most retrofit scenarios, no wiring changes are required. The existing field wiring harness from the Proximitor or magnetic pickup sensor connects directly to the 3500/61 terminal block using the original pinout. Re-termination is only required if the field cable has been modified or if the installation involves a different sensor type.

Q3: How is the module configured after installation?
The replacement module is configured using the Bently Nevada rack configuration software via the front-panel RS-232 port or network connection to the System 1 server. The existing rack configuration file can be re-applied to the replacement module, restoring all channel assignments, alarm setpoints, and communication parameters without manual re-entry.

Q4: What does the support terms confirmed by quotation cover, and is stock available for emergency orders?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. KNMKS maintains stock of the 3500/61 163179-02 to support both planned maintenance and emergency replacement requirements. Lead times and current stock levels are confirmed at time of order inquiry. Contact [email protected] or +86 18359268345 for availability.
