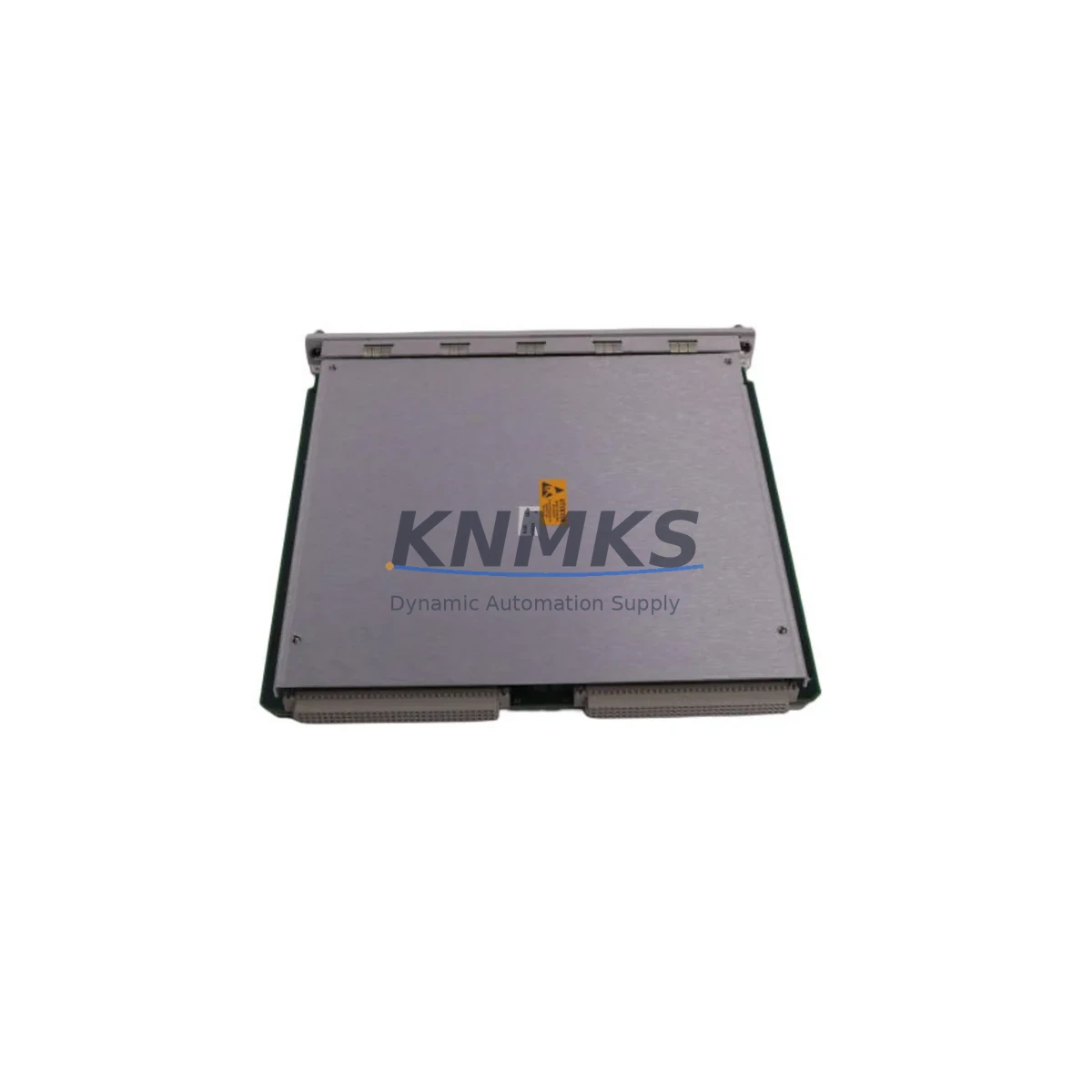

Bently Nevada 3500/60 173186-01 Fail-Safe Temp Monitor

Overview

Bently Nevada 3500/60 173186-01 Fail-Safe Temp Monitor: Fault-Protected Temperature Monitoring for Critical Industrial Control

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In continuous production environments — petrochemical reactors, power generation turbines, mining conveyors, and metallurgical furnaces — undetected temperature excursions are among the most destructive failure modes in rotating and static machinery. The Bently Nevada 3500/60 173186-01 temperature monitor module is engineered to eliminate this risk by providing real-time, fail-safe thermal surveillance within the 3500 Machinery Protection System rack.

Within a properly configured control cabinet, the 3500/60 173186-01 operates alongside the Bently Nevada 3500/15 Power Supply Module, which delivers stable 28 VDC backplane power even under grid fluctuation or surge events. Voltage transients that would otherwise corrupt analog temperature readings are absorbed at the power stage, ensuring the monitor module receives clean, regulated supply at all times. For sites with severe power quality issues, pairing the rack with a dedicated UPS or surge suppressor upstream of the cabinet is strongly recommended.

Temperature data from the 3500/60 173186-01 feeds directly into the Bently Nevada 3500/22M Transient Data Interface, enabling continuous trending and alarm correlation across multiple machine trains. When a bearing housing or winding temperature approaches the danger setpoint, the module’s dual-relay trip output activates in fail-safe mode — de-energizing the trip relay to initiate a controlled shutdown, even in the event of a wiring fault or module power loss. This hardwired safety logic operates independently of the communication bus, ensuring protection is never contingent on software availability.

In high electromagnetic interference environments — common near large variable frequency drives, arc furnaces, or high-voltage switchgear — the 3500/60 173186-01 maintains signal integrity through its shielded input architecture. When used with properly grounded Bently Nevada 3300 XL 8mm proximity probes or thermocouple extension cables with twisted-pair shielding, signal drift caused by induced noise is minimized to within acceptable measurement tolerances. Grounding discipline at the cabinet terminal strip is critical: all shield drains should terminate at a single-point ground to prevent ground loop interference.

For facilities managing multiple machine trains, the module integrates with the Bently Nevada System 1 Condition Monitoring Software, providing centralized alarm management, historical trending, and predictive maintenance scheduling. Operators can configure alert and danger setpoints remotely, reducing the need for field personnel to access live panels during operation — a significant safety advantage in hazardous area installations. The Bently Nevada 3500/92 Communication Gateway Module bridges the rack to Modbus RTU or TCP/IP networks, enabling SCADA and DCS integration without additional signal conditioning hardware.

Spare module availability is a persistent concern in aging plant infrastructure. The 3500/60 173186-01 is maintained in ready stock at KNMKS, with each unit individually tested prior to shipment. This eliminates the lead-time risk associated with OEM procurement channels and supports rapid replacement during unplanned outages — a critical capability when every hour of downtime carries significant production cost.

Critical Industrial Safety Applications

The Bently Nevada 3500/60 173186-01 is deployed across the most demanding industrial sectors where thermal monitoring is a safety-critical function:

Petrochemical and Refining: In hydrocarbon processing plants, compressor trains and reactor agitators operate continuously under high thermal load. The 3500/60 173186-01 monitors bearing and winding temperatures on these assets, triggering automatic shutdown before thermal runaway can escalate to a process safety event. Its fail-safe relay logic ensures that a module fault does not result in a missed trip — a fundamental requirement under IEC 61511 functional safety standards for SIL-rated loops.

Power Generation: Steam turbines and gas turbines in utility and cogeneration plants rely on precise temperature monitoring to protect journal bearings, thrust bearings, and generator windings. The 3500/60 173186-01 provides the measurement resolution and alarm response speed required to protect these high-value rotating assets from thermal damage during load transients and startup sequences.

Mining and Mineral Processing: Ball mills, SAG mills, and large conveyor drive systems in mining operations generate significant heat under continuous heavy load. The 3500/60 173186-01 monitors motor and gearbox temperatures in these environments, providing early warning of lubrication failure or overload conditions before catastrophic mechanical failure occurs.

Water and Wastewater Treatment: Pump stations and blower systems in water treatment facilities operate around the clock. Temperature monitoring via the 3500/60 173186-01 supports predictive maintenance programs that reduce unplanned outages and extend equipment service life — critical for utilities operating under strict uptime obligations.

Metallurgy and Steel Production: Rolling mill drives, induction furnace systems, and continuous casting equipment operate in extreme thermal and vibration environments. The 3500/60 173186-01’s robust design and high EMI immunity make it suitable for deployment in these harsh conditions, where lesser instrumentation would suffer from signal corruption or premature failure.

Port and Marine Applications: Shipboard machinery protection systems and port crane drives require compact, reliable monitoring solutions that can withstand vibration, humidity, and salt-laden atmospheres. The 3500/60 173186-01, when installed in a sealed, climate-controlled panel, provides the thermal oversight needed to protect propulsion and cargo handling equipment in these corrosive environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Bently Nevada 3500/60 173186-01?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified temperature monitoring and trip functions within the confirmed support period, KNMKS will provide a replacement or repair at no additional cost. The confirmed support period begins from the date of shipment and applies to units that have been installed and operated within the published environmental and electrical specifications.

Q2: What pre-shipment testing is performed on each unit?
Every 3500/60 173186-01 unit shipped by KNMKS undergoes a full functional verification test prior to dispatch. This includes input channel response testing, alarm and danger setpoint activation verification, relay output confirmation, and power supply integrity checks. Test results are documented and available upon request. This process ensures that no unit leaves our facility with latent defects that could cause field failures during critical operations.

Q3: Is the 173186-01 a direct drop-in replacement for existing 3500/60 installations?
Yes. The 173186-01 is the standard module variant for the Bently Nevada 3500/60 temperature monitor slot and is designed for direct replacement in existing 3500 Series racks without hardware modification. Configuration parameters are retained in the rack’s System Monitor module and can be reloaded via the Bently Nevada rack configuration software after module swap. Always verify firmware compatibility with your existing rack revision before installation in safety-critical applications.

Q4: Can KNMKS support long-term supply agreements for the 3500/60 173186-01?
Yes. KNMKS maintains ongoing inventory of the 3500/60 173186-01 and can support scheduled supply agreements for facilities requiring guaranteed spare parts availability over 12 to 36-month horizons. Long-term supply contracts include priority allocation, fixed pricing, and dedicated stock reservation — eliminating procurement uncertainty for plant maintenance programs that depend on rapid module replacement to minimize unplanned downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/60 173186-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 3500/60 173186-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
