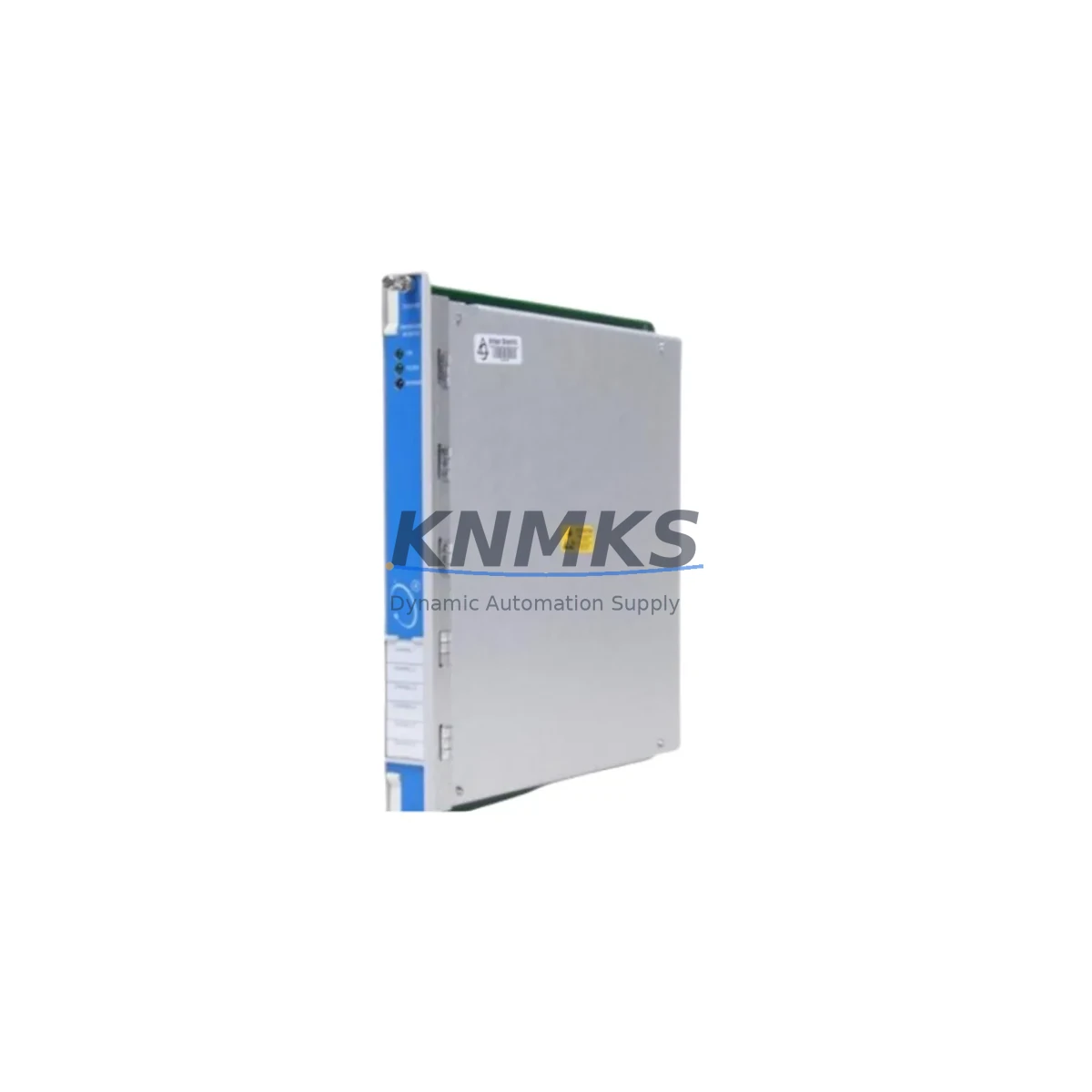

Bently Nevada 3500/60 133811-01 Fail-Safe Temperature Monitor

Overview

Bently Nevada 3500/60 133811-01 Fail-Safe Temperature Monitor: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 3500/60 133811-01 is a six-channel temperature monitor module engineered for continuous, fail-safe operation within the Bently Nevada 3500 Series machinery protection system. Designed to meet the demanding requirements of critical industrial environments — including petrochemical plants, power generation facilities, mining operations, and heavy manufacturing — this module delivers precise thermocouple and RTD signal acquisition with built-in fault detection logic that actively prevents undetected measurement failures from propagating into control decisions.

In high-stakes industrial settings, temperature monitoring is not merely a diagnostic function — it is a safety-critical interlock. The 3500/60 133811-01 is built to this standard. Its six independent input channels continuously validate signal integrity, and any channel fault is immediately flagged to the 3500 Series rack controller, enabling the safety system to respond before a thermal excursion causes equipment damage or process shutdown. This architecture directly reduces the risk of unplanned downtime caused by silent sensor failures, signal drift, or open-circuit thermocouple conditions that conventional monitors may miss.

The module is fully compatible with the Bently Nevada 3500/22M Transient Data Interface and the 3500/32 4-Channel Relay Module, allowing it to participate in coordinated trip logic and alarm relay actuation within the same rack. When paired with the 3500/15 Power Supply Module, the system maintains regulated, noise-filtered DC power delivery to all monitoring channels — a critical factor in environments with significant electrical noise from variable frequency drives, large motor starters, or arc furnace operations. The 3500 rack’s internal communication bus ensures that the 133811-01 temperature data is available in real time to the 3500/92 Communication Gateway Module for integration with DCS, SCADA, or safety instrumented systems via Modbus or Ethernet/IP protocols.

For control cabinet protection strategy, the 3500/60 133811-01 is typically installed alongside the Bently Nevada 3500/40M Proximitor/Seismic Monitor and the 3500/50M Tachometer Module to form a complete rotating machinery protection suite. This combination covers temperature, vibration, and speed — the three primary parameters governing turbine, compressor, and pump health in continuous process industries. Together, these modules provide overlapping protection layers that satisfy the requirements of IEC 61511 functional safety standards for safety instrumented systems in the process sector.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a properly engineered 3500 Series protection cabinet, the 3500/60 133811-01 temperature monitor operates as part of a layered defense strategy. The module’s six channels are typically wired to bearing temperature sensors, winding temperature detectors, and lube oil temperature points — the thermal signatures most predictive of imminent mechanical failure in rotating equipment. When any channel exceeds its configured alarm or danger setpoint, the module asserts its output state, which is then processed by the 3500/32 4-Channel Relay Module to initiate controlled shutdown sequences or activate audible and visual annunciators.

In cabinets operating near high-power switchgear or frequency converters, electromagnetic interference is a persistent threat to signal accuracy. The 3500/60 133811-01 incorporates differential input circuitry and hardware filtering to reject common-mode noise, ensuring that temperature readings remain stable even when the cabinet environment is electrically hostile. This is particularly important in steel mill motor control centers, offshore platform electrical rooms, and cement plant drive cabinets where conducted and radiated EMI levels routinely exceed those found in standard process control environments.

For installations requiring redundancy, the 3500/60 133811-01 can be deployed in Triple Modular Redundant (TMR) rack configurations alongside redundant 3500/15 Power Supply Modules and a redundant 3500/22M Transient Data Interface, providing 2-out-of-3 voting logic that eliminates single-point failures from the safety loop. This architecture is increasingly mandated in SIL 2 and SIL 3 rated safety instrumented functions for turbine overspeed protection, compressor surge control, and fired heater burner management systems.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous catalytic cracking units, ethylene crackers, and LNG compression trains, the 3500/60 133811-01 monitors bearing and process temperatures on critical rotating equipment operating 24/7. Its fail-safe output architecture ensures that a module failure defaults to a safe state — triggering alarms rather than masking a developing fault — which is a fundamental requirement for machinery protection in ATEX and IECEx classified hazardous areas.

Power Generation: Steam turbine generators and gas turbine packages in power plants rely on multi-channel temperature monitoring to protect journal bearings, thrust bearings, and generator windings. The 3500/60 133811-01 provides the measurement resolution and response speed required to detect early-stage thermal anomalies before they escalate to forced outages, supporting plant availability targets and grid stability commitments.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, dust ingress, and thermal cycling. The 3500/60 133811-01’s robust signal conditioning and fault-tolerant design make it suitable for these harsh conditions, providing reliable temperature data to the plant DCS even when the local environment is far from ideal.

Water and Wastewater Treatment: High-capacity pump stations and blower systems in municipal water infrastructure require continuous monitoring to prevent unplanned failures that could disrupt water supply or treatment capacity. The 3500/60 133811-01 integrates seamlessly into existing 3500 Series racks at these facilities, providing a direct replacement path for aging temperature monitor modules without requiring rack reconfiguration or software changes.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and rolling mill drives generate extreme electrical noise and thermal stress. The 3500/60 133811-01’s EMI immunity and wide operating temperature range make it a reliable choice for temperature monitoring in these environments, where conventional instrumentation often suffers from signal corruption and premature failure.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Bently Nevada 3500/60 133811-01?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed promptly, with replacement or repair options available to minimize your equipment downtime.

Q2: Is the module tested before shipment?
Yes. Every 3500/60 133811-01 unit undergoes a full functional pre-shipment test prior to dispatch. This includes channel-by-channel input verification, fault detection logic confirmation, and communication bus integrity checks. A test report is available upon request.

Q3: Is the 133811-01 compatible with all Bently Nevada 3500 Series racks?
The 3500/60 133811-01 is designed for use in standard Bently Nevada 3500 Series racks. It is compatible with both single-rack and TMR rack configurations. For specific slot assignment and firmware version compatibility, refer to the Bently Nevada 3500 System Installation Manual or contact our technical team for confirmation before installation.

Q4: Can KNMKS support long-term supply of this module for multi-site maintenance programs?
Yes. KNMKS maintains stock of the 3500/60 133811-01 and can support scheduled spare parts supply agreements for multi-site operations with 12–36 month forward planning horizons. We provide consistent part quality, documentation, and technical support to ensure your maintenance program runs without interruption.
