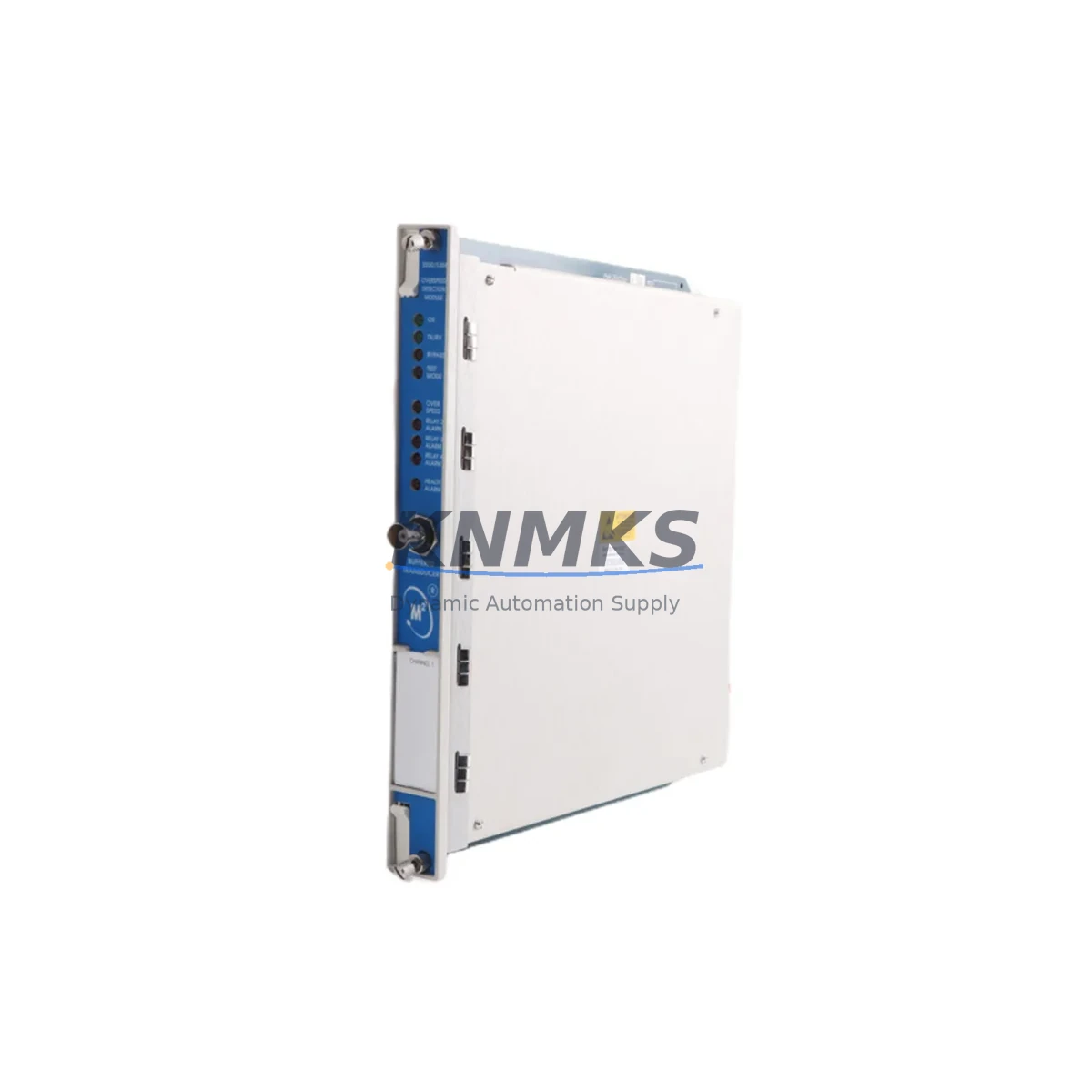

Bently Nevada 3500/53M 286566-01 Fail-Safe Overspeed Module

Overview

Bently Nevada 3500/53M 286566-01 Fail-Safe Overspeed Module: Critical Protection for Industrial Control Reliability

The Bently Nevada 3500/53M 286566-01 is a dedicated fail-safe overspeed detection module engineered for the most demanding industrial machinery protection environments. As a core component of the Bently Nevada 3500 Series Machinery Protection System, this module continuously monitors rotational speed and delivers deterministic, safety-rated trip outputs the moment a dangerous overspeed condition is detected — protecting turbines, compressors, pumps, and rotating equipment from catastrophic mechanical failure.

In continuous production facilities where unplanned shutdowns carry enormous financial and safety consequences, the 3500/53M 286566-01 provides the last line of defense against runaway machinery. Its hardware-based overspeed detection logic operates independently of the host DCS or PLC, ensuring that even in the event of a controller fault, communication loss, or power disturbance, the protective trip function remains fully active. This architecture is fundamental to achieving the safety integrity levels required in petrochemical, power generation, and heavy industrial applications.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 3500/53M 286566-01 does not operate in isolation — it is most effective when integrated into a comprehensive control cabinet protection strategy. Within a Bently Nevada 3500 rack, it works in close coordination with the 3500/15 Power Supply Module, which provides regulated, conditioned DC power to all rack-mounted modules. A stable, clean power supply is essential: voltage fluctuations or micro-interruptions can cause false trips or, worse, suppress legitimate protective actions. The 3500/15 ensures the overspeed module receives uninterrupted, noise-free power even when the facility’s main supply is subject to switching transients or load shedding.

Speed sensing accuracy depends equally on the quality of the front-end signal conditioning. The Bently Nevada 3500/25 Enhanced Keyphasor Module provides the precise once-per-revolution reference signal that the 3500/53M uses to calculate instantaneous shaft speed. In high-vibration environments — such as large gas turbine trains or centrifugal compressor strings — signal integrity from the Keyphasor input is critical to preventing nuisance trips caused by signal noise rather than genuine overspeed events.

For facilities running parallel protection architectures, the Bently Nevada 3500/22M Transient Data Interface Module captures high-resolution vibration and speed transient data during startup, shutdown, and trip events. This data is invaluable for post-incident analysis, allowing maintenance engineers to distinguish between a genuine overspeed event and a sensor or wiring fault — reducing unnecessary downtime and improving root-cause investigation accuracy.

In control cabinets exposed to high ambient temperatures, dust ingress, or condensation — common in outdoor substations, coastal facilities, or tropical climates — cabinet thermal management becomes a reliability factor. Pairing the 3500 rack with properly rated industrial cabinet cooling units and IP54-rated enclosure accessories ensures that the 3500/53M and its companion modules operate within their rated thermal envelope, preventing heat-induced drift in relay response times or logic thresholds.

Where the 3500 system interfaces with a plant DCS or safety PLC, the Bently Nevada 3500/92 Communication Gateway Module provides the Modbus, Ethernet/IP, or Profibus link that transmits real-time speed, status, and alarm data to the control room. Maintaining this communication link in a healthy state is important for operator situational awareness — but the 3500/53M’s hardware trip logic ensures that a communication failure between the gateway and the DCS never compromises the protective function itself.

Critical Industrial Safety Applications

The Bently Nevada 3500/53M 286566-01 is deployed across the most safety-critical rotating equipment applications in heavy industry:

Petrochemical and Refinery Plants: In ethylene crackers, crude distillation units, and LNG compression trains, turbine overspeed is a primary cause of catastrophic mechanical failure and fire risk. The 3500/53M provides the deterministic, hardware-enforced speed trip that safety instrumented systems (SIS) require to meet IEC 61511 functional safety standards.

Power Generation: Steam turbine generators in coal, gas, and nuclear power plants operate at speeds where a 10–15% overspeed excursion can destroy a rotor within seconds. The 3500/53M’s fast-response trip logic — operating independently of the turbine control system — provides the independent protective layer mandated by power plant safety standards.

Mining and Mineral Processing: Large ball mills, SAG mills, and conveyor drive systems in open-pit and underground mining operations are subject to sudden load rejection events that can cause drive motors and gearboxes to overspeed violently. The 3500/53M protects these assets in environments characterized by extreme dust, vibration, and electrical noise.

Water and Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment facilities require reliable overspeed protection to prevent seal failures and bearing damage that would contaminate treated water supplies or cause extended service outages.

Metallurgy and Steel Production: Rolling mill drives, blast furnace blowers, and continuous casting equipment operate in environments with intense heat, vibration, and electromagnetic interference from large induction furnaces. The 3500/53M’s robust EMI shielding and surge-protected inputs maintain reliable operation in these harsh conditions.

Port and Marine Applications: Shipboard propulsion turbines, cargo pump turbines, and port crane drives require overspeed protection that functions reliably in high-humidity, salt-air environments with significant vibration from vessel motion or heavy lifting operations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 3500/53M 286566-01?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support terms support includes replacement or repair, with technical assistance available throughout the confirmed support period.

Q2: How is each module tested before shipment?
All 3500/53M 286566-01 modules undergo functional verification testing prior to dispatch. This includes power-on self-test validation, trip relay output confirmation, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all Bently Nevada 3500 rack configurations?
The 3500/53M 286566-01 is designed for installation in standard Bently Nevada 3500 Series rack systems. Compatibility with specific rack configurations, firmware versions, and companion modules should be verified against the Bently Nevada 3500 System documentation. KNMKS technical staff can assist with compatibility verification for your specific application.

Q4: Can long-term supply continuity be guaranteed for this part number?
KNMKS maintains stock of the 3500/53M 286566-01 and actively manages inventory to support ongoing MRO and spare parts programs. For facilities requiring guaranteed supply continuity — particularly in industries where this module is a critical spare — KNMKS can discuss scheduled supply agreements and priority allocation arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
