Bently Nevada 3500/50 Maintenance-Proven Spare Part for Factory Uptime

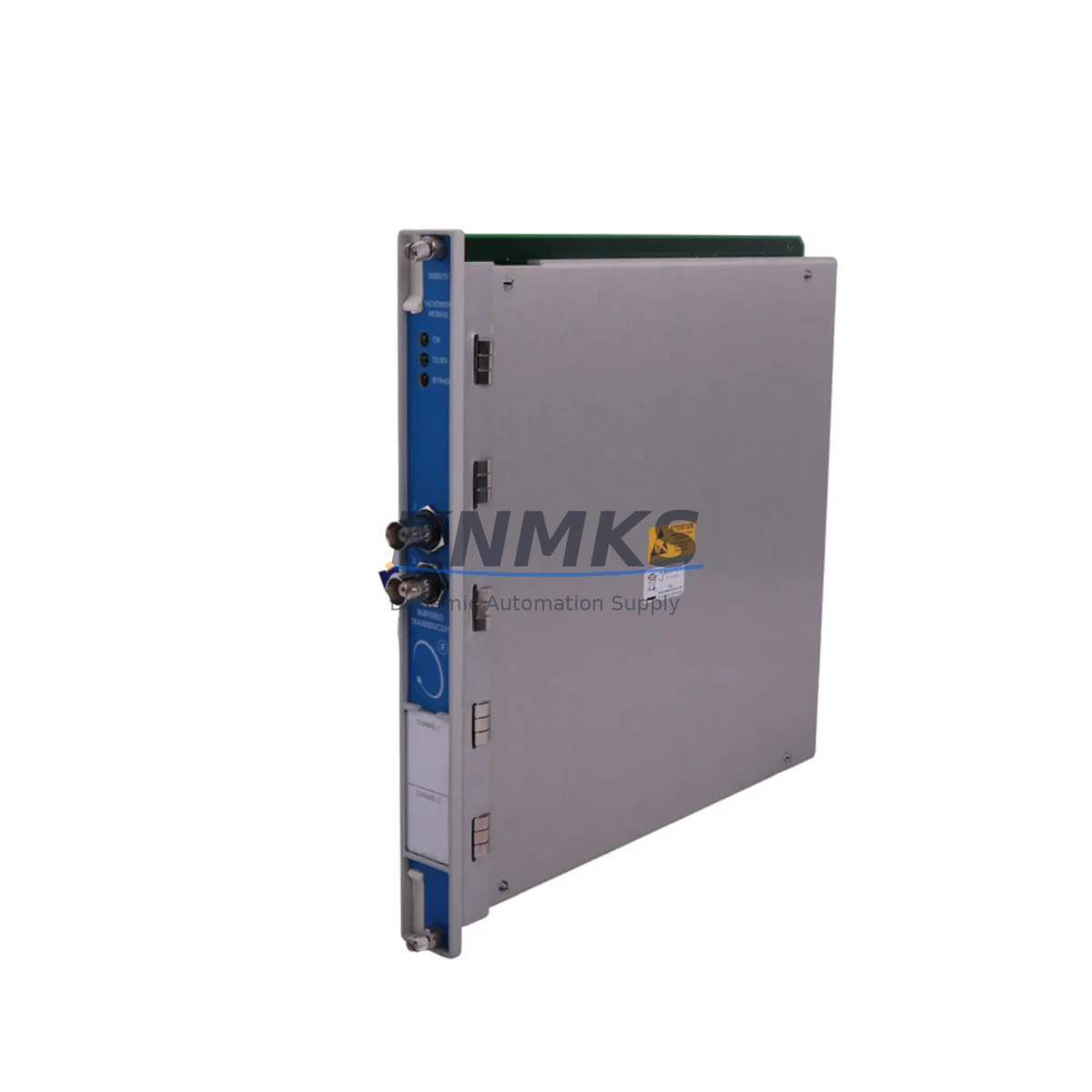

The Bently Nevada 3500/50 is a dedicated tachometer input module within the 3500 Series Machinery Protection System — one of the most widely deployed condition monitoring platforms in rotating equipment environments worldwide. Designed to accept speed and phase reference signals from proximity probes or magnetic pickups, the 3500/50 delivers real-time rotational speed data to the 3500 rack, enabling trip logic, alarm thresholds, and phase-referenced vibration analysis across turbines, compressors, pumps, and motors.

For maintenance engineers managing aging machinery protection infrastructure, the 3500/50 represents a critical node in the protection chain. A failed or degraded tachometer module can blind the entire protection system to overspeed events, phase reference loss, and keyphasor-dependent vector measurements — all of which carry significant risk to both equipment and personnel. Stocking a verified spare is not optional in high-availability facilities; it is a fundamental element of any credible maintenance strategy.

From a procurement engineering perspective, sourcing a genuine, tested 3500/50 from a reliable supplier eliminates the risk of counterfeit modules, firmware mismatches, and undocumented hardware revisions that can cause subtle but damaging incompatibilities in live protection racks. Every unit shipped from KNMKS undergoes pre-shipment functional verification, is packaged with ESD protection, and is backed by a support terms confirmed by quotation covering manufacturing defects and operational failure under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3500/50 tachometer module during scheduled maintenance or emergency intervention, a disciplined site engineer will not stop at the module itself. The 3500/50 interfaces directly with the rack backplane and relies on clean, stable signal inputs from field-mounted proximity probes — typically Bently Nevada 3300 XL or 7200 Series proximity transducers. If the tachometer module has failed due to signal overload or wiring fault, the probe, extension cable, and driver should all be inspected and tested before the new module is installed.

Within the same 3500 rack, the 3500/15 Power Supply Module is the first component to verify. An unstable or degraded rack power supply can cause intermittent module faults that mimic tachometer failures. Confirming that the power supply is within specification before swapping the 3500/50 prevents unnecessary module replacement and protects the new spare from premature stress.

The 3500/22M Transient Data Interface and 3500/42M Proximitor/Seismic Monitor modules installed in adjacent rack slots should also be checked for alarm status and configuration integrity during any tachometer replacement event. Because the 3500/50 provides the keyphasor reference used by vibration monitors for vector calculations, a module swap requires careful re-verification of phase reference alignment across all dependent channels.

For facilities running System 1 condition monitoring software, the replacement event should be logged and the new module’s configuration file verified against the rack’s stored configuration. Communication between the 3500 rack and the plant DCS or historian — typically via the 3500/92 Communication Gateway Module — should be confirmed operational after the swap to ensure that speed and alarm data are correctly propagated to the control room.

In control cabinets housing 3500 racks alongside other protection and control equipment, this is also an appropriate time to inspect terminal blocks, cable shields, and fuse holders associated with the keyphasor wiring circuit. Loose terminations and degraded cable shields are a common root cause of intermittent tachometer signal faults that are frequently misdiagnosed as module failures. A thorough inspection at the time of replacement reduces the probability of repeat failures and extends the service life of the new spare.

Site Replacement Workflow

Step 1 — Preparation: Obtain the rack configuration file and current alarm setpoints from System 1 or the site documentation package. Confirm the replacement 3500/50 part number and hardware revision match the installed module. Notify the control room of the planned maintenance window.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. In TMR (Triple Modular Redundant) rack configurations, the 3500/50 may support hot-swap; confirm with site procedures before proceeding. In standard racks, coordinate with operations to manage the protection bypass period.

Step 3 — Module Removal: Document the existing wiring and connector positions. Remove the field wiring connector from the I/O module. Extract the 3500/50 from the rack slot using the module ejector levers. Inspect the backplane connector for damage or contamination.

Step 4 — Installation: Insert the replacement 3500/50 firmly into the rack slot until the ejector levers lock. Reconnect the field wiring connector. Verify that the module’s status LED indicates normal operation.

Step 5 — Verification: Confirm speed signal acquisition by observing live speed readings in System 1 or the rack’s front-panel display. Verify keyphasor signal quality and phase reference alignment. Check that all dependent vibration monitor channels have resumed normal vector calculations. Confirm alarm and trip setpoints are correctly loaded.

Step 6 — Documentation: Record the replacement in the site maintenance management system (CMMS). Update the spare parts inventory. Retain the removed module for failure analysis if required.

This workflow applies equally to emergency replacements following unplanned failures and to planned replacements during annual turnarounds. The structured approach minimizes protection system downtime and ensures that the replacement module is correctly commissioned before the protection bypass is lifted.

Spare Parts Support FAQ

Q1: Is this 3500/50 an original Bently Nevada module or a third-party compatible unit?
All 3500/50 units supplied by KNMKS are original Bently Nevada manufactured modules sourced through verified supply channels. We do not supply third-party compatible or reverse-engineered substitutes. Each unit is individually inspected and functionally tested before shipment.

Q2: How do I confirm hardware revision compatibility before ordering?
Please provide your existing module’s part number, hardware revision (printed on the module label), and rack configuration details when enquiring. Our technical team will confirm compatibility before order confirmation. We maintain inventory across multiple hardware revisions to support both current and legacy 3500 rack installations.

Q3: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and operational failure under normal service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, electrical overstress, or unauthorized modification. To initiate a support terms claim, contact [email protected] with the order reference, failure description, and site installation details. We will arrange return, inspection, and replacement or repair within an agreed timeframe.

Q4: Can you support long-term or blanket purchase orders for 3500/50 spares?
Yes. KNMKS supports long-term supply agreements and blanket purchase orders for critical spare parts including the 3500/50. For facilities managing multiple 3500 racks or operating under a planned maintenance schedule, we recommend establishing a standing supply arrangement to ensure availability and price stability. Contact [email protected] or +86 18359268345 to discuss your requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
