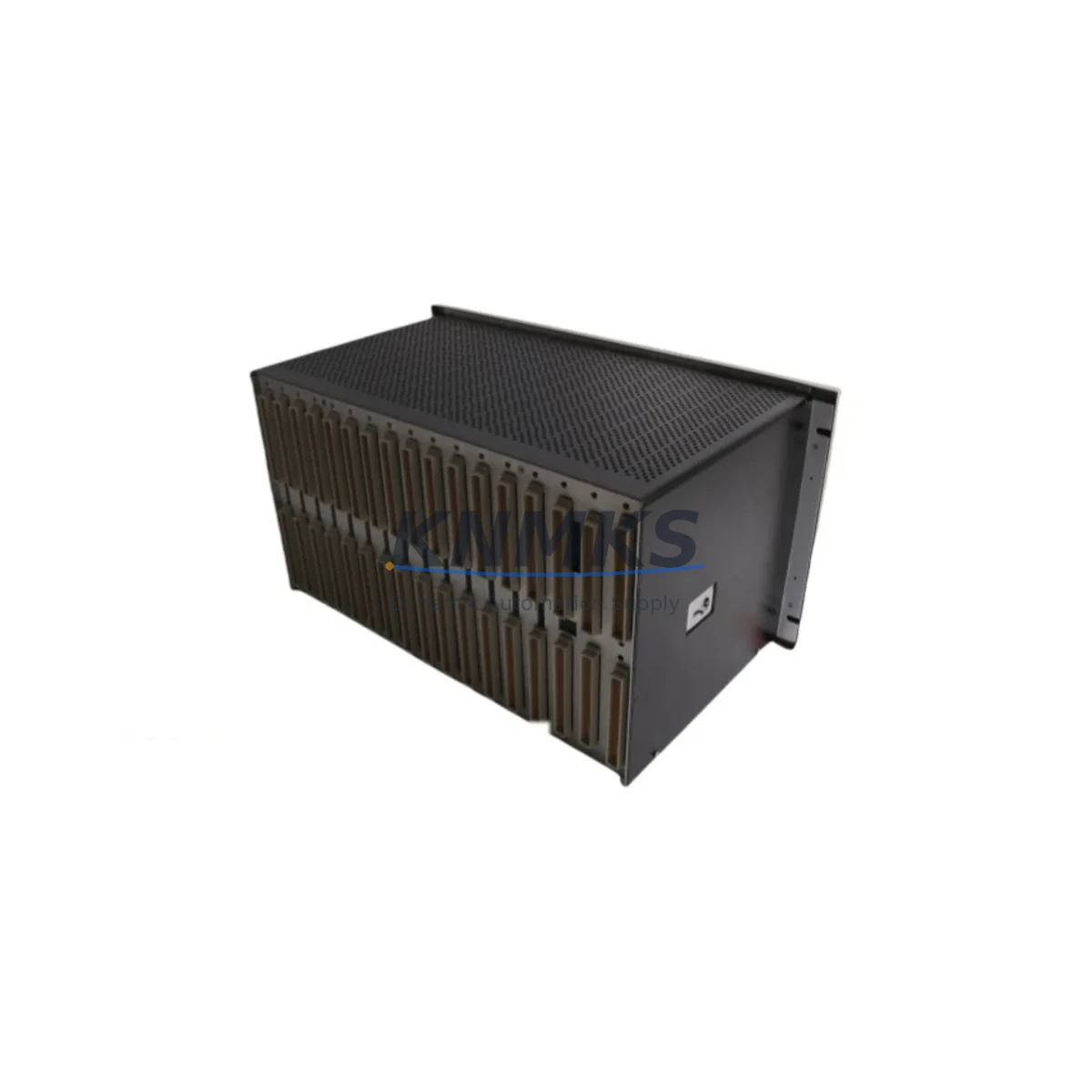

Bently Nevada 3500/5/1 Migration-Ready RIM for Legacy Systems

Overview

Bently Nevada 3500/5/1 Migration-Ready RIM for Legacy Control Systems

The Bently Nevada 3500/5/1 Rack Interface Module (RIM) is a migration-ready replacement engineered for maintenance teams managing aging 3500 Series vibration monitoring infrastructure. As legacy control architectures approach end-of-support milestones, the 3500/5/1 provides a verified, drop-in upgrade path that preserves existing backplane geometry, terminal wiring assignments, and communication link configurations — dramatically reducing the engineering effort required during a planned or emergency retrofit.

Industrial facilities operating continuous process equipment — rotating machinery, compressors, turbines, and pumps — depend on the 3500 Series platform for real-time vibration and condition monitoring. When the original RIM reaches end-of-life or becomes unavailable through standard supply channels, unplanned downtime risk escalates rapidly. The 3500/5/1 addresses this directly: it is sourced, tested, and shipped with a support terms confirmed by quotation, providing procurement teams with a reliable, accountable supply path for critical spare parts.

Before installation, engineers should confirm power supply capacity within the existing 3500 rack. The 3500/5/1 draws from the rack’s internal power bus; if the rack is already populated with high-density I/O modules such as the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor, a power budget review against the installed 3500/15 Power Supply Module is recommended to avoid marginal voltage conditions during startup. Terminal wiring on the RIM follows the standard 3500 Series pinout, but field teams should verify that existing cable harnesses match the revision-level connector layout before energizing the replacement module.

Backplane interface compatibility is a key validation step. The 3500/5/1 seats into the standard 3500 rack backplane and communicates with the 3500/20 Rack Configuration Module via the internal rack bus. If the rack configuration module firmware is at an older revision, a firmware compatibility check is advisable before commissioning the new RIM. In systems where the 3500 rack communicates upstream to a DCS or SCADA platform via a 3500/92 Communication Gateway Module, the RIM replacement does not require reconfiguration of the communication gateway — the rack address and node ID remain intact, preserving the existing Modbus or Ethernet/IP data path to the control room historian.

For facilities executing a broader control system migration — for example, transitioning from a legacy Honeywell TDC 3000 or Emerson Ovation DCS to a modern platform — the 3500/5/1 retrofit can be staged independently of the DCS migration timeline. This decoupling is operationally significant: the vibration monitoring layer can be stabilized and verified before the control layer cutover, reducing the number of simultaneous variables during the most risk-intensive phase of the migration. HMI screen updates referencing the RIM’s rack slot address should be validated in the shadow system before the live cutover to avoid alarm mapping errors.

Installation space confirmation is straightforward: the 3500/5/1 occupies a single slot in the standard 19-inch 3500 rack enclosure. No additional mounting hardware or bracket modification is required. If the control cabinet has been retrofitted with additional cable management or DIN rail accessories, verify that the module extraction path is unobstructed before scheduling the replacement window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3500/5/1 retrofit begins with a structured pre-outage audit. The maintenance team should document the current rack population: slot assignments for all installed modules including the 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor/Seismic Monitor, and any 3500/50 Tachometer Module units used for speed reference in turbine protection applications. This slot map becomes the reference document for post-installation verification.

Power budget validation is the next critical step. Pull the nameplate data from the installed 3500/15 Power Supply Module and calculate the aggregate current draw of all populated slots. If the rack is operating near the power supply’s rated output, adding or replacing modules — even with a like-for-like RIM — warrants a margin check. In high-density racks, a second power supply may already be installed in a redundant configuration; confirm that both supplies are healthy before the replacement window.

Communication continuity is preserved through the 3500/92 Communication Gateway Module, which maintains the Modbus TCP or Ethernet/IP link to the plant DCS or SCADA historian. The RIM replacement does not alter the gateway’s configuration, but the gateway should be placed in a known state (communication suspended or in maintenance mode) during the physical swap to prevent spurious alarms from propagating to the control room. Coordinate with the DCS operator before initiating the replacement.

For facilities using a Keyphasor module (such as the 3500/25) for phase reference in rotating machinery monitoring, verify that the Keyphasor signal routing through the backplane is unaffected by the RIM swap. The 3500/5/1 does not directly process Keyphasor signals, but backplane continuity must be confirmed after reseating the module. A programming cable and the System 1 configuration software should be on-site during commissioning to verify that all channel configurations are intact after the replacement.

Downtime Control During System Migration

Minimizing downtime during a 3500/5/1 replacement requires preparation that begins well before the maintenance window opens. The original program logic and rack configuration should be exported from the 3500/20 Rack Configuration Module using System 1 software and archived before any physical work begins. This configuration backup is the recovery baseline: if the replacement module requires re-initialization, the archived configuration can be reloaded without manual re-entry of channel parameters, alarm setpoints, or transducer scaling factors.

During the physical swap, the rack should be de-energized at the power supply level rather than at the individual module level to avoid backplane transients. After the 3500/5/1 is seated and the rack is re-energized, allow the module initialization sequence to complete before re-enabling communication to the upstream gateway. Monitor the rack status LEDs and the System 1 software interface for any fault indications before declaring the replacement complete.

Field continuity is maintained by keeping the 3500/92 Communication Gateway in maintenance mode until the RIM has passed its post-installation self-test. Once the gateway is returned to normal operation, verify that all monitored points are reporting correctly in the DCS historian and that no spurious alarms are active. A 30-minute observation period under normal operating conditions is recommended before closing the maintenance work order. This structured approach consistently achieves replacement windows of under four hours for a single RIM swap, with no impact to the plant’s overall vibration monitoring coverage.

Retrofit Support FAQ

Q: Is the 3500/5/1 a direct replacement for the original Bently Nevada RIM in the 3500 rack?
A: Yes. The 3500/5/1 is a direct form-fit-function replacement for the original Rack Interface Module in the 3500 Series platform. It occupies the same single rack slot, uses the same backplane connector, and preserves all existing terminal wiring assignments. No rack modification or re-wiring is required for a standard replacement.

Q: What pre-shipment testing is performed on the 3500/5/1?
A: Each unit is function-tested prior to dispatch to verify backplane communication, power interface integrity, and module self-test completion. A test report is available upon request. All units ship with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q: Do I need to reconfigure the 3500/92 Communication Gateway after replacing the RIM?
A: No. The 3500/5/1 replacement preserves the rack’s node address and communication parameters. The 3500/92 gateway does not require reconfiguration. However, it is recommended to place the gateway in maintenance mode during the physical swap to suppress transient alarms, then return it to normal operation after the RIM has completed its initialization sequence.

Q: What is the lead time and stock availability for the 3500/5/1?
A: The 3500/5/1 is maintained in regional inventory to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days. For critical applications requiring expedited shipment, contact the sales team directly to confirm current stock levels and express shipping options. All units are covered by a support terms confirmed by quotation from the date of shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/5/1
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 3500/5/1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
