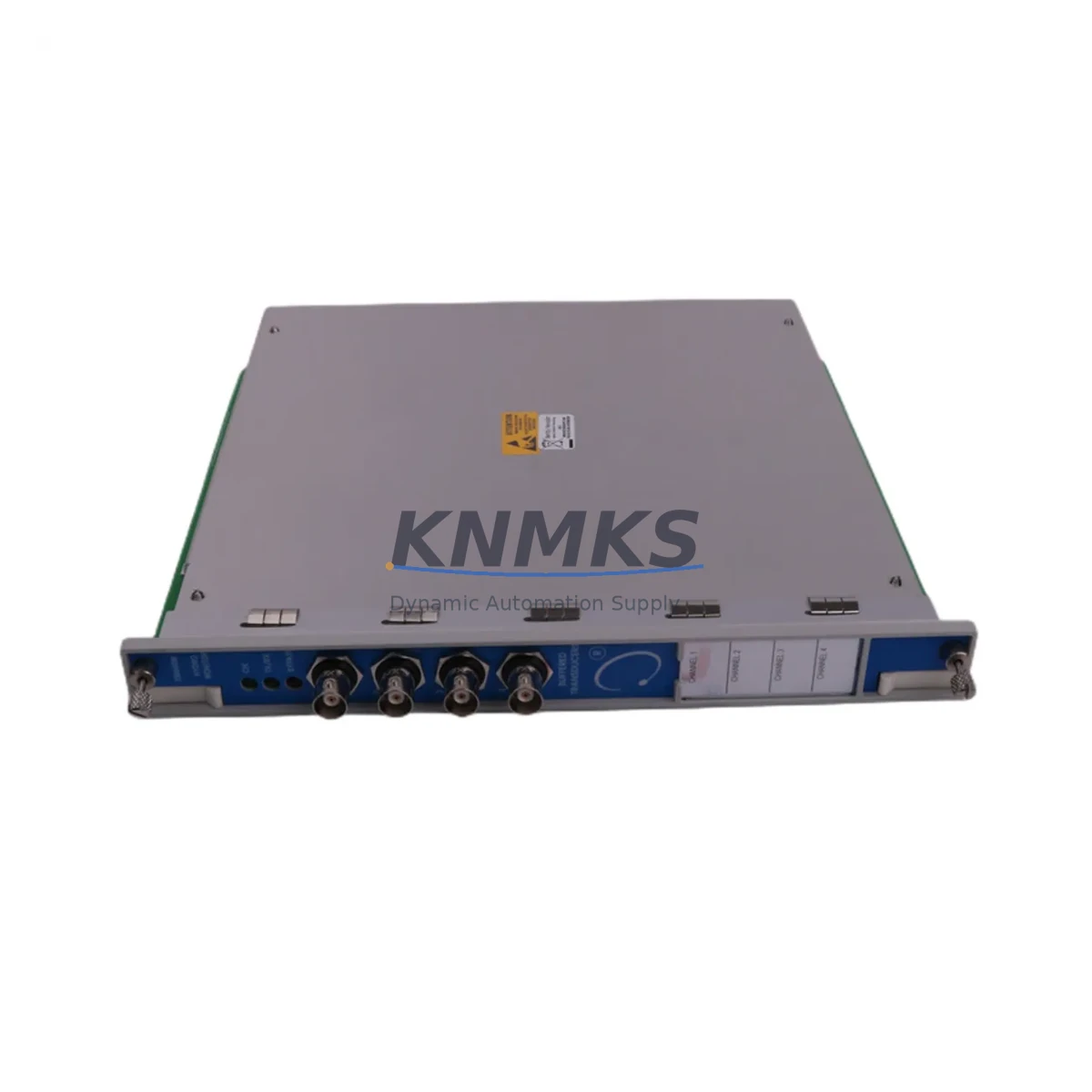

Bently Nevada 3500/46M Fail-Safe Hydro Monitor Module

Overview

Bently Nevada 3500/46M Fail-Safe Hydro Monitor Module: Fault Protection for Critical Industrial Machinery

The Bently Nevada 3500/46M is a 4-channel hydro monitor module engineered for fail-safe continuous monitoring of shaft vibration, axial position, and differential expansion in hydroelectric turbines, large rotating machinery, and critical industrial drive trains. As part of the industry-proven Bently Nevada 3500 Series machinery protection system, the 3500/46M delivers real-time signal acquisition, configurable alarm thresholds, and relay-driven trip outputs that safeguard equipment integrity under the most demanding field conditions — including high electromagnetic interference, heavy vibration, wide temperature swings, and moisture-laden environments.

In continuous production facilities — petrochemical plants, power generation stations, water treatment works, and metallurgical complexes — an unplanned machinery trip can cascade into hours of lost output and significant safety risk. The 3500/46M addresses this directly by providing redundant channel monitoring with built-in self-diagnostics. If a transducer fault, cable break, or signal anomaly is detected, the module immediately flags the condition and can drive a safe-state relay output, preventing both false trips and dangerous missed alarms. This dual-layer protection — guarding against both over-vibration events and monitoring system failures — is the defining characteristic of a true fail-safe architecture.

Signal integrity is maintained across the full operating range through the module’s high-resolution analog front end, which rejects common-mode noise and suppresses surge transients that are endemic to large motor control centers and high-power switchgear environments. When installed alongside the Bently Nevada 3500/15 Power Supply Module, the system benefits from isolated, regulated DC rails that eliminate ground loops and prevent power-line disturbances from corrupting vibration measurements. For applications requiring communication with a DCS or safety PLC, the Bently Nevada 3500/22M Transient Data Interface provides seamless data bridging over Modbus or Ethernet/IP, enabling the 3500/46M’s real-time channel data to feed directly into plant-wide safety logic.

In control cabinet installations subject to thermal stress, the 3500/46M’s wide operating temperature range and conformal-coated PCB construction ensure stable performance without derating. Paired with a Bently Nevada 3500/20 Rack Interface Module, the backplane communication remains deterministic even when adjacent high-current contactors or variable frequency drives introduce conducted emissions. For sites with stringent functional safety requirements, the 3500/46M integrates naturally into safety instrumented systems alongside Bently Nevada 3500/32 4-Channel Relay Module outputs, providing the voted trip logic needed for SIL-rated interlock circuits.

Field replacement is straightforward: the 3500/46M is hot-swappable within a powered 3500 rack, allowing maintenance teams to substitute a faulty module without shutting down adjacent monitoring channels. Each unit shipped from KNMKS stock undergoes pre-delivery functional verification — channel calibration check, relay output test, and communication handshake confirmation — so the module arrives ready for immediate rack insertion. Complementary transducer accessories, including Bently Nevada 330500 Series proximity probes and extension cables, are stocked to support complete loop commissioning without sourcing delays.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 3500/46M typically integrates several complementary modules to achieve full-spectrum fault coverage. The Bently Nevada 3500/15 Power Supply Module anchors the rack with isolated, regulated power, ensuring that voltage sags or surges on the plant supply bus do not propagate into the sensitive analog measurement circuits. Upstream surge protection — commonly implemented with DIN-rail mounted SPD devices rated for the local supply voltage — shields the entire rack from lightning-induced transients and switching surges from large motor starters.

On the signal side, the Bently Nevada 330500 Series proximity probes and their associated extension cables form the field-side sensing loop. Proper cable routing — segregated from power conductors and run in grounded conduit — is essential to preserve the microvolt-level signals that the 3500/46M processes. Where cable runs exceed recommended lengths, the Bently Nevada 3500/05 System Monitor Module provides rack-level health diagnostics, flagging any channel whose signal quality degrades below acceptable limits before a nuisance alarm or missed trip can occur.

For safety interlock integration, the relay outputs of the 3500/46M feed into the plant’s safety PLC or emergency shutdown system. In SIL-rated applications, the Bently Nevada 3500/32 4-Channel Relay Module is often added to provide voted (2oo3) trip logic, eliminating single-point-of-failure risk in the trip circuit. Communication to the DCS historian or operator workstation is handled by the Bently Nevada 3500/22M Transient Data Interface, which buffers waveform data and transmits alarm states over the plant network without interrupting the real-time protection function of the 3500/46M itself.

Critical Industrial Safety Applications

Hydroelectric Power Generation: The 3500/46M was purpose-designed for hydro turbine-generator sets, where shaft runout, guide bearing wear, and axial thrust variations must be tracked continuously. In run-of-river and pumped-storage plants, the module’s 4-channel architecture covers radial vibration at both the turbine and generator bearings simultaneously, providing the early-warning data needed to schedule bearing inspections before catastrophic failure.

Petrochemical and Refinery Rotating Equipment: Compressor trains, boiler feed pumps, and reactor agitators in petrochemical complexes operate under strict API 670 machinery protection requirements. The 3500/46M satisfies these requirements by providing continuous, uninterrupted monitoring with configurable danger thresholds that trigger automatic shutdown before seal failure or bearing seizure can escalate into a process safety event.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration and dust ingress. The conformal-coated electronics and wide temperature tolerance of the 3500/46M ensure reliable operation in these harsh environments, where a monitoring system failure could leave critical equipment unprotected during a high-load production cycle.

Water and Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water infrastructure require continuous availability. The 3500/46M’s self-diagnostic capability and hot-swap design allow maintenance teams to replace a suspect module during a scheduled maintenance window without interrupting the monitoring of adjacent pump trains — a critical advantage in facilities with limited redundancy.

Metallurgy and Steel Production: Rolling mill drives, continuous caster pinch rolls, and blast furnace blowers operate in environments with intense electromagnetic noise from large thyristor drives and induction furnaces. The 3500/46M’s EMI-hardened design maintains measurement accuracy in these conditions, providing the reliable vibration data that mill engineers need to optimize roll pass schedules and prevent unplanned drive outages.

Port and Marine Applications: Ship propulsion systems, crane hoisting drives, and port conveyor systems benefit from the 3500/46M’s ability to monitor multiple shaft positions simultaneously. In marine environments, the module’s humidity tolerance and corrosion-resistant construction support reliable long-term operation in salt-air conditions.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Bently Nevada 3500/46M?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified monitoring and relay output functions within the confirmed support period, KNMKS will provide a replacement unit or repair service at no additional cost. The confirmed support period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each 3500/46M unit?
Every 3500/46M unit dispatched from KNMKS stock undergoes a structured pre-delivery verification that includes: channel input signal calibration check across the full measurement range, relay output actuation test for both Alert and Danger thresholds, rack backplane communication handshake confirmation, and visual inspection for physical damage or connector contamination. A test record is available upon request.

Q3: Is the 3500/46M compatible with existing Bently Nevada 3500 racks and transducers?
Yes. The 3500/46M is designed for direct installation into any standard Bently Nevada 3500 Series rack and is compatible with the full range of Bently Nevada 330500 Series eddy-current proximity probes and extension cables. Configuration is performed via System 1 or Rack Configuration Software, consistent with all other 3500 Series monitor modules. If you are upgrading from an earlier 3500/46 variant, please contact our technical team to confirm firmware compatibility.

Q4: Can KNMKS support long-term supply and emergency replacement for the 3500/46M?
KNMKS maintains standing inventory of the 3500/46M and key complementary modules to support both planned maintenance programs and emergency breakdown replacements. For critical-infrastructure customers, we recommend establishing a consignment or scheduled replenishment arrangement to ensure a spare unit is always available on-site. Contact our sales team at [email protected] or +86 18359268345 to discuss supply agreements tailored to your maintenance strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/46M
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 3500/46M
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
