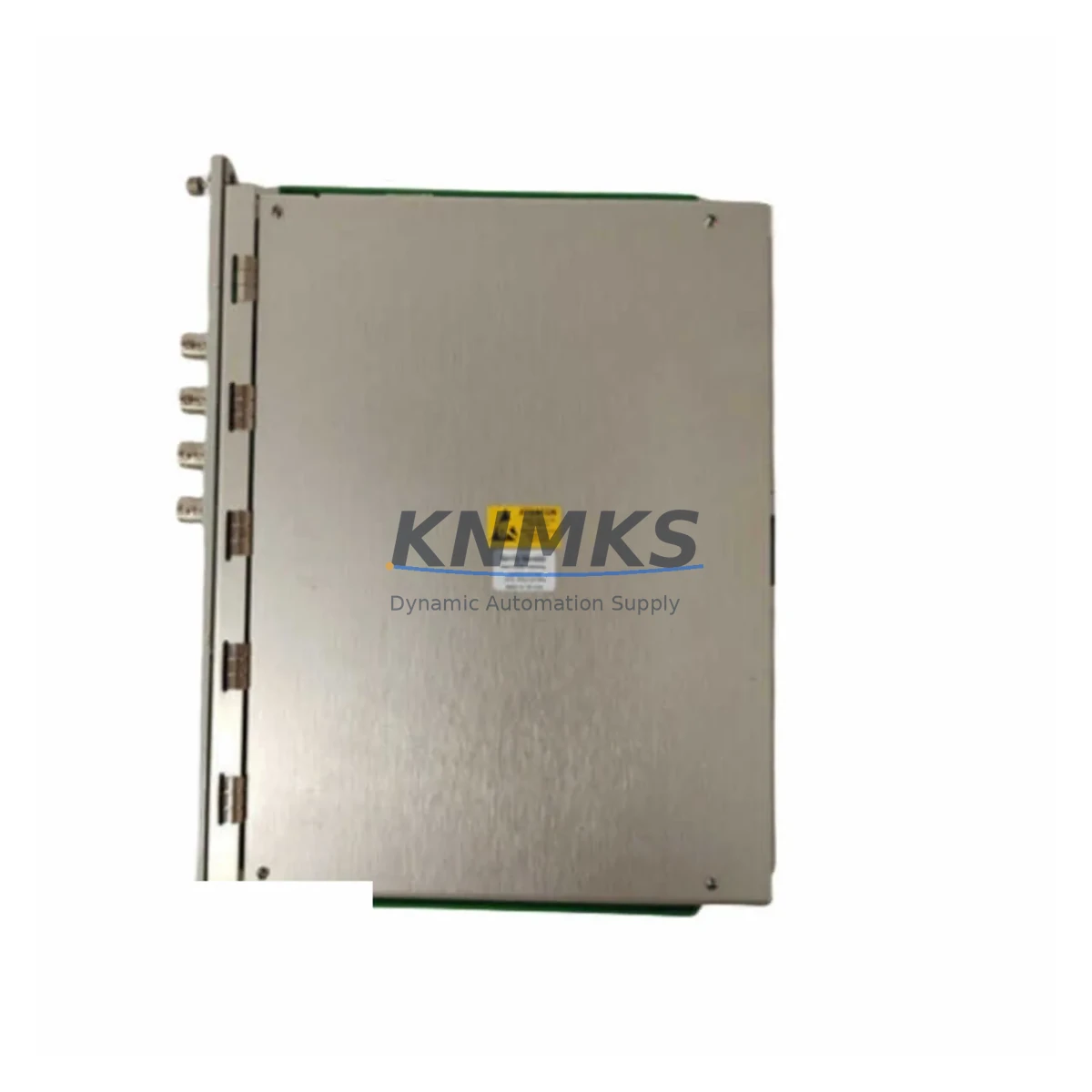

The Bently Nevada 3500/45 176449-04 is a dual-channel position monitor module designed for continuous machinery protection within the Bently Nevada 3500 Series rack-based monitoring system. As a maintenance-proven spare part, it plays a critical role in protecting rotating equipment — including turbines, compressors, pumps, and gearboxes — against axial position excursions that can lead to catastrophic mechanical failure and unplanned production shutdowns.

For maintenance engineers managing aging control infrastructure, having a verified, tested replacement of the 3500/45 176449-04 on the shelf is not optional — it is a fundamental element of any credible machinery protection strategy. When this module fails or degrades, the monitoring gap it creates exposes high-value rotating assets to undetected thrust bearing wear, rotor contact, and seal damage. Rapid substitution with a pre-tested spare eliminates that exposure and restores full protection coverage within a single maintenance window.

Procurement engineers sourcing this module should confirm that the replacement unit carries the correct firmware revision and hardware suffix (-04) to ensure backward compatibility with existing 3500 rack configurations. Mismatched hardware revisions are a common source of commissioning delays on-site. Every unit shipped from our inventory undergoes functional verification prior to dispatch, and is covered by a support terms confirmed by quotation against manufacturing defects and operational failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3500/45 176449-04 in a live machinery protection rack, a disciplined inspection of adjacent components is essential to avoid repeat failures and ensure the restored system performs to specification. Maintenance engineers should treat this replacement as an opportunity to audit the full protection loop.

Begin with the 3500/05 or 3500/15 Power Supply Module, which feeds the entire rack. A degraded power module can cause intermittent monitor faults that are misdiagnosed as sensor or monitor failures. Verify output voltage stability under load before inserting the replacement 3500/45.

Inspect the Proximitor sensor cables and junction boxes connected to the position probes. Damaged coaxial cable, corroded connectors, or incorrect gap voltage at the probe tip will produce erroneous position readings even with a new monitor module installed. Confirm probe gap voltage is within the specified linear range (typically –10 VDC ± 2 V for standard Bently Nevada probes).

Check the 3500/22M Communication Gateway Module if the rack is integrated into a DCS or SCADA system via Modbus or Ethernet. A firmware mismatch between the gateway and a newly installed monitor module can disrupt data transmission to the control room, creating a false impression of system health.

Review the relay output wiring from the 3500/45 to the machinery trip circuit. Terminal block connections should be torqued to specification and inspected for oxidation, particularly in humid or chemically aggressive environments. Loose relay wiring is a leading cause of spurious trips following module replacement.

If the protected machine is a steam turbine or large compressor, also verify the condition of the 3500/42M Velocity Monitor or 3500/40M Proximitor Monitor modules installed in adjacent rack slots. Position and vibration monitoring are interdependent in most machinery protection philosophies; a degraded velocity or proximity monitor in the same rack undermines the value of a new position monitor.

Finally, confirm that the 3500 Rack Backplane shows no signs of connector wear, corrosion, or mechanical damage at the slot occupied by the 3500/45. Backplane connector damage is rare but can cause persistent communication faults that are difficult to diagnose without physical inspection.

Site Replacement Workflow

The 3500/45 176449-04 is a hot-swap-capable module within the 3500 rack architecture, but site replacement should follow a controlled procedure to avoid inadvertent machinery trips or data loss.

Step 1 — Pre-replacement verification: Confirm the replacement module hardware suffix (-04) matches the installed unit. Document the current alarm and danger setpoints from the existing module or from the System 1 / Rack Configuration Software backup before removal.

Step 2 — Bypass or inhibit trip outputs: Coordinate with the control room to inhibit the relay trip outputs associated with the 3500/45 channels being replaced. This prevents a spurious machinery trip during the swap. Follow site-specific Management of Change (MOC) procedures.

Step 3 — Module extraction and insertion: Power down the rack slot if required by site procedure, or extract the module with the rack energized if hot-swap is permitted. Insert the replacement 3500/45 176449-04 firmly until the front panel latch engages.

Step 4 — Configuration restore: Using Bently Nevada Rack Configuration Software, reload the saved configuration to the new module. Verify that all channel parameters, setpoints, and I/O assignments match the pre-replacement baseline.

Step 5 — Functional verification: Confirm live probe gap voltages are within range, analog outputs are tracking correctly, and relay outputs respond to simulated alarm and danger conditions before releasing the trip inhibit.

Step 6 — Documentation: Record the replacement in the site maintenance management system (CMMS), including the new module serial number, firmware revision, and post-replacement test results. Update the spare parts inventory to trigger replenishment of the consumed unit.

This workflow applies equally to planned annual overhauls and emergency unplanned replacements. Having a pre-tested 3500/45 176449-04 in local inventory reduces the critical-path duration of this procedure from days (sourcing lead time) to hours (physical replacement and verification).

Spare Parts Support FAQ

Q1: Is the 3500/45 176449-04 compatible with all Bently Nevada 3500 Series racks?
The 3500/45 176449-04 is designed for use in standard Bently Nevada 3500 Series 19-inch racks. Compatibility depends on rack firmware version and the specific rack configuration. The -04 hardware suffix indicates a specific hardware revision; confirm that your existing rack configuration software supports this revision before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What does the support terms confirmed by quotation cover, and what is the claims process?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or unauthorized modification. To initiate a support terms claim, contact [email protected] with the order reference, module serial number, and a description of the failure. Replacement or repair will be arranged promptly.

Q3: How is the module tested before shipment?
Each 3500/45 176449-04 unit undergoes functional verification prior to dispatch. Testing confirms power-up behavior, channel communication, and output signal integrity. Units that do not pass verification are not shipped. A test report can be provided upon request for critical applications.

Q4: Can you support long-term or repeat supply of this module for ongoing maintenance programs?
Yes. We maintain inventory of the 3500/45 176449-04 and related 3500 Series modules to support annual maintenance programs, multi-site procurement frameworks, and emergency replenishment. Customers managing large fleets of Bently Nevada-protected machinery are encouraged to contact us to discuss blanket order arrangements and priority allocation during high-demand periods.
