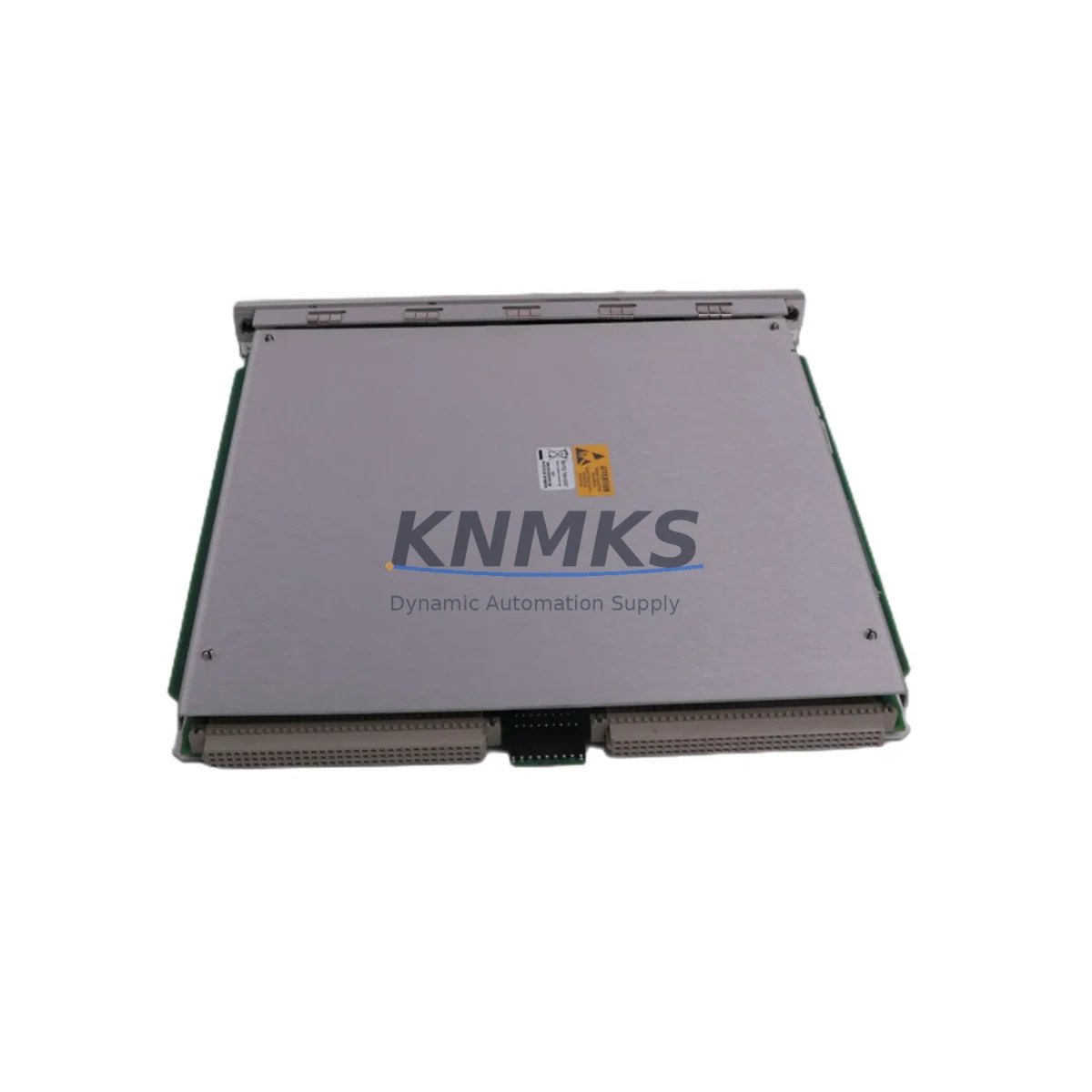

Bently Nevada 3500/44M 176449-03 Fail-Safe Vibration Monitor

Overview

Bently Nevada 3500/44M 176449-03 Fail-Safe Vibration Monitor: Mission-Critical Machinery Protection for Harsh Industrial Environments

The Bently Nevada 3500/44M 176449-03 is a high-integrity vibration monitor module engineered for continuous, fail-safe operation within the Bently Nevada 3500 Series Machinery Protection System. Designed to meet the demanding requirements of petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines, this module delivers uncompromising signal fidelity and relay-rated output reliability — even under severe electromagnetic interference, voltage fluctuation, mechanical vibration, high ambient temperature, and dust or moisture ingress.

In critical industrial environments where an unplanned shutdown can cost hundreds of thousands of dollars per hour, the 3500/44M 176449-03 serves as the last line of defense between normal operation and catastrophic machinery failure. Its architecture is built around fail-safe relay logic, ensuring that any internal fault, power interruption, or signal loss drives the output to a known safe state — protecting rotating equipment, control loops, and personnel simultaneously.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 3500/44M 176449-03 within a protection-grade control cabinet demands a holistic approach to signal integrity, power quality, and communication reliability. In high-EMI environments — such as those adjacent to variable frequency drives, large motor starters, or high-voltage switchgear — the module’s built-in surge suppression works in concert with the Bently Nevada 3500/15 Power Supply Module to maintain stable backplane voltage and prevent transient-induced false trips or missed alarms.

For cabinets handling multiple rotating assets simultaneously, the 3500/44M 176449-03 is typically installed alongside the Bently Nevada 3500/40M Proximitor / Seismic Monitor and the 3500/50 Tachometer Module, forming a complete per-machine protection suite covering radial vibration, axial position, and speed. This multi-module architecture ensures that no single point of failure can disable the entire protection system — a critical requirement in SIL-rated safety loops.

Communication continuity is maintained through the Bently Nevada 3500/92 Communication Gateway Module, which bridges the 3500 rack to Modbus TCP, OPC, or proprietary DCS protocols — enabling real-time alarm annunciation at the control room level without introducing latency into the protection relay chain. In facilities where redundant communication paths are required, dual-gateway configurations are supported without modification to the 3500/44M module itself.

Cabinet thermal management is equally important. In high-ambient or poorly ventilated enclosures, the 3500/44M 176449-03 operates reliably up to 60°C, but best practice pairs it with the Bently Nevada 3500/20 Rack Interface Module — which provides system-level health monitoring including internal temperature, power rail status, and module communication watchdog — to detect cabinet overheating before it affects measurement accuracy or relay response time.

For facilities requiring periodic calibration verification without process interruption, the module integrates seamlessly with the System 1 Condition Monitoring Software, enabling remote setpoint adjustment, alarm history review, and predictive trend analysis — all without pulling the module from the rack or interrupting the protection relay circuit.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous catalytic cracking units, compressor trains, and pump stations, the 3500/44M 176449-03 monitors bearing vibration and structural acceleration 24/7. Its fail-safe relay output is wired directly into the Emergency Shutdown System (ESD), ensuring that a vibration exceedance at a critical compressor triggers an immediate, controlled shutdown — preventing seal failure, fire, or explosion.

Power Generation: Steam turbine and gas turbine protection systems rely on the 3500 Series for shaft vibration monitoring. The 3500/44M 176449-03 provides the velocity and acceleration channels required to detect rotor imbalance, blade loss, or bearing degradation before they escalate to catastrophic failure — protecting assets worth tens of millions of dollars and ensuring grid stability.

Mining & Mineral Processing: In ball mills, SAG mills, and conveyor drive systems operating in high-dust, high-vibration environments, the module’s robust EMI resistance and wide temperature tolerance make it the preferred choice for machinery protection. Its surge-protected inputs withstand the electrical noise generated by large grinding mill motors and nearby blasting operations.

Water & Wastewater Treatment: Pump stations and blower systems in water treatment facilities operate continuously with minimal maintenance windows. The 3500/44M 176449-03 enables condition-based maintenance by providing early warning of bearing wear or impeller imbalance — reducing unplanned downtime and extending mean time between failures (MTBF) for critical pumping infrastructure.

Metallurgy & Steel: Rolling mills, continuous casters, and blast furnace blowers operate under extreme thermal and mechanical stress. The module’s ability to maintain measurement accuracy across wide temperature ranges and in the presence of strong magnetic fields from induction furnaces makes it indispensable for protecting drive-train components in these environments.

Port & Marine: Shipboard propulsion systems, crane drives, and port terminal conveyor systems benefit from the 3500/44M’s compact rack-mount form factor and its compatibility with marine-grade control cabinets. Its fail-safe relay architecture meets the redundancy requirements of classification society rules for critical machinery monitoring.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 3500/44M 176449-03?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional deviations from published specifications under normal operating conditions. If the module fails to perform its intended vibration monitoring and relay output function within the confirmed support period, KNMKS will provide a replacement unit or full repair at no additional cost. Support requests are processed within 5 business days of receipt of the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 3500/44M 176449-03 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation, relay output continuity check, channel input response verification, and visual inspection for physical damage or connector integrity. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is this module compatible with existing 3500 Series racks and software configurations?
Yes. The 3500/44M 176449-03 is a direct form-fit-function replacement for earlier 3500/44M variants within any standard 3500 Series rack. It is compatible with Bently Nevada’s System 1 software for configuration, calibration, and data logging. No rack modification or firmware upgrade is required for standard replacement installations. Confirm your rack revision and software version with our technical team if upgrading from a legacy configuration.

Q4: Can KNMKS guarantee long-term supply and support for this module?
KNMKS maintains dedicated inventory of the 3500/44M 176449-03 and its associated 3500 Series modules to support long-term MRO (Maintenance, Repair & Operations) programs. We supply to facilities with planned maintenance cycles, emergency breakdown requirements, and capital project schedules. For high-volume or blanket-order requirements, contact our sales team to discuss reserved stock arrangements and priority dispatch agreements.
