Bently Nevada 3500/42M 176449-02 Maintenance-Proven Spare Part for Factory Uptime

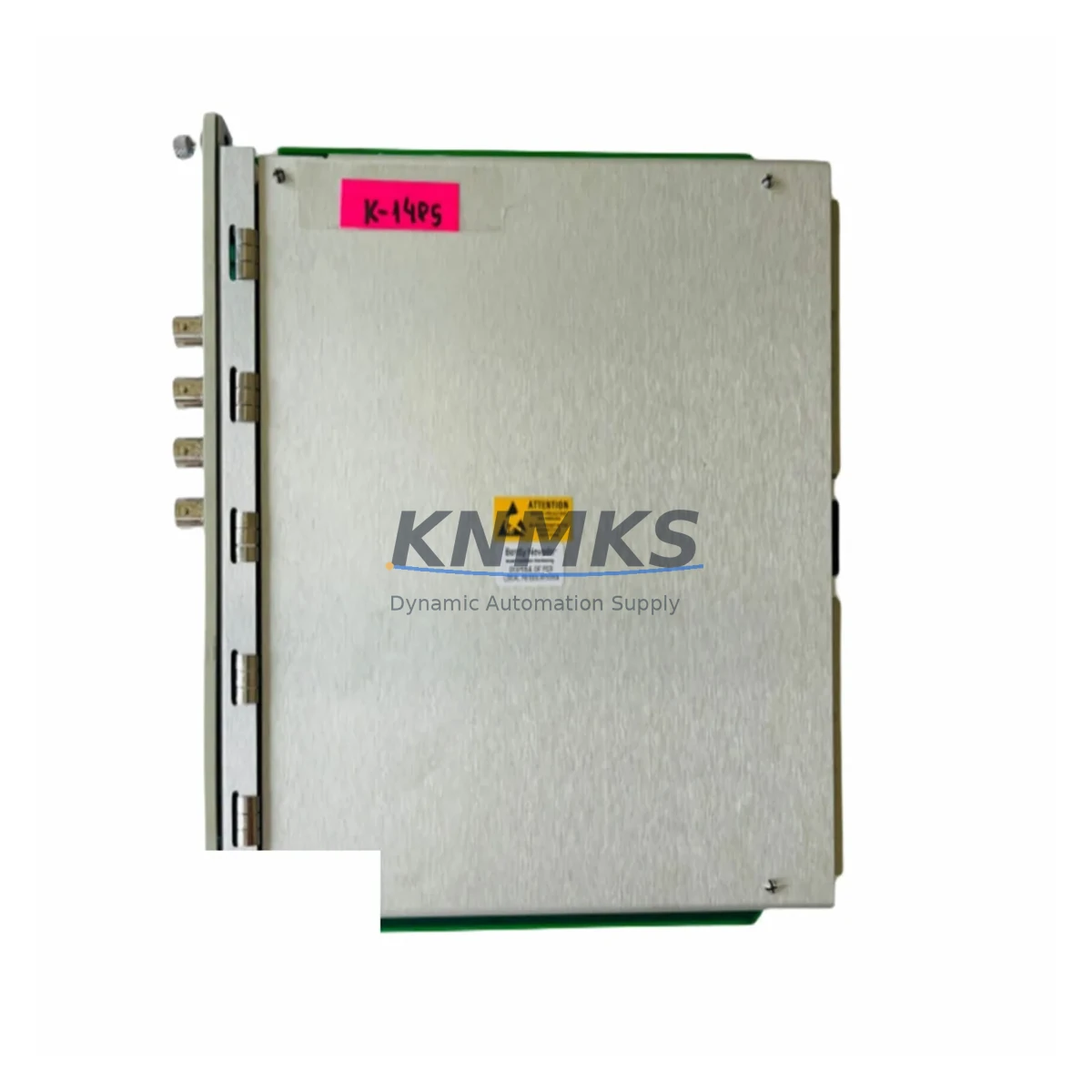

The Bently Nevada 3500/42M 176449-02 is a dual-channel proximity and seismic monitor module designed for continuous machinery protection within the Bently Nevada 3500 Series rack-based monitoring system. Widely deployed in turbines, compressors, pumps, and rotating equipment across oil & gas, power generation, petrochemical, and heavy manufacturing facilities, this module is a critical component in any plant’s condition monitoring infrastructure. Sourced as an original spare, the 3500/42M 176449-02 is fully tested prior to shipment and backed by a support terms confirmed by quotation, ensuring your maintenance team can restore system integrity with confidence and minimal downtime.

For maintenance engineers managing aging 3500 Series racks, the 3500/42M 176449-02 represents one of the most frequently replaced modules in the system. Its dual-channel architecture monitors both radial vibration (via proximity probes) and seismic/velocity inputs simultaneously, making it indispensable for API 670-compliant machinery protection schemes. When this module fails or degrades, the entire protection channel goes offline — triggering alarm suppression, loss of trip logic, and potential regulatory non-compliance. Stocking a verified spare is not optional; it is a fundamental element of any responsible maintenance strategy for rotating equipment.

Procurement engineers sourcing replacement 3500/42M 176449-02 units should verify that the module’s firmware revision and hardware configuration match the existing rack’s I/O configuration and software version. Bently Nevada’s System 1 or 3500 Rack Configuration Software must be used to confirm channel assignments, full-scale ranges, and alarm setpoints before the module is placed into service. Failure to validate configuration compatibility is one of the most common causes of post-replacement commissioning delays on the plant floor.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3500/42M 176449-02 in the field, a thorough inspection of the surrounding rack components is essential to prevent repeat failures and ensure the protection system is fully restored. Begin with the 3500/20 Power Supply module — verify output voltage stability and check for capacitor aging, as a degraded power supply is a leading cause of monitor module faults in long-running racks. If the rack has been in service for more than five years without a power supply audit, replacement should be considered proactively.

Next, inspect the proximity probe and extension cable assemblies (typically Bently Nevada 3300 XL or 7200 Series probes with matched extension cables and drivers). The 3500/42M 176449-02 is highly sensitive to probe system integrity — a worn or improperly gapped probe will produce erratic readings even with a new monitor module installed. Verify gap voltage, cable continuity, and driver output before declaring the replacement successful.

The 3500/32 4-Channel Relay Module should also be inspected during the same maintenance window. Relay contacts can degrade over time, particularly in high-cycle alarm environments, and a faulty relay module can mask the restored protection capability of the new 3500/42M. Similarly, review the 3500/22M Transient Data Interface if the rack is connected to a System 1 condition monitoring platform — firmware compatibility between the TDI and the replacement monitor module must be confirmed.

For facilities running mixed-vintage 3500 racks, the 3500/05 System Display and Alarm Module provides a useful front-panel diagnostic reference during commissioning. Maintenance teams should also audit terminal block wiring and I/O connector integrity at the rear of the rack — corroded or loose terminations are a frequent source of nuisance alarms following module replacement. Where signal isolation is required between the 3500 rack and the plant DCS, verify that any signal isolators or barriers in the loop are rated for the probe driver output range and have not drifted out of calibration.

Procurement teams managing multi-site operations should consider maintaining at least one 3500/42M 176449-02 unit in regional spare parts inventory. Given the module’s role in API 670 machinery protection, lead times from OEM channels can extend to 8–16 weeks during peak demand periods. Sourcing a pre-tested, warranted spare from a reliable industrial parts supplier significantly reduces exposure to extended unplanned downtime.

Site Replacement Workflow

Step 1 — Isolation & Safety: Coordinate with the control room to suppress alarms and bypass trip logic for the affected channels before removing the module. Follow site-specific LOTO (Lockout/Tagout) procedures for the rack enclosure.

Step 2 — Configuration Backup: Use Bently Nevada’s 3500 Rack Configuration Software to export the current rack configuration file before removing the faulty 3500/42M 176449-02. This ensures all channel parameters, full-scale ranges, and alarm setpoints can be restored exactly.

Step 3 — Module Removal: Power down the rack if required by site procedure, or hot-swap if the rack supports it. Remove the module by releasing the front-panel locking mechanism and sliding it out of the rack slot. Label and retain the faulty module for failure analysis.

Step 4 — Replacement Installation: Insert the replacement 3500/42M 176449-02 into the correct slot. Ensure the module is fully seated on the backplane connector. Restore power and verify the module’s front-panel LEDs indicate normal operation.

Step 5 — Configuration Restore & Verification: Load the saved configuration file to the replacement module via the rack configuration software. Verify all channel assignments, alarm setpoints, and full-scale ranges match the original configuration. Confirm probe gap voltages are within specification.

Step 6 — Functional Test & Handover: Restore alarm and trip logic. Perform a channel functional test by simulating vibration input or using the rack’s built-in self-test function. Document the replacement in the plant maintenance management system (CMMS) and update the spare parts inventory record.

Spare Parts Support FAQ

Q1: Is the 3500/42M 176449-02 compatible with all 3500 Series rack configurations?
The 3500/42M 176449-02 is designed for use within the Bently Nevada 3500 Series rack system. Compatibility depends on rack slot assignment, firmware revision, and the configuration loaded via 3500 Rack Configuration Software. Always verify the hardware revision and firmware version against your existing rack documentation before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What testing is performed before the unit is shipped?
Each 3500/42M 176449-02 unit undergoes functional testing prior to dispatch, including power-on verification, channel output checks, and backplane communication validation. Units are shipped with a test report and are covered by a support terms confirmed by quotation from the date of shipment. Express shipping via DHL or FedEx is available for emergency maintenance situations.

Q3: Can this module replace older or discontinued 3500/42 variants?
The 3500/42M is the current-generation replacement for earlier 3500/42 proximity monitor modules. In most cases, the 176449-02 revision is a direct functional replacement, but configuration migration may be required. We recommend consulting the Bently Nevada 3500/42M product manual and your rack configuration file to confirm slot and parameter compatibility before proceeding with the swap.

Q4: What is the long-term supply availability for this part?
We maintain ongoing inventory of the 3500/42M 176449-02 and can support both single-unit emergency orders and bulk procurement for planned maintenance shutdowns or multi-site spare parts standardization programs. For facilities managing end-of-life 3500 Series racks, we recommend establishing a standing spare parts agreement to ensure supply continuity without dependence on OEM lead times.
