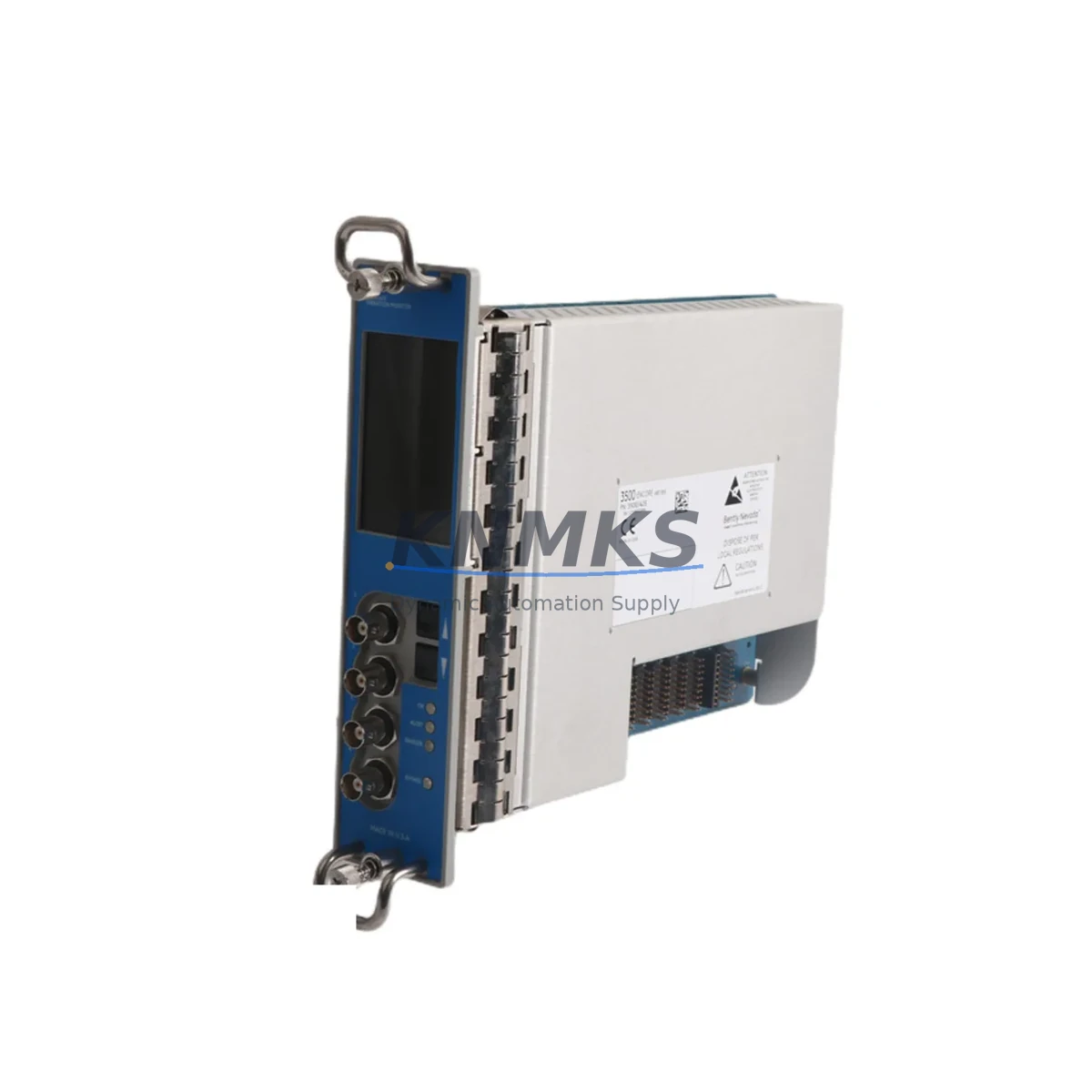

Bently Nevada 3500/42E Fail-Safe Vibration Monitor

Overview

Bently Nevada 3500/42E Fail-Safe Vibration Monitor: Fault Protection and Critical Industrial Reliability

The Bently Nevada 3500/42E is a dual-channel vibration monitor module engineered for fail-safe operation in the most demanding industrial control environments. As a core component of the Bently Nevada 3500 Series Machinery Protection System, the 3500/42E delivers continuous, real-time vibration monitoring with safety-grade signal integrity — protecting rotating machinery, critical drive trains, and high-value assets from unplanned shutdown, mechanical failure, and catastrophic process interruption.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical complexes, port terminals, and marine propulsion systems — vibration anomalies are among the leading causes of unplanned downtime. The 3500/42E addresses this risk directly by providing precision dual-channel measurement, configurable alert and danger setpoints, and deterministic relay output that integrates seamlessly into safety instrumented systems (SIS) and emergency shutdown (ESD) circuits.

Designed to operate reliably in high electromagnetic interference (EMI) environments, dusty and humid field cabinets, high-temperature enclosures, and high-vibration mechanical rooms, the 3500/42E maintains signal accuracy and relay response even under adverse conditions. Its robust hardware architecture minimizes signal drift, suppresses surge and transient interference, and ensures that control loop integrity is preserved across the full operating lifecycle.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 3500/42E does not operate in isolation — its full protective value is realized when deployed within a coordinated control cabinet architecture. In a typical machinery protection panel, the 3500/42E mounts within a Bently Nevada 3500/05 Rack Interface Module chassis, which provides the backplane communication and system-level configuration interface. Power is supplied by the Bently Nevada 3500/15 Power Supply Module, which delivers regulated, isolated DC power to all rack-mounted monitors, ensuring that power fluctuations and surge events on the plant supply bus do not propagate into the measurement and relay circuits.

For facilities requiring integrated keyphasor reference signals — essential for phase-referenced vibration analysis and rotor dynamic diagnostics — the Bently Nevada 3500/25 Keyphasor Module provides the synchronization reference that enables the 3500/42E to perform vector-based measurements with high accuracy. In high-criticality applications such as compressor trains or steam turbine protection systems, the Bently Nevada 3500/32 4-Channel Relay Module extends the relay output capacity of the protection rack, enabling complex voting logic (2oo3, 1oo2) required by IEC 61511 safety instrumented function (SIF) designs.

Where process data must be transmitted to a DCS or SCADA platform, the Bently Nevada 3500/92 Communication Gateway Module bridges the 3500 rack to Modbus, Profibus, or OPC-compatible supervisory systems — ensuring that vibration data, alarm states, and relay status are available for operator visualization and historian logging without introducing latency into the protection relay path. For installations in high-EMI environments such as variable frequency drive (VFD) rooms or high-power switchgear panels, supplementary surge protection devices on the signal wiring and proper cabinet grounding practices are strongly recommended to preserve the signal integrity that the 3500/42E is designed to deliver.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units — crude distillation, catalytic cracking, compressor stations — the 3500/42E monitors shaft vibration on critical rotating equipment. Its fail-safe relay output integrates directly into the emergency shutdown system (ESD), triggering controlled machine trip before bearing failure or seal damage can escalate to a process safety event or fire hazard.

Power Generation: Steam turbines, gas turbines, and large generator sets demand sub-millisecond relay response to vibration exceedances. The 3500/42E provides the deterministic protection response required by turbine OEM specifications and plant safety cases, reducing the risk of catastrophic rotor failure and extended forced outage.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drives, and slurry pumps operate in high-dust, high-vibration, and high-humidity environments. The 3500/42E’s robust signal conditioning and sealed module design maintain reliable operation in these harsh conditions, protecting high-replacement-cost drive components and preventing unplanned production stoppages.

Water and Wastewater Treatment: Pump stations and blower systems in water infrastructure require continuous availability. The 3500/42E enables predictive maintenance by providing early warning of bearing degradation, impeller imbalance, and cavitation-induced vibration — allowing maintenance teams to schedule intervention during planned outages rather than responding to emergency failures.

Metallurgy and Steel Production: Rolling mills, continuous casters, and induction furnace drives operate under extreme thermal and mechanical stress. The 3500/42E’s high-temperature tolerance and EMI immunity make it suitable for installation in the electrically noisy, thermally challenging control rooms adjacent to these processes.

Port, Marine, and Offshore: Propulsion systems, cargo handling cranes, and offshore platform compressors require vibration protection that remains reliable under vessel motion, salt-air corrosion risk, and variable load cycles. The 3500/42E’s proven field reliability and global spare parts availability make it a preferred choice for marine and offshore machinery protection applications.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Bently Nevada 3500/42E?
All 3500/42E units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions. Support requests are supported with replacement or repair, and our technical team provides application guidance throughout the confirmed support period.

Q2: What outgoing inspection and testing is performed before shipment?
Every 3500/42E unit undergoes a full functional test prior to dispatch, including relay output verification, channel signal response check, and visual inspection for physical integrity. Units are packaged in anti-static, shock-protected packaging to ensure they arrive in field-ready condition.

Q3: Is the 3500/42E compatible with existing Bently Nevada 3500 Series racks and probes?
Yes. The 3500/42E is designed for direct installation into standard Bently Nevada 3500 Series racks and is compatible with Bently Nevada Proximitor sensors and eddy-current probe systems. Configuration is performed via the 3500 Rack Configuration Software. If you require compatibility confirmation for a specific rack revision or probe type, contact our technical team with your system details.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains stock of the 3500/42E and related 3500 Series modules to support both planned maintenance programs and emergency replacement scenarios. We serve industrial customers globally with fast dispatch capability. For critical spares programs or blanket order arrangements, contact our sales team to discuss availability, lead times, and volume pricing.

—
