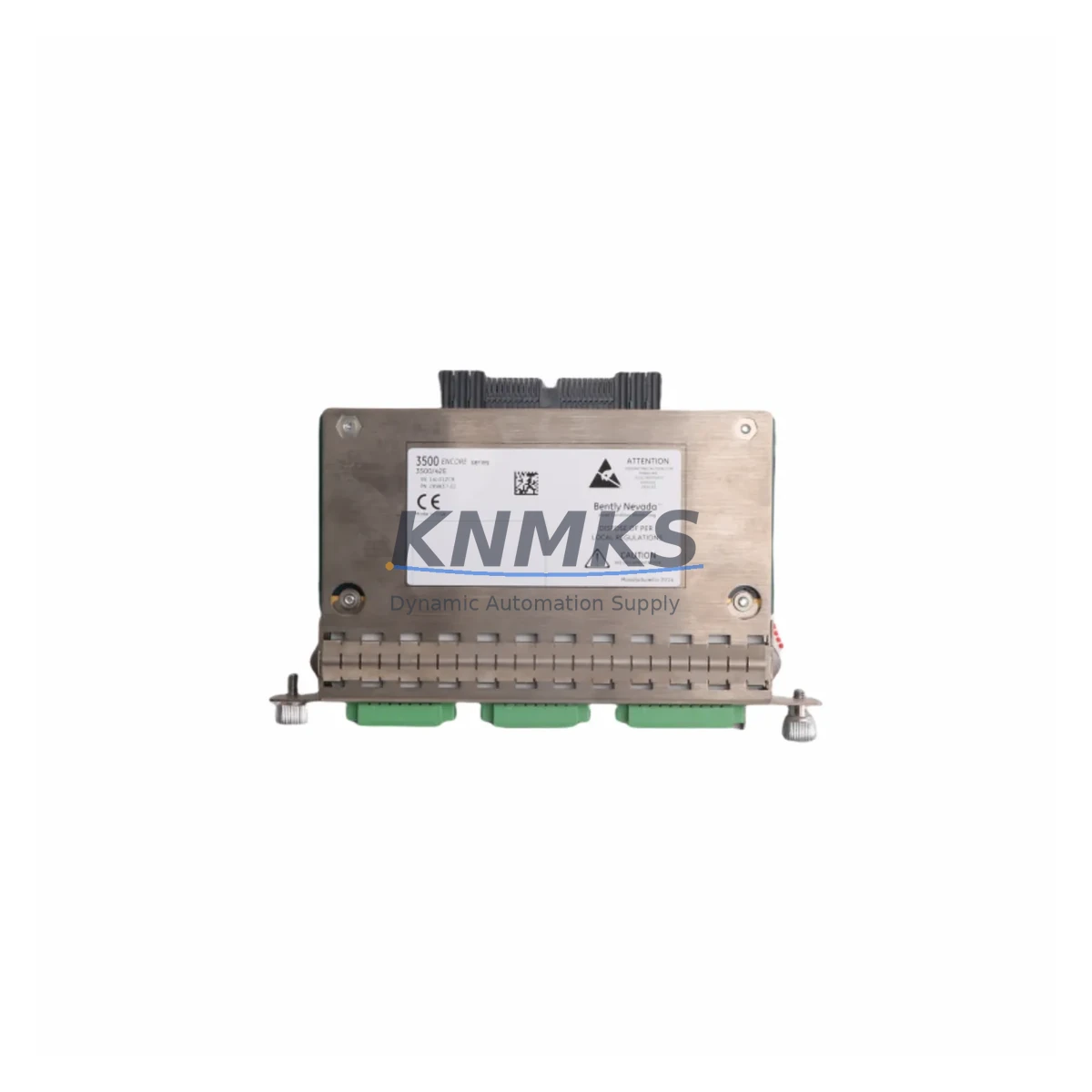

Bently Nevada 3500/42E 289837-01 Migration-Ready Vibration Monitor

Overview

Bently Nevada 3500/42E 289837-01 Migration-Ready Vibration Monitor for Legacy Control Systems

The Bently Nevada 3500/42E 289837-01 is a dual-channel Proximitor®/Seismic Monitor designed for continuous vibration and position measurement in rotating machinery protection systems. As a direct slot-compatible replacement within the Bently Nevada 3500 Series rack architecture, this module is a critical component for facilities managing end-of-life turbine protection infrastructure, legacy DCS migration projects, and unplanned outages requiring fast spare availability.

This unit supports both proximity probe (eddy-current) and seismic (velocity/accelerometer) input types, making it applicable across a wide range of rotating equipment — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — where continuous shaft vibration, axial position, and casing vibration monitoring are mandatory under API 670 standards.

For engineering teams executing a phased migration from legacy Bently Nevada 3300 or early 3500 Series racks to current-generation 3500 architecture, the 3500/42E 289837-01 provides a validated upgrade path without requiring full rack replacement. The module retains backward-compatible transducer wiring conventions, reducing rewiring scope during scheduled outages. Before installation, engineers should confirm power supply capacity on the Bently Nevada 3500/15 Power Supply or 3500/15E variant installed in the target rack, as dual-channel monitor modules carry a higher current draw than single-channel predecessors.

Rack slot addressing must be verified against the existing 3500/20 Rack Interface Module (RIM) configuration. The RIM governs communication between the monitor modules and the host DCS or safety system — typically a Honeywell Experion PKS, ABB System 800xA, or Emerson Ovation platform via Modbus TCP or proprietary Bently Nevada protocol. Any change in slot assignment requires a corresponding update to the rack configuration file using System 1 Evolution or Rack Configuration Software (RCS), and the updated configuration must be downloaded and verified before the rack is returned to service.

Transducer compatibility is a key pre-installation checkpoint. The 3500/42E 289837-01 is calibrated for use with Bently Nevada 3300 XL 8mm or 3300 XL 11mm proximity probe systems. If the existing field installation uses older 7200 Series probes or third-party eddy-current transducers, gap voltage and sensitivity (mV/mil or mV/µm) must be re-verified and the module’s internal configuration adjusted accordingly. Failure to match transducer sensitivity will result in incorrect vibration amplitude readings and potential spurious trips.

For facilities where HMI graphics reference specific channel tags from the legacy monitor, the migration plan should include a tag mapping review. Operators using Bently Nevada System 1 condition monitoring software will need to update asset hierarchy and point configurations to reflect the new module’s channel assignments. This step is frequently underestimated in outage planning and can extend commissioning time if deferred.

All units supplied are pre-shipment tested against OEM functional specifications, covering channel-to-channel isolation, OK relay output, alert/danger relay logic, and communication handshake with the RIM. Each module ships with a support terms confirmed by quotation and full traceability documentation, supporting both planned maintenance windows and emergency replacement scenarios.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3500/42E 289837-01 into an operating turbine protection rack requires a structured pre-outage checklist. Begin with a full rack audit: document every occupied slot, the firmware revision of the 3500/20 Rack Interface Module, and the current configuration file version stored in System 1 Evolution. This baseline prevents configuration drift when the new monitor module is introduced.

Power budget verification is non-negotiable. The 3500/15E Power Supply in a fully populated 3500 rack may be operating near its rated output. Adding or swapping a dual-channel monitor module changes the load profile. Pull the rack’s power consumption log from System 1 or measure directly at the power supply terminals before the outage window begins.

Wiring continuity from the junction box to the monitor’s terminal block must be confirmed. If the existing cable was routed for a 3300 Series monitor with a different terminal pinout, a wiring adapter or re-termination at the I/O terminal block will be required. Label all conductors before disconnection — this is especially critical in multi-machine installations where probe cables from adjacent equipment share the same cable tray.

For facilities also upgrading their condition monitoring platform, the 3500/42E 289837-01 integrates directly with Bently Nevada System 1 Evolution software. If the site is simultaneously migrating from an older System 1 version, ensure the software license covers the new module type and that the asset hierarchy is updated before the first live data acquisition cycle. HMI screens on the control room operator station — whether running on a Honeywell Experion or Emerson DeltaV node — will need tag updates to reflect the new channel source addresses.

For I/O-intensive installations where the 3500 rack feeds both the safety system and the condition monitoring historian, verify that the 3500/32 4-Channel Relay Module trip setpoints are correctly mapped to the new monitor’s alert and danger relay outputs. Mismatched relay logic is a common commissioning error that can cause nuisance trips or, worse, fail-to-trip conditions during the post-installation functional test.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/42E 289837-01 swap requires pre-staging all replacement components before the maintenance window opens. Have the replacement module, updated configuration file, and a calibrated laptop with RCS/System 1 software on-site and verified operational before the rack is de-energized.

Where process conditions allow, perform a hot-standby configuration review: export the current rack configuration file, apply the new module’s channel parameters in a offline simulation, and validate the logic before the physical swap. This approach compresses on-site commissioning time to under two hours for experienced technicians.

Protect the existing program logic by archiving the last known-good configuration file with a timestamped backup before any changes are made. If the rack communicates with a Honeywell Safety Manager or Triconex safety system, coordinate the bypass authorization procedure with the safety system engineer before isolating the monitor channel — bypassing a vibration channel without authorization can trigger a process shutdown or violate the site’s functional safety management plan.

Post-installation, the functional acceptance test should cover: OK relay state verification, simulated vibration input at alert and danger thresholds, communication confirmation with the RIM, and a live data comparison against an adjacent channel or a portable vibration analyzer. Document all test results in the site’s maintenance management system (CMMS) before releasing the unit to service. This record supports the support terms confirmed by quotation claim process if a field failure occurs within the coverage period.

Retrofit Support FAQ

Q1: Is the 3500/42E 289837-01 a direct drop-in replacement for earlier 3500/42 monitor variants?
The 3500/42E is slot-compatible with the standard 3500 rack and shares the same terminal block pinout as most 3500/42 variants. However, firmware and configuration files are not interchangeable. A new configuration must be created or adapted in RCS and downloaded to the rack after installation. Confirm the exact variant being replaced before ordering to ensure transducer sensitivity and relay logic settings are correctly transferred.

Q2: What pre-shipment testing is performed on each unit?
Every 3500/42E 289837-01 supplied undergoes functional testing covering dual-channel input verification, OK relay output state, alert and danger relay actuation at defined thresholds, and communication handshake with a reference 3500/20 RIM. Test records are available upon request and accompany the unit’s traceability documentation.

Q3: Can this module be used with third-party proximity probes not from Bently Nevada?
The module can accept signals from third-party eddy-current probes, but sensitivity (mV/mil or mV/µm), gap voltage range, and cable length must be verified against the module’s input specifications. Mismatched sensitivity will produce incorrect amplitude readings. It is strongly recommended to perform a bench calibration check with the actual probe system before field installation.

Q4: What is the support terms coverage and how is a claim initiated?
All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact [email protected] with the order reference, unit serial number, and a description of the failure mode. Replacement or repair will be coordinated within the confirmed support period without additional charge for the module itself.
