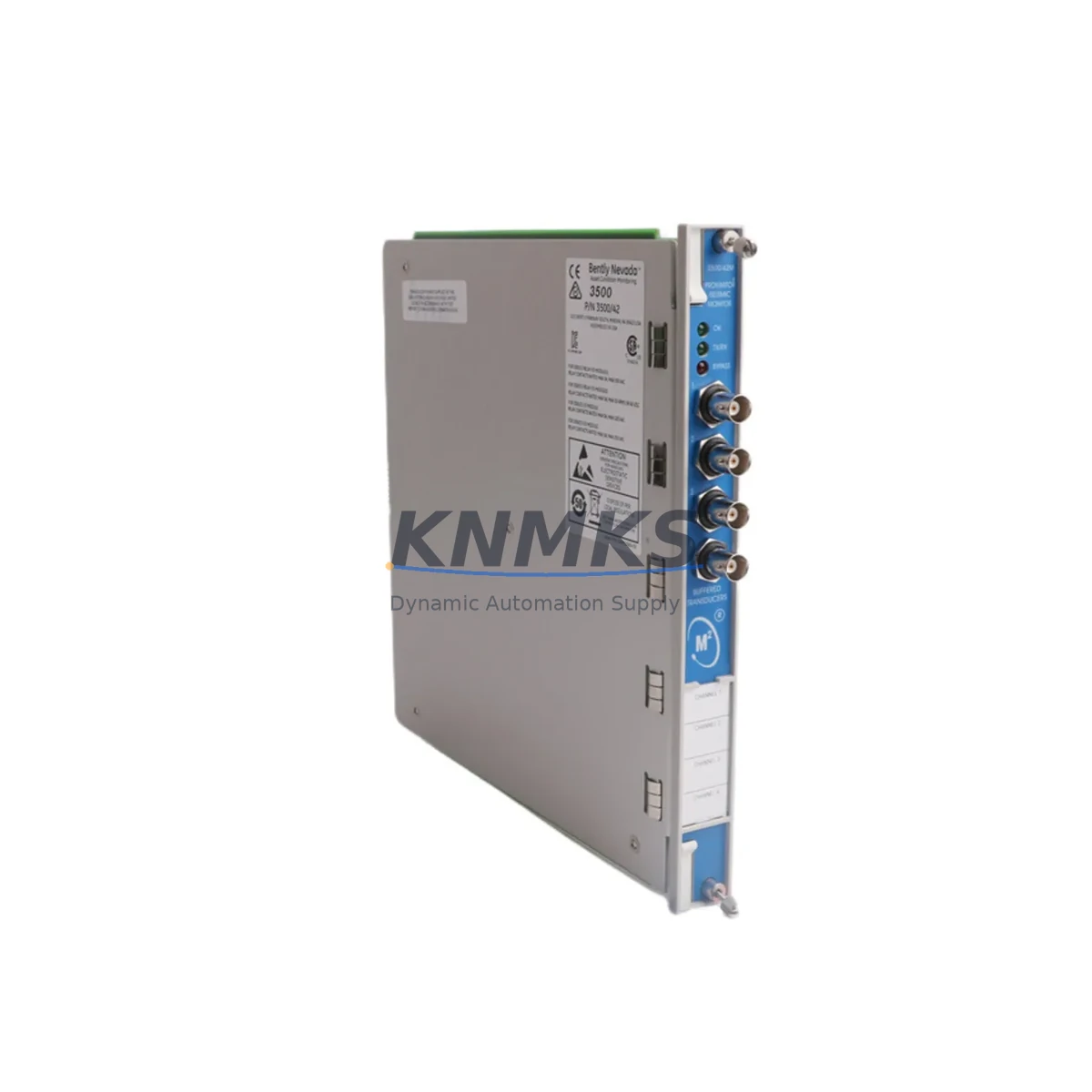

Bently Nevada 3500/42 176449-02 Migration-Ready Vibration Monitor

Overview

Bently Nevada 3500/42 176449-02 Migration-Ready Vibration Monitor for Legacy Control Systems

The Bently Nevada 3500/42 176449-02 is a dual-channel vibration monitor designed for the 3500 Series modular rack system, widely deployed in turbine protection, compressor monitoring, and rotating machinery condition monitoring across oil & gas, power generation, and petrochemical industries. As legacy 3500 Series installations approach end-of-service milestones, the 3500/42 176449-02 remains a critical retrofit and replacement module for facilities seeking to extend operational life without full system overhaul.

This module supports direct drop-in replacement within existing 3500 rack assemblies, preserving original wiring, terminal assignments, and rack backplane connections. Engineers undertaking a retrofit must verify power supply capacity within the rack — the Bently Nevada 3500/15 Power Supply must be confirmed to support the total module load after any slot reconfiguration. Terminal block wiring should be mapped against the original I/O drawing before removal of the legacy module to avoid signal inversion or ground loop issues during recommissioning.

Backplane interface compatibility is a key checkpoint: the 3500/42 176449-02 uses the standard 3500 Series backplane connector, but slot addressing must be re-confirmed in the Rack Configuration Software (RCS) after module swap. If the rack previously housed an earlier 3500/40 or 3500/44 variant, the channel configuration, full-scale range, and transducer type settings must be re-entered to match the replacement module’s firmware baseline. Failure to re-validate these parameters is a common source of nuisance trips during post-retrofit commissioning.

For facilities running Bently Nevada 3500/22 Transient Data Interface modules in the same rack, communication link integrity between the TDI and the vibration monitor must be verified after module replacement. The 3500/42 176449-02 is fully compatible with Keyphasor signals sourced from the Bently Nevada 3500/25 Keyphasor Module, enabling phase-referenced vibration analysis without additional signal conditioning hardware.

HMI screen updates are frequently overlooked during vibration monitor replacements. If the facility uses System 1 Evolution or a third-party SCADA platform for condition monitoring visualization, tag mappings and alarm setpoints tied to the replaced module must be re-validated against the new module’s output scaling. This is particularly important where 4–20 mA output signals feed DCS analog input cards or safety instrumented system (SIS) logic solvers.

Where the retrofit involves communication protocol migration — for example, transitioning from hardwired relay outputs to Modbus RTU or Ethernet/IP integration — the Bently Nevada 3500/92 Communication Gateway provides a structured upgrade path without requiring rack replacement. This approach allows facilities to modernize data acquisition and remote monitoring capabilities while retaining proven vibration sensing hardware.

Installation space confirmation is essential before ordering. The 3500/42 176449-02 occupies a standard double-wide slot in the 3500 rack. If adjacent slots have been repurposed or if a rack expansion is planned using a Bently Nevada 3500/05 Rack, physical slot availability and power budget must be recalculated. Firmware version alignment between the replacement module and the existing rack configuration should be confirmed with the module’s revision label prior to installation.

All units supplied by KNMKS are subject to pre-shipment functional testing, covering channel response, relay output verification, and communication interface checks. Stock is maintained for fast dispatch to minimize planned and unplanned downtime windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan for the 3500/42 176449-02 begins with a full audit of the existing rack assembly. Engineers should document the current slot map, power draw per module, and all terminal block wiring before initiating any hardware change. Where the rack includes a Bently Nevada 3500/20 Rack Interface Module, the RIM configuration must be backed up prior to module removal to preserve system-level communication settings.

Signal isolation requirements should be assessed where the vibration monitor interfaces with third-party DCS analog input cards. In mixed-vendor control cabinets, signal isolators may be required to prevent ground loops between the 3500 rack outputs and the DCS marshalling panel. Terminal block labeling should be verified against the as-built drawing, as field modifications over the system’s operational life may have introduced undocumented wiring changes.

For sites planning I/O expansion alongside the vibration monitor replacement, additional Bently Nevada 3500/64 Process Variable Monitor modules can be added to vacant rack slots to extend monitoring coverage to temperature, pressure, or flow signals within the same rack infrastructure. This approach avoids the cost and complexity of installing a separate monitoring rack.

Programming cable and laptop configuration should be prepared in advance. The RCS software requires a direct serial or USB connection to the rack for module configuration upload. Confirming firmware version compatibility between the RCS software revision and the replacement module before the maintenance window prevents configuration errors during the commissioning phase.

Downtime Control During System Migration

Minimizing downtime during a 3500/42 176449-02 replacement requires pre-staging all configuration files, spare terminal blocks, and test equipment before the maintenance window opens. The original module’s configuration should be exported from RCS and reviewed against the replacement module’s supported parameter set to identify any settings that require manual re-entry.

Where the process cannot tolerate a full shutdown, a phased approach is recommended: bypass the relay outputs to the SIS or DCS before module removal, complete the hardware swap and configuration upload, verify channel response with a calibrated signal source, then restore relay outputs in sequence. This approach preserves control continuity and allows alarm setpoint verification before returning the monitoring channel to active protection duty.

Original program logic in the DCS or PLC — including any interlock logic referencing vibration alarm or trip signals from the 3500 rack — should be placed in manual override during the swap window and restored only after the replacement module has been confirmed in-service. HMI alarm displays should be monitored throughout the commissioning sequence to confirm correct tag mapping and alarm annunciation.

KNMKS supplies all units with pre-shipment functional test records, reducing on-site verification time and supporting compressed maintenance windows. Fast dispatch from available stock supports both planned turnarounds and emergency replacement scenarios.

Retrofit Support FAQ

Q: Is the 3500/42 176449-02 a direct drop-in replacement for earlier 3500/40 or 3500/44 modules?
A: The 3500/42 176449-02 is physically compatible with the 3500 Series rack backplane and occupies the same double-wide slot. However, channel configuration, transducer type, and full-scale range settings must be re-entered via RCS after installation, as these parameters are stored in the module rather than the rack.

Q: What pre-shipment testing is performed on each unit?
A: Each unit undergoes functional testing covering dual-channel vibration signal response, relay output operation, and communication interface verification before dispatch. Test records are available upon request.

Q: What is the support terms coverage?
A: All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: Can you confirm stock availability and lead time before I place an order?
A: Yes. Contact our team directly to confirm current inventory status and dispatch timeline for the 3500/42 176449-02. We maintain stock for fast response to both planned and emergency replacement requirements.
