Bently Nevada 3500/40M 176449-01 Fail-Safe Vibration Monitor

Overview

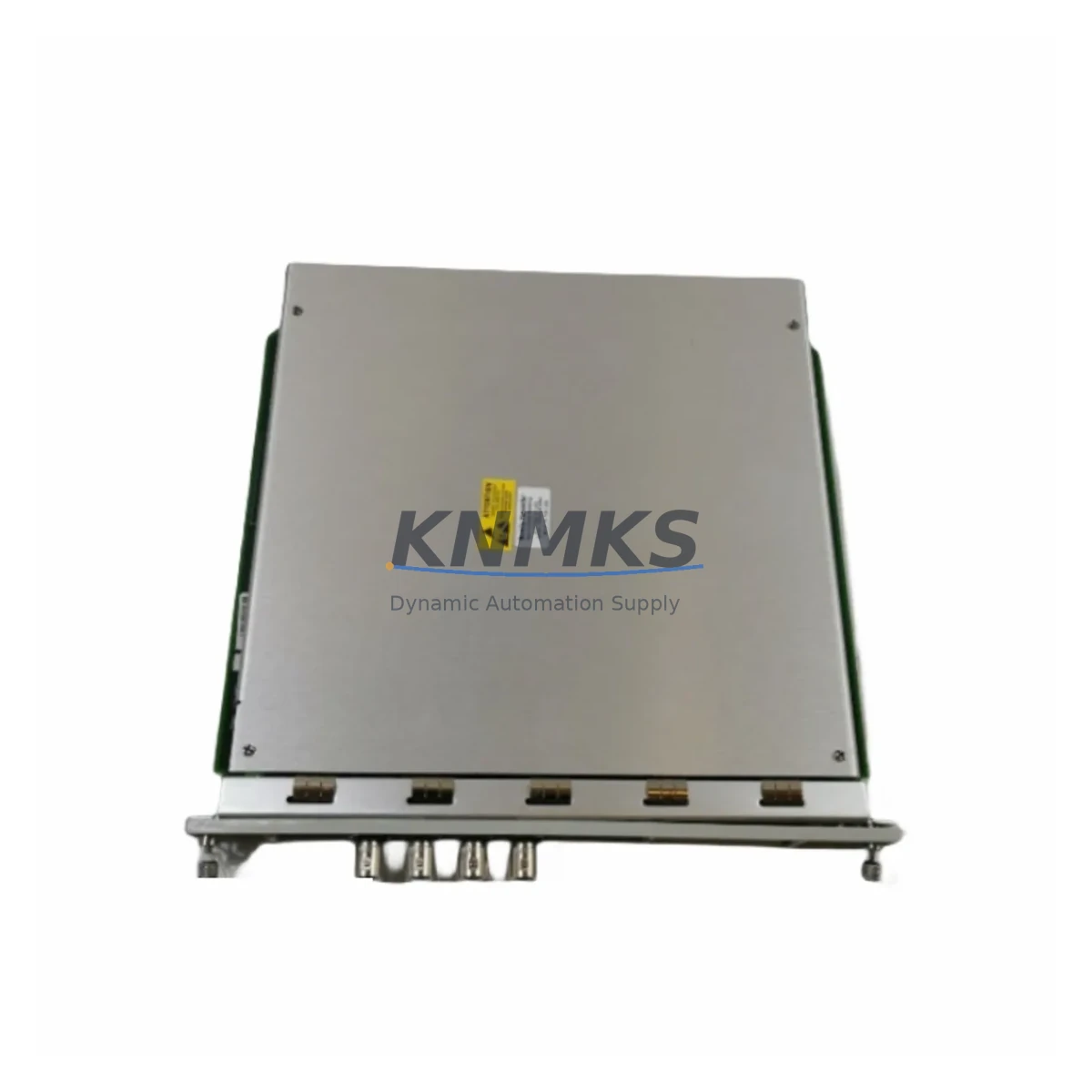

Bently Nevada 3500/40M 176449-01 Fail-Safe Vibration Monitor: Fault Protection for Critical Industrial Sites

The Bently Nevada 3500/40M 176449-01 is a precision vibration monitoring module engineered for continuous, fail-safe operation in the most demanding industrial environments. As a core component of the Bently Nevada 3500 Series machinery protection system, the SKU 176449-01 delivers real-time vibration measurement and trip logic that safeguards rotating equipment across petrochemical, power generation, mining, metallurgy, water treatment, and continuous manufacturing facilities. Where unplanned downtime is not an option, this module provides the signal integrity, fault tolerance, and environmental resilience that critical control loops demand.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the Bently Nevada 3500/40M 176449-01 does not operate in isolation — it functions as part of a tightly integrated protection architecture. The module slots into the Bently Nevada 3500/05 Rack Interface Module, which manages rack-level communication and system OK status. Power is supplied by the Bently Nevada 3500/15 Power Supply Module, which supports redundant DC input configurations to eliminate single-point power failure — a critical requirement in continuous process plants where a tripped power rail must not cascade into a spurious machine trip.

Vibration signals are conditioned upstream by Bently Nevada 3300 XL 8mm Proximitor Sensors, which convert shaft displacement into a clean -24 VDC proportional signal before it reaches the 176449-01 monitor card. In high-EMI environments — such as variable frequency drive (VFD) motor control centers or arc furnace control rooms — the shielded coaxial extension cables and the module’s differential input architecture work together to reject induced noise that would otherwise cause false alerts or missed trips.

For facilities requiring integrated condition monitoring alongside protection, the Bently Nevada 3500/22M Transient Data Interface (TDI) module captures waveform data during transient events such as machine startups and coastdowns, feeding it to System 1 software for trend analysis and predictive maintenance decisions. This combination — protection module, TDI, and software — forms the backbone of a proactive reliability program that reduces unplanned outages in compressor trains, turbine-generator sets, and large pump systems.

On the safety interlock side, the trip relay outputs from the 3500/40M 176449-01 are typically wired into a Triconex or Rockwell GuardLogix Safety PLC input card, completing the safety instrumented function (SIF) loop from sensor to final element. Surge protection on field wiring terminals — such as Phoenix Contact TRABTECH surge arresters — is strongly recommended to protect the module’s input circuitry from lightning-induced transients on long cable runs between the machine and the control room.

Critical Industrial Safety Applications

The Bently Nevada 3500/40M 176449-01 is deployed across a broad range of safety-critical industrial sectors where rotating machinery failure carries severe consequences for personnel, environment, and production continuity.

In petrochemical and refinery facilities, it monitors centrifugal compressors and process pumps in hydrocarbon service, providing the early warning and automatic trip capability required by API 670 and IEC 61511 safety lifecycle standards. A vibration exceedance that goes undetected in a high-pressure ethylene compressor can result in catastrophic seal failure — the 176449-01’s latching trip output ensures the machine is de-energized before mechanical damage propagates.

In power generation plants — both thermal and combined-cycle — the module protects steam turbine-generator shafts from subsynchronous resonance, oil whirl, and bearing wear. Continuous vibration trending through the 3500 rack system allows maintenance teams to schedule bearing replacements during planned outages rather than responding to emergency shutdowns.

In mining and mineral processing operations, where ball mills, SAG mills, and large slurry pumps operate in high-dust, high-vibration environments, the conformal-coated PCB and sealed rack enclosure of the 3500 system provide the ingress protection needed for reliable long-term operation without frequent module replacement.

In water and wastewater treatment plants, the module monitors large vertical turbine pumps and blower trains that must operate continuously to meet regulatory discharge requirements. An unmonitored bearing failure in a primary effluent pump can result in environmental non-compliance events — the 3500/40M 176449-01 provides the automated protection layer that prevents such outcomes.

In metallurgical and steel plants, where rolling mill drives and converter fans operate under extreme thermal and vibration loads, the module’s wide operating temperature range and EMI immunity ensure measurement accuracy even in the presence of high-current bus bars and induction furnace interference.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Bently Nevada 3500/40M 176449-01?
The support terms confirmed by quotation cover manufacturing defects, component failure, and functional non-conformance under normal operating conditions from the date of shipment. If the module fails to perform its specified vibration monitoring and trip relay functions within the confirmed support period, we will repair or replace the unit at no charge. Support requests are processed with a target turnaround of 5–7 business days.

Q2: What pre-shipment testing is performed on each 176449-01 module?
Every unit undergoes a full functional test protocol before dispatch: channel input simulation across the full measurement range, OK relay actuation and reset verification, Alert and Danger setpoint trip confirmation, and backplane communication integrity check. A test record is available upon request for quality documentation purposes.

Q3: Is the 3500/40M 176449-01 compatible with existing Bently Nevada 3500 racks and System 1 software?
Yes. The 176449-01 is a direct plug-in replacement for the standard 3500/40M slot in any Bently Nevada 3500 Series rack. It is fully compatible with the 3500/05 Rack Interface Module, 3500/15 Power Supply, and System 1 condition monitoring software versions 5.x and later. No rack modification or firmware upgrade is required for standard replacement installations.

Q4: Can you support long-term or repeat supply of the 176449-01 for ongoing maintenance programs?
Yes. We maintain standing inventory of the Bently Nevada 3500/40M 176449-01 to support planned maintenance schedules, spare parts programs, and emergency replacement requirements. Blanket purchase orders and scheduled delivery arrangements are available for facilities managing multi-unit fleets of 3500 Series protection systems. Contact our team to discuss volume pricing and guaranteed lead times.
