Bently Nevada 3500/33-149986-01 Maintenance-Proven Spare Part

Overview

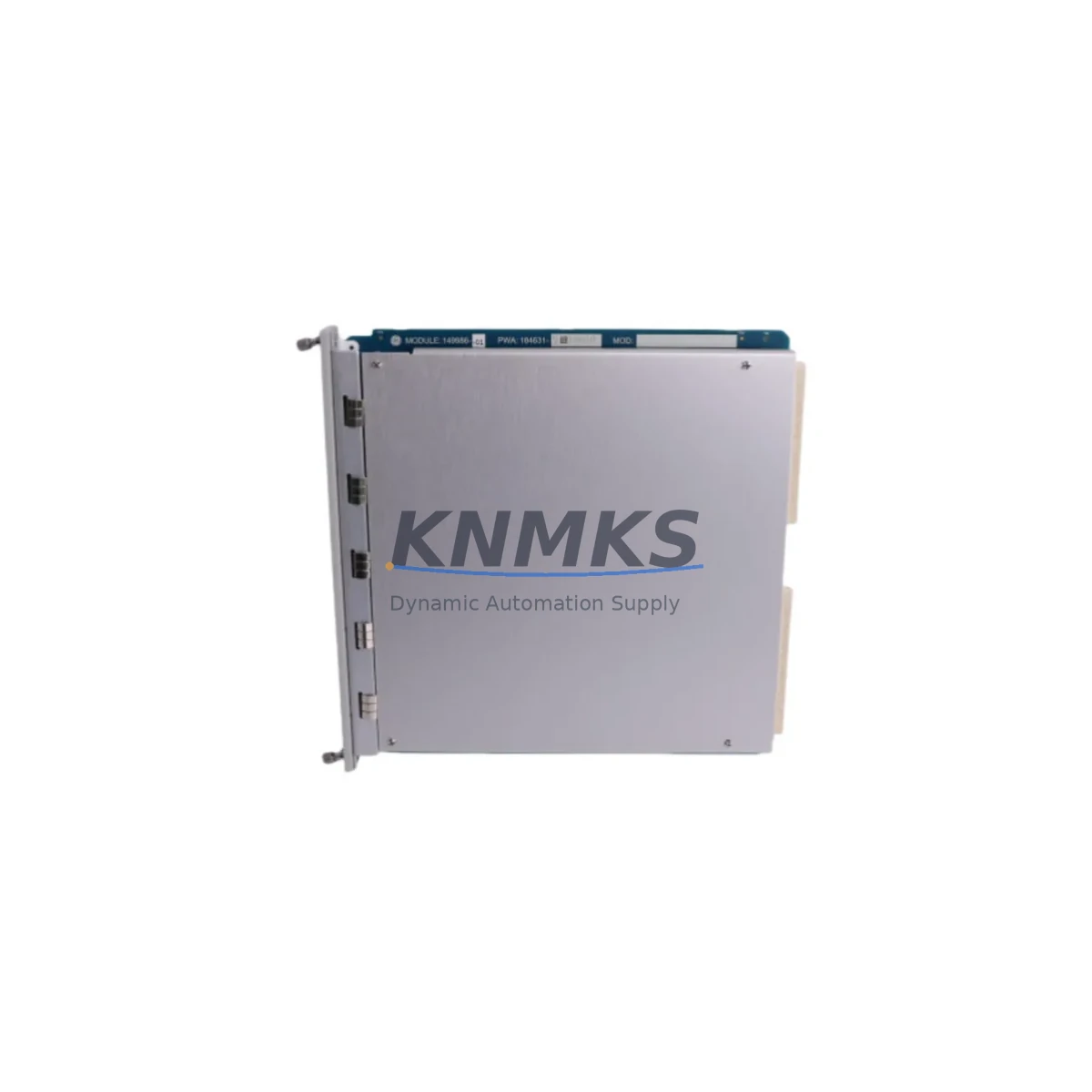

Bently Nevada 3500/33-149986-01 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 3500/33-149986-01 is a Relay Output Module designed for the 3500 Series Machinery Protection System (MPS) — one of the most widely deployed vibration monitoring and machinery protection platforms in rotating equipment environments worldwide. This module provides critical relay-based alarm and trip outputs that interface directly with plant DCS, PLC, and safety shutdown systems, making it a high-priority spare for any facility operating turbines, compressors, pumps, or generators under continuous monitoring.

For maintenance engineers managing aging 3500 Series racks, the 3500/33-149986-01 is a direct-fit replacement that restores full relay output functionality without requiring rack reconfiguration or firmware changes. For procurement engineers, sourcing a pre-tested, original-specification unit with a documented support terms confirmed by quotation eliminates the risk of unverified aftermarket substitutes entering the protection loop — a risk that cannot be tolerated in safety-critical monitoring applications.

Our inventory of the 3500/33-149986-01 is maintained across multiple stocking locations to support emergency dispatch, planned annual overhauls, and long-term spare parts agreements. Every unit undergoes pre-shipment functional verification before release.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 3500/33-149986-01 Relay Output Module sits at the output stage of the 3500 MPS protection chain. When planning a replacement or scheduled inspection, maintenance engineers should treat this module as part of a broader system review rather than an isolated swap. The relay outputs connect directly to plant shutdown logic — any degradation in contact integrity, relay coil response, or wiring termination can compromise the entire trip circuit.

During a relay output module replacement, it is standard practice to simultaneously inspect the 3500/15 Power Supply Module and the 3500/20 Rack Power Supply that feed the backplane. A failing or marginal power supply can cause intermittent relay chatter or false trips that are misdiagnosed as module faults. Verifying DC rail stability before and after module swap prevents repeat callouts.

The 3500/22M Transient Data Interface (TDI) and associated 3500/25 Enhanced Keyphasor Module should also be checked during the same maintenance window — these upstream modules feed processed vibration data to the relay output logic, and a degraded Keyphasor signal can cause erratic relay behavior that appears to originate from the output module itself.

Wiring terminations at the 3500/33 I/O terminal block and field-side relay wiring should be inspected for oxidation, loose ferrules, and insulation breakdown — particularly in high-humidity or high-vibration environments. Where relay outputs interface with external safety relay modules or DCS digital input cards, confirm that contact ratings and logic voltage levels remain within specification after module replacement.

For facilities running extended 3500 Series installations, maintaining a minimum bench stock of one 3500/33-149986-01 alongside a spare 3500/15 Power Supply and a 3500/01 Rack Interface Module provides a complete first-response kit capable of restoring monitoring capability within a single shift. This inventory posture is particularly important for sites where the 3500 system protects single-train critical assets with no redundant monitoring path.

Communication integrity between the 3500 rack and the plant DCS or historian — typically via 3500/92 Communication Gateway Module — should also be verified post-replacement to confirm that relay status and alarm data are correctly reflected in the control room SCADA display.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed or suspect module is the 3500/33-149986-01 by checking the part number label on the module faceplate. Document current relay output states (energized/de-energized) and alarm setpoints via the 3500 Rack Configuration Software before removal.

Step 2 — Safety Isolation: Coordinate with the control room to place the affected relay outputs in a safe state (bypass or inhibit) before extraction. Do not remove the module under live relay load without confirming bypass status with the DCS operator.

Step 3 — Module Extraction: Use the front-panel extraction lever to disengage the module from the backplane. Avoid flexing the card edge. Inspect the backplane connector for bent pins or contamination before inserting the replacement unit.

Step 4 — Replacement Insertion: Insert the 3500/33-149986-01 replacement unit firmly until the front panel latch engages. The module will self-identify on the 3500 backplane bus — no manual address configuration is required for direct slot replacement.

Step 5 — Configuration Restore: Using the 3500 Rack Configuration Software, verify that relay output assignments, setpoints, and energization logic match the pre-removal documentation. Upload configuration if required.

Step 6 — Functional Test: With the control room on standby, remove bypass/inhibit and confirm relay output states match expected alarm and OK conditions. Verify DCS digital input status reflects correct relay contact states.

Step 7 — Documentation: Record the replacement in the site maintenance log, including the new module serial number, test results, and technician sign-off. Initiate a replenishment order to restore bench stock.

Spare Parts Support FAQ

Q1: Is the 3500/33-149986-01 compatible with all 3500 Series rack configurations?
The 3500/33-149986-01 is designed for the 3500 Series MPS rack platform and is compatible with standard 3500/05, 3500/15, and 3500/20 rack assemblies. Slot assignment is flexible within the rack — the module does not require a dedicated fixed slot position. Always verify rack firmware revision compatibility using the Bently Nevada 3500 Rack Configuration Software before deployment in older rack revisions.

Q2: What pre-shipment testing is performed on each unit?
Every 3500/33-149986-01 unit in our inventory undergoes functional relay output verification prior to dispatch. This includes relay coil energization testing, contact continuity verification across all four relay outputs, and visual inspection of the backplane connector and faceplate. A test record is available upon request for quality-critical procurement processes.

Q3: How should the 3500/33-149986-01 be stored as a long-term bench spare?
Store the module in its original anti-static packaging in a dry, temperature-controlled environment (10°C to 40°C, <85% RH non-condensing). Avoid stacking modules without protective separators. For long-term storage exceeding 12 months, schedule a bench functional test before deployment to confirm relay contact integrity has not degraded during storage.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover functional failure under normal operating conditions, including relay output failure, backplane communication faults, and contact integrity degradation attributable to the module itself. Support requests require return of the defective unit for inspection. Physical damage from incorrect installation, overvoltage events, or environmental exposure beyond rated limits is excluded. Replacement or repair is completed within agreed lead times to minimize site downtime impact.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
