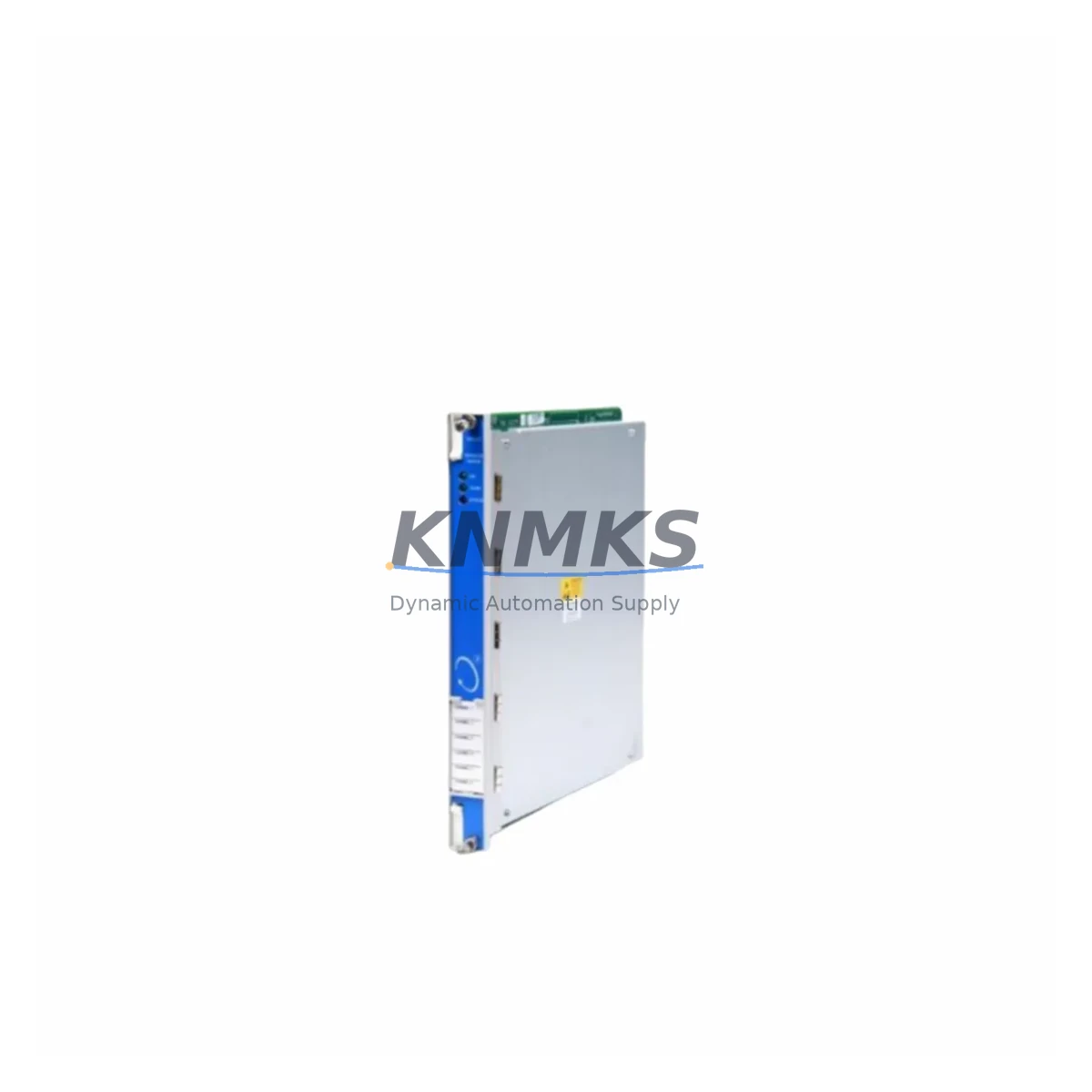

Bently Nevada 3500/33-01-01 Fail-Safe Relay Output Module

Overview

Bently Nevada 3500/33-01-01 Fail-Safe Relay Output Module: Fault Protection for Critical Industrial Control

The Bently Nevada 3500/33-01-01 (part numbers 149986-01 + 149992-01) is a safety-rated relay output module engineered for the Bently Nevada 3500 Series machinery protection system. Designed to operate in the most demanding continuous-process environments — including petrochemical plants, power generation facilities, offshore platforms, and heavy manufacturing — this module delivers deterministic relay switching with fail-safe logic that protects rotating machinery from unplanned shutdown events caused by vibration exceedance, signal drift, or control loop failure.

In critical interlock architectures, relay output integrity is non-negotiable. The 3500/33-01-01 provides four configurable relay channels with normally energized (fail-safe) or normally de-energized operation, ensuring that any loss of power or communication to the 3500 rack triggers a defined safe-state output — not an undefined or dangerous condition. This behavior is fundamental to SIL-rated safety instrumented systems (SIS) where spurious trips must be minimized and dangerous failures must be detectable.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated Bently Nevada 3500 protection cabinet, the 3500/33-01-01 relay output module works in close coordination with the Bently Nevada 3500/22M Transient Data Interface and the 3500/42M Proximitor/Seismic Monitor to form a complete vibration-to-relay protection chain. When a monitored shaft or bearing exceeds its alert or danger setpoint, the 3500/42M processes the raw proximity probe signal and passes the alarm state to the 3500/33-01-01, which then drives the relay output to trip the associated machinery or activate an audible/visual alarm circuit.

Power stability within the 3500 rack is maintained by the Bently Nevada 3500/15 Power Supply, which provides regulated, redundant DC power to all installed modules including the relay output card. In high-EMI environments — such as those adjacent to large variable frequency drives (VFDs), motor control centers (MCCs), or high-voltage switchgear — the rack’s internal shielding and the relay module’s optically isolated outputs prevent false trips caused by conducted or radiated interference.

For installations requiring communication to a DCS or safety PLC, the Bently Nevada 3500/92 Communication Gateway bridges the 3500 rack to Modbus RTU, Modbus TCP, or OPC DA/UA protocols, allowing the relay output status and alarm history to be logged and acted upon by the plant’s control system. In safety-critical loops, this integration supports proof-test scheduling and SIL verification without requiring physical access to the relay module itself.

Where cabinet thermal management is a concern — particularly in enclosed outdoor enclosures or tropical climates — pairing the 3500 rack with a dedicated cabinet thermostat and forced-air cooling unit ensures that relay contact resistance and coil performance remain within specification across the full operating temperature range. Excessive cabinet temperatures are a leading cause of premature relay contact degradation and nuisance trips in continuous-process plants.

Critical Industrial Safety Applications

The Bently Nevada 3500/33-01-01 is deployed across a wide range of safety-critical industries where unplanned machinery shutdown carries severe operational, financial, and safety consequences:

Petrochemical and Refining: Compressor trains, centrifugal pumps, and turbine-driven process units in refineries and gas processing plants rely on the 3500/33-01-01 to provide the final relay output that trips the machine on high vibration or axial displacement. In these environments, a missed trip can result in catastrophic mechanical failure, process release, or fire.

Power Generation: Steam turbines, gas turbines, and large generator sets in thermal and combined-cycle power plants use the 3500 Series relay output module as part of their overspeed and vibration protection systems. The fail-safe relay configuration ensures that a loss of rack power results in a trip — not a run-through condition.

Mining and Mineral Processing: Ball mills, SAG mills, and large conveyor drive motors in mining operations are monitored for bearing health and shaft vibration. The 3500/33-01-01 provides the relay output that stops the drive before a bearing failure propagates to a catastrophic structural event.

Water and Wastewater Treatment: High-service pumps, blowers, and centrifuge drives in municipal water treatment facilities use the 3500 relay output module to protect against cavitation-induced vibration and mechanical seal failure, reducing unplanned outages that affect public water supply reliability.

Metallurgy and Steel: Rolling mill drives, continuous casters, and large induction furnace cooling pumps in steel plants operate in extreme vibration and thermal environments. The 3500/33-01-01’s robust relay contact rating and fail-safe logic make it suitable for these high-consequence interlock applications.

Marine and Offshore: Propulsion machinery, diesel generator sets, and cargo pump turbines on vessels and offshore platforms require compact, vibration-tolerant protection modules. The 3500/33-01-01 meets these requirements and supports the relay-based shutdown logic required by classification society rules.

Safety and Quality FAQ

Q1: What support terms does the 3500/33-01-01 carry?
Every unit ships with a support terms confirmed by quotation from the date of shipment. This covers relay contact failure, module communication faults, and any defects in materials or workmanship identified under normal operating conditions within the Bently Nevada 3500 rack environment.

Q2: What pre-shipment testing is performed on each module?
Each 3500/33-01-01 undergoes full functional verification prior to dispatch, including relay coil energization testing, contact continuity and resistance measurement, backplane communication handshake verification, and visual inspection for connector integrity and PCB condition. Test records are available upon request.

Q3: Is this module compatible with all Bently Nevada 3500 rack configurations?
The 3500/33-01-01 is compatible with the standard Bently Nevada 3500/05 and 3500/15 rack assemblies. Compatibility with specific rack firmware revisions and adjacent monitor modules should be confirmed against the Bently Nevada 3500 System Installation Manual (document 129766-01). Our technical team can assist with compatibility verification prior to order.

Q4: Can long-term supply agreements be arranged for this module?
Yes. For customers managing multi-year maintenance contracts, scheduled outage programs, or fleet-wide standardization on the Bently Nevada 3500 platform, we support blanket purchase orders and reserved stock arrangements. Contact our sales team to discuss volume commitments, lead time guarantees, and consignment stocking options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/33-01-01 149986-01+149992-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 3500/33-01-01 149986-01+149992-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
