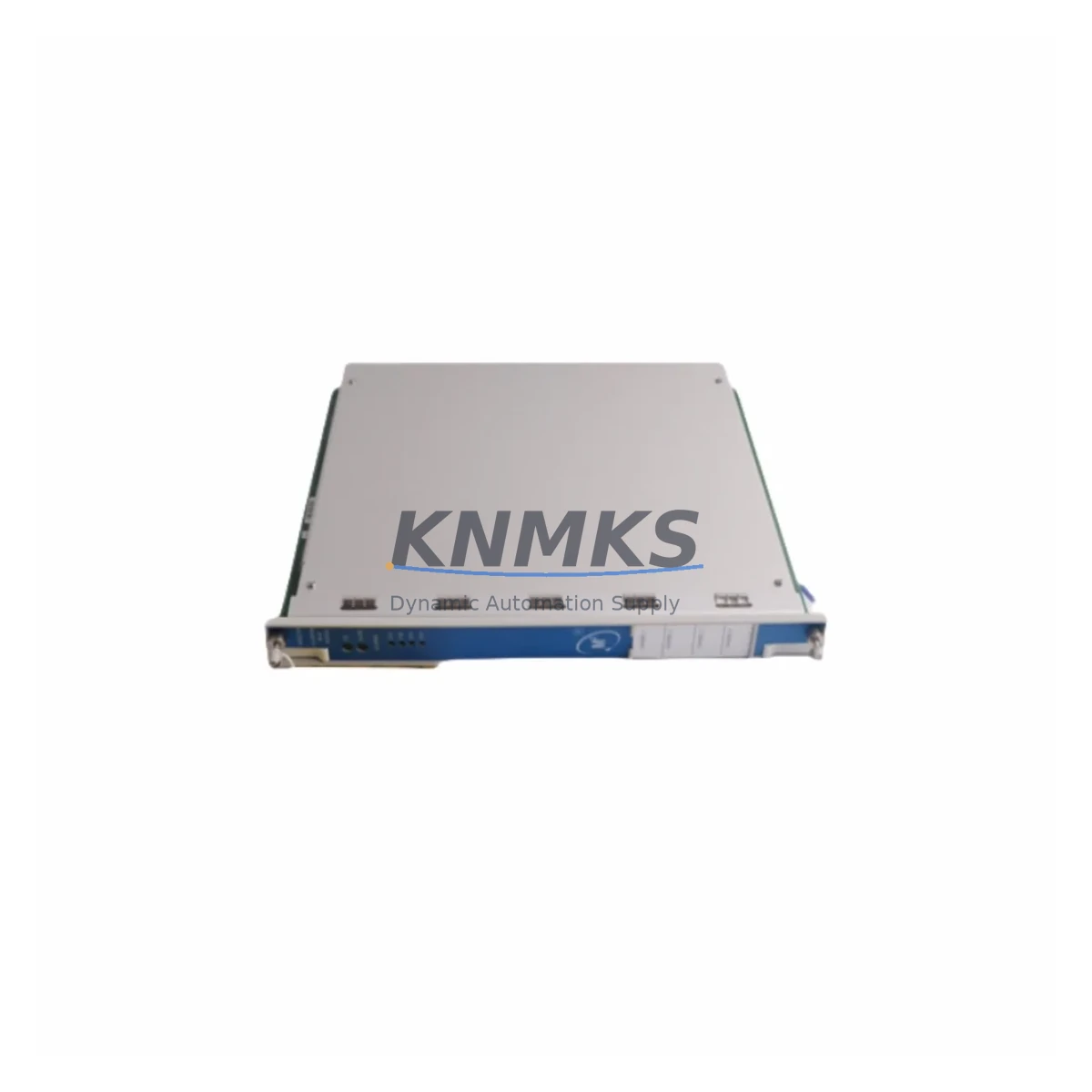

Bently Nevada 3500/32M 149986-02B Fail-Safe Relay Output

Overview

Bently Nevada 3500/32M 149986-02B Fail-Safe Relay Output — Fault Protection for Critical Industrial Control

The Bently Nevada 3500/32M 149986-02B is a 16-channel safety relay output module engineered for continuous, fail-safe operation within the Bently Nevada 3500 Series machinery protection system. Designed to meet the demanding requirements of critical industrial environments — including petrochemical plants, power generation facilities, offshore platforms, and heavy manufacturing — this module provides deterministic relay switching with built-in fault detection, ensuring that control loops remain protected even under abnormal operating conditions.

In high-stakes industrial settings, relay output integrity is non-negotiable. Signal drift, contact bounce, coil degradation, and spurious trips caused by electromagnetic interference or power transients can cascade into unplanned shutdowns, equipment damage, or safety incidents. The 3500/32M 149986-02B addresses these risks through hardened relay contact design, isolated output channels, and tight integration with the 3500 Series rack architecture — delivering the response speed and output reliability that safety-critical interlock circuits demand.

Each of the 16 relay output channels is independently configurable, allowing engineers to map alarm, danger, and trip states to discrete field devices such as solenoid valves, shutdown actuators, and annunciator panels. The module communicates directly with the Bently Nevada 3500/20 Rack Interface Module and is fully compatible with the 3500/22M Transient Data Interface, enabling seamless integration into existing 3500 Series rack assemblies without hardware modification. When paired with the 3500/15 Power Supply Module, the system maintains stable relay operation even during mains voltage fluctuations or momentary power interruptions — a critical capability in facilities where power quality cannot be guaranteed.

The 149986-02B variant is specifically rated for environments with elevated electromagnetic interference, making it suitable for installation in control cabinets located near large motors, variable frequency drives, high-current bus bars, or arc flash-prone switchgear. Its shielded relay coil design and optically isolated signal paths suppress conducted and radiated noise that would otherwise induce false relay actuation or missed trip events. In dusty, humid, or thermally stressed enclosures — common in cement plants, mining operations, and coastal installations — the module’s conformal-coated PCB and sealed relay contacts maintain long-term contact resistance stability and prevent corrosion-induced failures.

For facilities operating rotating machinery such as compressors, turbines, pumps, and fans, the 3500/32M 149986-02B serves as the final output stage in a protection chain that begins with vibration and position sensors, passes through the Bently Nevada 3500/40M Proximitor/Seismic Monitor, and terminates in relay-driven shutdown commands. This architecture ensures that any detected anomaly — whether a bearing fault, shaft imbalance, or rotor rub — triggers a controlled, safe shutdown rather than a destructive runaway event. The module’s fast relay response time minimizes the window between fault detection and protective action, reducing the risk of secondary damage to adjacent equipment.

Maintenance teams managing aging 3500 Series installations will find the 149986-02B a direct, drop-in replacement for worn or failed relay output modules. Unlike generic relay boards, this module preserves the full diagnostic and configuration compatibility of the 3500 platform, including support for System 1 software-based channel configuration and real-time status monitoring. When combined with the Bently Nevada 3500/92 Communication Gateway Module, relay output states can be transmitted to DCS or SCADA systems via Modbus or Ethernet/IP, providing operators with live visibility into protection system status without requiring physical inspection of the control cabinet.

Every unit supplied is drawn from verified stock, subjected to pre-shipment functional testing under simulated load conditions, and backed by a support terms confirmed by quotation. Global dispatch is available with short lead times, supporting both planned maintenance schedules and emergency replacement requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust 3500 Series protection cabinet built around the 3500/32M 149986-02B relies on a coordinated assembly of complementary modules to achieve system-level fault tolerance. The Bently Nevada 3500/15 Power Supply Module provides dual-redundant DC power to the relay output stage, ensuring that a single power rail failure does not disable trip capability. Upstream, the 3500/40M Proximitor/Seismic Monitor continuously evaluates vibration amplitude and phase data, feeding processed alarm and danger setpoint decisions to the relay module for immediate actuation.

In cabinets where communication integrity is equally critical, the 3500/92 Communication Gateway Module bridges the protection system to plant-level DCS networks, allowing relay output states to be logged and alarmed remotely. For installations requiring position or speed monitoring alongside vibration protection, the Bently Nevada 3500/53 Overspeed Detection Module can be rack-mounted alongside the 3500/32M, sharing the same backplane and power infrastructure while independently managing overspeed trip relays. Surge protection devices installed at the cabinet’s field terminal blocks further shield the relay output module from voltage transients induced by long cable runs or nearby switching events — a standard practice in petrochemical and power generation control rooms.

Critical Industrial Safety Applications

The Bently Nevada 3500/32M 149986-02B is deployed across a wide range of safety-critical industrial sectors where machinery protection and controlled shutdown capability are regulatory and operational requirements.

In petrochemical and refinery environments, the module drives emergency shutdown (ESD) solenoids on compressor and pump trains, ensuring that process upsets trigger immediate, controlled isolation of rotating equipment before pressure or temperature limits are exceeded. Power generation facilities — including gas turbine, steam turbine, and hydro installations — rely on the 3500/32M to execute turbine trip commands with millisecond-level response, protecting generator shafts and bearings from runaway conditions.

In mining and mineral processing operations, where conveyor drives, crushers, and mill motors operate under heavy cyclic loads and high vibration, the module’s robust relay contacts and EMI-hardened design maintain reliable trip output even in the presence of strong conducted interference from large variable frequency drives. Water and wastewater treatment plants use the 3500/32M to protect high-value pump motors and blower assemblies, where an undetected bearing failure could result in extended downtime and environmental compliance violations.

Metallurgical and steel mill applications benefit from the module’s high-temperature tolerance and conformal coating, which resist the thermal cycling and airborne particulate contamination common in casting and rolling mill environments. In port and marine installations — including ship propulsion systems and offshore platform machinery — the module’s sealed relay contacts and corrosion-resistant construction provide long service life in salt-laden, high-humidity atmospheres where standard relay modules would degrade rapidly.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the Bently Nevada 3500/32M 149986-02B?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. This covers relay contact failure, PCB defects, and any functional non-conformance identified during field installation or commissioning. Support requests are supported with direct technical assistance and expedited replacement dispatch.

Q2: How is each module tested before shipment?
All units undergo a comprehensive pre-shipment functional test that includes relay actuation verification across all 16 channels, output isolation resistance measurement, and communication handshake confirmation with a 3500 Series rack interface. Only units that pass all test criteria are released for shipment.

Q3: Is the 149986-02B a direct replacement for earlier 3500/32M variants?
Yes. The 149986-02B is backward-compatible with the 3500 Series rack architecture and can replace earlier 3500/32M part numbers without rack modification or firmware changes. Configuration is retained through System 1 software, and channel mapping is preserved during module swap.

Q4: Can long-term supply be guaranteed for ongoing maintenance programs?
Stock is maintained across multiple warehouse locations to support both scheduled maintenance and emergency replacement requirements. For facilities managing multi-year maintenance contracts or large installed bases of 3500 Series equipment, volume reservation and priority dispatch arrangements are available — contact the sales team to discuss supply planning.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/32M 149986-02B
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 3500/32M 149986-02B
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
