Bently Nevada 3500/25-126398-01H Migration-Ready Transducer I/O

Overview

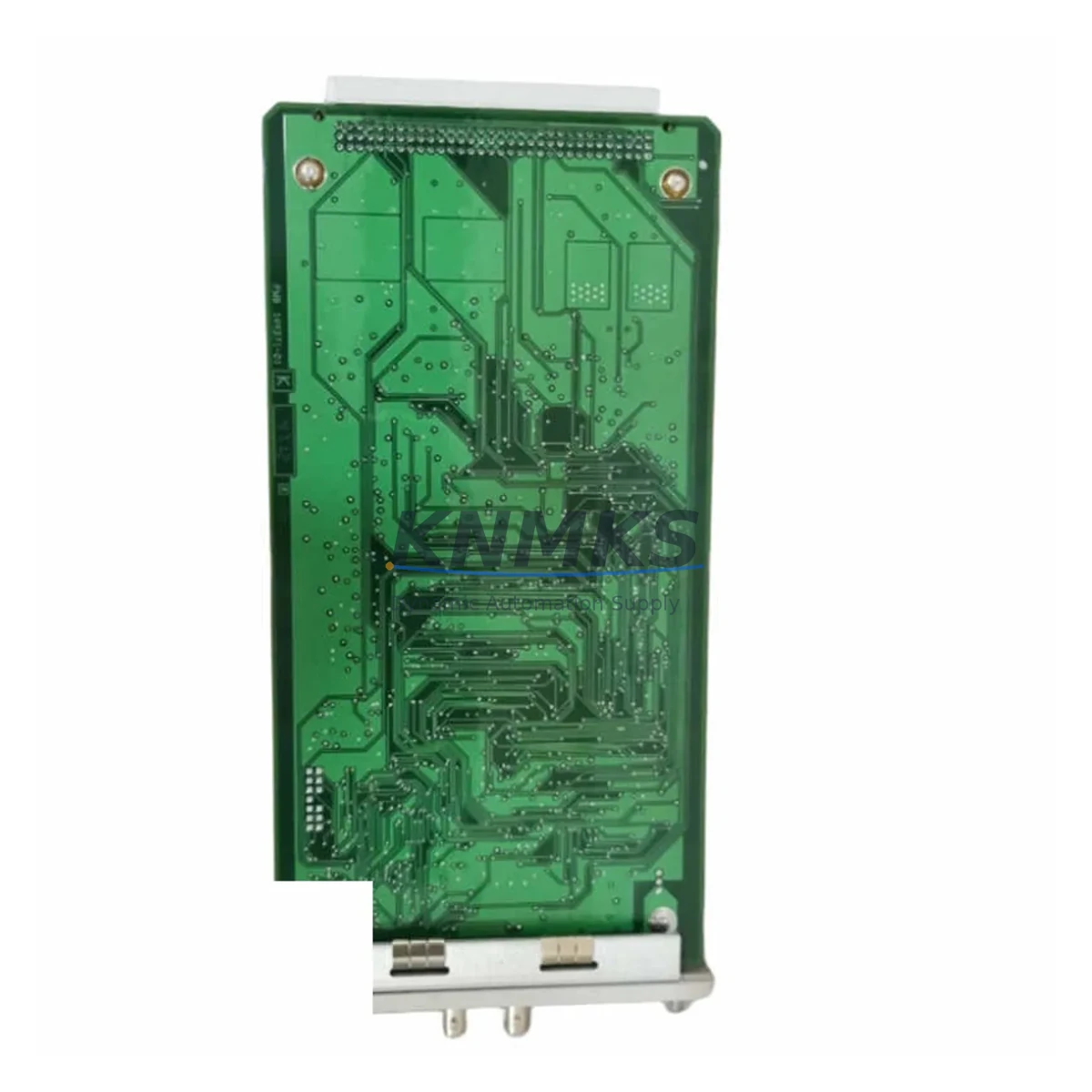

Bently Nevada 3500/25-126398-01H Migration-Ready Transducer I/O for Legacy Control Systems

The Bently Nevada 3500/25-126398-01H is a Transducer I/O module designed for the 3500 Machinery Protection System (MPS) platform — one of the most widely deployed continuous machinery monitoring architectures in petrochemical, power generation, compressor station, and rotating equipment applications worldwide. As original equipment manufacturers discontinue support for legacy 3500 Series hardware, plant engineers and reliability teams face increasing pressure to source validated replacement modules that maintain full backward compatibility with existing rack configurations, wiring terminations, and monitoring software.

This listing covers a migration-ready, pre-shipment tested 3500/25-126398-01H Transducer I/O module, supplied with a support terms confirmed by quotation and full functional verification prior to dispatch. Whether you are executing a planned turnaround replacement, responding to an unplanned module failure, or building a long-cycle spare parts inventory for a multi-year maintenance contract, this module is stocked and ready for immediate deployment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the 3500/25-126398-01H within an operating machinery protection system requires careful pre-outage planning across several interdependent subsystems. Before removing the legacy module, engineers should document the existing channel configuration using the Bently Nevada Rack Configuration Software (RCS), capturing all transducer type assignments, full-scale ranges, alert and danger setpoints, time delays, and OK relay logic. This configuration file serves as the baseline for post-installation verification and significantly reduces commissioning time during the maintenance window.

Terminal wiring compatibility is a critical checkpoint. The 3500/25 module interfaces with field-mounted transducers — typically Bently Nevada 3300 XL 8mm or 3300 XL 11mm Proximitor sensors for radial vibration and position monitoring, or compatible velocity and acceleration transducers for bearing and casing measurements. Verify that existing cable shielding, grounding practices, and transducer power supply voltages (typically -24 VDC from the 3500/15 Power Supply module) remain within specification before energizing the replacement module.

Backplane slot addressing must be confirmed against the existing rack layout. In multi-rack 3500 MPS installations, the 3500/20 Rack Interface Module (RIM) manages inter-rack communication and system-level OK status. Any change to module slot assignments can affect RIM configuration and downstream Modbus or OPC data mapping in the plant DCS or historian. Coordinate with the control system team to verify that tag addresses in the 3500/22M Communication Gateway remain consistent after the module swap, particularly if the plant historian or safety system relies on continuous data from this channel group.

For plants operating System 1 Evolution condition monitoring software, the channel configuration download must be performed after physical installation. The 3500/25 module will not pass its internal self-test until a valid configuration is resident. Confirm that the System 1 server retains the correct rack and module configuration template, and that the communication link between the 3500/22M gateway and the System 1 server is active before closing out the work order. In installations where the 3500 rack also hosts a 3500/32 4-Channel Relay Module for alarm output wiring to the plant DCS, verify that relay assignments and energize/de-energize logic are preserved after the configuration download.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a legacy Allen-Bradley PLC-5 or SLC 500 platform to a ControlLogix or CompactLogix architecture — the 3500 MPS rack typically remains in place as a dedicated machinery protection layer, with its Modbus or Ethernet/IP output integrated into the new PLC’s communication network. In these scenarios, confirm that the new PLC’s communication module supports the same polling rate and register map previously used by the legacy controller to avoid data gaps in the historian or alarm management system.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/25-126398-01H replacement requires a structured hot-swap or cold-swap protocol depending on the rack’s redundancy configuration. In non-redundant 3500 MPS installations, the module replacement will interrupt monitoring for the affected channel group during the swap window. To protect process continuity, coordinate the replacement with the operations team to ensure the monitored machine is either offline or operating under alternative protection measures (such as manual vibration monitoring or temporary bypass authorization per the plant’s Management of Change procedure).

For racks equipped with a 3500/20 RIM in a dual-rack redundant configuration, the primary rack can often be taken offline for module replacement while the secondary rack maintains monitoring continuity — provided the redundancy switchover has been tested and verified prior to the maintenance window. Document the switchover test results and confirm that the secondary rack’s channel configuration matches the primary before proceeding.

Pre-staging the replacement 3500/25-126398-01H module with the correct configuration file loaded and verified off-line (using a bench rack or RCS simulation) reduces the live commissioning window to a configuration download and setpoint verification step, typically achievable within 30–60 minutes for a single module replacement. This approach protects the original program logic, preserves field wiring integrity, and reduces the risk of configuration errors introduced under time pressure during a live outage.

All units supplied through this listing are pre-shipment tested under simulated rack conditions, with functional verification of channel I/O, OK relay output, and communication interface prior to dispatch. A support terms confirmed by quotation cover all supplied modules from the delivery date, providing assurance for both immediate deployment and long-cycle spare parts inventory strategies.

Retrofit Support FAQ

Q1: Is the 3500/25-126398-01H a direct drop-in replacement for the existing module in my 3500 MPS rack?
Yes. The 3500/25-126398-01H is a slot-compatible replacement for the same SKU in standard 3500 Series rack configurations. No rack modification is required. After physical installation, re-download the channel configuration via Rack Configuration Software (RCS) and verify all setpoints before returning the channel to service.

Q2: What commissioning steps are required after installing the replacement module?
Connect the module to the rack backplane, power up the rack, and use RCS to download the saved channel configuration. Verify transducer OK status, alert and danger setpoint values, time delay settings, and OK relay output logic. Confirm that the 3500/22M Communication Gateway is reporting correct channel data to the DCS or historian before closing the work order.

Q3: Can you confirm stock availability and lead time before I place an order?
Yes. Contact us at [email protected] or +86 18359268345 to confirm current stock status and estimated dispatch date. We maintain inventory of high-demand 3500 Series modules to support urgent replacement and planned turnaround requirements. Most in-stock orders are dispatched within 1–3 business days.

Q4: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
All units are functionally tested prior to shipment under simulated rack operating conditions, covering channel I/O response, OK relay output, and communication interface verification. The support terms confirmed by quotation cover manufacturing defects and functional failures from the delivery date. Units that fail during the confirmed support period are replaced or repaired at no additional cost.
