Bently Nevada 3500/25-02-01-01 Migration-Ready Keyphasor Module

Overview

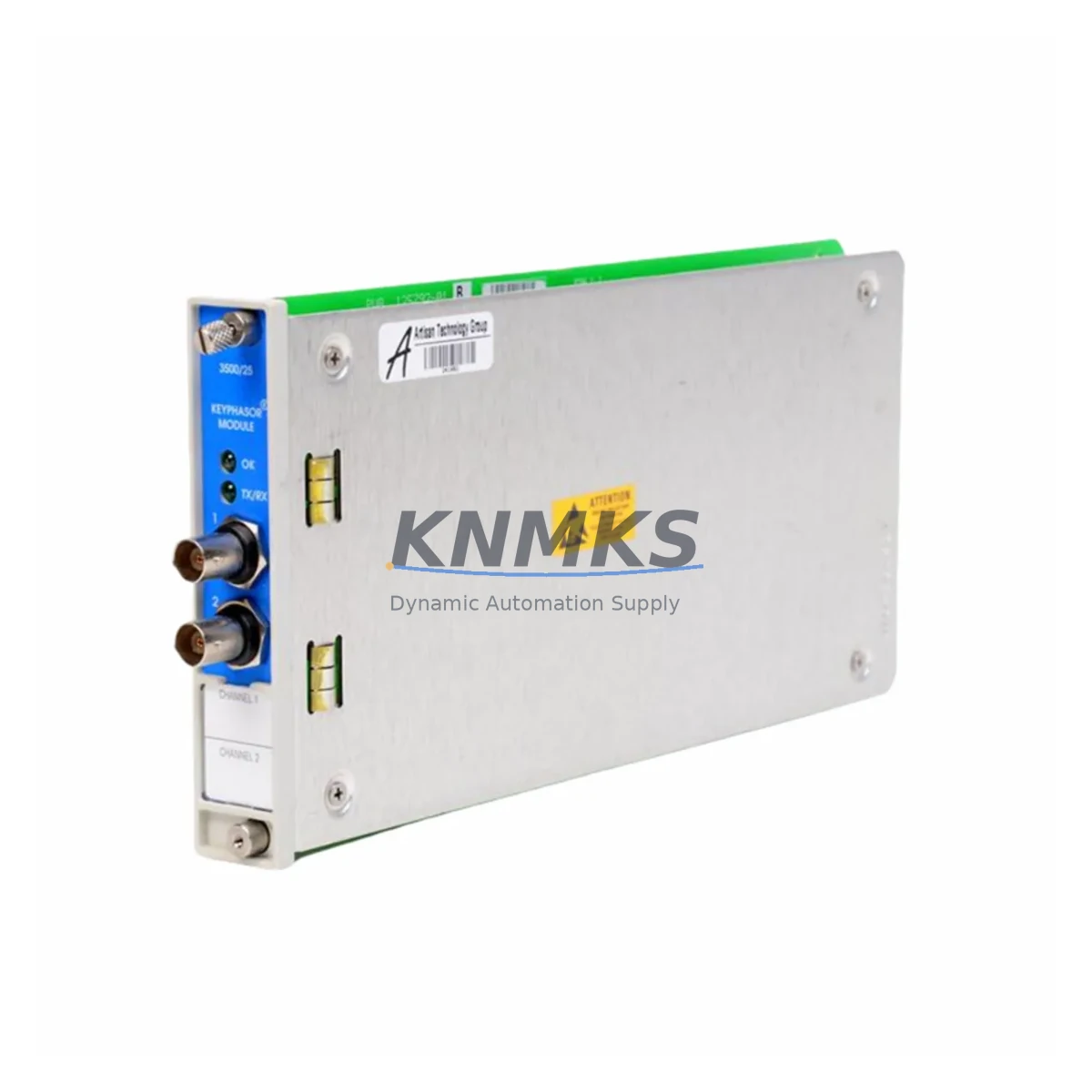

Bently Nevada 3500/25-02-01-01 Migration-Ready Keyphasor Module for Legacy Control Systems

The Bently Nevada 3500/25-02-01-01 Keyphasor Module is a migration-ready replacement for legacy rotating machinery protection systems built on the Bently Nevada 3500 Series platform. This module directly replaces discontinued part numbers 149369-01 and 125800-01, providing a verified drop-in solution for plants managing end-of-life vibration monitoring infrastructure. Pre-shipment tested and backed by a support terms confirmed by quotation, the 3500/25-02-01-01 is stocked for fast global dispatch to support both emergency replacements and scheduled outage windows.

Engineering teams undertaking control system modernization projects must confirm several critical parameters before swapping the Keyphasor module. Power supply compatibility with the 3500 Series rack — typically sourced from the Bently Nevada 3500/15 Power Supply module — must be validated against the existing backplane voltage rails. Terminal wiring for the Keyphasor transducer input (typically a proximity probe such as the 330180 series) must be verified against the original I/O drawing to ensure correct polarity and shielding continuity. The module occupies a dedicated slot in the 3500 Series rack, so available rack space and slot addressing must be confirmed before installation. Firmware version alignment between the 3500/25-02-01-01 and the rack’s 3500/22M Communication Gateway or 3500/20 Rack Interface Module is essential to maintain system-level compatibility and avoid configuration errors during commissioning.

For plants running parallel vibration and position monitoring, the 3500/25-02-01-01 Keyphasor output is commonly used to synchronize phase reference signals across adjacent monitor modules such as the Bently Nevada 3500/40M Proximitor/Seismic Monitor and the 3500/42M Proximitor/Seismic Monitor. Ensuring that the Keyphasor signal is correctly routed to all dependent monitor slots — and that the 3500/01 Rack Configuration software reflects the updated module map — is a mandatory step before returning the system to service. HMI screens tied to the System 1 Evolution or System 1 Classic software suite may require tag remapping if the module address has changed during the retrofit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3500/25-02-01-01 Keyphasor Module begins with a thorough review of the existing rack layout. The 3500 Series rack typically houses a combination of monitor modules — including the 3500/40M Proximitor/Seismic Monitor for radial vibration and the 3500/42M for axial position — all of which depend on the Keyphasor signal for phase-referenced measurements. Before removing the legacy Keyphasor module, engineers should document the current slot assignment, transducer wiring terminations, and the active configuration file stored in the 3500/22M Communication Gateway.

Terminal block wiring must be carefully transferred from the old module to the replacement 3500/25-02-01-01. The I/O terminal block is typically field-removable, but wiring polarity, shield grounding, and cable routing should be verified against the original loop drawing. If the plant is also upgrading the 3500/15 Power Supply or adding a redundant power feed, the power budget across all installed monitor modules must be recalculated to confirm the backplane can support the full module complement without exceeding rated capacity.

For sites integrating the 3500 rack into a broader DCS or SCADA environment via the 3500/22M Communication Gateway, the Keyphasor channel configuration — including gap voltage setpoints, transducer sensitivity, and trigger level — must be re-entered or restored from a saved configuration backup. If the plant uses a Bently Nevada 3500/20 Rack Interface Module for local display, the module map update must be reflected in the RIM configuration as well. Signal isolation requirements between the Keyphasor output and downstream monitor modules should be reviewed, particularly in high-noise environments where a signal isolator or conditioner may be installed in the signal path.

Downtime Control During System Migration

Minimizing unplanned downtime during a Keyphasor module replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the engineering team should export the full rack configuration from the 3500/01 Rack Configuration Software and archive it as a baseline. All active alarm setpoints, OK relay states, and communication parameters stored in the 3500/22M should be documented so they can be restored immediately after the new 3500/25-02-01-01 is installed and powered.

During the swap, the rack should remain powered where plant safety procedures permit, allowing adjacent monitor modules — such as the 3500/40M and 3500/42M — to continue monitoring other channels without interruption. The Keyphasor slot should be the last module removed and the first restored to minimize the window during which phase-referenced measurements are unavailable. After installation, the 3500/25-02-01-01 should be verified for correct gap voltage on the connected proximity probe before the configuration is reloaded and alarms are re-enabled.

Post-installation commissioning should include a live signal check against a known reference speed, confirmation of the Keyphasor OK status in the System 1 software, and a review of any latched alarms that may have triggered during the module swap. With pre-tested stock and a structured commissioning checklist, total downtime for a Keyphasor module replacement on the 3500 Series platform can typically be contained within a single planned maintenance shift.

Retrofit Support FAQ

Q1: Does the 3500/25-02-01-01 directly replace 149369-01 and 125800-01 without hardware modification?
Yes. The 3500/25-02-01-01 is the current active replacement for both 149369-01 and 125800-01. It is form-fit-function compatible with the 3500 Series rack slot and uses the same terminal block wiring interface. No hardware modification to the rack or backplane is required. Configuration must be re-applied via the 3500/01 Rack Configuration Software after installation.

Q2: What commissioning steps are required after installing the replacement module?
After seating the 3500/25-02-01-01 in the rack, reconnect the transducer wiring and verify gap voltage is within the specified range for the connected proximity probe. Reload the saved rack configuration using the 3500/01 software, confirm the Keyphasor channel status is OK, and validate phase-referenced readings on all dependent monitor modules (e.g., 3500/40M, 3500/42M) before returning the system to automatic protection mode.

Q3: Is the module pre-tested before shipment, and what support terms is provided?
Yes. Every 3500/25-02-01-01 unit is function-tested prior to dispatch to verify signal input response, output integrity, and communication compatibility. All units are covered by a support terms confirmed by quotation from the date of shipment. Multi-region stock is maintained to support both emergency replacement orders and scheduled outage planning with short lead times.

Q4: What should be checked if the Keyphasor OK status does not appear after installation?
First, verify that the proximity probe gap voltage is within the module’s specified input range (typically −10 VDC ± 2 V at the correct air gap). Check that the transducer cable shield is grounded at one end only and that wiring polarity matches the original loop drawing. Confirm the slot address in the 3500/01 configuration matches the physical rack position of the 3500/25-02-01-01. If the issue persists, check the firmware revision of the 3500/22M Communication Gateway for compatibility with the installed module revision.
