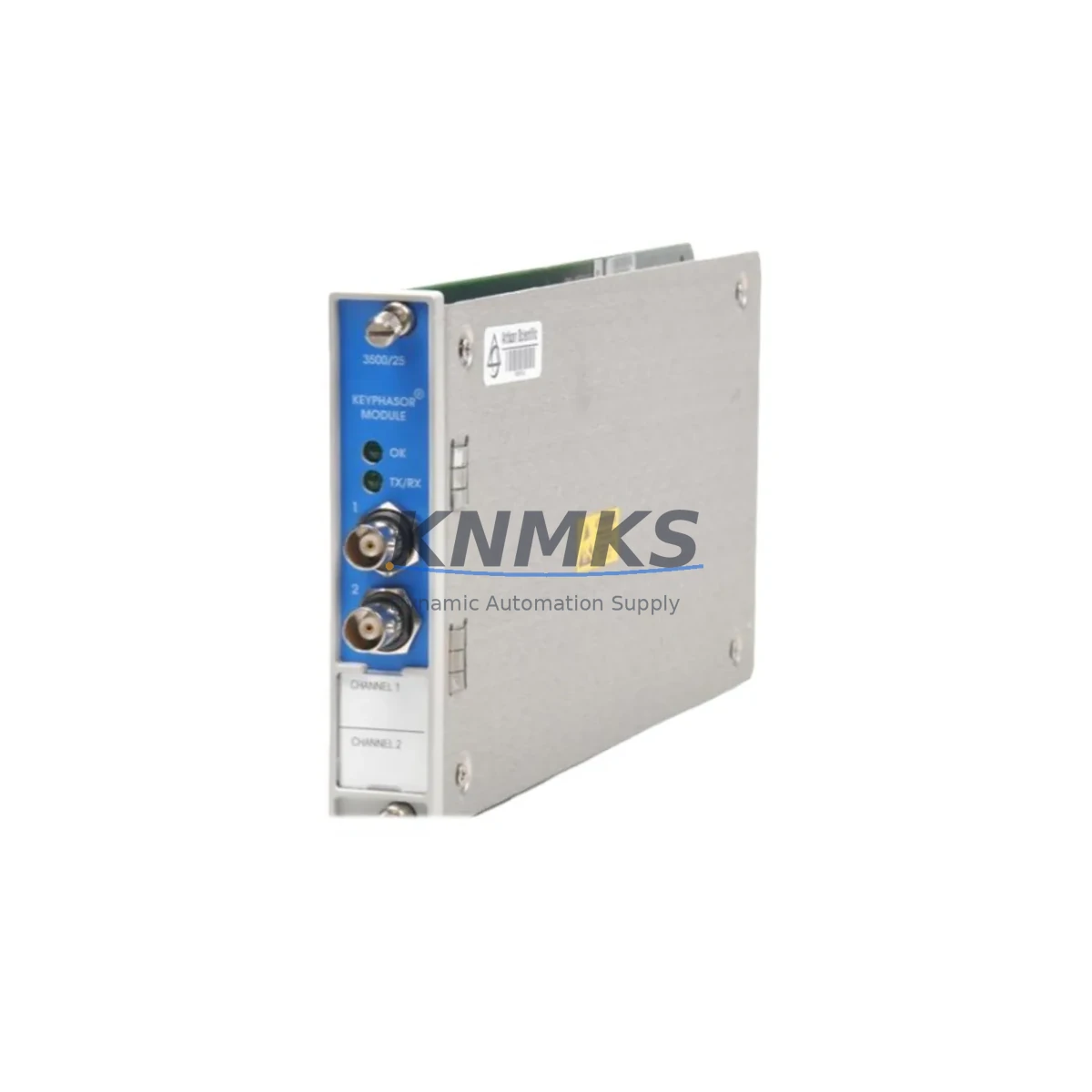

Bently Nevada 3500/25-01-01-00 Fail-Safe Keyphasor Module

Overview

Bently Nevada 3500/25-01-01-00 Fail-Safe Keyphasor Module: Critical Phase Reference for Industrial Control Reliability

The Bently Nevada 3500/25-01-01-00 is a dual-channel Keyphasor module engineered for the 3500 Series condition monitoring rack — one of the most widely deployed vibration monitoring platforms in continuous process industries. As the phase reference backbone of the 3500 rack architecture, this module provides the precise once-per-revolution timing signal that every downstream monitor card depends on for accurate vibration vector analysis, phase-referenced amplitude trending, and machinery protection trip logic. Without a reliable Keyphasor signal, the entire protection chain — from proximity probes to relay output modules — loses its phase anchor, creating the risk of undetected rotor imbalance, misalignment, and bearing degradation in rotating machinery operating under critical load.

In high-stakes environments such as petrochemical compressor trains, power generation turbines, and refinery pump systems, a degraded or intermittent Keyphasor signal is not merely a data quality issue — it is a machinery safety risk. The 3500/25-01-01-00 is designed to eliminate that risk by delivering a stable, noise-immune phase reference signal even in the presence of high electromagnetic interference, ground loop noise, and power supply fluctuations common in heavy industrial control cabinets. Its dual-channel architecture ensures that a single probe or cable fault does not compromise the entire phase reference function, supporting the redundancy requirements of safety-critical rotating equipment protection systems.

Each unit supplied by KNMKS undergoes full functional verification prior to shipment, including signal output integrity checks, channel isolation testing, and rack communication validation against 3500 Series backplane specifications. Units are sourced from controlled inventory, stored under ESD-safe and humidity-controlled conditions, and shipped with a support terms confirmed by quotation covering functional performance under normal operating conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully configured 3500 Series protection rack, the 3500/25-01-01-00 Keyphasor module operates as the timing reference for all installed monitor cards. A typical critical machinery protection cabinet built around the 3500 platform will include the Bently Nevada 3500/42M four-channel vibration monitor for radial shaft vibration measurement, the 3500/45 position monitor for axial thrust and differential expansion, and the 3500/32 relay output module that executes trip and alarm actions based on the phase-referenced vector data provided by the Keyphasor. Together, these modules form a tightly integrated protection chain where the accuracy of every measurement depends on the phase reference signal quality delivered by the 3500/25-01-01-00.

Power supply integrity is equally critical to the reliability of this protection chain. The Bently Nevada 3500/15 power supply module provides the regulated DC power required by all rack-mounted cards, and its redundant configuration ensures that a single power supply fault does not interrupt the Keyphasor signal or any downstream monitor function. In cabinets where external signal conditioning is required — for example, when interfacing with magnetic pickup sensors on older machinery — the Bently Nevada 3500/20 rack interface module provides the necessary signal buffering and isolation to protect the Keyphasor input from ground loop currents and surge transients that are common in high-voltage switchgear rooms and motor control centers.

For facilities operating in environments with significant electrical noise — such as variable frequency drive (VFD) rooms, arc furnace control areas, or offshore platform electrical rooms — the combination of the 3500/25-01-01-00’s inherent EMI immunity with proper cable shielding practices and the use of Bently Nevada 330130 series proximity probes and matched extension cables ensures that the Keyphasor signal remains clean and stable across the full speed range of the monitored machine. This end-to-end signal integrity is what separates a reliable protection system from one that generates nuisance trips or, worse, fails to detect a genuine machinery fault before catastrophic failure occurs.

Critical Industrial Safety Applications

The 3500/25-01-01-00 Keyphasor module is deployed across the full spectrum of rotating machinery protection applications in continuous process industries. In petrochemical and refinery operations, it provides the phase reference for centrifugal compressor and pump protection systems where unplanned shutdowns carry costs measured in tens of thousands of dollars per hour. The dual-channel architecture supports the redundancy requirements of SIL-rated safety instrumented systems (SIS) where a single point of failure in the monitoring chain is not acceptable.

In power generation facilities — including gas turbine, steam turbine, and large motor-generator sets — the Keyphasor module enables the phase-referenced vibration analysis that is essential for detecting rotor imbalance, blade loss events, and bearing wear before they escalate to forced outages. Turbine protection systems operating under NERC reliability standards require continuous, validated phase reference signals, and the 3500/25-01-01-00 is the proven solution for meeting that requirement within the 3500 rack architecture.

In mining and mineral processing environments, where large ball mills, SAG mills, and crusher drives operate under extreme mechanical loads and high ambient dust and vibration, the rugged design of the 3500 Series platform — anchored by a reliable Keyphasor module — provides the continuous monitoring capability needed to implement condition-based maintenance programs that reduce unplanned downtime and extend equipment life. Similarly, in water and wastewater treatment facilities, the module supports the protection of large pump and blower trains operating in humid, chemically aggressive environments where corrosion and condensation are persistent threats to electronic equipment reliability.

Port and marine applications — including crane drives, ship propulsion systems, and offshore platform rotating equipment — benefit from the module’s tolerance for high vibration, wide temperature swings, and salt-air humidity. In metallurgical and steel mill environments, where high electromagnetic interference from induction furnaces and large DC drives is a constant challenge, the EMI immunity of the 3500/25-01-01-00 ensures that the phase reference signal remains valid even in the most electrically hostile control cabinet environments.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 3500/25-01-01-00?
The support terms confirmed by quotation cover functional performance of the module under normal operating conditions as specified by Bently Nevada. If the module fails to perform its Keyphasor phase reference function within the confirmed support period due to a manufacturing or component defect, KNMKS will provide a replacement unit or documented resolution support. The confirmed support period begins from the shipment date and applies to all units supplied from our controlled inventory.

Q2: What pre-shipment testing is performed on each unit?
Every 3500/25-01-01-00 unit undergoes a structured functional verification process before shipment. This includes output signal integrity verification on both channels, channel isolation testing to confirm independence between the two Keyphasor inputs, and backplane communication validation to confirm compatibility with the 3500 Series rack interface. Units that do not pass all test criteria are quarantined and not shipped. Test records are retained and available upon request for critical applications.

Q3: Is the 3500/25-01-01-00 compatible with both standard and TMR 3500 rack configurations?
Yes. The 3500/25-01-01-00 is compatible with standard 3500 Series racks as well as Triple Modular Redundancy (TMR) configurations. The dual-channel architecture of the module supports the redundancy requirements of TMR systems. For specific slot assignment and configuration requirements in TMR racks, refer to the Bently Nevada 3500 Series System Manual or contact KNMKS technical support for application-specific guidance.

Q4: Can KNMKS support long-term supply and emergency replacement requirements for this module?
Yes. KNMKS maintains stock of the 3500/25-01-01-00 and other 3500 Series modules to support both planned maintenance programs and emergency replacement requirements. For facilities operating critical machinery where lead time risk is unacceptable, we recommend establishing a blanket stock arrangement to ensure immediate availability. Contact our team to discuss consignment stock, priority allocation, and multi-site supply agreements tailored to your maintenance program requirements.
