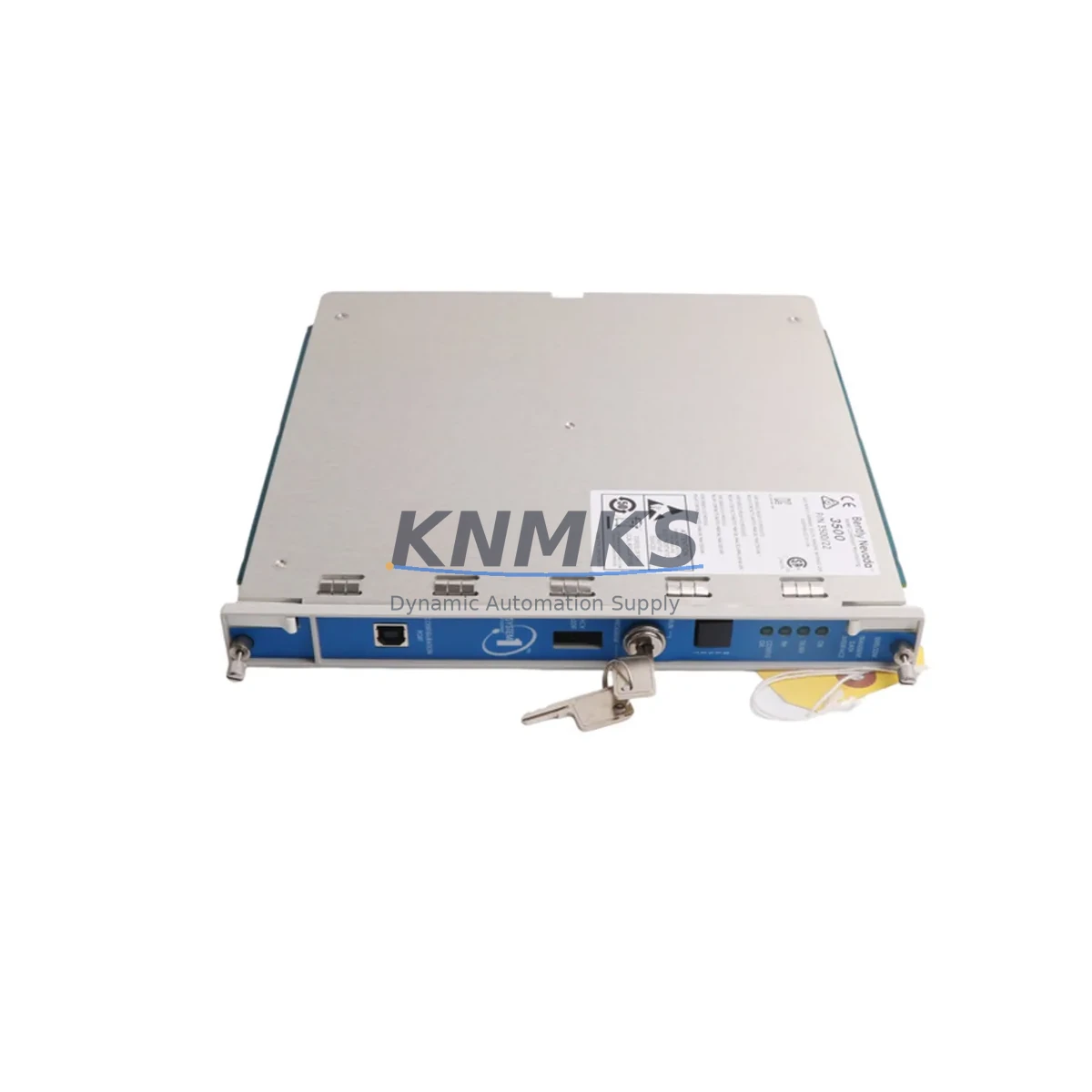

Bently Nevada 3500/22M 288055-01 Migration-Ready RTD/TC I/O

Overview

Bently Nevada 3500/22M 288055-01 Migration-Ready RTD/TC I/O: Legacy Control System Retrofit & Upgrade

The Bently Nevada 3500/22M 288055-01 is a dual-channel RTD/Thermocouple (TC) I/O Module designed for integration within the Bently Nevada 3500 Series machinery protection rack system. As legacy vibration monitoring infrastructure ages and OEM support for discontinued modules becomes increasingly scarce, the 3500/22M 288055-01 serves as a critical migration-ready replacement for facilities managing rotating machinery — including turbines, compressors, pumps, and generators — across oil & gas, power generation, petrochemical, and heavy industrial environments.

This module occupies a standard 3500 Series rack slot and interfaces directly with the 3500/01 Rack Interface Module and 3500/05 Power Supply, preserving the existing backplane architecture without requiring chassis replacement. For sites operating legacy Bently Nevada 3300 Series or early-generation 3500 racks, the 288055-01 provides a validated upgrade path that eliminates the need for full system overhaul while restoring full RTD and TC signal acquisition capability.

When planning a retrofit or spare-parts replenishment for the 3500/22M 288055-01, engineers must verify several critical parameters before installation:

• Power capacity: Confirm the 3500/05 Power Supply or 3500/05-01 redundant power module can support the additional I/O load. Total rack power draw must remain within rated limits, particularly when adding or replacing multiple I/O modules simultaneously.
• Terminal wiring: The 288055-01 uses a dedicated I/O terminal block. Verify field wiring gauge, shielding continuity, and RTD/TC sensor type (Pt100, Type K, Type J, etc.) against the module’s input configuration before energizing.
• Backplane slot address: Each module in the 3500 rack is assigned a slot address recognized by the 3500/22 Communication Gateway or host DCS/SCADA. Confirm slot assignment matches the original configuration to avoid address conflicts and alarm mapping errors.
• Firmware version: Ensure the replacement 288055-01 carries firmware compatible with the installed rack firmware baseline. Mismatched firmware versions can cause communication faults or prevent the module from being recognized by the System 1 Evolution condition monitoring software.
• HMI and SCADA screen mapping: RTD and TC channel tags must be re-validated in the operator HMI and any connected SCADA historian. If the original module was configured with custom alarm setpoints or trip thresholds, these must be re-entered via the Bently Nevada rack configuration software before returning the system to service.
• Communication link integrity: Where the 3500 rack communicates via Modbus RTU, Modbus TCP, or OPC-DA to a host DCS — such as a Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM — verify that the communication gateway module retains its configuration after the I/O module swap. A brief communication interruption during hot-swap or cold-swap procedures should be anticipated and coordinated with the control room.
• Physical installation space: The 3500/22M occupies a single-width slot in the 19-inch 3500 rack. Confirm adjacent modules are not obstructing the card guide rails and that the rack has adequate ventilation clearance per Bently Nevada installation specifications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3500/22M 288055-01 into an aging control infrastructure requires a structured retrofit plan that accounts for both the module itself and the surrounding system components. In most legacy installations, the 3500/22M does not operate in isolation — it functions as part of a coordinated rack assembly that may include the 3500/40M Proximitor/Seismic Monitor for vibration and position measurement, the 3500/42M Proximitor/Seismic Monitor for dual-channel proximity probe inputs, and the 3500/32 4-Channel Relay Module for trip and alarm output logic.

When the 3500/22M 288055-01 is being replaced as part of a broader control cabinet upgrade, it is common to simultaneously address the 3500/05 Power Supply if it is approaching end-of-life, as power supply degradation is a leading cause of intermittent I/O faults in aging 3500 racks. Similarly, if the facility is migrating from a legacy DCS to a modern platform, the 3500/22 Communication Gateway Module may require reconfiguration or replacement to support updated Modbus TCP or OPC-UA communication standards required by the new host system.

For sites where the 3500 rack communicates with a legacy Bently Nevada Data Manager 2000 or early-generation historian, migration to System 1 Evolution software should be planned in parallel with the hardware retrofit. This ensures that RTD and TC channel data from the 288055-01 is correctly mapped, trended, and alarmed in the new software environment without loss of historical baseline data.

Field engineers should also assess the condition of the 3500 Series I/O terminal blocks and field wiring harnesses during the retrofit window. Corroded terminals, degraded shielding, or undersized conductors can introduce signal noise that masks the performance improvement delivered by a new 288055-01 module. Replacing terminal blocks and re-terminating field wiring during the planned outage window eliminates a common source of post-retrofit commissioning delays.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy control system retrofit. For the Bently Nevada 3500/22M 288055-01, the following practices are recommended to protect program logic, maintain field control continuity, and reduce retrofit risk:

Pre-migration configuration backup: Before removing the existing 288055-01, export the full rack configuration using Bently Nevada’s rack configuration software. Save channel assignments, alarm setpoints, trip multipliers, and communication parameters to a secure backup file. This backup serves as the restoration baseline if the new module requires re-commissioning.

Coordinated outage window: Schedule the module swap during a planned maintenance window coordinated with the control room and operations team. Notify the DCS/SCADA operator to place affected channels in maintenance mode or bypass trip logic for the duration of the swap to prevent spurious shutdowns.

Cold-swap vs. hot-swap assessment: The 3500 Series supports hot-swap for some module types, but RTD/TC I/O modules should be assessed on a site-specific basis. Confirm with the site’s safety instrumented system (SIS) requirements whether a cold-rack procedure is mandated before removing the 288055-01.

Post-installation verification: After installing the replacement 288055-01, perform a channel-by-channel verification of RTD and TC readings against known reference values or portable calibrators. Confirm alarm and trip setpoints are correctly restored. Validate communication link status in the gateway module and confirm data is flowing correctly to the host DCS historian before releasing the system to normal operation.

Spare module inventory: For critical rotating machinery applications, maintaining at least one spare 3500/22M 288055-01 in the site’s MRO inventory is strongly recommended. Given the discontinued or limited-availability status of many 3500 Series modules, securing verified spare stock with a support terms confirmed by quotation provides insurance against extended lead times during unplanned failures.

Retrofit Support FAQ

Q: Is the 3500/22M 288055-01 a direct drop-in replacement for the original module?
A: Yes, the 288055-01 is designed as a direct replacement for the same part number within the Bently Nevada 3500 Series rack. Physical dimensions, backplane connector, and slot addressing are identical. However, firmware version compatibility should be verified against the installed rack baseline before installation, and channel configuration must be restored from backup after the swap.

Q: What pre-shipment testing is performed on the 3500/22M 288055-01?
A: Each unit undergoes functional testing prior to shipment to verify RTD and TC input channel operation, backplane communication integrity, and power supply interface. A support terms confirmed by quotation is provided covering manufacturing defects identified under normal operating conditions.

Q: Can the 288055-01 be used in a 3500 rack that communicates via Modbus TCP to a modern DCS?
A: Yes. The 3500/22M 288055-01 interfaces with the rack backplane and its data is accessible via the 3500/22 Communication Gateway Module, which supports Modbus RTU and Modbus TCP protocols. Confirm the gateway module firmware supports the Modbus TCP variant required by your host DCS, and re-validate register mapping after the I/O module replacement.

Q: What is the typical lead time and stock availability for the 3500/22M 288055-01?
A: Stock availability varies. We maintain inventory of verified 3500 Series modules to support urgent retrofit and emergency replacement requirements. Contact our team for current stock status and lead time confirmation. For critical applications, we recommend securing spare units in advance given the limited OEM availability of discontinued 3500 Series components.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/22M 288055-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 3500/22M 288055-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
