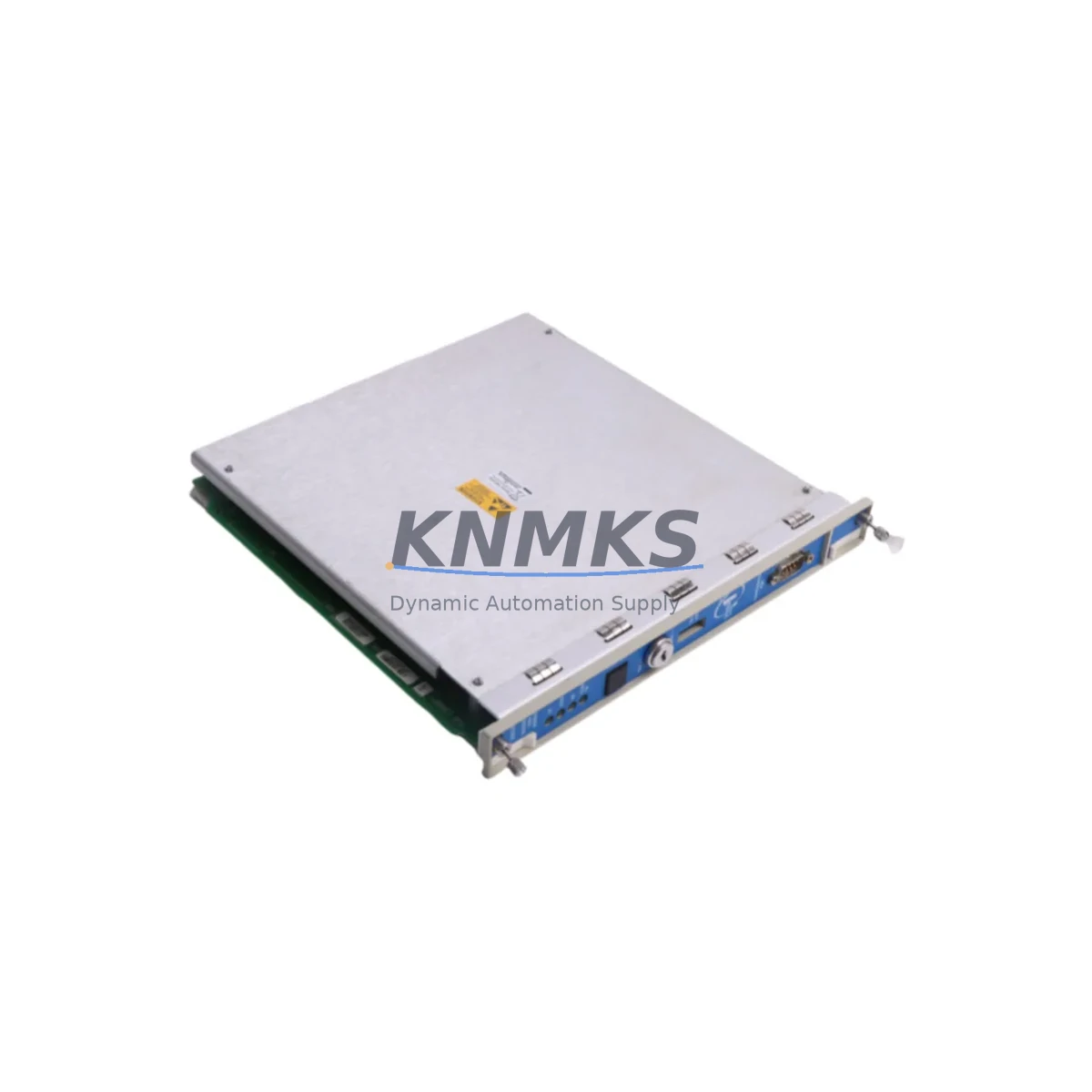

Bently Nevada 3500/22M 138607-01 Migration-Ready TDI Module

Overview

Bently Nevada 3500/22M 138607-01 Migration-Ready TDI Module for Legacy Control Systems

The Bently Nevada 3500/22M 138607-01 is a Transient Data Interface (TDI) Module designed for the 3500 Series Machinery Protection System. As legacy 3500 Series installations approach end-of-support milestones, this module serves as a critical component in both direct replacement scenarios and structured system migration projects. Whether you are restoring a failed unit in an operating plant, upgrading a control cabinet to extend service life, or executing a phased migration from an older Bently Nevada 7200 or 3300 Series platform, the 3500/22M 138607-01 provides a verified, drop-in-compatible solution backed by a support terms confirmed by quotation and pre-shipment functional testing.

Before initiating any replacement or retrofit, engineers should confirm the following parameters against the existing installation: rack backplane slot assignment, power supply capacity (the 3500 Series rack typically requires a 3500/15 Power Supply Module rated at the appropriate wattage for the populated slot count), terminal block wiring configuration, module address settings via DIP switch or software configuration, and the firmware revision loaded on the 3500/01 Rack Interface Module. Mismatches in any of these areas can result in communication faults or loss of monitoring continuity during commissioning.

For sites migrating from the Bently Nevada 3300 Series or 7200 Series, the 3500/22M 138607-01 requires a full rack transition to the 3500 platform. In these cases, the migration scope typically includes replacing the rack chassis, installing a compatible 3500/20 Rack Interface I/O Module for external communications, and reconfiguring the System 1 software database to reflect the new module inventory. HMI screens tied to the legacy system must be updated to map new tag addresses, and any Modbus or RS-232 communication links to the DCS or SCADA layer should be re-verified after the rack swap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3500/22M 138607-01 into an existing machinery protection architecture requires careful coordination across multiple system layers. The 3500 Series rack is a modular platform, and the TDI module operates in conjunction with several adjacent components that must be evaluated before and after the swap.

The 3500/15 Power Supply Module is the first component to audit. Adding or replacing a TDI module changes the total rack power draw, and an undersized power supply will cause intermittent faults or prevent the module from initializing. If the existing power supply is already operating near capacity, a replacement or supplemental unit should be sourced as part of the same project scope.

The 3500/01 Rack Interface Module governs communication between the rack and the System 1 monitoring software. Its firmware version determines which module types and configurations are supported. Before installing the 3500/22M 138607-01, confirm that the rack interface module firmware is at a revision level that recognizes the TDI module’s configuration parameters. In some older installations, a firmware update to the 3500/01 is a prerequisite step.

For sites that use the 3500/20 Rack Interface I/O Module to bridge the 3500 rack to a DCS or SCADA system via Modbus RTU or RS-232, the communication link must be re-tested after any module change. The I/O module’s register map may need to be updated if the TDI module occupies a different slot address than the unit it replaces.

In control cabinets where space is constrained, the physical dimensions of the 3500 Series rack and the installation clearance requirements for the TDI module should be confirmed against the available panel depth and width. If the retrofit is part of a broader cabinet upgrade that also involves replacing a 3500/32 4-Channel Relay Module or adding a 3500/42M Proximitor/Seismic Monitor Module, the full slot layout should be planned before any hardware is ordered to avoid backplane conflicts.

For sites that also operate Keyphasor inputs, the 3500/25 Enhanced Keyphasor Module slot assignment must be confirmed, as TDI module configuration in System 1 may reference Keyphasor channel assignments that are position-dependent within the rack.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any machinery protection system retrofit. For the Bently Nevada 3500/22M 138607-01, the following approach is recommended to protect program logic, maintain field control continuity, and reduce commissioning risk.

Pre-migration preparation should include a full export of the existing System 1 configuration database, including all channel assignments, alarm setpoints, relay logic, and communication parameters. This export serves as both a backup and a reference document for post-installation verification. If the existing TDI module is still partially functional, capture all active configuration data before powering down the rack.

Slot-level hot-swap considerations: The 3500 Series supports limited hot-swap capability depending on rack configuration and firmware revision. Confirm with the site’s machinery protection engineer whether the specific rack configuration permits module replacement under power, or whether a controlled shutdown of the monitored machine train is required. For critical rotating equipment such as compressors, turbines, or pumps, a planned maintenance window is strongly recommended.

Post-installation commissioning should follow a structured sequence: power-on verification, System 1 module recognition confirmation, channel-by-channel signal verification against known reference inputs, alarm setpoint re-entry and verification, relay output functional test, and communication link re-establishment to the DCS or SCADA layer. Each step should be documented and signed off before the machine train is returned to service.

All units supplied by KNMKS undergo pre-shipment functional testing to confirm module initialization, communication response, and basic channel operation. This reduces on-site commissioning time and lowers the risk of receiving a non-functional unit during a time-critical maintenance window.

Retrofit Support FAQ

Q1: Is the 3500/22M 138607-01 a direct replacement for all 3500/22M variants?
The 138607-01 is a specific revision of the 3500/22M TDI Module. While it is generally compatible with standard 3500 Series racks, confirm the exact part number and revision against your existing installation documentation. Some earlier rack configurations may require a firmware update to the 3500/01 Rack Interface Module before the replacement unit is recognized correctly.

Q2: What wiring changes are required during replacement?
In a direct like-for-like replacement, the existing terminal block wiring can typically be reused if the terminal block itself is undamaged and the wiring is correctly documented. However, if the terminal block part number differs between the old and new module revision, a wiring adapter or new terminal block may be required. Always verify terminal block compatibility before assuming a no-rewire installation.

Q3: How is pre-shipment testing conducted, and what documentation is provided?
Each 3500/22M 138607-01 unit supplied by KNMKS is powered on and tested for module initialization and basic communication response prior to shipment. Test records are available upon request. The support terms confirmed by quotation cover functional defects identified after installation under normal operating conditions.

Q4: What is the typical lead time and inventory availability?
KNMKS maintains stock of the 3500/22M 138607-01 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For projects requiring multiple units or long-term supply agreements (12–36 months), contact our sales team to discuss dedicated inventory allocation and pricing.
