Bently Nevada 3500/22-01-01-00 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 3500/22-01-01-00 Maintenance-Proven Spare Part for Factory Uptime

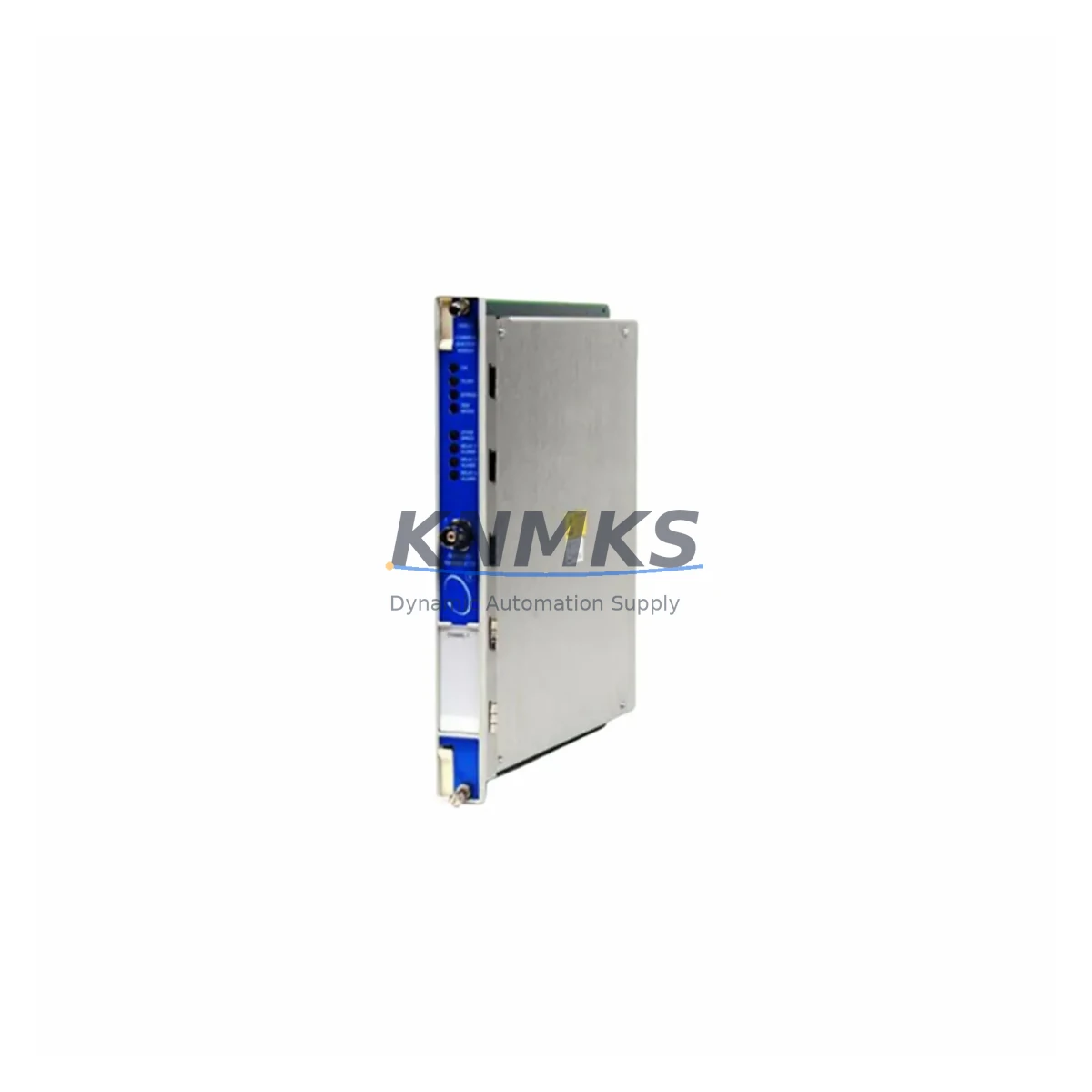

The Bently Nevada 3500/22-01-01-00 is a Transient Data Interface (TDI) Module designed for the 3500 Series machinery protection system — one of the most widely deployed continuous vibration monitoring platforms in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industrial facilities. This original spare module supports high-speed transient data capture, enabling maintenance engineers to record and analyze startup, shutdown, and trip events with precision. Keeping a verified, pre-tested 3500/22-01-01-00 in your spare parts inventory is a proven strategy for minimizing unplanned downtime and protecting critical rotating assets.

At KNMKS, every 3500/22-01-01-00 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Multi-region stock ensures fast global dispatch for both emergency replacements and scheduled outage windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 3500/22-01-01-00 TDI Module during a planned outage or emergency callout, a thorough maintenance engineer will treat this as an opportunity to audit the surrounding system components that share the same rack, power bus, and communication loop. Neglecting adjacent modules during a TDI swap is a common root cause of repeat failures and extended downtime.

Begin with the rack power supply — the Bently Nevada 3500/15 Power Supply Module should be checked for output voltage stability and capacitor health, as a degraded power supply can cause intermittent TDI faults that mimic module failure. Next, inspect the 3500/20 Rack Interface Module (RIM), which manages communication between the rack and the host DCS or historian; a failing RIM can corrupt transient data uploads and mask genuine machinery events.

For sites running Keyphasor-referenced transient capture, verify the condition of the 3500/25 Keyphasor Module and its associated proximity probe cabling. Probe connector integrity and cable shielding continuity are frequent failure points in high-vibration environments. Similarly, the 3500/40M Proximitor I/O Module — used for radial vibration and position monitoring on the same shaft — should be inspected for channel drift and connector corrosion during any TDI-related maintenance window.

On the communication side, confirm that the Ethernet patch cables connecting the 3500 rack to the plant historian or condition monitoring workstation are rated for industrial environments and are free of physical damage. For legacy RS-232 installations, check the serial communication isolator and terminal block connections at the rack rear panel. Loose terminal screws and oxidized contacts are a leading cause of intermittent data loss in older 3500 installations.

Finally, review the rack’s 3500/05 System Monitor Module event log for any latent alarms or configuration mismatches that may have been masked by the TDI fault. Clearing and re-validating the system configuration after module replacement is a mandatory step before returning the machinery protection system to service.

Maintaining a minimum spare inventory of one 3500/22-01-01-00 TDI Module, one 3500/15 Power Supply, and one 3500/20 RIM per critical train is a widely adopted best practice in rotating equipment maintenance programs. KNMKS supports long-term supply agreements to ensure these critical spares remain available without lead-time risk.

Site Replacement Workflow

Replacing the 3500/22-01-01-00 in the field follows a structured sequence to ensure system integrity and minimize bypass duration:

1. Pre-replacement verification: Confirm the replacement module’s firmware revision matches or is compatible with the existing rack configuration. Download and archive the current rack configuration using System 1 or the 3500 Rack Configuration Software before any hardware change.

2. Safe isolation: Notify the control room and place the affected monitoring channels in bypass mode per site MOC (Management of Change) procedure. Do not power down the entire rack unless required — the 3500 system supports hot-swap of TDI modules in most configurations.

3. Module extraction and installation: Remove the faulty 3500/22-01-01-00 by releasing the front-panel ejector levers. Insert the replacement module into the same rack slot, ensuring full backplane connector engagement. Secure the front-panel latch.

4. Configuration restore and validation: Re-upload the saved rack configuration to the new module. Verify all transient data channels are active and reporting correctly in System 1 or the connected historian. Confirm Keyphasor synchronization if applicable.

5. Return to service: Remove bypass, confirm alarm setpoints are active, and document the replacement in the site CMMS. Retain the removed module for failure analysis before disposal or return.

This workflow is compatible with legacy 3500 rack installations and current-generation systems, supporting a smooth transition without requiring full system reconfiguration or extended machinery bypass windows.

Spare Parts Support FAQ

Q1: Is the 3500/22-01-01-00 compatible with all 3500 Series rack configurations?
The 3500/22-01-01-00 TDI Module is designed for the Bently Nevada 3500 Series rack platform and is compatible with both 19-slot and 4-slot rack configurations. Firmware compatibility should be verified against the existing rack software version prior to installation. KNMKS can provide firmware revision details upon request to support pre-installation planning.

Q2: What pre-shipment testing does KNMKS perform on the 3500/22-01-01-00?
Every unit undergoes functional verification prior to dispatch, including power-on self-test, communication interface check, and channel integrity validation. Units that do not pass testing are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: How does the support terms confirmed by quotation apply to this spare module?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. KNMKS provides direct support terms support — no third-party RMA routing required.

Q4: Can KNMKS support long-term or blanket purchase orders for the 3500/22-01-01-00?
Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for critical spare modules including the 3500/22-01-01-00. Multi-region stock positioning allows us to commit to defined lead times for scheduled outage windows and emergency callout scenarios. Contact our team to discuss volume pricing and supply continuity terms.
