Bently Nevada 3500/20 125744-02 Maintenance-Proven Spare Part

Overview

Bently Nevada 3500/20 125744-02 Maintenance-Proven Spare Part for Factory Uptime

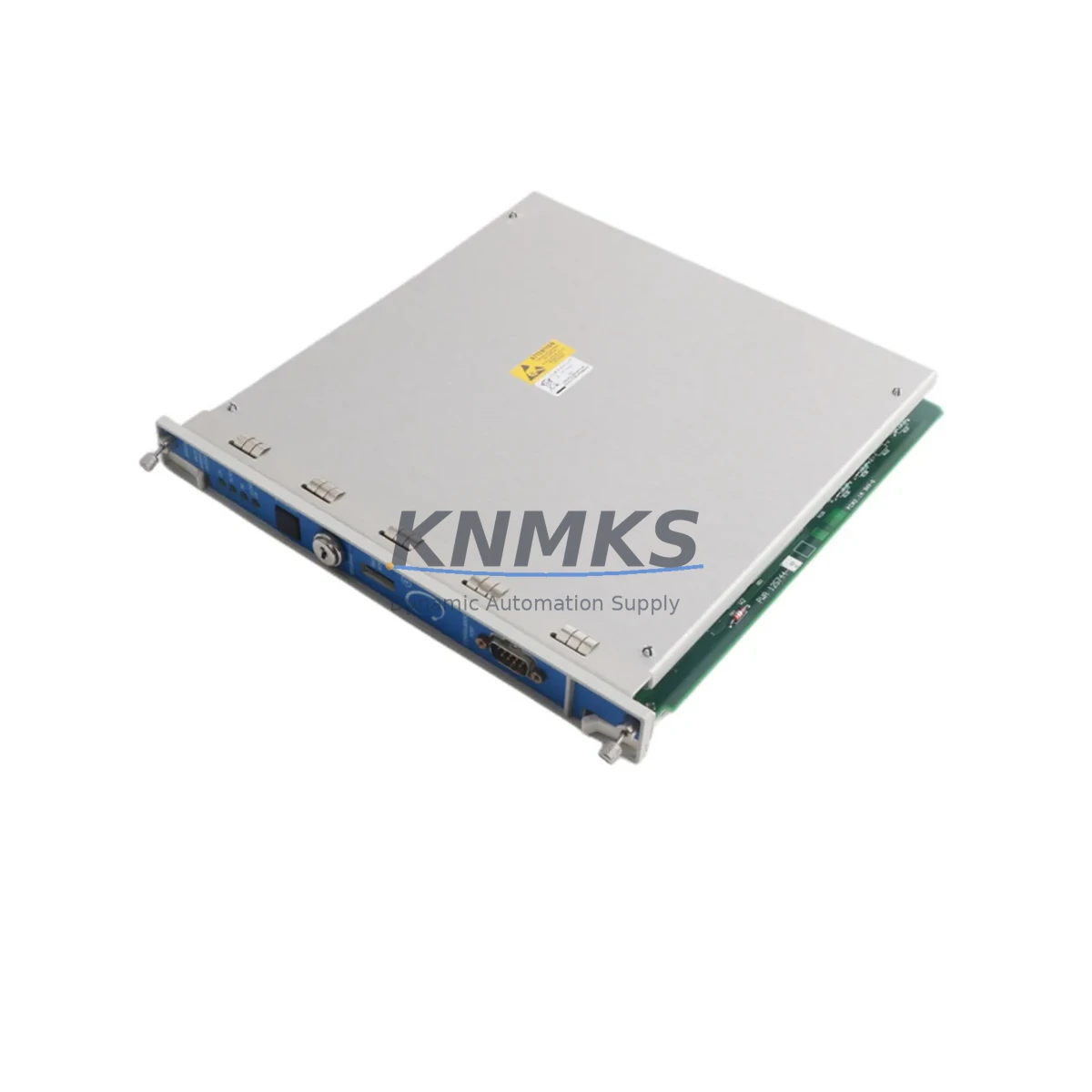

The Bently Nevada 3500/20 125744-02 is a Keyphasor I/O Module designed for the 3500 Series machinery protection and condition monitoring platform. As a critical interface between rotating machinery and the 3500 rack system, this module provides the phase reference signal essential for vibration analysis, balancing diagnostics, and speed measurement across turbines, compressors, pumps, and other rotating assets in continuous-process industries.

For maintenance engineers managing aging machinery protection systems, sourcing a verified original spare for the 3500/20 125744-02 is a non-negotiable step in any planned or emergency maintenance event. Downtime on a critical rotating asset can cost thousands of dollars per hour. Having this module in your spare parts inventory — tested, warranted, and ready to install — is the most direct way to protect production continuity.

This listing covers an original Bently Nevada 3500/20 125744-02 unit, sourced from authorized channels, individually inspected, and shipped with a support terms confirmed by quotation. Each unit undergoes functional verification prior to dispatch to ensure it meets OEM performance specifications upon arrival at your facility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3500/20 125744-02 Keyphasor I/O Module during a scheduled outage or emergency intervention, maintenance and procurement engineers should treat the event as an opportunity to audit the surrounding system components to prevent repeat failures and maximize the value of the maintenance window.

Begin with the 3500 rack backplane — inspect for corrosion, bent connector pins, and secure module seating. A degraded backplane can cause intermittent signal loss that mimics a faulty Keyphasor module, leading to misdiagnosis. Next, verify the condition of the 3500/15 Power Supply Module (or 3500/05 Rack Interface Module depending on rack configuration), as an unstable rack power supply is a common root cause of I/O module failures in long-running systems.

Check the Keyphasor proximity probe and extension cable (typically Bently Nevada 330130 or 330180 series probes with matching 330130 extension cables) for cable jacket integrity, connector corrosion, and gap voltage within the specified range. A worn or improperly gapped probe will produce erratic phase reference signals regardless of the I/O module condition.

For systems using the 3500/22M Transient Data Interface or 3500/40M Proximitor I/O Module in the same rack, confirm that firmware versions are compatible with the replacement 125744-02 module to avoid communication faults after reinsertion. Review the rack configuration in System 1 or the 3500 Rack Configuration Software before powering up.

Procurement engineers building annual spare parts lists for 3500 Series installations should also consider stocking the 3500/32 4-Channel Relay Module and 3500/42M Proximitor/Seismic I/O Module as companion spares. These modules share the same rack environment and failure modes, and their lead times from OEM channels can be extended — making pre-positioned inventory a sound risk management strategy for facilities with SIL-rated or API 670-compliant protection systems.

Finally, inspect field wiring terminal blocks and signal isolators connected to the Keyphasor circuit. Loose terminations or degraded signal isolators can introduce noise into the phase reference channel, causing false trip events or inaccurate speed readings even after a successful module replacement.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement 3500/20 125744-02 part number and revision match the installed module. Check the rack slot assignment in the 3500 configuration file. Record current Keyphasor gap voltages and signal levels before removal.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. For non-TMR racks, coordinate with the control room to bypass or inhibit alarms on the affected channels before module removal to prevent spurious trips.

Step 3 — Module Removal: Loosen the captive screws on the module front panel. Carefully extract the module from the rack slot. Inspect the backplane connector for damage before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the 125744-02 replacement module firmly into the rack slot. Tighten captive screws to the specified torque. Reconnect field wiring if applicable.

Step 5 — Functional Verification: Power up the rack and confirm the Keyphasor channel status in the 3500 rack display or System 1 software. Verify gap voltage, signal amplitude, and speed readout against pre-removal baseline values. Clear any latched alarms and confirm normal operation before returning the asset to service.

Step 6 — Documentation: Update the maintenance management system (CMMS) with the replacement date, new module serial number, and post-replacement test results. Flag the removed module for repair evaluation or controlled disposal.

Spare Parts Support FAQ

Q1: Is the 3500/20 125744-02 an original Bently Nevada part or a third-party replacement?
A: This is an original Bently Nevada 3500/20 125744-02 module. We do not supply third-party replicas or rebranded substitutes. Each unit is individually inspected and functionally verified before shipment.

Q2: What support terms is provided, and what does it cover?
A: All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers functional failure under normal operating conditions. Units are tested prior to dispatch; if a unit fails on arrival or within the confirmed support period due to a manufacturing or handling defect, we will arrange replacement or refund.

Q3: Can this module replace earlier or later revisions of the 3500/20?
A: The 125744-02 revision is compatible with standard 3500 Series rack configurations. For TMR (Triple Modular Redundant) systems or specific firmware-locked configurations, we recommend confirming the revision requirement with your system documentation or contacting our technical team before ordering. We can advise on cross-compatibility based on your rack configuration details.

Q4: What is your lead time and do you maintain long-term stock for 3500 Series modules?
A: In-stock units ship within 1–3 business days. We maintain ongoing inventory of 3500 Series modules to support long-term maintenance programs and annual procurement plans. For facilities requiring guaranteed stock reservation or blanket order arrangements, contact our sales team to discuss supply agreements.
