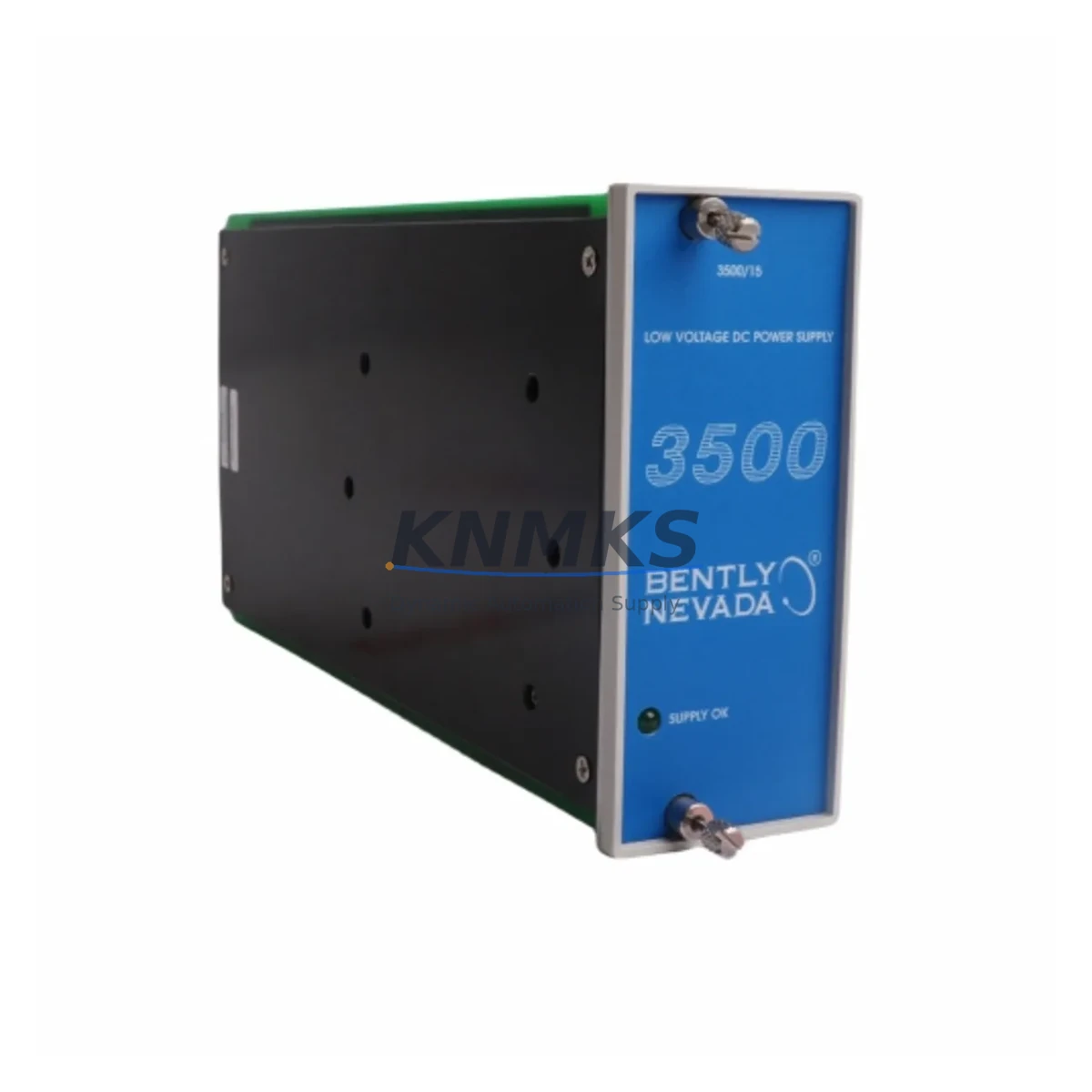

Bently Nevada 3500/15 133292-01 Migration-Ready Power Supply

Overview

Bently Nevada 3500/15 133292-01 Migration-Ready Power Supply for Legacy Control Systems

The Bently Nevada 3500/15 133292-01 is a rack-mount power supply module designed for the Bently Nevada 3500 Series machinery protection and condition monitoring platform. As original equipment reaches end-of-life and OEM support windows close, facilities operating legacy 3500 Series racks in petrochemical, power generation, offshore, and heavy industrial environments face increasing pressure to source validated replacement modules that maintain system continuity without requiring full platform migration.

This unit provides the regulated DC power required to sustain continuous operation of 3500 Series monitor modules, including vibration, temperature, speed, and position monitors installed across the same rack backplane. The 3500/15 133292-01 is a direct form-fit-function replacement for the original factory module, preserving existing wiring, backplane connections, and rack addressing without requiring software reconfiguration or HMI screen updates.

Each unit supplied by KNMKS undergoes pre-shipment functional verification to confirm output voltage stability, inrush current behavior, and thermal performance under load. Stock is maintained to support urgent spare parts requirements, planned turnaround maintenance, and long-cycle procurement programs across multi-site deployments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3500/15 133292-01 power supply within an operational 3500 Series rack requires a structured approach to avoid disrupting the monitoring chain for rotating equipment. Before removal, engineers should document the current rack configuration, including the slot assignments of all installed monitor modules such as the 3500/40M proximity transducer monitor and the 3500/42M vibration monitor, which rely on continuous power delivery from the rack supply to maintain alarm and danger setpoints.

Terminal wiring on the power supply input side should be photographed and labeled prior to disconnection. The AC input terminals on the 3500/15 accept standard industrial wiring gauges, and the existing cable lengths are typically sufficient for a direct swap without re-routing. If the rack also houses a 3500/20 rack interface module for Modbus or Ethernet communication, the communication link to the DCS or historian should be confirmed as stable before and after the power supply exchange to verify that no monitor module has lost its configuration during the power cycle.

For facilities running redundant power configurations, the 3500/15E enhanced power supply or a secondary 3500/15 unit installed in the redundant power slot provides automatic failover. Confirming that the redundant supply is functional before removing the primary unit eliminates the risk of a monitoring gap during the swap procedure. In racks that also include a 3500/22M transient data interface module, the transient recording buffer should be cleared and the module status confirmed after power restoration to ensure data integrity.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a legacy DCS to a modern safety instrumented system — the 3500 Series rack can typically be retained as a standalone machinery protection subsystem, with its Modbus or Ethernet/IP output integrated into the new control platform. This approach avoids the cost and schedule risk of replacing the entire vibration monitoring infrastructure while the primary control migration proceeds. Signal conditioning modules and I/O marshalling panels connected to the 3500 rack outputs should be verified for compatibility with the new DCS input card specifications before the cutover.

Downtime Control During System Migration

Power supply replacement on a live 3500 Series rack requires a planned outage window, but the duration can be minimized with advance preparation. The critical path items are: confirming the replacement unit is on-site and pre-tested, briefing the operations team on the monitoring gap window, and having the original program logic and rack configuration file backed up in the Rack Configuration Software (RCS) before the outage begins.

Because the 3500/15 133292-01 is a direct form-fit-function replacement, no re-addressing of monitor modules is required after installation. The rack will restore its previous configuration automatically upon power-up, provided the individual monitor modules retain their internal configuration — which they do under normal conditions when module memory is intact. This eliminates the need for a full rack re-commissioning cycle and reduces the outage window to the physical swap and power restoration sequence.

For critical machinery protection applications — compressors, turbines, pumps — where even a brief monitoring gap requires a formal management of change (MOC) process, KNMKS can provide advance documentation including the pre-shipment test report and module specifications to support the MOC submission and operations approval workflow. Coordinating the swap during a scheduled maintenance window, rather than responding to an unplanned module failure, is the most effective way to control downtime risk and maintain compliance with site safety procedures.

After power restoration, the first verification step is to confirm that all monitor modules in the rack are displaying live process values and that no spurious alarms have been triggered by the power cycle. Communication links to the DCS, historian, or SCADA system should be confirmed within the first five minutes of operation. If the rack includes a 3500/32 relay output module, relay states should be verified against the expected process conditions before returning the machinery to normal operation.

Retrofit Support FAQ

Q1: Is the 3500/15 133292-01 a direct drop-in replacement for the original factory module?
Yes. The 3500/15 133292-01 is a form-fit-function replacement for the original Bently Nevada factory module. Existing backplane connections, terminal wiring, and rack slot assignments are retained without modification. No software reconfiguration or HMI updates are required.

Q2: What pre-shipment testing is performed before the unit is shipped?
Each 3500/15 133292-01 unit supplied by KNMKS is functionally tested prior to shipment. Testing covers output voltage accuracy, load regulation under rated current, and thermal performance. A test report is available upon request to support site acceptance and MOC documentation requirements.

Q3: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. The support terms covers functional defects identified under normal operating conditions. KNMKS maintains stock to support support terms replacement requests with minimal lead time, reducing the risk of extended downtime in the event of a support terms claim.

Q4: Can this unit be used in a redundant power configuration within the 3500 Series rack?
Yes. The 3500 Series rack supports dual power supply installation for redundancy. The 3500/15 133292-01 can be installed in either the primary or redundant power supply slot. For facilities requiring continuous monitoring without a planned outage window, installing a second 3500/15 unit in the redundant slot before replacing the primary supply eliminates the monitoring gap during the swap procedure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/15 133292-01
3500 Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Bently Nevada 3500/15 133292-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
