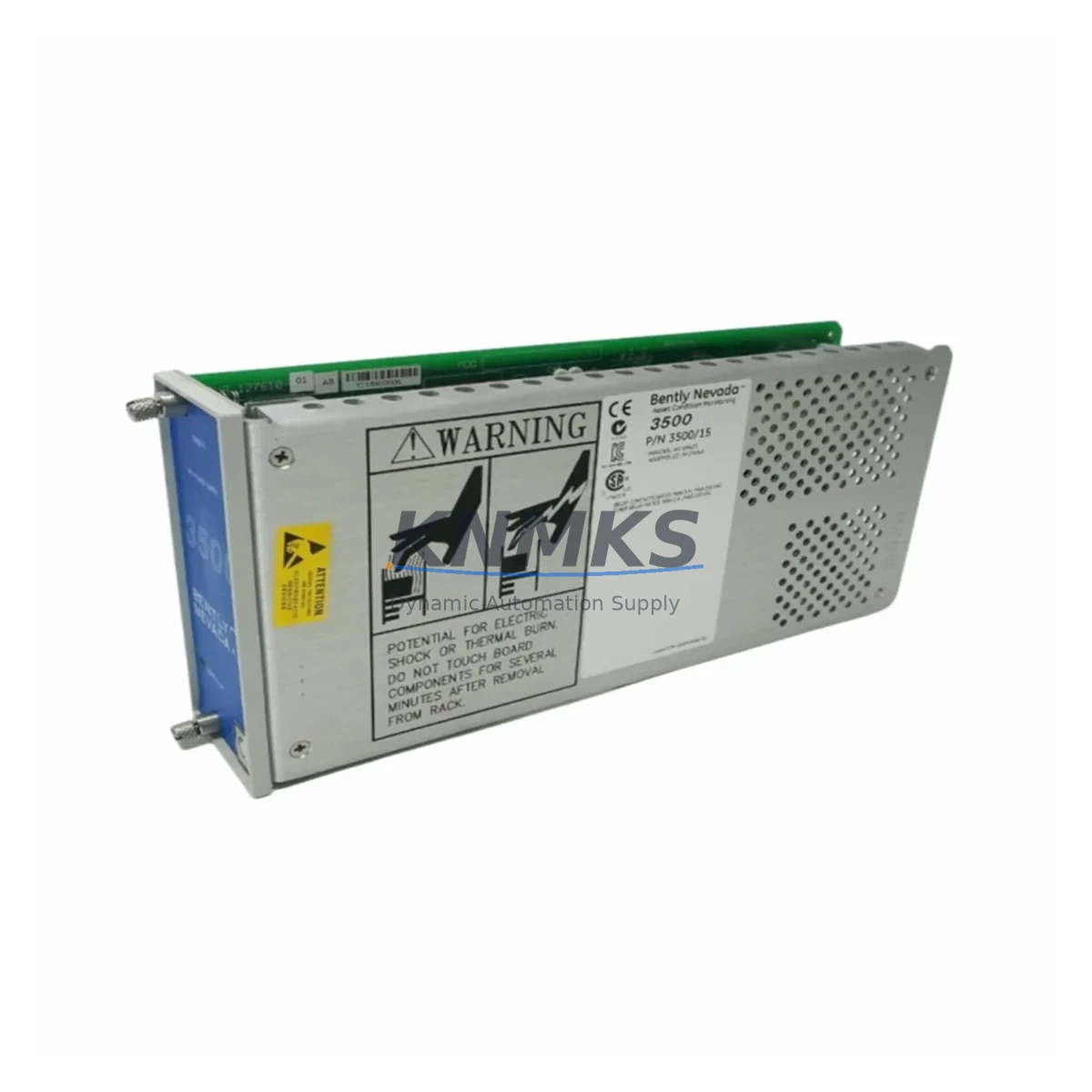

Bently Nevada 3500/15 127610-01 Migration-Ready AC Power Supply

Overview

Bently Nevada 3500/15 127610-01 Migration-Ready AC Power Supply for Legacy Control Systems

The Bently Nevada 3500/15 127610-01 is an AC power supply module engineered for the 3500 Series Machinery Protection System rack. As legacy vibration monitoring infrastructure ages out of OEM support cycles, this module serves as a verified drop-in replacement for facilities managing long-running turbomachinery, compressor trains, and rotating equipment protection systems. Whether you are executing a planned retrofit, recovering from an unplanned failure, or building a strategic spare parts inventory to extend system life by 12–36 months, the 3500/15 127610-01 is a field-proven solution that eliminates the need for full platform migration in the near term.

This power supply module is designed to slot directly into the standard 3500 Series 19-inch rack backplane without modification to the chassis or wiring harness. Before installation, engineers should confirm the input voltage range (85–264 VAC, 47–63 Hz), verify that the rack’s terminal block wiring matches the original 127610-01 pinout, and check that no firmware-level power sequencing changes have been applied to the 3500/22M Communication Gateway or the 3500/20 Rack Interface Module that could affect power-on behavior. In multi-rack configurations, the power budget across all installed I/O modules — including the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor — must be recalculated to ensure the replacement supply is not operating at the margin of its rated output capacity.

For sites running the 3500 Series alongside a DCS or safety instrumented system, the power supply’s ground isolation and EMI characteristics are critical. Confirm that the existing cabinet grounding scheme meets the original installation requirements and that no new variable frequency drives or high-current switching loads have been added to the same panel since the original commissioning. These additions can introduce conducted noise that degrades the signal integrity of connected proximity probes and accelerometers feeding into the 3500/45 Position Monitor or 3500/50M Tachometer Module.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3500/15 127610-01 begins well before the module arrives on site. Maintenance teams should pull the existing rack configuration file from the Rack Configuration Software (RCS) and document the current module addresses, channel assignments, and alarm setpoints stored in the 3500/22M Communication Gateway. This configuration backup is essential — if the replacement power supply triggers a rack reset during hot-swap, the 3500/20 Rack Interface Module will reload its last saved configuration, and any unsaved changes will be lost.

In systems where the 3500 rack is integrated with a Bently Nevada System 1 condition monitoring platform, verify that the Ethernet or RS-232 communication link between the 3500/22M and the System 1 server remains active during the swap. A brief communication interruption is expected, but the System 1 historian should be configured to buffer data locally during the gap to prevent loss of trend data for critical machine trains.

For facilities that have already transitioned some assets to the newer Bently Nevada 3701/40 or 3701/44 series monitors, the 3500/15 127610-01 remains the correct power supply for any legacy 3500 racks still in service. Do not attempt to cross-fit power supplies between the 3500 and 3701 platforms — the backplane connectors and power sequencing logic are not interchangeable. If a full platform migration from 3500 to 3701 is planned, the power supply replacement should be treated as an interim measure to maintain uptime while the migration project is scoped and budgeted.

Wiring adaptation is rarely required for a like-for-like 3500/15 replacement, but inspectors should check the condition of the terminal block screws and wire ferrules on the AC input terminals. Corroded or loose connections at the power input are a common root cause of intermittent power supply faults in older installations. Replace any degraded ferrules and re-torque terminal screws to the specified value before energizing the new module.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/15 127610-01 replacement requires a structured pre-outage checklist. Before de-energizing the rack, confirm that all connected machine protection channels — including those monitored by the 3500/40M and 3500/42M vibration monitors — are either bypassed in the DCS or acknowledged at the safety instrumented system level to prevent spurious trips during the swap window. Coordinate with the control room to place the affected machine train in a safe operating state or controlled shutdown before proceeding.

The physical swap of the power supply module typically takes under 30 minutes for a trained technician familiar with the 3500 Series rack architecture. The majority of the outage window is consumed by pre-swap verification, configuration backup, post-installation functional testing, and the controlled re-energization sequence. Having a pre-configured replacement module on the shelf — rather than waiting for procurement after a failure — is the single most effective way to compress total downtime from days to hours.

After re-energization, verify that all module status LEDs return to normal operating state, that the 3500/22M Communication Gateway re-establishes its link to the host system, and that all channel OK and Not OK relay outputs are in their expected states before releasing the machine train back to normal operation. Document the replacement in the site maintenance management system with the new module serial number and the date of installation to support future support requests and lifecycle tracking.

Retrofit Support FAQ

Q: Is the 3500/15 127610-01 a direct drop-in replacement for all 3500 Series power supply variants?
A: The 127610-01 is the standard AC input variant for the 3500/15 power supply. Confirm your existing module’s part number before ordering — the 3500 Series also includes DC input variants with different part numbers. If your existing module is a 127610-01, this is a direct replacement with no wiring or configuration changes required.

Q: What pre-shipment testing is performed on each unit?
A: Every 3500/15 127610-01 unit is functionally tested under load before shipment. Testing covers input voltage acceptance across the full universal input range, output voltage regulation, and power-good signal behavior. A test report is available upon request. All units ship with a support terms confirmed by quotation from the date of shipment.

Q: Can this module be installed while the rest of the 3500 rack remains powered?
A: Hot-swap capability depends on your specific rack configuration and site safety procedures. In most 3500 Series installations, replacing the power supply requires de-energizing the rack. Consult your site electrical safety procedures and the Bently Nevada 3500 Series installation manual before attempting any live-rack work. We recommend a controlled outage window for all power supply replacements.

Q: What is the typical lead time and do you maintain stock?
A: We maintain in-stock inventory of the 3500/15 127610-01 to support emergency replacement and planned maintenance programs. Standard orders ship within 1–3 business days. For sites requiring long-term supply agreements covering 12–36 months of spare parts inventory, contact our sales team to discuss volume pricing and reserved stock arrangements.
