Bently Nevada 3500/15 114M5330-01 Maintenance-Proven Spare Part

Overview

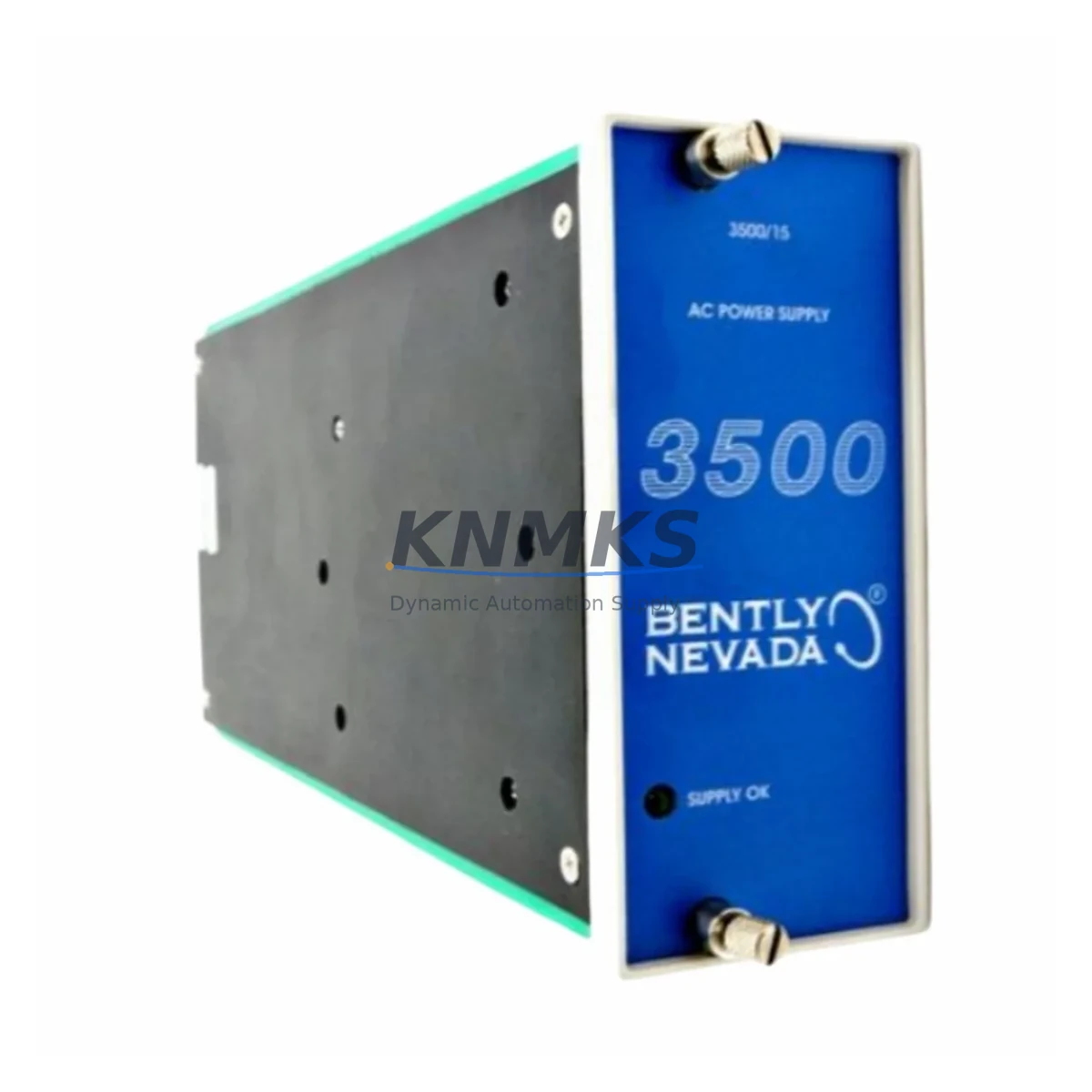

Bently Nevada 3500/15 114M5330-01 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 3500/15 114M5330-01 is a Rack Power Supply Module engineered for continuous-duty operation within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. In critical rotating equipment environments — turbines, compressors, pumps, and generators — the 3500 Series rack is the backbone of vibration, position, and speed monitoring. The 3500/15 power supply module is the electrical foundation of that rack: without a healthy, tested unit in place, the entire monitoring chain is at risk.

Maintenance engineers and reliability teams managing aging 3500 Series installations frequently encounter power supply degradation as a primary failure mode. Capacitor aging, thermal cycling, and continuous load draw over years of operation reduce output stability and increase the risk of nuisance trips or complete rack shutdown. Stocking a pre-tested 3500/15 114M5330-01 as a ready spare eliminates the lead-time risk associated with sourcing this module during an unplanned outage. Our unit ships pre-tested, with a support terms confirmed by quotation, and is available for fast global dispatch to support both emergency replacements and scheduled turnaround maintenance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3500/15 114M5330-01 power supply during a planned or emergency outage, a disciplined site inspection of the surrounding rack and electrical infrastructure is essential to prevent repeat failures and confirm system integrity before returning the rack to service.

Begin with the rack backplane and chassis. Inspect the 3500 Series rack backplane for signs of corrosion, bent connector pins, or contamination that could cause intermittent contact with the replacement power supply. A faulty backplane will stress a new module immediately. Next, verify the AC/DC input feed to the rack: check the upstream circuit breaker, terminal blocks, and input wiring for correct torque, insulation condition, and correct voltage range. The 3500/15 accepts a wide input range, but sustained overvoltage or poor grounding will shorten module life.

Inspect the redundant power supply slot if your rack is configured for dual-supply redundancy. A degraded secondary 3500/15 unit that has been carrying the load during the primary failure may itself be near end-of-life and should be evaluated or replaced simultaneously. Review the 3500/20 Rack Interface Module (RIM) and 3500/22M Transient Data Interface for any fault logs or communication errors that may have been masked by the power event. These modules log rack-level events and can indicate whether the power failure was sudden or progressive.

For I/O and signal integrity, check the wiring to proximity probe drivers, velocity transducers, and accelerometers connected to monitor modules such as the 3500/40M Proximitor/Seismic Monitor or 3500/42M Proximitor/Seismic Monitor. A power interruption can introduce ground loops or offset errors in transducer signal conditioning circuits. Verify channel OK status on each monitor after power restoration. If the rack includes a 3500/32 4-Channel Relay Module or 3500/33 16-Channel Relay Module, confirm relay output states are correctly restored and that trip setpoints have not been altered.

Finally, review the communication link between the 3500 rack and the plant DCS or historian. The 3500/22M or a dedicated communication gateway module should re-establish Modbus, Ethernet, or proprietary protocol connectivity automatically, but confirm data flow to the control room before releasing the equipment to operations.

Site Replacement Workflow

Step 1 — Isolate and document: Before removing the 3500/15 114M5330-01, record all active alarm and danger setpoints from the System 1 software or rack front-panel displays. Confirm with operations that the monitored machine is in a safe state or that bypass procedures are in place per site MOC requirements.

Step 2 — De-energize the rack input: Open the upstream circuit breaker or isolator feeding the rack power supply input. Verify absence of voltage at the rack input terminals using a calibrated meter. Allow capacitor discharge time (typically 30–60 seconds) before handling the module.

Step 3 — Remove the failed module: Loosen the front-panel captive screws on the 3500/15 module, slide it out of the rack slot, and inspect the backplane connector for damage. Label and bag the removed unit for failure analysis if required.

Step 4 — Install the replacement 3500/15 114M5330-01: Slide the pre-tested replacement module into the rack slot, ensuring full backplane connector engagement. Tighten captive screws to the specified torque. Reconnect the AC/DC input wiring to the module terminals, verifying correct polarity and torque.

Step 5 — Energize and verify: Close the upstream circuit breaker. Observe the module status LED — a steady green indicates normal operation. Confirm all monitor modules in the rack return to OK status. Verify communication to the DCS or historian is restored. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory.

This workflow minimizes rack downtime to under 30 minutes for a prepared maintenance team, supporting rapid production line recovery and reducing the risk of secondary damage from extended power interruption.

Spare Parts Support FAQ

Q1: Is the 3500/15 114M5330-01 compatible with all 3500 Series rack configurations?
The 3500/15 is the standard rack power supply for the Bently Nevada 3500 Series platform and is compatible with all standard 3500 rack chassis configurations. Confirm your rack’s input voltage requirement (AC or DC) and redundancy configuration (single or dual supply) before ordering. Our team can assist with compatibility verification based on your rack serial number or system drawing.

Q2: What pre-shipment testing is performed on this unit?
Each 3500/15 114M5330-01 unit undergoes functional power-on testing, output voltage verification across all DC rails, and visual inspection for component condition and connector integrity before shipment. Units that do not meet specification are not dispatched. A support terms confirmed by quotation from the date of shipment covers all units against defects in materials and workmanship.

Q3: How should we manage long-term supply risk for this module?
The Bently Nevada 3500 Series is a mature platform with a large installed base, but original spare availability can tighten as production of legacy modules winds down. We recommend maintaining at least one 3500/15 unit on-site for each critical rack installation, and establishing a long-term supply agreement for facilities operating multiple 3500 Series racks. We maintain multi-region stock to support both emergency single-unit orders and scheduled bulk procurement for annual maintenance programs.

Q4: Can this spare be used to replace a different revision of the 3500/15 power supply?
The 114M5330-01 is a specific revision of the 3500/15 power supply. In most cases, later revisions are backward-compatible with earlier rack chassis, but we recommend confirming compatibility with your site’s system documentation or contacting our technical team before installation in a mixed-revision rack environment. We can advise on cross-reference and substitution options based on your specific rack configuration.
