Bently Nevada 3500/15 106M1081-01 Power & Comms Module

Overview

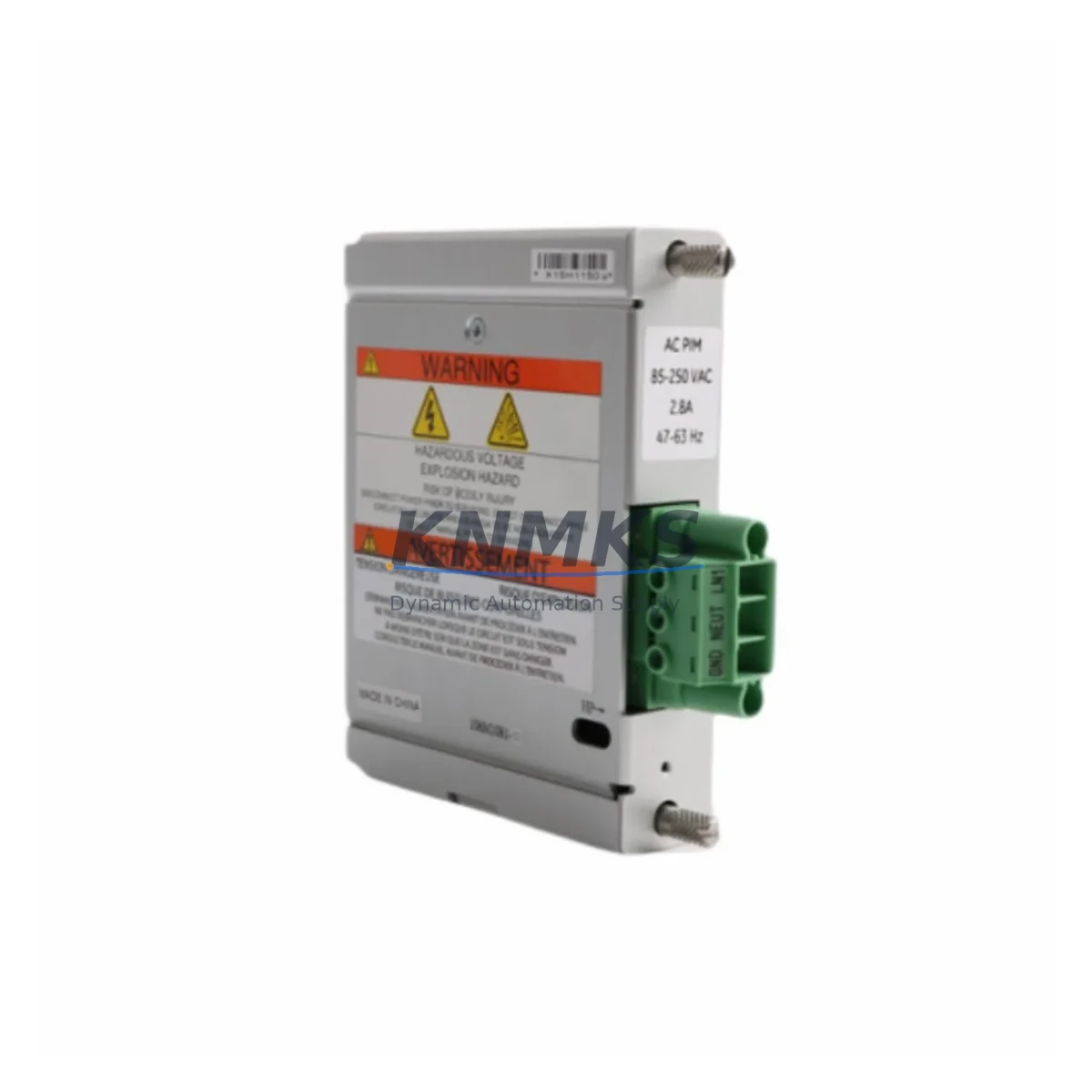

Bently Nevada 3500/15 106M1081-01: Migration-Ready Power & Communications Module for Legacy Control Systems

The Bently Nevada 3500/15 106M1081-01 is a Power and Communications Input Module designed for the Bently Nevada 3500 Series machinery protection and condition monitoring platform. As industrial facilities face increasing pressure to extend the operational life of legacy vibration monitoring systems — or to migrate aging infrastructure to modern control architectures — the 3500/15 module plays a critical role in maintaining system continuity, signal integrity, and rack-level power distribution.

This module serves as a direct replacement for end-of-life or failed 3500/15 units in existing 3500 Series racks. It provides the power conditioning and communication interface functions required by the rack backplane, enabling continued operation of transient data interface modules, monitor modules, and relay output modules within the same chassis. For facilities running legacy turbine protection, compressor monitoring, or pump condition monitoring systems, sourcing a verified replacement 3500/15 106M1081-01 is often the fastest path to restoring full system functionality without committing to a full platform migration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit or spare-part replacement around the 3500/15 106M1081-01, engineers must evaluate the full rack configuration to ensure system-level compatibility. The 3500 Series rack typically houses a combination of monitor modules — such as the Bently Nevada 3500/40M proximitor/seismic monitor or the 3500/42M proximitor/seismic monitor — alongside relay output modules like the 3500/32 relay output module, all of which depend on the power and communication functions provided by the 3500/15 in Slot 1.

Before removing the existing 3500/15 module, technicians should document the current communication configuration, including the rack address, baud rate, and parity settings used by the connected System 1 Evolution software or any Modbus-based SCADA integration. These parameters must be re-entered after the replacement module is installed. If the facility uses a Bently Nevada 3500/20 rack interface module for Ethernet-based communication, verify that the new 3500/15 firmware revision is compatible with the existing 3500/20 configuration.

Terminal wiring on the 3500/15 is straightforward — the module uses a standard power input terminal block. However, engineers should confirm the local AC or DC supply voltage matches the module’s rated input range before energizing. In facilities where the control cabinet also houses a Bently Nevada 3500/05 system rack or a 3500/10 power supply module in a parallel redundant configuration, the power sequencing and grounding scheme must be reviewed to avoid ground loops or inrush current issues during hot-swap or cold-start scenarios.

For facilities migrating from older Bently Nevada 7200 Series or 3300 Series platforms to the 3500 Series, the 3500/15 106M1081-01 is a key enabling component. The migration typically involves replacing legacy proximitor signal conditioners, re-routing transducer cables to new 3500 Series I/O terminal blocks, and reconfiguring alarm setpoints and relay logic within the System 1 software environment. Adequate installation space within the control cabinet should be confirmed early in the retrofit planning process, as the 3500 Series rack requires a standard 19-inch panel mount or equivalent enclosure depth.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a power and communications module in an active machinery protection system. The 3500/15 106M1081-01 supports a structured hot-swap procedure when the rack is configured for redundant power input — however, in single-supply configurations, a controlled shutdown of the rack is required before module removal.

To protect existing program logic and alarm configurations, all rack configuration data should be exported from System 1 or the rack configuration utility prior to the swap. This backup preserves transducer scaling, alarm setpoints, relay assignments, and communication parameters, allowing rapid restoration after the new module is seated and powered. In facilities where the 3500 Series rack is integrated into a DCS or SCADA system via Modbus RTU or OPC, the communication link will be interrupted during the swap — operators should coordinate with the control room to suppress spurious alarms and place the affected monitoring loops in bypass mode for the duration of the replacement.

Field experience indicates that a well-prepared 3500/15 module swap — with configuration backup, verified spare part, and pre-staged terminal documentation — can typically be completed within a two-to-four hour maintenance window. Post-installation commissioning should include a full channel-by-channel functional check, verification of OK relay status, and confirmation of communication link restoration to the host system before returning the rack to normal monitoring service.

Retrofit Support FAQ

Q1: Is the 3500/15 106M1081-01 a direct drop-in replacement for my existing 3500/15 module?
Yes. The 106M1081-01 is designed as a direct replacement for the standard 3500/15 Power and Communications Input Module in the Bently Nevada 3500 Series rack. It occupies Slot 1 and connects to the rack backplane without hardware modification. Confirm the part number suffix and firmware revision compatibility with your existing rack configuration before installation.

Q2: What commissioning steps are required after installing the replacement module?
After seating the module and restoring rack power, reconnect the communication cable and use System 1 or the rack configuration utility to re-enter the rack address, baud rate, and parity settings. Perform a full channel functional test and verify OK relay status on all installed monitor modules. Confirm Modbus or OPC communication link restoration to the host SCADA or DCS before returning to normal service.

Q3: Has this unit been tested before shipment?
Yes. All units are function-tested prior to shipment to verify power output, communication interface operation, and backplane connectivity. Each module ships with a test record. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of receipt.

Q4: What is the stock availability and lead time?
We maintain inventory of the Bently Nevada 3500/15 106M1081-01 for immediate dispatch. Standard orders ship within 1–3 business days. For urgent requirements or large-quantity orders, contact our sales team directly to confirm current stock levels and expedited shipping options.
