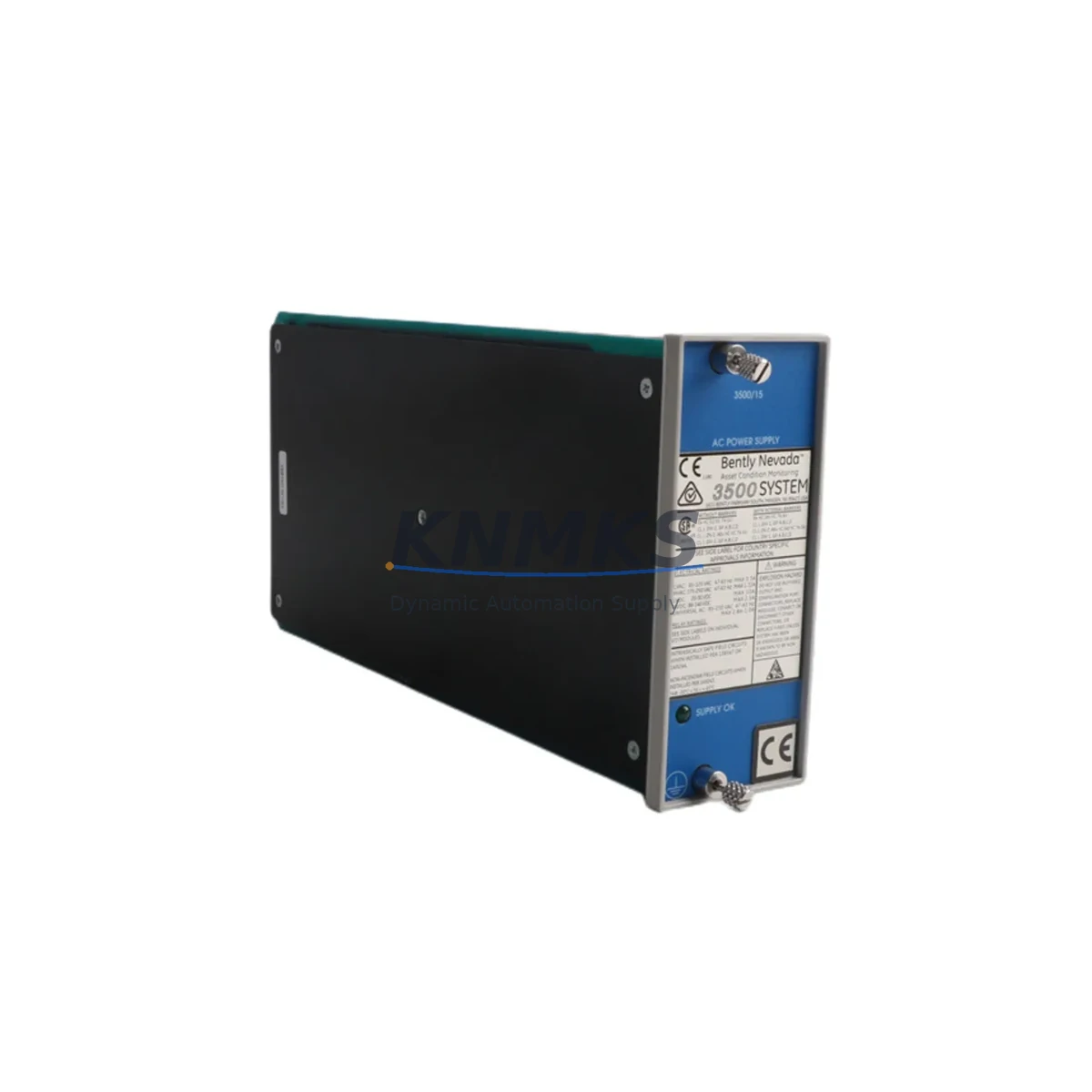

Bently Nevada 3500/15 106M1079-01 Spare Part for Factory Uptime

Overview

Bently Nevada 3500/15 106M1079-01 Spare Part for Factory Uptime

The Bently Nevada 3500/15 106M1079-01 is the main power supply (MPS) module for the 3500 Series machinery protection system rack. As the backbone of continuous vibration monitoring in rotating equipment environments — turbines, compressors, pumps, and generators — this module must remain operational at all times. A failed or degraded power supply directly compromises the integrity of the entire 3500 rack, triggering false trips or, worse, undetected machinery faults. Stocking a verified replacement unit of the 3500/15 106M1079-01 is a fundamental requirement for any maintenance program managing critical rotating assets.

KNMKS supplies the Bently Nevada 3500/15 106M1079-01 as an original spare, fully tested prior to shipment, with a support terms confirmed by quotation and documented traceability. Our inventory supports emergency breakdown response, planned annual overhauls, and long-term spare parts procurement programs for facilities operating 3500 Series racks globally.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 3500/15 106M1079-01, a disciplined maintenance engineer will not limit the scope to the power supply module alone. The 3500 rack is an integrated system, and the power supply’s health is directly linked to the condition of every module it feeds. During any planned or emergency intervention involving this MPS unit, the following components should be simultaneously inspected or staged as contingency spares:

The 3500/20 Rack Interface Module (RIM) handles communication between the rack and the host DCS or control system. A degraded RIM can mask power-related faults or generate spurious alarms following a power supply swap — verify its firmware version and communication status after any MPS replacement. Similarly, the 3500/22M Transient Data Interface (TDI) module, if installed, should be checked for proper synchronization once the new power supply is seated and the rack has completed its self-test sequence.

On the I/O and monitoring side, each 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor card draws regulated power from the backplane. After restoring the MPS, confirm that all monitor modules are reading within expected vibration baseline ranges and that no latched alerts remain from the power interruption. Proximitor probe cables and extension cables — particularly those running to Bently Nevada 3300 XL 8mm or 3300 XL 11mm proximity probes — should be inspected for continuity and insulation integrity as part of the same work order.

The rack’s 3500/05 System Monitor module provides rack-level diagnostics and should be used to verify that all slot voltages return to nominal after the 3500/15 replacement. If the facility operates a redundant power supply configuration using the 3500/15E Enhanced Power Supply, confirm that the redundancy switchover logic is functioning correctly before returning the system to automatic protection mode.

For facilities with older 3500 racks, this maintenance window is also an appropriate time to inspect the rack backplane connectors for oxidation or thermal stress, and to verify that all terminal block wiring — including field wiring to junction boxes and marshalling cabinets — is torqued to specification. Loose field terminations are a common secondary cause of intermittent faults that surface after a power supply event.

KNMKS maintains stock of the 3500/15 106M1079-01 alongside complementary 3500 Series modules to support complete rack restores from a single supplier, reducing procurement lead time during critical outages.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the incoming 3500/15 106M1079-01 part number and revision match the installed unit. Check the rack’s System Monitor for any pre-existing fault codes and document baseline vibration readings from all active monitor channels before de-energizing.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. The 3500 rack must be de-energized at the upstream AC distribution panel. If a redundant 3500/15E is installed and active, the rack may remain powered during MPS hot-swap — verify this capability against your specific rack revision and site safety procedures before proceeding.

Step 3 — Module extraction and installation: Release the MPS module locking tabs, slide the 3500/15 out of Slot 1, and inspect the backplane connector for damage or contamination. Insert the replacement 106M1079-01 unit firmly until the connector seats fully and the locking tabs engage.

Step 4 — Power restoration and self-test: Re-energize the rack and observe the System Monitor LED sequence. The 3500/15 performs an internal self-test on power-up; all OK indicators should illuminate within 30 seconds. Verify output voltages via the System Monitor diagnostics menu.

Step 5 — Channel verification: Confirm all monitor modules have returned to active protection mode. Clear any latched alerts generated during the power interruption. Verify that vibration readings on all channels match pre-maintenance baselines within acceptable tolerance.

Step 6 — Documentation: Record the replaced part number, serial number, installation date, and post-replacement verification results in the site CMMS. Update the spare parts inventory to trigger reorder of a replacement 3500/15 106M1079-01 unit to restore buffer stock.

Spare Parts Support FAQ

Q1: Is the 3500/15 106M1079-01 compatible with all 3500 Series rack configurations?
The 3500/15 106M1079-01 is the standard MPS module for the Bently Nevada 3500 Series 19-inch rack and is compatible with all standard rack configurations using Slot 1 for the main power supply. Facilities requiring redundant power should pair it with the 3500/15E Enhanced Power Supply. Always verify the rack revision and configuration drawing before ordering to confirm compatibility with your specific installation.

Q2: How does KNMKS verify the condition of the 3500/15 106M1079-01 before shipment?
Every unit supplied by KNMKS undergoes pre-shipment functional testing, including input voltage range verification, output voltage measurement under load, and visual inspection of connectors and PCB condition. Units are shipped with test documentation and are covered by a support terms confirmed by quotation from the date of delivery.

Q3: What is the recommended spare parts inventory strategy for the 3500/15 106M1079-01?
For facilities operating multiple 3500 racks or running critical rotating equipment on continuous duty cycles, we recommend maintaining a minimum of one 3500/15 106M1079-01 unit on-site as a cold standby spare. Facilities with a single rack and no redundant MPS should treat this module as a critical-path spare and prioritize immediate reorder following any replacement event. KNMKS supports long-term supply agreements to ensure consistent availability.

Q4: Can the 3500/15 106M1079-01 replace older or discontinued Bently Nevada power supply variants?
The 106M1079-01 is the current production revision of the 3500/15 MPS module and is the recommended replacement for earlier revisions of the same module. Cross-revision compatibility is generally maintained within the 3500/15 product family, but site engineers should verify against the installed rack’s configuration documentation and consult KNMKS for confirmation before substituting across major hardware revisions.

—
© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/15 106M1079-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 3500/15 106M1079-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
