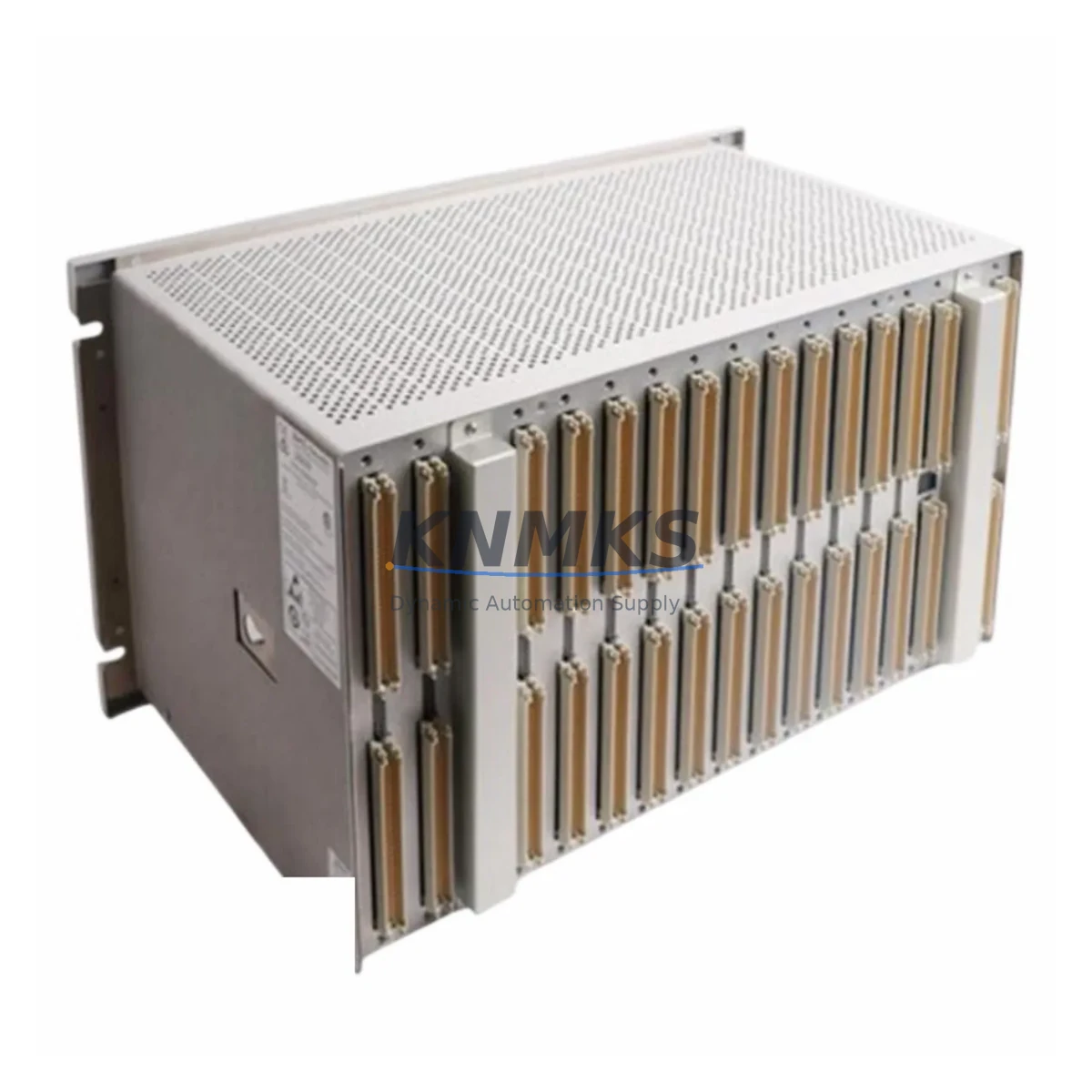

The Bently Nevada 3500/05-02-04-00-00-00 is the main rack chassis of the 3500 Series Machinery Protection System — a mission-critical platform widely deployed in rotating machinery monitoring across oil & gas, power generation, petrochemical, and heavy industrial facilities. As the structural and electrical backbone of the 3500 system, this rack chassis houses all functional modules including power supplies, transient data interface (TDI) cards, monitor modules, and communication gateways. When this component fails or degrades, the entire protection system is compromised, leaving turbines, compressors, pumps, and generators without continuous vibration and process monitoring coverage.

Sourced as an original Bently Nevada spare, the 3500/05-02-04-00-00-00 is verified for compatibility with the full 3500 Series module lineup. Each unit undergoes functional inspection and bench testing prior to shipment, and is backed by a support terms confirmed by quotation. Whether you are executing a planned annual overhaul, responding to an unplanned rack failure, or building a strategic spare parts inventory for a critical asset, this chassis provides a direct, drop-in replacement path with no firmware reconfiguration required at the rack level.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance of a 3500 Series protection system requires treating the rack chassis as the integration point for all downstream components. When replacing or inspecting the 3500/05-02-04-00-00-00, maintenance engineers should simultaneously audit the condition of the 3500/15 Power Supply Module — the primary source of regulated DC power to all rack-mounted cards. A degraded power supply can cause intermittent module resets that are often misdiagnosed as rack or backplane faults.

The 3500/20 Rack Interface I/O Module should be inspected for connector wear and signal integrity, particularly in high-vibration environments where backplane seating can loosen over time. Similarly, the 3500/22M Transient Data Interface card, if installed, should be reseated and its firmware version confirmed against the current system configuration file to prevent data loss during rack replacement.

For facilities running Modbus or FOUNDATION Fieldbus integration, the 3500/92 Communication Gateway module should be verified for correct slot assignment and network address retention after chassis swap. Communication module configuration is stored locally and may require re-entry if the module is removed during chassis replacement.

Wiring harnesses connecting field transducers — including proximity probes, velocity sensors, and thermocouple inputs — should be inspected for insulation integrity and connector corrosion before reconnection to the replacement chassis. Terminals on the 3500/32 4-Channel Relay Module and associated relay output wiring should be torque-checked to manufacturer specification. Loose relay terminals are a common source of nuisance trips following maintenance interventions.

For sites with redundant monitoring architectures, the 3500/05 Rack in the redundant bay should be cross-checked for firmware and configuration parity. Mismatched configurations between primary and redundant racks are a leading cause of protection system failures during switchover events. Fuse ratings on the power distribution panel feeding the 3500 rack should also be confirmed against the system’s load profile, particularly if additional I/O modules have been added since the original installation.

Site Replacement Workflow

Replacing the 3500/05-02-04-00-00-00 chassis in a live industrial environment requires a structured approach to minimize downtime and avoid configuration loss. Begin by exporting the full system configuration from the System 1 software or the rack’s onboard configuration memory using Bently Nevada’s Configuration Management Utility. This backup is essential — rack chassis replacement without a configuration export risks losing all channel assignments, alarm setpoints, and transducer scaling factors.

With the configuration backed up, coordinate a controlled shutdown of the protection system during a planned maintenance window. Tag out and isolate all field wiring at the terminal blocks before removing any modules from the existing chassis. Modules should be extracted in reverse installation order, stored in anti-static packaging, and labeled by slot position to ensure correct reinstallation sequence in the replacement chassis.

Install the 3500/05-02-04-00-00-00 replacement chassis into the rack enclosure, verify grounding continuity between the chassis frame and the cabinet earth bar, and reinstall all modules in their original slot positions. Reconnect field wiring per the as-built wiring diagram, then restore the system configuration from the backup file. Perform a full channel-by-channel functional test — including alarm trip verification on each monitor channel — before returning the system to service. This workflow typically achieves full system restoration within a 4–8 hour maintenance window, significantly reducing unplanned downtime exposure compared to reactive replacement without preparation.

For aging 3500 installations where the original chassis has accumulated more than 10 years of service, proactive chassis replacement during scheduled turnarounds is strongly recommended. Backplane connector fatigue and PCB trace oxidation are common failure modes in long-service racks that are not visible during routine inspection but can cause sudden, complete system failures. Maintaining one spare 3500/05-02-04-00-00-00 chassis in your critical spares inventory provides immediate recovery capability and eliminates lead-time risk during emergency situations.

Spare Parts Support FAQ

Q: Is the 3500/05-02-04-00-00-00 compatible with all 3500 Series monitor and I/O modules?
A: Yes. The 3500/05-02-04-00-00-00 chassis is the standard main frame for the 3500 Series and is compatible with all standard 3500 monitor, power supply, I/O, relay, and communication modules. Slot assignments and module compatibility should be verified against your system’s configuration documentation before installation.

Q: What testing is performed before shipment?
A: Each 3500/05-02-04-00-00-00 unit undergoes functional bench testing including backplane continuity verification, slot connector inspection, and power rail integrity checks. Units that do not pass inspection are not shipped. A support terms confirmed by quotation cover defects in materials and workmanship from the date of delivery.

Q: Can this chassis replace an older 3500/05 variant with a different suffix?
A: The suffix digits in the 3500/05 part number encode specific configuration options including slot count, power supply type, and mounting configuration. Before substituting a different suffix variant, confirm that the replacement chassis matches your system’s physical and electrical requirements. Our technical team can assist with compatibility verification prior to purchase.

Q: What is your lead time and long-term supply capability for this part?
A: Stock availability is maintained for immediate shipment on confirmed orders. For facilities requiring long-term supply agreements or annual blanket orders to support multi-site 3500 installations, we offer structured procurement programs with guaranteed allocation. Contact our sales team to discuss volume pricing and supply continuity arrangements.
