Bently Nevada 3500/05-01-02-00-00-00 Migration-Ready Rack Chassis

Overview

Bently Nevada 3500/05-01-02-00-00-00 Migration-Ready Rack Chassis for Legacy Control Systems

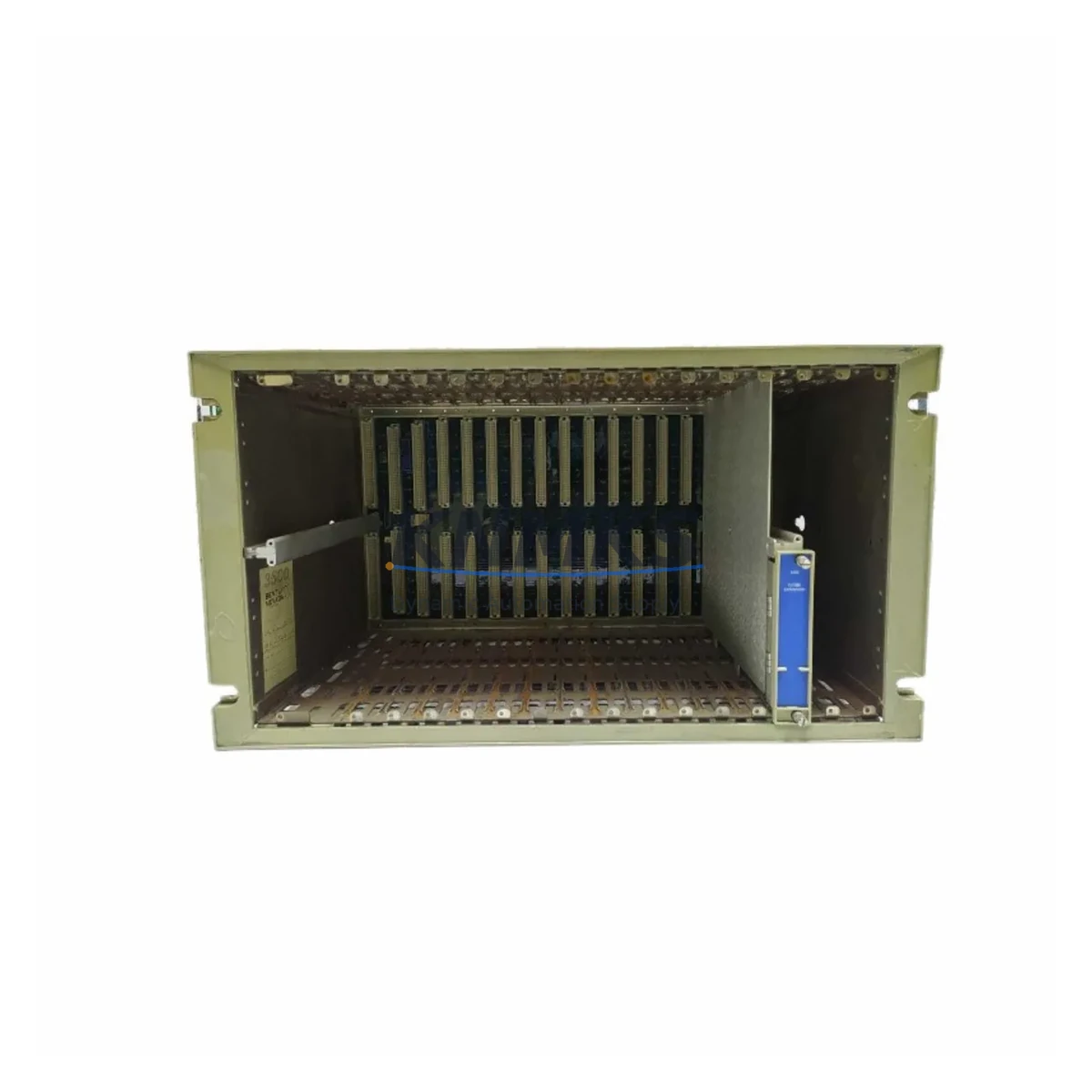

The Bently Nevada 3500/05-01-02-00-00-00 is a 19-inch rack chassis designed as the structural and electrical backbone of the Bently Nevada 3500 Series machinery protection system. As legacy 3500 Series installations approach end-of-support milestones, this chassis remains a critical retrofit and replacement component for facilities seeking to extend operational life, restore system integrity, or execute a phased migration to modern monitoring platforms. Whether you are replacing a failed chassis in a running plant or rebuilding a spare rack for standby duty, the 3500/05-01-02-00-00-00 provides the verified mechanical and electrical compatibility required for drop-in deployment without reprogramming the host controller.

Before committing to a chassis swap, engineers must confirm several site-specific parameters. Power supply capacity is the first checkpoint: the 3500/05 chassis accepts the Bently Nevada 3500/15 Power Supply Module, and the total current draw of all installed I/O and monitor modules must remain within the supply’s rated output. Terminal wiring on the backplane connectors must be verified against the original rack’s field wiring schedule, as pin assignments differ between early and late revision chassis. Backplane interface slots must be mapped to confirm that existing 3500/40M Proximitor/Seismic Monitor modules, 3500/42M Proximitor/Seismic Monitor modules, and 3500/45 Position Monitor modules seat correctly and that their address DIP switches are set to match the original configuration. Any mismatch in module address settings will cause the System 1 or System 1 Evolution software to report configuration faults on reconnection.

Communication link continuity is equally important. If the existing rack uses a 3500/92 Communication Gateway Module for Modbus RTU or Ethernet/IP integration with the plant DCS, the gateway’s node address and baud rate settings must be documented before removal and restored identically in the replacement chassis. HMI screen tag bindings in the operator interface should be validated post-swap to confirm that all vibration, temperature, and position channels are still mapped to the correct display elements. Where the plant uses a 3500/22M Transient Data Interface for waveform capture, the TDI’s configuration file should be backed up and reloaded after chassis replacement to preserve spectrum analysis baselines.

Installation space confirmation is mandatory for retrofit planning. The 3500/05 chassis occupies a standard 19-inch rack enclosure and requires adequate rear clearance for field wiring harnesses and backplane cable routing. If the control cabinet is being upgraded simultaneously, verify that the new enclosure depth accommodates the full cable bend radius without stressing connector housings. Firmware version alignment across all installed monitor modules should be audited before the chassis goes live; mismatched firmware between the 3500/05 backplane and individual monitor cards can produce spurious alarm states during the first power-on sequence.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3500/05-01-02-00-00-00 chassis retrofit begins with a complete module inventory of the existing rack. Each installed card — including the 3500/15 Power Supply Module, any 3500/40M or 3500/42M Proximitor/Seismic Monitor modules, the 3500/45 Position Monitor, and the 3500/92 Communication Gateway Module — must be photographed, labeled, and logged with its current DIP switch and jumper settings before the rack is de-energized. Signal isolators installed between field sensors and the chassis input terminals should be tested for output accuracy before reuse, as degraded isolators can introduce measurement offsets that are difficult to diagnose after the new chassis is commissioned. Where the plant uses a dedicated programming cable for firmware updates to individual monitor modules, confirm that the cable and laptop interface are available on-site before the maintenance window begins. Backplane ribbon cables and field wiring harnesses should be inspected for insulation damage during the chassis removal process; replacing worn harnesses at this stage avoids a second outage later.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/05 chassis replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, export all System 1 or System 1 Evolution configuration data and store it on a network share independent of the rack being replaced. Photograph the field wiring termination points on the existing chassis and label each wire with its channel designation. Prepare the replacement chassis with all module slots pre-populated and address switches pre-set to match the documented configuration, so that the swap is a direct mechanical exchange rather than a configuration exercise under time pressure. After power-up, perform a channel-by-channel verification against the pre-outage baseline readings to confirm that all vibration, position, and temperature channels are within expected ranges before releasing the equipment back to operations. This approach protects the original program logic, maintains field control continuity, and reduces the risk of introducing new faults during the retrofit.

Retrofit Support FAQ

Q: Is the 3500/05-01-02-00-00-00 a direct replacement for all 3500/05 chassis variants?
A: The 3500/05-01-02-00-00-00 is compatible with the majority of 3500 Series rack configurations, but cross-variant replacements require a DIP switch audit and firmware version check on all installed monitor modules. Contact our technical team with your existing chassis revision number for a confirmed compatibility assessment.

Q: What pre-shipment testing is performed on this chassis?
A: Each unit undergoes a functional power-on test and backplane continuity verification before shipment. Test records are available upon request. All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment.

Q: How do I verify wiring compatibility before installation?
A: Compare the field wiring schedule from the original rack against the terminal block pinout diagram for the 3500/05-01-02-00-00-00. Pay particular attention to power input terminals and any chassis ground connections. If the original rack used a non-standard wiring harness, a custom adapter may be required.

Q: What is the lead time and stock availability?
A: We maintain inventory of the 3500/05-01-02-00-00-00 for immediate dispatch. Contact [email protected] or call +86 18359268345 to confirm current stock levels and shipping options to your location.
