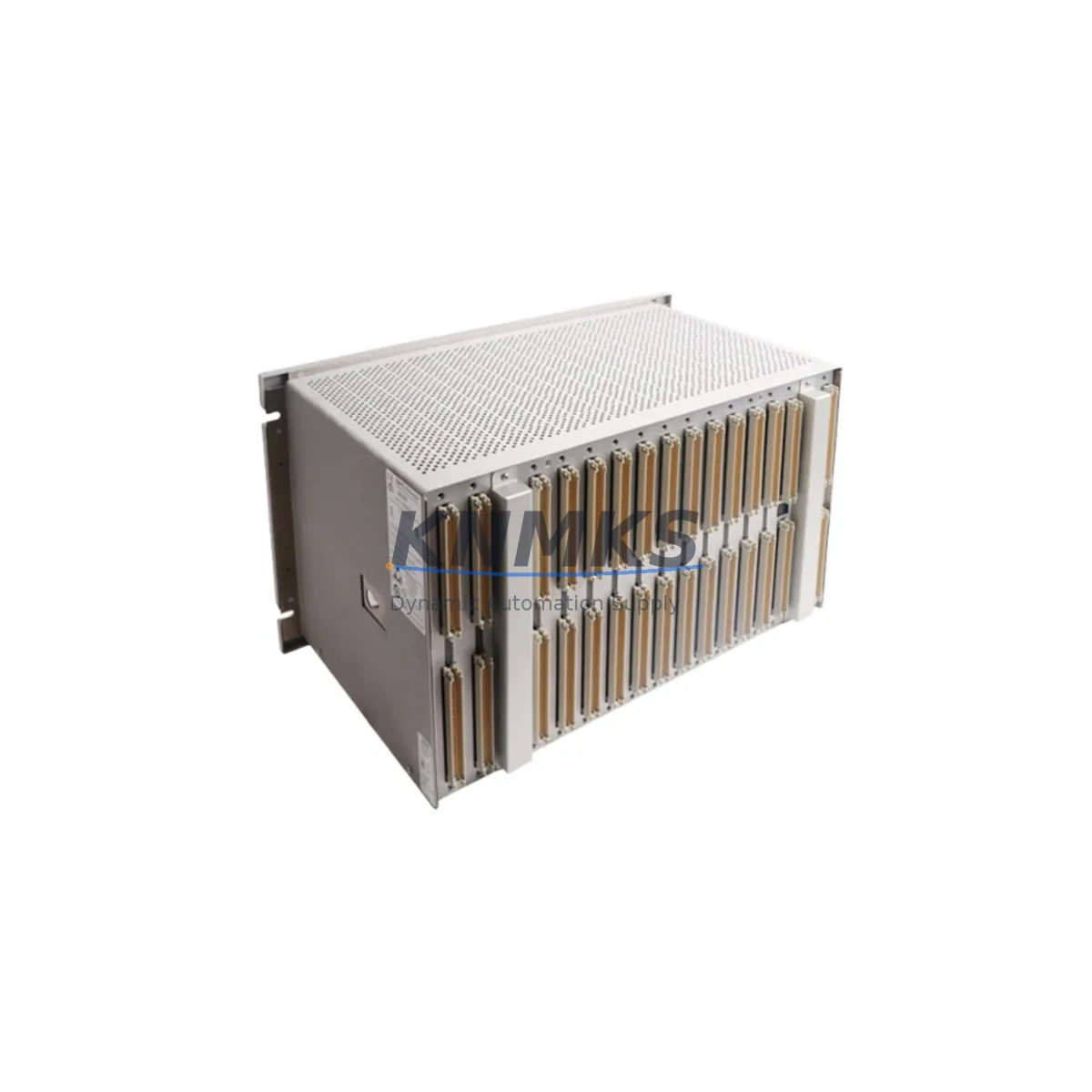

The Bently Nevada 3500/05-01-01-01-00-01 is the primary rack chassis module for the 3500 Series Machinery Protection System (MPS) — one of the most widely deployed continuous monitoring platforms in rotating machinery applications across oil & gas, power generation, petrochemical, and heavy industrial facilities. This chassis serves as the structural and electrical backbone of the 3500 rack, housing all monitor modules, the power supply, the communication gateway, and the I/O interface cards in a single integrated enclosure.

For maintenance engineers managing aging turbomachinery protection systems, the availability of a pre-tested, original-specification 3500/05-01-01-01-00-01 chassis is critical. Rack chassis failures — whether caused by backplane connector wear, power rail degradation, or physical damage during panel maintenance — can take an entire protection system offline, triggering unplanned shutdowns and costly production losses. Stocking a verified spare chassis eliminates this single point of failure from your maintenance risk register.

Each unit supplied by KNMKS is sourced from original Bently Nevada manufacturing channels, functionally tested prior to dispatch, and shipped with a support terms confirmed by quotation. Fast worldwide logistics with full export documentation support ensures your spare reaches site within your maintenance window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 3500/05-01-01-01-00-01 chassis, a disciplined maintenance engineer will treat the chassis swap as an opportunity to audit the entire protection rack. The 3500/15 Power Supply Module should be inspected for output voltage stability and fan operation — a degraded power supply is a common root cause of intermittent rack faults that are misdiagnosed as chassis failures. If dual redundant power is configured, both the primary and secondary 3500/15 units should be load-tested before the chassis is returned to service.

The 3500/92 Communication Gateway and 3500/93 Ethernet Communication Module should be re-seated and their firmware versions verified against the current system configuration. Backplane connector pins on these modules are susceptible to oxidation in humid environments, and a chassis replacement is the ideal time to clean and inspect all module edge connectors.

I/O wiring terminations at the 3500/20 Rack Interface Module (RIM) should be torque-checked and labeled. Loose field wiring at the RIM is a frequent source of nuisance trips after maintenance activities. Similarly, the 3500/42M Proximitor/Seismic Monitor and 3500/45 Position Monitor cards should be re-calibrated after chassis reinstallation to confirm that transducer signal paths are intact and alarm setpoints are correctly loaded from the System 1 configuration database.

For facilities running extended turnaround cycles, it is advisable to maintain a minimum spare inventory that includes the chassis, one power supply module, and at least one of each monitor card type installed in the rack. This spare bill of materials ensures that any single-module failure during a planned outage can be resolved without waiting on procurement lead times that can extend to 8–16 weeks for legacy Bently Nevada hardware.

Site Replacement Workflow

1. Pre-Shutdown Preparation: Download the full rack configuration from System 1 software before any hardware is disturbed. Verify that the configuration backup includes all channel assignments, alarm setpoints, transducer types, and communication parameters. Label all field wiring at the RIM before disconnection.

2. Module Extraction: Power down the rack using the 3500/15 power supply front-panel switch. Extract all monitor modules in sequence, storing them in anti-static bags. Document slot positions to ensure correct reinstallation order — some 3500 configurations are slot-position dependent for communication addressing.

3. Chassis Swap: Remove the failed 3500/05-01-01-01-00-01 chassis from the panel. Install the replacement chassis and verify that all backplane connectors are fully seated. Reinstall modules in their original slot positions.

4. Power-Up and Verification: Restore power and observe the rack initialization sequence. Use System 1 to push the saved configuration to the rack. Verify all channel OK statuses, confirm transducer gap voltages are within specification, and perform a functional trip test on at least one channel before returning the system to service.

5. Documentation: Update the maintenance log with the replaced chassis serial number, installation date, and post-replacement test results. Register the support terms confirmed by quotation with KNMKS by retaining the shipment documentation.

Spare Parts Support FAQ

Q1: Is the 3500/05-01-01-01-00-01 compatible with all 3500 Series monitor modules?
Yes. The 3500/05-01-01-01-00-01 chassis is the standard main frame for the Bently Nevada 3500 Series and is designed to accept all standard 3500 monitor, power supply, communication, and I/O modules. Compatibility should always be verified against your specific system configuration file before installation, particularly for sites running customized slot-addressing schemes.

Q2: What testing is performed before shipment?
Each 3500/05-01-01-01-00-01 chassis supplied by KNMKS undergoes functional verification including backplane continuity checks, power rail integrity testing, and physical inspection of all module slot connectors and mounting hardware. A test report is available upon request for quality-critical installations.

Q3: How should this spare be stored if not immediately installed?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10–40°C, <85% RH non-condensing). Avoid stacking heavy items on the chassis. Inspect connector pins annually if the spare is held in long-term storage exceeding 12 months.

Q4: What is the support terms coverage and how do I make a claim?
KNMKS provides a support terms confirmed by quotation from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. To initiate a support terms claim, contact [email protected] with your order reference, a description of the fault, and photographic evidence. Replacement or repair will be arranged within 5 business days of claim confirmation.
