Bently Nevada 3500/04 136719-01 Migration-Ready Earthing I/O Module for Legacy Control Systems

Overview

Bently Nevada 3500/04 136719-01 Migration-Ready Earthing I/O Module for Legacy Control Systems

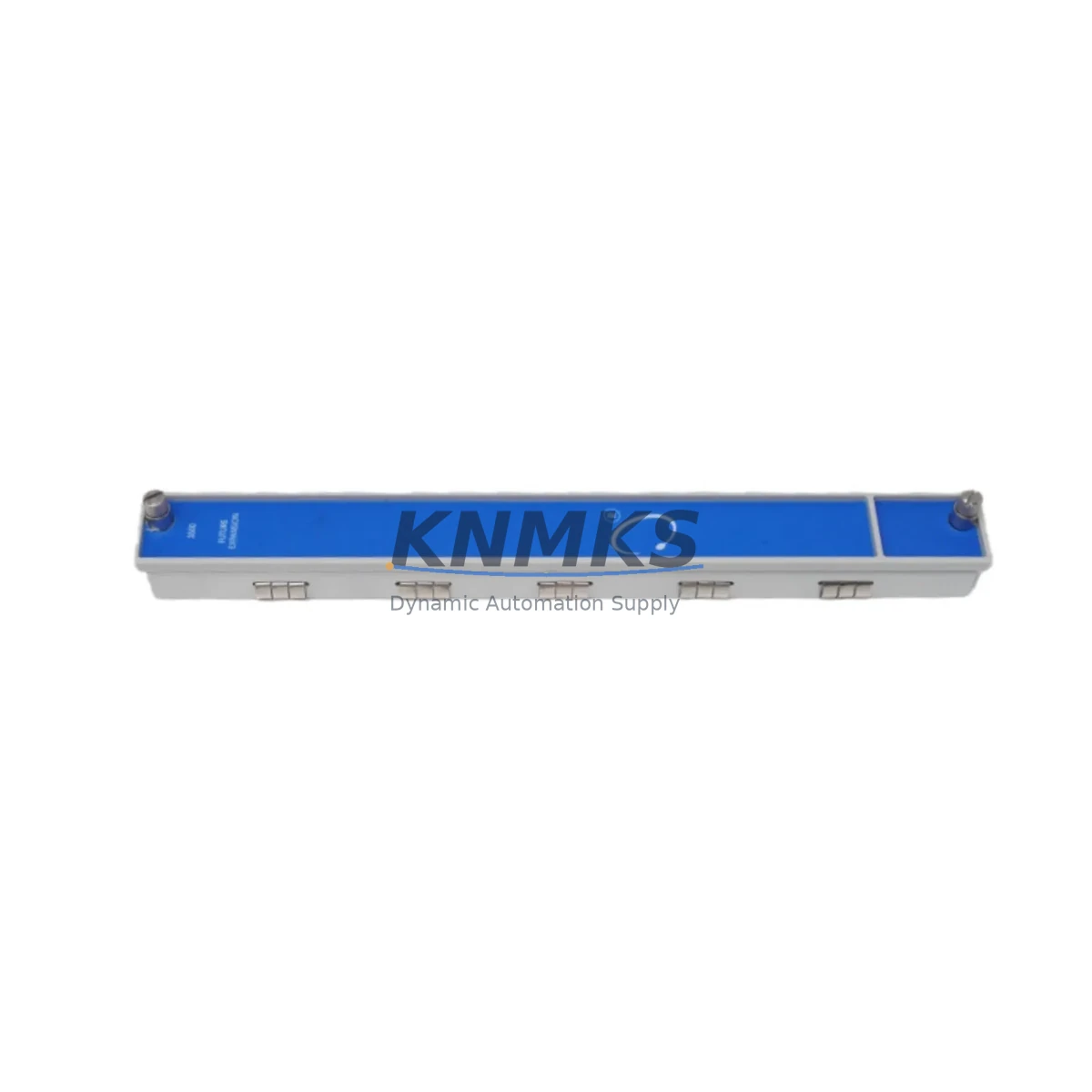

The Bently Nevada 3500/04 136719-01 (also referenced as 128275-01F) is a rack-mount Earthing I/O Module engineered for the Bently Nevada 3500 Series machinery protection platform. Designed to provide a reliable chassis earth reference within the 3500 rack architecture, this module is a critical component in vibration monitoring and machinery protection systems deployed across energy generation, petrochemical processing, rotating equipment, and heavy industrial environments. As legacy 3500 Series installations approach end-of-support cycles, the 3500/04 136719-01 has become a primary retrofit and replacement target for maintenance engineers managing aging control infrastructure.

Whether you are replacing a failed unit in an operating plant, restoring a decommissioned rack for a spare parts pool, or executing a planned control system modernization, the 3500/04 136719-01 is available as a migration-ready, tested replacement module. Each unit is inspected, function-tested, and shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 3500/04 136719-01 into an existing 3500 Series rack requires a structured approach to avoid disruption to adjacent monitoring channels. In a typical 3500 rack assembly, the earthing module occupies a fixed slot position and provides the chassis ground reference for all installed monitor modules — including the Bently Nevada 3500/20 Rack Interface Module, which manages communication between the rack and the host DCS or safety system. Before removing the existing earthing module, engineers should confirm that the rack is de-energized and that the 3500/15 Power Supply Module has been safely isolated, as improper sequencing can introduce transient voltages that affect sensitive I/O channels.

During retrofit planning, terminal wiring documentation should be reviewed against the original rack layout. The 3500/22M Transient Data Interface and any installed 3500/40M Proximitor/Seismic Monitor modules share the backplane bus, and their channel configurations should be backed up prior to any rack-level hardware change. If the site uses a 3500/92 Communication Gateway Module for Modbus or Ethernet/IP connectivity to a SCADA or historian system, confirm that the communication link remains stable during the earthing module swap — some installations require a brief rack restart, which will temporarily interrupt data transmission to the control room.

For sites running parallel redundant racks, the switchover sequence should be validated before the retrofit begins. Confirm that the standby rack is fully operational and that the 3500/05 System Monitor Module is reporting healthy status on all channels. This ensures that machinery protection coverage is maintained throughout the replacement window without exposing rotating equipment to unmonitored operating conditions.

Physical installation space should also be verified. The 3500/04 module occupies a single rack slot and must be seated firmly against the backplane connector. Inspect the backplane pins for corrosion or mechanical damage before insertion, particularly in older racks that have been in continuous service for more than ten years. After installation, perform a chassis earth continuity check using a calibrated low-resistance ohmmeter to confirm that the earth bond meets site grounding specifications.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing any component within an active machinery protection system. For the 3500/04 136719-01, the replacement procedure is straightforward, but it must be coordinated with the site’s permit-to-work system and the operations team responsible for the protected equipment.

The recommended approach is to pre-stage the replacement module on-site before the maintenance window begins. Verify the module’s part number, revision level, and physical condition against the original unit. Because the 3500/04 is a passive earthing module with no firmware or configuration data, there is no software backup required — however, the rack’s overall configuration, including monitor module channel assignments and alarm setpoints, should be exported from the Bently Nevada System 1 software or equivalent configuration tool before any hardware is disturbed.

During the swap, maintain clear communication with the control room. If the rack must be powered down, notify the DCS operator so that any alarm suppression or bypass logic can be activated for the duration of the maintenance window. After the new 3500/04 module is installed and the rack is re-energized, verify that all monitor modules return to normal operating status and that no fault or OK relay outputs have changed state unexpectedly. Restore any bypassed alarms only after confirming that the protected machinery is operating within normal parameters.

For sites where continuous operation is mandatory, consider scheduling the replacement during a planned equipment outage or a low-load period. Pre-tested, in-stock replacement modules — such as those supplied by KNMKS with a support terms confirmed by quotation — reduce the risk of secondary failures during the maintenance window and eliminate the lead time uncertainty associated with ordering directly from the OEM for discontinued or end-of-life part numbers.

Retrofit Support FAQ

Q1: Is the 3500/04 136719-01 a direct replacement for the 128275-01F?
Yes. The 128275-01F is an alternate part number for the same Bently Nevada 3500/04 Earthing I/O Module. Both references are interchangeable and will fit the same rack slot position without modification to wiring or backplane configuration.

Q2: Does this module require any firmware update or configuration before installation?
No. The 3500/04 is a passive hardware module with no embedded firmware or user-configurable parameters. Installation is limited to physical seating in the rack slot and verification of chassis earth continuity. No software interaction with Bently Nevada System 1 or any other configuration tool is required for this specific module.

Q3: What pre-shipment testing is performed on each unit?
Each 3500/04 136719-01 supplied by KNMKS undergoes visual inspection, mechanical fit verification, and electrical continuity testing prior to shipment. Units are packaged in anti-static protective materials and shipped with documentation confirming test completion. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and operational failures under normal service conditions.

Q4: What is the typical lead time and stock availability?
KNMKS maintains in-stock inventory of the 3500/04 136719-01 to support urgent replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity orders or long-term supply agreements covering multiple 3500 Series spare parts, contact our sales team to discuss stocking arrangements and volume pricing.
