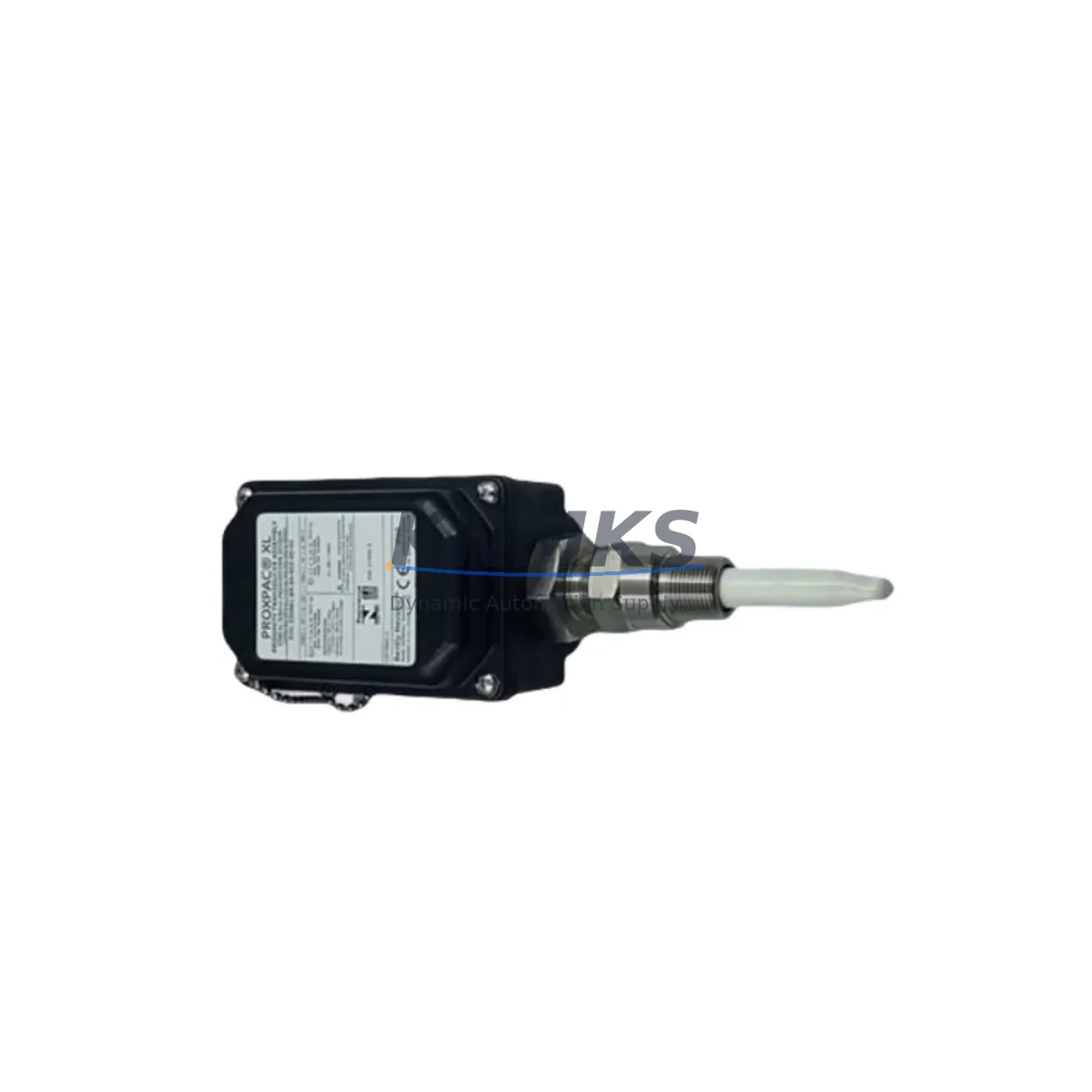

Bently Nevada 330881-28-05-060-00-02 Migration-Ready Proximity Transducer

Overview

Bently Nevada 330881-28-05-060-00-02 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330881-28-05-060-00-02 is a PROXPAC XL proximity transducer engineered for direct replacement and retrofit deployment within legacy vibration monitoring and machinery protection systems. Designed to interface seamlessly with the Bently Nevada 3500 Series monitoring rack, this unit is a proven solution for facilities managing end-of-life 3300 Series hardware, discontinued spare parts, or aging control cabinet infrastructure. With a 28-inch extension cable, 5-meter armored cable, 60-mil tip diameter, and a –0.02 to –18 VDC output range, the 330881-28-05-060-00-02 delivers the same signal conditioning performance as the original factory-installed transducer—without requiring software reconfiguration or rack replacement.

For maintenance engineers and reliability teams executing a planned migration from 3300 XL to 3500 Series architecture, this transducer eliminates the need to re-engineer the measurement chain. The 330881-28-05-060-00-02 is compatible with the 3500/42M Proximitor I/O Module and the 3500/22M Transient Data Interface, allowing existing channel assignments, gap voltage setpoints, and alarm thresholds to be preserved during cutover. Before installation, engineers should verify the existing Proximitor driver (typically a 3300 XL 8mm or 11mm driver) is replaced with the matching 330880 or 330181 series driver to maintain calibrated sensitivity of 200 mV/mil (7.87 V/mm).

Terminal wiring compatibility is a critical checkpoint in any retrofit project. The 330881-28-05-060-00-02 uses a standard Bently Nevada coaxial connector system. When migrating from older 7200 Series or 3300 RAM transducers, technicians must confirm that the field wiring conduit accommodates the 5-meter cable run and that the junction box terminal block accepts the existing shield grounding scheme. In multi-channel racks, the 3500/20 Rack Interface Module should be checked for firmware revision compatibility—racks running firmware below v3.x may require an update before the new transducer channel is recognized correctly.

Backplane and rack slot assignments must also be validated prior to commissioning. In a 3500 Series rack, each I/O module slot is mapped to a specific channel pair. If the 330881-28-05-060-00-02 is replacing a transducer on a previously decommissioned channel, the 3500/42M module address must be re-enabled through the Rack Configuration Software (RCS). Engineers should export the existing rack configuration file before any hardware swap to preserve alarm setpoints, full-scale ranges, and OK relay logic. This configuration backup also protects the HMI display mapping in connected SCADA or DCS systems—particularly where the vibration trend is displayed on a System 1 Evolution or Orbit 60 workstation.

Communication link integrity is another key consideration. In facilities where the 3500 rack communicates via Modbus RTU or Ethernet/IP to a DCS or PLC, the channel data address offsets must be verified after the transducer swap. If the replacement channel was previously disabled in the Modbus register map, re-enabling it may shift downstream register addresses and affect PLC ladder logic or DCS function block inputs. Coordination with the control system engineer is recommended before live cutover to avoid nuisance trips or data gaps in the historian.

Physical installation space should be confirmed before ordering. The 330881-28-05-060-00-02 uses a standard 8mm probe body with a 5/16-28 UNF thread and requires a minimum radial clearance of 25mm from the shaft surface to the probe tip at the installed gap. In retrofit scenarios where the original probe bracket was designed for a 7200 Series probe, a bracket adapter or new mounting block may be required. Shaft material and surface finish should also be verified—the 330881 series is calibrated for AISI 4140 steel; non-standard shaft materials require a calibration correction factor.

All units supplied by KNMKS are tested prior to shipment. Each 330881-28-05-060-00-02 undergoes output linearity verification, gap voltage calibration check, and cable continuity testing. Units are shipped with a test report and are covered by a support terms confirmed by quotation against manufacturing defects. Stock is maintained for immediate dispatch to support unplanned outages and emergency spare requirements.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill-of-materials audit of the existing monitoring rack. In a typical 3500 Series chassis, the rack may house a combination of the 3500/20 Rack Interface Module, 3500/22M Transient Data Interface, 3500/42M Proximitor I/O Module, and 3500/15 Power Supply Module. Each of these components must be confirmed as operational before the new 330881-28-05-060-00-02 transducer is installed, since a failing power supply or degraded I/O module can produce false OK relay states that mask a transducer fault.

For facilities migrating from 3300 Series architecture, the 3300/16 I/O module and its associated 3300 XL 8mm Proximitor driver must be decommissioned in a controlled sequence. The replacement 330880-90-00 Proximitor driver (the standard companion driver for the 330881 probe series) should be installed in the 3500/42M slot before the transducer cable is connected, allowing the driver output to be verified at the terminal block before the probe is inserted into the machine casing. This sequence reduces the risk of a gap voltage fault triggering a machine trip during the commissioning window.

Signal isolation is another consideration in mixed-protocol environments. Where the 3500 rack shares a common ground with a Siemens S7-300 or Allen-Bradley ControlLogix PLC chassis, a signal isolator or galvanic separator may be required on the Modbus link to prevent ground loop interference on the vibration channel. In such installations, the 3500/92 Communication Gateway or an equivalent third-party Modbus isolator should be included in the retrofit BOM. Programming cable access to the 3500 rack (via the RS-232 port on the 3500/20 RIM) should also be confirmed before the cutover window, as firmware updates and configuration uploads require a direct serial connection.

Finally, HMI screen validation should be completed in simulation mode before live cutover. If the vibration trend for the replaced channel is displayed on a System 1 Evolution workstation or an Orbit 60 data manager, the channel tag name and engineering unit scaling should be verified against the new transducer’s output range. Any alarm setpoint changes made during the retrofit should be documented in the site’s Management of Change (MOC) record before the machine is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a transducer retrofit requires a structured pre-outage preparation process. Before the maintenance window opens, the existing rack configuration should be exported from the Rack Configuration Software and archived. All channel OK relay states, alarm setpoints, full-scale ranges, and Modbus register assignments should be documented in a pre-migration checklist. This ensures that if the cutover encounters an unexpected issue—such as a firmware incompatibility or a wiring discrepancy—the original configuration can be restored within minutes rather than hours.

During the physical swap, the 330881-28-05-060-00-02 should be pre-gapped on the bench using a calibrated gap tool before installation in the machine casing. Pre-gapping to the nominal –10.4 VDC gap voltage (corresponding to a 50-mil air gap for AISI 4140 steel) allows the technician to confirm probe and driver functionality before the machine is opened, reducing the time the machine casing is exposed. Once installed, the gap voltage should be re-verified in situ with the shaft stationary before the rack channel is re-enabled.

Program logic protection is equally important. In PLC-controlled systems where the 3500 rack OK relay feeds a safety interlock or permissive logic rung, the interlock should be bypassed under a formal permit-to-work before the transducer is disconnected. This prevents a nuisance trip from propagating to the process control layer during the swap. After the new transducer is commissioned and the gap voltage is confirmed within the OK band, the bypass should be removed and the interlock logic verified with a functional test before the machine is restarted.

Post-commissioning, a 30-minute observation period at reduced load is recommended to confirm that the vibration trend is stable, alarm thresholds are not being approached, and the Modbus data feed to the DCS or historian is updating correctly. This observation window also allows the technician to confirm that the 3500/42M I/O module’s OK LED is illuminated and that no latched alerts are present in the System 1 or Orbit 60 event log.

Retrofit Support FAQ

Q: Is the 330881-28-05-060-00-02 a direct drop-in replacement for the 330880-28-05-060-00-02?
A: Yes. The 330881 series supersedes the 330880 series in the PROXPAC XL product line. The probe body dimensions, thread specification, cable length, and output sensitivity are identical. The primary difference is an updated connector design on the 330881 series that improves moisture ingress resistance. No bracket modification or driver recalibration is required for a direct swap.

Q: What pre-shipment testing is performed on each unit?
A: Every 330881-28-05-060-00-02 supplied by KNMKS undergoes output linearity verification across the full measurement range, gap voltage calibration confirmation at the nominal 50-mil setpoint, and cable continuity and shield integrity testing. A test report is included with each shipment. Units are covered by a support terms confirmed by quotation against manufacturing defects from the date of invoice.

Q: Can this transducer be used with a 3300 Series rack without upgrading to 3500 Series hardware?
A: The 330881-28-05-060-00-02 is compatible with 3300 Series Proximitor drivers when used with the correct companion driver (330880-90-00 or equivalent). However, for new installations or major retrofits, migration to the 3500 Series rack is strongly recommended, as the 3300 Series has been discontinued and replacement I/O modules and power supplies are increasingly difficult to source. KNMKS maintains stock of both 3300 and 3500 Series components to support phased migration strategies.

Q: What is the lead time and are units available from stock?
A: KNMKS maintains inventory of the 330881-28-05-060-00-02 for immediate dispatch. Standard orders are processed within 1 business day. For urgent outage support, expedited shipping is available to most destinations. Contact [email protected] or call +86 18359268345 to confirm current stock levels and shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330881-28-05-060-00-02
3500 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330881-28-05-060-00-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
