Bently Nevada 330881-16-00-200-06-02 Migration-Ready Proximity Transducer

Overview

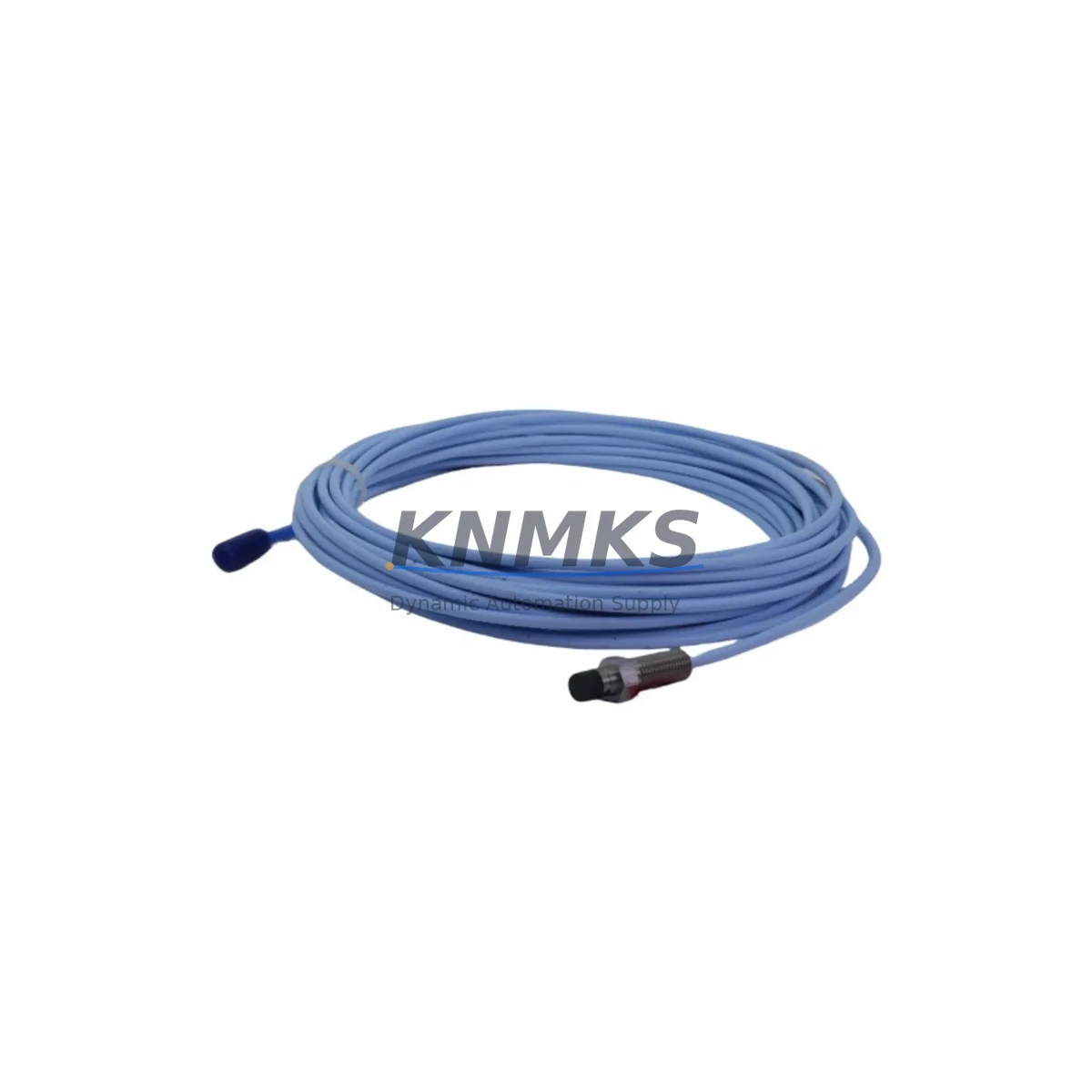

Bently Nevada 330881-16-00-200-06-02 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330881-16-00-200-06-02 is a PROXPAC XL proximity transducer engineered for direct integration into the Bently Nevada 3500 Series machinery protection platform. As legacy 7200 Series and 3300 Series transducer assemblies reach end-of-life and spare parts become increasingly scarce, the 330881-16-00-200-06-02 provides a verified, migration-ready replacement path that preserves existing wiring infrastructure, maintains signal chain integrity, and eliminates the need for full rack replacement. This unit is stocked, tested, and available for immediate dispatch with a support terms confirmed by quotation covering both parts and workmanship.

For facilities operating aging rotating machinery protection systems, the 330881-16-00-200-06-02 addresses the most critical challenge in legacy system migration: maintaining continuous vibration and position monitoring during the transition period. The transducer is compatible with the 3500/42M Position Monitor and the 3500/40M Proximitor I/O Module, allowing engineers to retrofit individual measurement points without disturbing adjacent channels or interrupting the overall protection logic running on the 3500 rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330881-16-00-200-06-02 begins well before the unit arrives on site. Engineers should first audit the existing 3500 rack configuration to confirm which slots are occupied by 3500/40M Proximitor I/O Modules and whether the associated 3500/42M Position Monitor cards are running firmware versions that support the 200 mV/mil scale factor. In installations where the legacy driver was a 3300/16 or 3300/20 Proximitor, the entire driver-transducer assembly must be replaced as a matched set — the 330881-16-00-200-06-02 is designed to pair with the 3500/40M I/O Module and should not be connected to out-of-series driver electronics.

Terminal wiring is a frequent source of commissioning delays. The 330881-16-00-200-06-02 uses a standard coaxial connector at the driver end; however, field technicians should verify that the existing conduit and cable tray can accommodate the 16-foot integral cable without sharp bends that could affect signal quality. Where cable routing requires extension, a Bently Nevada 330130 extension cable of the appropriate length should be selected to maintain the matched system impedance. Mixing unmatched extension cables from the legacy 7200 Series inventory is a known cause of scale factor drift and should be avoided.

For facilities that also operate a System 1 condition monitoring platform or a GE Bently Nevada TDXnet data acquisition system, the 330881-16-00-200-06-02 integrates transparently because the signal conditioning occurs within the 3500/40M module rather than the transducer itself. This means that existing System 1 trend databases, alarm configurations, and historical baselines remain valid after the transducer swap, provided the gap voltage is re-established within the linear range and the OK relay on the 3500/42M is confirmed active. Engineers should also verify that any Keyphasor 3500/25 module in the rack is correctly referenced if the replaced transducer was serving as a phase reference input.

Where the retrofit scope extends beyond a single measurement point to a full control cabinet upgrade, it is common to simultaneously replace the 3500/15 Power Supply Module if the existing unit is showing elevated ripple or has accumulated more than ten years of runtime. Power supply health directly affects the gap voltage stability of every proximity channel in the rack, and a marginal power supply can mask a successful transducer installation with intermittent OK relay dropouts. Stocking a 3500/15 alongside the 330881-16-00-200-06-02 is a recommended practice for planned outage windows.

Downtime Control During System Migration

Minimizing production downtime during a proximity transducer replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the original program logic and alarm setpoints stored in the 3500/42M Position Monitor should be documented using the Bently Nevada System 1 configuration export function or manually recorded from the rack display. This ensures that if a monitor card requires replacement during the retrofit — for example, if the legacy card is found to have a failed output relay — the replacement card can be configured to identical setpoints without requiring a new functional safety review.

During the physical swap, the 330881-16-00-200-06-02 should be installed with the machine at rest and the rack powered. The gap voltage should be set to the midpoint of the linear range (typically -10 VDC for a 200 mV/mil system at the nominal gap) before the machine is returned to service. Technicians should use a calibrated gap-setting tool and verify the buffered output voltage at the 3500/40M front panel BNC connector before closing the cabinet. This step confirms that the transducer, extension cable, and driver module are functioning as a matched system and that the OK relay will remain energized under normal operating conditions.

To protect control continuity, facilities with redundant measurement configurations should sequence the replacement so that the redundant channel remains active throughout the swap of the primary channel. The 3500 rack’s channel-bypass function can be used to suppress spurious alarms on the channel under maintenance without disabling the overall machine protection logic. This approach keeps the DCS or safety PLC receiving valid status signals from the protection rack throughout the retrofit, avoiding nuisance trips that could extend the outage beyond the planned window.

All units supplied by KNMKS undergo pre-shipment functional testing including gap voltage linearity verification, OK relay actuation check, and cable continuity confirmation. Test records are available upon request and accompany each shipment to support site acceptance testing and quality documentation requirements.

Retrofit Support FAQ

Q: Does the 330881-16-00-200-06-02 directly replace a 3300 Series or 7200 Series proximity transducer without additional hardware?
A: Not always as a direct plug-in replacement. The 330881-16-00-200-06-02 is designed for the Bently Nevada 3500 platform and requires a compatible 3500/40M Proximitor I/O Module as the driver. If your existing installation uses a 3300/16 or 7200-series driver, the driver module must also be upgraded to a 3500/40M to complete the migration. The transducer itself, however, can be installed in the existing probe boss without mechanical modification in most cases.

Q: What commissioning steps are required after installation, and how long does calibration typically take?
A: After physical installation, the primary commissioning steps are gap voltage adjustment, scale factor verification, OK relay confirmation, and alarm setpoint validation. For a single-channel replacement on a 3500/42M Position Monitor, an experienced technician can typically complete commissioning in 2–4 hours, assuming the machine is accessible and the rack configuration documentation is available. KNMKS can provide a commissioning checklist specific to this part number upon request.

Q: Can the existing field wiring and conduit be reused, or does the cable need to be replaced?
A: The 330881-16-00-200-06-02 includes a 16-foot integral cable. If the distance from the probe boss to the driver module exceeds 16 feet, a Bently Nevada 330130 extension cable must be added. Existing conduit can generally be reused provided the inner diameter accommodates the PROXPAC XL cable diameter and the routing avoids sharp bends. Legacy 7200 Series extension cables should not be reused, as impedance mismatches will affect scale factor accuracy.

Q: What does the support terms confirmed by quotation cover, and what is the lead time for in-stock units?
A: KNMKS provides a support terms confirmed by quotation covering manufacturing defects and workmanship from the date of shipment. Units confirmed availability confirmed by RFQ are typically dispatched within 1–3 business days following order confirmation and payment. Pre-shipment test records are included with each unit. For urgent requirements, expedited dispatch options are available — contact our sales team directly to confirm current stock status and lead time.
