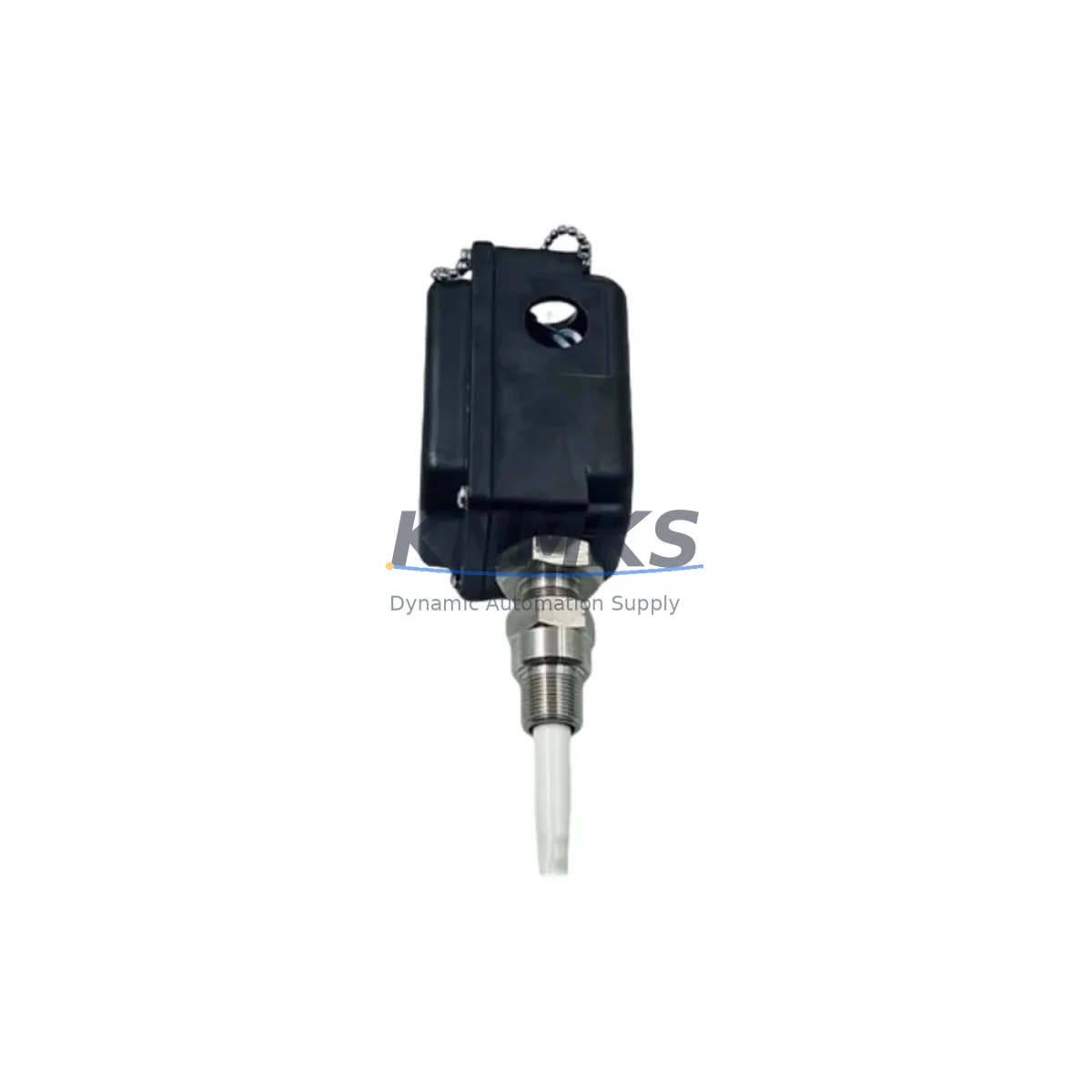

Bently Nevada 330881-16-00-180-03-02 PROXPAC XL Spare Part

Overview

Bently Nevada 330881-16-00-180-03-02 PROXPAC XL Spare Part: Maintenance-Proven for Factory Uptime

The Bently Nevada 330881-16-00-180-03-02 PROXPAC XL is a precision proximity transducer assembly engineered for continuous vibration monitoring in rotating machinery applications. As a maintenance-proven spare part, this unit is designed to deliver reliable shaft displacement and vibration signal output in demanding industrial environments — including turbines, compressors, pumps, and large motors operating under the Bently Nevada 3300 and 3500 Series monitoring frameworks.

For maintenance engineers managing critical rotating assets, having a verified, tested replacement of the 330881-16-00-180-03-02 on the shelf is not optional — it is a core element of any serious predictive maintenance or emergency response strategy. Unplanned downtime caused by a failed proximity transducer can cascade into hours of lost production. Stocking this PROXPAC XL assembly ensures that when a fault is isolated to the transducer loop, the site team can execute a swap within a single maintenance window rather than waiting days for procurement.

This unit ships fully tested, with signal output verified against factory specifications. Each assembly includes the probe, extension cable, and proximitor/driver in a matched, calibrated set — eliminating the compatibility risk that arises when individual components are sourced separately. The 330881-16-00-180-03-02 is supplied with a support terms confirmed by quotation covering manufacturing defects and signal performance, giving procurement engineers confidence in long-term supply reliability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330881-16-00-180-03-02 PROXPAC XL assembly is flagged for replacement during a routine inspection or fault isolation event, the maintenance scope should extend beyond the transducer itself. A proximity transducer failure rarely occurs in isolation — the surrounding signal chain and power infrastructure must be evaluated concurrently to prevent repeat failures and ensure the monitoring loop is fully restored.

Begin by verifying the Bently Nevada 3500/42M Proximitor I/O Module or the equivalent 3300 series I/O card that receives the transducer signal. A degraded I/O module can mask true transducer performance or generate false alarms even after a new assembly is installed. Similarly, inspect the 3500/15 Power Supply Module supplying the -24 VDC rail to the proximitor — voltage sag or ripple on this rail is a common root cause of erratic gap voltage readings that are incorrectly attributed to probe wear.

Check the extension cable routing and connector integrity along the full cable run from the probe tip to the proximitor enclosure. Mechanical abrasion, thermal cycling, and vibration-induced connector fretting are leading causes of intermittent signal loss in PROXPAC assemblies. If the existing cable shows any jacket damage or connector corrosion, replace it as part of the same maintenance event rather than reusing it with a new probe.

For installations where the 3500 rack also monitors axial position, review the condition of the 3500/40M Proximitor Monitor and any associated 3500/22M Transient Data Interface modules. These components share the same rack backplane and power bus, and a failing module in an adjacent slot can introduce ground loops or signal interference that affects the newly installed transducer channel.

In control cabinet environments, also inspect the terminal blocks and field wiring connecting the proximitor output to the DCS or safety system input card. Loose terminations and corroded terminal strips are a persistent source of signal noise in vibration monitoring loops. Where signal runs exceed recommended cable lengths, verify that signal isolators or barriers are correctly specified and functioning — particularly in installations where the proximitor output feeds into a non-Bently Nevada DCS input card.

Finally, confirm that the rack communication module (such as the 3500/92 Communication Gateway) is correctly configured to reflect the new transducer channel parameters after replacement. Failure to update the system configuration can result in incorrect alarm setpoints being applied to the new assembly, undermining the value of the replacement.

Site Replacement Workflow

Replacing the 330881-16-00-180-03-02 PROXPAC XL on-site follows a structured sequence designed to minimize downtime and eliminate re-work. Before the maintenance window opens, confirm that the replacement assembly is a matched set with the same probe length (16 mm), cable length (180 cm), and proximitor driver code as the original — mixing components from different matched sets will produce calibration errors that require a full re-gapping procedure.

During the replacement, record the existing gap voltage before disconnecting the old assembly. This baseline reading allows the technician to set the new probe gap to the same operating point without requiring a full vibration survey. Install the new probe to the manufacturer-specified gap (typically 1.0 mm to 1.5 mm for standard shaft diameters), verify the gap voltage falls within the -10 VDC ± 1 VDC window, and confirm the signal is clean on the monitor display before closing the cabinet.

For sites transitioning from older 330880 or 330181 series assemblies, the 330881-16-00-180-03-02 provides a direct mechanical and electrical replacement path. No rack reconfiguration is required in most 3300 and 3500 series installations, which significantly reduces the engineering effort associated with legacy system upgrades. This compatibility makes the PROXPAC XL a preferred choice for maintenance teams managing aging turbomachinery fleets where minimizing system changes is a priority.

After installation, log the replacement in the site CMMS with the new assembly serial number, installation date, and initial gap voltage. Schedule the first post-installation inspection at the next planned outage to confirm gap stability and signal baseline. This documentation discipline supports support requests and provides the data foundation for future predictive maintenance decisions.

Spare Parts Support FAQ

Q1: Is the 330881-16-00-180-03-02 a direct replacement for older Bently Nevada proximity assemblies?
Yes. The 330881-16-00-180-03-02 PROXPAC XL is compatible with Bently Nevada 3300 XL and 3500 Series monitoring systems and serves as a functional replacement for legacy 330880 and 330181 series assemblies in matched-length configurations. Always verify probe length, cable length, and proximitor driver code before installation to ensure the replacement set matches the original specification.

Q2: How should I manage inventory levels for this spare part?
For critical rotating machinery monitored by Bently Nevada systems, industry best practice recommends maintaining a minimum of one complete matched PROXPAC assembly per monitored machine train in the site spare parts store. For facilities with multiple turbines or compressors on the same monitoring platform, a pooled inventory of two to three assemblies per site is a common procurement strategy that balances carrying cost against emergency response risk.

Q3: What pre-shipment testing is performed on each unit?
Every 330881-16-00-180-03-02 assembly is tested for signal output voltage, gap voltage linearity across the full measurement range, and cable insulation integrity before dispatch. Units that do not meet factory signal specifications are not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: What does the support terms confirmed by quotation cover, and how is long-term supply assured?
The support terms confirmed by quotation cover manufacturing defects and signal performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified temperature and voltage ranges. For long-term supply continuity, KNMKS maintains standing inventory of PROXPAC XL assemblies and can support blanket purchase orders for facilities requiring guaranteed availability across multi-year maintenance cycles. Contact our team to discuss supply agreements tailored to your site’s maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330881-16-00-180-03-02
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 330881-16-00-180-03-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
