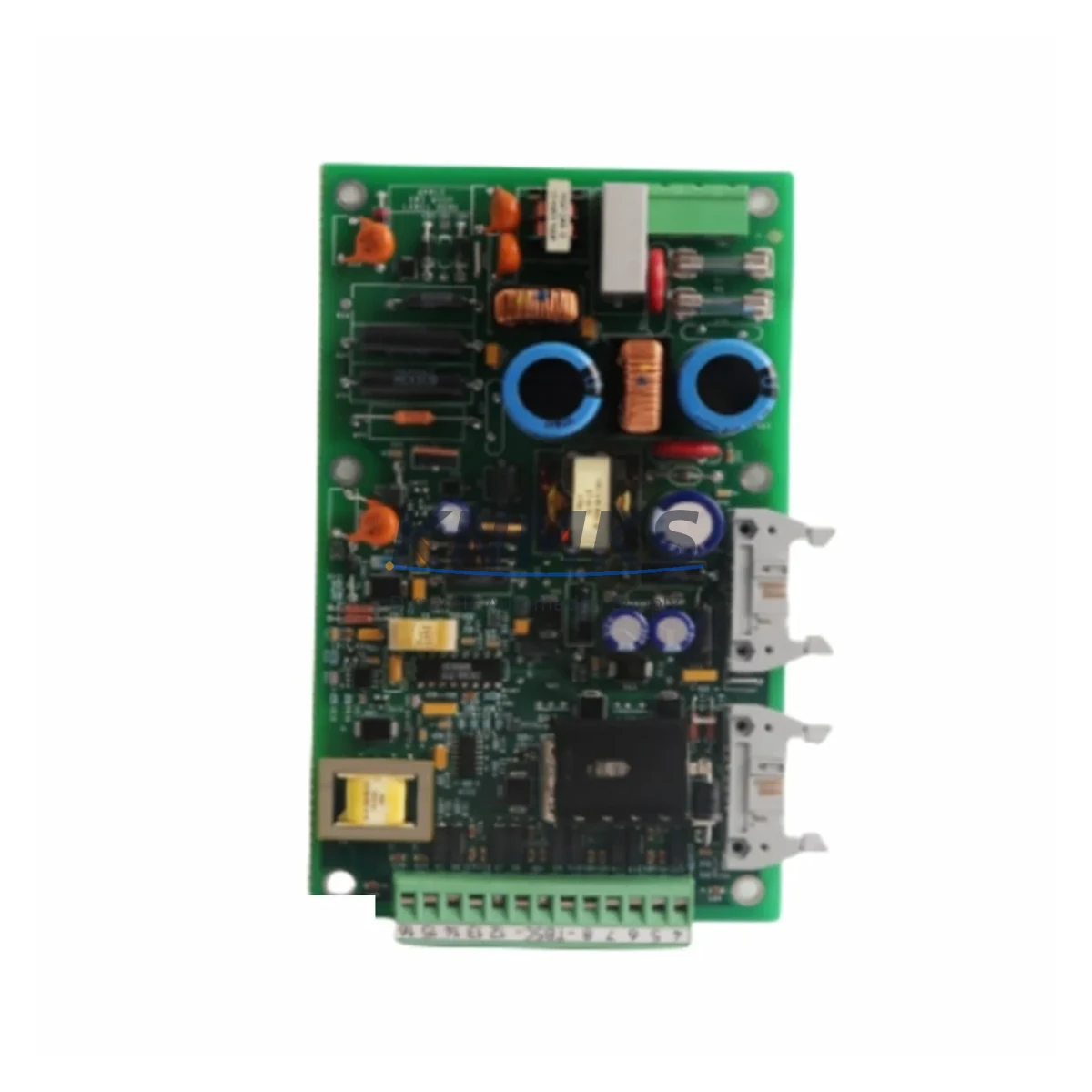

Bently Nevada 3077-755A Fail-Safe Field Interface Module

Overview

Bently Nevada 3077-755A Fail-Safe Field Interface Module: Fault Protection and Critical Industrial Reliability

The Bently Nevada 3077-755A (also referenced as 9907-147N and 5501-303L) is a precision-engineered Field Interface Module (FIM) designed for the Bently Nevada 3500 Series machinery protection system. In continuous production environments where unplanned downtime carries severe operational and financial consequences, this module serves as a critical link between field-mounted transducers and the 3500 rack’s monitoring and protection logic. Its fail-safe architecture ensures that any loss of signal, power fluctuation, or communication fault triggers a defined safe-state response rather than a silent failure — a fundamental requirement in petrochemical, power generation, mining, and heavy manufacturing facilities.

Engineered to operate reliably in high electromagnetic interference (EMI) environments, the 3077-755A incorporates robust signal conditioning that suppresses noise from variable frequency drives, high-voltage switchgear, and adjacent power cabling. In control cabinets where multiple I/O modules, relay outputs, and communication cards share a common backplane, signal integrity is non-negotiable. This module maintains stable transducer excitation and accurate signal transmission even when cabinet temperatures rise, vibration levels increase, or humidity infiltrates enclosure seals — conditions routinely encountered in coastal, tropical, and heavy-industrial installations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered 3500 Series protection rack, the 3077-755A FIM does not operate in isolation. It functions as part of a layered protection architecture that begins at the field transducer and extends through the entire control cabinet. Paired with the Bently Nevada 3500/22M Transient Data Interface, the FIM ensures that transient vibration events are captured and logged without disrupting the continuous monitoring loop. When the rack also houses a Bently Nevada 3500/92 Communication Gateway Module, the FIM’s conditioned signals feed cleanly into Modbus or Ethernet/IP data streams, enabling real-time SCADA visibility without introducing ground loops or common-mode noise.

Power supply stability is equally critical. The Bently Nevada 3500/15 Power Supply Module provides the regulated DC rail that the 3077-755A depends on for consistent transducer excitation. In facilities where utility power quality is poor — common in mining substations and port crane installations — pairing the rack with an external Phoenix Contact QUINT UPS or equivalent industrial uninterruptible power supply eliminates the risk of brownout-induced false trips. For cabinets operating in Zone 2 hazardous areas or dusty environments, the addition of a Bently Nevada 3500/20 Rack Interface Module provides the system-level health monitoring needed to detect internal faults before they propagate to the protection logic.

In high-vibration installations such as compressor trains or turbine pedestals, cable management between the field junction box and the 3077-755A becomes a reliability factor in its own right. Using shielded, twisted-pair instrumentation cable terminated with Bently Nevada 330130 series proximitor extension cables maintains signal fidelity across long cable runs and prevents capacitive coupling from adjacent power conductors. This end-to-end approach — from transducer through FIM to communication gateway — is the foundation of a control cabinet protection strategy that minimizes unplanned shutdowns and supports safe, predictable machinery behavior.

Critical Industrial Safety Applications

The Bently Nevada 3077-755A is deployed across a wide range of critical industrial sectors where machinery protection is directly linked to personnel safety and process continuity. In petrochemical and refinery environments, it monitors rotating equipment such as centrifugal compressors, pumps, and expanders that operate continuously under high-pressure, high-temperature conditions. A missed vibration alarm or a false trip caused by a faulty interface module can result in either catastrophic mechanical failure or an unplanned process shutdown — both outcomes carry significant safety and financial risk.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 3077-755A supports turbine shaft monitoring systems where axial displacement and radial vibration data must be available to the protection relay at all times. Any interruption in the field interface chain can mask developing faults in journal bearings or thrust collars, allowing damage to progress undetected until a forced outage occurs.

Mining and mineral processing operations rely on this module to protect large grinding mills, conveyor drive motors, and slurry pumps operating in dusty, wet, and vibration-intensive environments. The module’s tolerance for harsh ambient conditions makes it well-suited to surface and underground installations where standard commercial-grade electronics would degrade rapidly. Similarly, in water and wastewater treatment plants, the 3077-755A protects high-speed centrifugal blowers and submersible pump motors that must run continuously to maintain treatment capacity.

In metallurgical and steel production facilities, where rolling mills and continuous casting machines generate intense electromagnetic fields and mechanical shock, the module’s EMI immunity and vibration tolerance are essential. Port and marine applications — including ship propulsion monitoring and crane drive protection — also benefit from its ability to maintain signal integrity in salt-air, high-humidity environments where corrosion and condensation are persistent threats.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the Bently Nevada 3077-755A?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified field interface functions within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed promptly to minimize your equipment downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 3077-755A unit undergoes full functional verification before dispatch. This includes signal conditioning performance checks, power input tolerance testing, and backplane communication verification against 3500 Series rack specifications. Units that do not meet factory performance standards are not shipped.

Q3: Is the 3077-755A compatible with all 3500 Series rack configurations?
Yes. The 3077-755A is designed for direct compatibility with standard Bently Nevada 3500 Series racks. It is compatible with both legacy and current-generation 3500 rack configurations, including those housing the 3500/22M, 3500/40M, 3500/42M, and 3500/45 monitor modules. If your installation uses a non-standard rack configuration, contact our technical team for compatibility confirmation before ordering.

Q4: Can you support long-term supply and emergency replacement requirements?
Yes. We maintain stock of the 3077-755A (9907-147N / 5501-303L) to support both planned maintenance schedules and emergency replacement needs. For facilities managing critical spare parts programs, we can discuss reserved stock arrangements and lead-time commitments to ensure your protection system is never compromised by parts availability.
