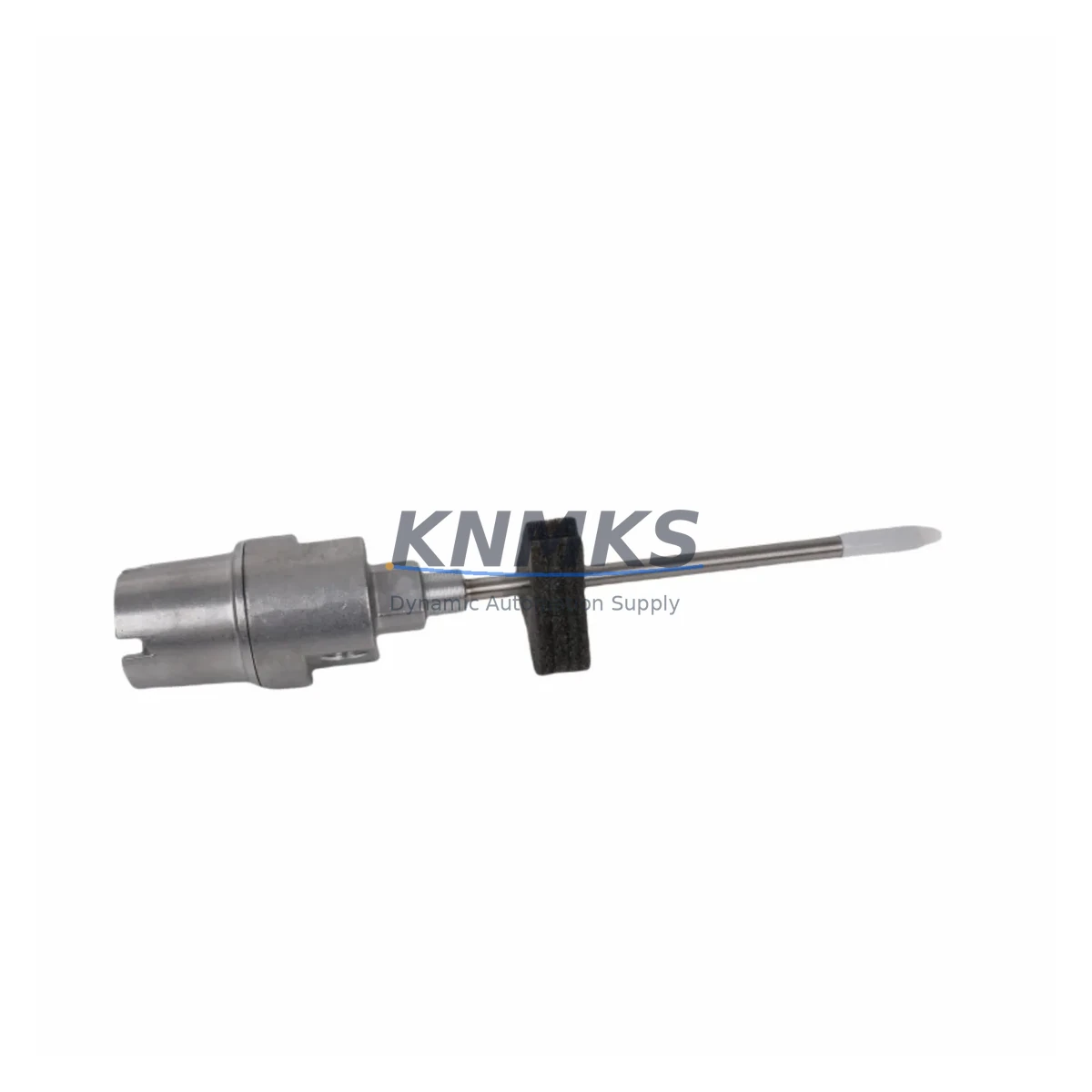

Bently Nevada 21000-16-10-15-088-03-02 Migration-Ready Proximity Probe

Overview

Bently Nevada 21000-16-10-15-088-03-02 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 21000-16-10-15-088-03-02 is a precision eddy-current proximity probe assembly engineered for direct retrofit into existing vibration monitoring and machinery protection systems. As original equipment manufacturers phase out legacy 21000 Series components, plant engineers and reliability teams face increasing pressure to source verified drop-in replacements that maintain signal integrity, dimensional compatibility, and system certification without triggering full-scale control system redesigns. This unit addresses that challenge directly — offering a migration-ready solution for facilities operating Bently Nevada 3300 Series and 3500 Series monitoring racks, as well as older 7200 Series installations still found in petrochemical, power generation, and rotating machinery environments.

When planning a retrofit around the 21000-16-10-15-088-03-02, engineers must confirm several critical parameters before committing to a swap. The probe’s 16 mm diameter tip and 10 mm sensing range must be validated against the existing proximity driver — typically a 3300 XL 8mm or 3300 XL 11mm proximitor — to ensure the gap voltage calibration curve remains within the linear operating range of 10–18 VDC. Connector pinout and cable length (15 ft / 4.57 m in this configuration) must match the existing conduit routing and junction box termination. If the original installation used an armored extension cable paired with a 3300/16 proximitor, the replacement assembly must preserve the same system sensitivity of 200 mV/mil (7.87 V/mm) to avoid recalibration of the 3500/42M Proximitor Monitor or the 3500/40M Proximitor Monitor cards already installed in the rack.

Backplane interface compatibility is equally important. The 3500 Series rack accepts probe signals through the I/O module terminal blocks, and any change in probe sensitivity or cable impedance can affect the 3500/22M Transient Data Interface or the 3500/92 Communication Gateway’s alarm setpoint logic. Before installation, verify that the existing DCS or safety instrumented system (SIS) — whether a Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM VP — has not hard-coded the probe’s mV/mil sensitivity into the analog input scaling. If it has, the engineering workstation configuration must be updated prior to hot-swap to prevent nuisance trips or missed alarms during the transition window.

For facilities running older 7200 Series racks with 7200 Series proximitors, the 21000-16-10-15-088-03-02 can serve as a bridge component during a phased migration to the 3500 platform. In this scenario, the probe is installed in the existing 7200 rack while the new 3500/20 Rack Interface Module and 3500/15 Power Supply Module are staged and pre-configured offline. This approach minimizes production downtime by allowing the new rack to be fully commissioned — including I/O mapping, alarm setpoints, and Modbus or FOUNDATION Fieldbus communication links — before the final cutover. The 3500/92 Communication Gateway can be pre-loaded with the existing tag database exported from the legacy system, reducing the risk of configuration errors during the live switchover.

Installation space must also be confirmed. The 21000-16-10-15-088-03-02 uses a standard M14 x 1.25 thread mount and requires a minimum clearance of 25 mm behind the probe tip for proper eddy-current field development. In tight bearing housings or retrofitted machinery pedestals, this clearance is often compromised by added insulation or modified bearing caps. A physical mock-up using the replacement probe before the scheduled maintenance window is strongly recommended. Firmware compatibility on the 3500/42M or 3500/40M monitor cards should also be reviewed — cards running firmware below version 3.x may not support the full diagnostic feature set available with the replacement probe, and a firmware update via the Rack Configuration Software (RCS) may be required before final commissioning.

All units are pre-tested against Bently Nevada OEM specifications, shipped with a calibration certificate, and covered by a support terms confirmed by quotation from the date of delivery. In-stock inventory ensures short lead times for urgent maintenance and turnaround projects.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit around the 21000-16-10-15-088-03-02 typically involves more than a single probe swap. In most legacy installations, the probe is one node in a broader vibration monitoring chain that includes the proximitor, the monitor card, the rack power supply, and the communication interface. When the 3500/15 Power Supply Module is aging or showing voltage ripple, replacing it alongside the probe prevents nuisance alarms caused by supply instability rather than actual machinery faults. Similarly, if the 3500/20 Rack Interface Module has not been updated in several years, its I/O mapping may not reflect the current machine train configuration, making it an ideal candidate for simultaneous review.

For facilities migrating from older DCS platforms, the 3500/92 Communication Gateway provides the bridge between the Bently Nevada rack and modern Ethernet-based control networks. Configuring the gateway to export vibration data via Modbus TCP or OPC-UA to the new DCS historian eliminates the need for dedicated serial converters and reduces wiring complexity in the control cabinet. If the existing HMI screens — whether running on a legacy Wonderware InTouch or a modern Ignition SCADA platform — display probe gap voltage as a direct analog value, the HMI tag database must be updated to reflect the new probe’s output range before the cutover to avoid operator confusion during the transition period.

I/O expansion is another common requirement in legacy system upgrades. If the original installation monitored only radial vibration, adding axial position monitoring with a second 21000 Series probe and a 3500/42M Proximitor Monitor card can be accomplished within the same rack footprint, provided an open slot is available. The 3500 Series rack’s modular architecture supports this kind of incremental expansion without requiring a full system replacement, making it a cost-effective path for facilities that want to improve machinery protection coverage without committing to a greenfield control system project.

Programming cable compatibility should also be verified. The Rack Configuration Software (RCS) communicates with the 3500 rack via a standard RS-232 or USB-to-serial adapter, and the configuration file from the legacy rack can be imported directly into the new rack’s RCS project, preserving alarm setpoints, relay logic, and I/O assignments. This significantly reduces the engineering time required for recommissioning and minimizes the risk of configuration errors during the live cutover.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any legacy control system retrofit. For the 21000-16-10-15-088-03-02, the recommended approach is a pre-staged swap: the replacement probe is pre-gapped and pre-tested on a bench fixture before the maintenance window begins, using the same target material (typically 4140 steel) as the installed machinery shaft. This ensures the gap voltage is within the linear range before the probe enters the machine housing, eliminating the need for in-situ gap adjustment under time pressure.

During the cutover, the existing probe’s gap voltage reading should be recorded from the 3500/42M or 3500/40M monitor card’s front-panel display or from the DCS historian before disconnection. This value serves as the baseline for verifying the replacement probe’s installation. If the new probe’s gap voltage differs by more than ±0.5 VDC from the recorded baseline at the same physical gap, the installation should be paused and the gap rechecked before the machine is returned to service.

For facilities that cannot tolerate any monitoring gap during the swap, a temporary bypass relay can be installed on the 3500 rack’s relay output to hold the last-known alarm state while the probe is disconnected. This prevents spurious shutdowns triggered by the open-circuit condition on the proximitor input during the swap interval. The bypass should be removed and the relay logic verified immediately after the new probe is connected and the gap voltage confirmed within specification.

Post-installation, a short run-up test at reduced load — typically 30 minutes at 50% rated speed — allows the vibration monitoring system to confirm that the replacement probe’s signal is stable, free of electrical noise, and consistent with the historical baseline stored in the DCS historian. Any deviation greater than 10% from the historical 1X vibration amplitude at the same operating speed should be investigated before returning the machine to full load. All test results, gap voltage readings, and configuration changes should be documented in the plant’s maintenance management system (CMMS) to support future audits and support requests.

Retrofit Support FAQ

Q1: Is the 21000-16-10-15-088-03-02 a direct drop-in replacement for the original Bently Nevada 21000 Series probe with the same part number?
Yes. This unit is manufactured to the same dimensional, electrical, and performance specifications as the original 21000-16-10-15-088-03-02. It is compatible with the same proximitors, racks, and target materials as the original, and does not require gap recalibration if the installation gap is maintained within the original specification of 1.0–2.0 mm (40–80 mil).

Q2: What commissioning steps are required after installation?
After physical installation, verify the gap voltage on the 3500/42M or 3500/40M monitor card front panel or via the Rack Configuration Software (RCS). Confirm the reading is within the linear range (typically 10–18 VDC at the specified gap). Check that the DCS analog input scaling matches the probe’s 200 mV/mil sensitivity. Perform a short run-up test and compare the 1X vibration amplitude against the historical baseline before returning the machine to full load.

Q3: Can this probe be used with both 3300 Series and 3500 Series racks without modification?
Yes. The 21000-16-10-15-088-03-02 is compatible with 3300 XL 8mm and 11mm proximitors as well as 3500/40M and 3500/42M Proximitor Monitor cards. No wiring modification is required. However, if migrating from a 3300 to a 3500 rack, the I/O terminal block assignments and alarm setpoints must be reconfigured in the RCS to match the new rack’s architecture.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time for in-stock units?
The support terms confirmed by quotation cover manufacturing defects, signal performance deviations from OEM specifications, and connector integrity. It does not cover damage caused by incorrect installation gap, incompatible target material, or electrical overstress. In-stock units are available for same-week dispatch. Expedited shipping is available for urgent maintenance and turnaround projects. Contact our team for current inventory status and lead time confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

21000-16-10-15-088-03-02
3500 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 21000-16-10-15-088-03-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
