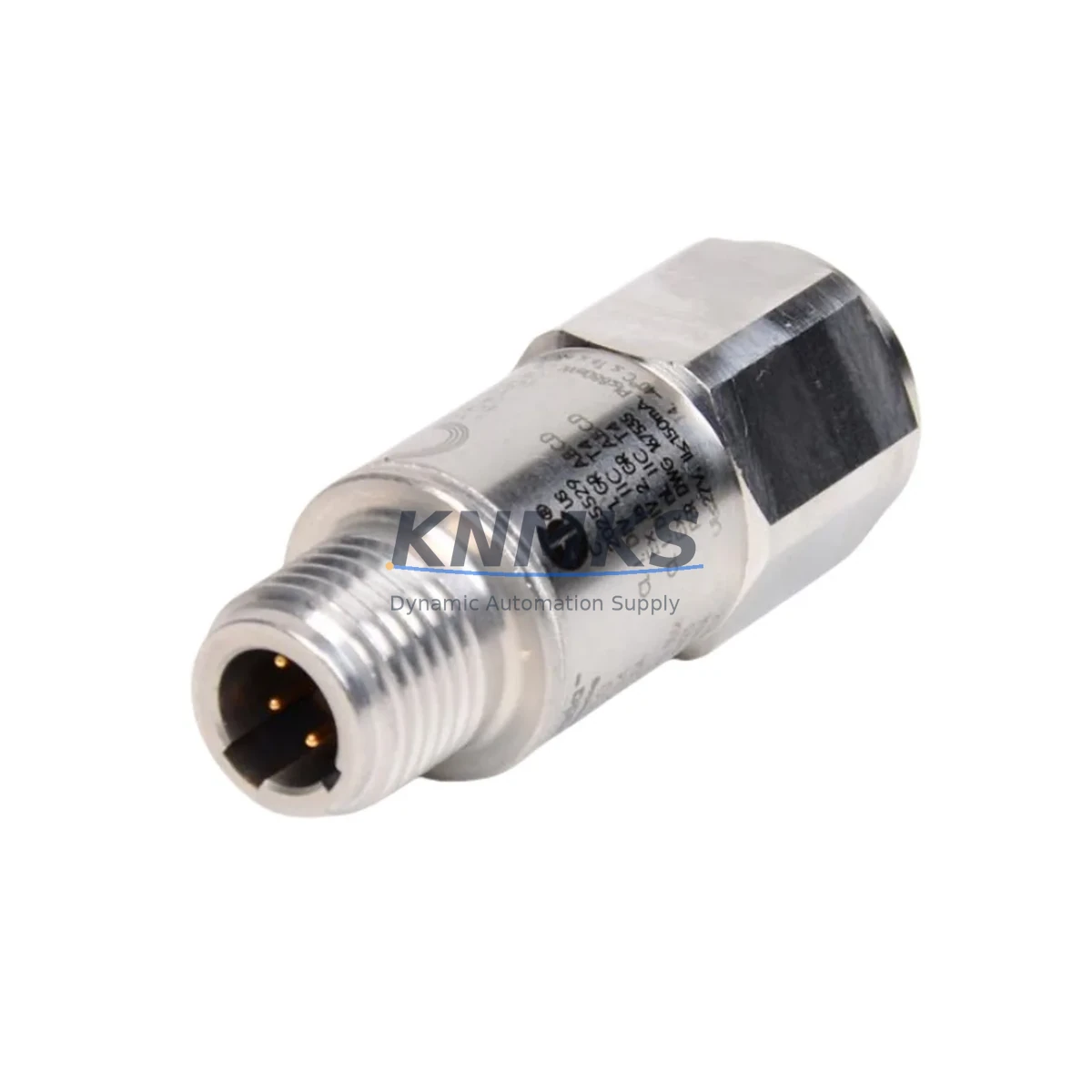

Bently Nevada 200155-12-CN Migration-Ready Accelerometer

Overview

Bently Nevada 200155-12-CN Migration-Ready Accelerometer for Legacy Control Systems

The Bently Nevada 200155-12-CN is a migration-ready accelerometer engineered for direct replacement within TrendMaster Pro condition monitoring systems. As legacy rotating machinery protection platforms approach end-of-support, maintenance engineers face increasing pressure to source verified drop-in replacements that preserve existing wiring infrastructure, signal conditioning chains, and historian data continuity. The 200155-12-CN addresses this challenge by maintaining full electrical and mechanical compatibility with the original TrendMaster Pro sensor architecture, allowing retrofit teams to execute sensor swaps without modifying field cabling, junction box terminations, or DCS tag assignments.

Before initiating a replacement, engineers should confirm the existing cable shield grounding scheme, verify the 4–20 mA or IEPE signal type expected by the TrendMaster Pro I/O module, and check the mounting thread specification (typically M6 or 1/4-28 UNF) against the machine housing. Power supply voltage to the sensor loop — commonly 18–30 VDC — must be within tolerance before the new unit is energized. Where the legacy installation uses a Bently Nevada 3500/22M transient data interface or a 3500/42M proximitor I/O module in the same rack, signal range and full-scale settings stored in the rack configuration software must be reviewed to ensure the replacement sensor’s sensitivity (mV/g) matches the programmed engineering unit conversion.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TrendMaster Pro sensor retrofit begins well before the maintenance window opens. The 200155-12-CN is typically deployed alongside other Bently Nevada components that share the same rack or monitoring loop. In installations where the 3500/20 rack power supply module is aging, it is advisable to inspect its output ripple and load capacity before adding replacement sensors, as degraded power quality can introduce noise into the IEPE signal chain. Similarly, if the site uses a 3500/25 keyphasor module for phase reference, its signal integrity should be validated during the same outage to avoid a second unplanned shutdown.

For plants running a hybrid architecture — where TrendMaster Pro sensors feed into a System 1 software platform via a 3500/92 communication gateway — the gateway’s channel mapping table must be exported and archived before any sensor swap. This ensures that historian tags, alarm setpoints, and trend baselines remain intact after the replacement unit is commissioned. Where the control room uses a Honeywell Experion PKS or Emerson DeltaV DCS as the supervisory layer, the OPC DA or OPC UA data path from the 3500 rack to the DCS I/O server should be tested post-installation to confirm that vibration values are updating correctly in the process graphics.

In facilities where the sensor cable runs exceed 30 meters, a Bently Nevada 330130 series extension cable or equivalent low-capacitance coaxial cable should be inspected for insulation degradation before reuse. Corroded BNC or MIL-spec connectors are a common source of intermittent alarms after sensor replacement and should be cleaned or replaced as part of the retrofit scope. If the installation includes a signal isolator or intrinsic safety barrier in the cable path — common in Zone 1 or Zone 2 hazardous areas — the barrier’s input impedance must be compatible with the 200155-12-CN’s source impedance to avoid sensitivity errors.

Where the plant’s predictive maintenance program relies on portable data collectors for route-based measurements, the replacement sensor’s calibration certificate should be uploaded to the CMMS (such as SAP PM or Maximo) before the unit is placed in service. This ensures that baseline vibration spectra recorded after installation are traceable and comparable to pre-replacement trend data stored in the historian.

Downtime Control During System Migration

Minimizing unplanned downtime during a TrendMaster Pro sensor replacement requires a structured pre-outage checklist and a clearly defined rollback procedure. Before the maintenance window, the existing sensor’s live vibration reading should be documented — including overall RMS velocity, dominant frequency components, and any active alarms — so that post-installation values can be compared immediately after energization. If the machine cannot be taken offline, a temporary bypass of the vibration trip channel in the 3500 rack (using the rack’s inhibit function) allows the sensor swap to proceed without triggering a spurious shutdown, provided the bypass is logged and time-limited per the site’s management of change procedure.

During installation, the original sensor’s cable label, terminal block position, and shield grounding point should be photographed before disconnection. The 200155-12-CN should be torqued to the manufacturer’s specified value using a calibrated torque wrench to avoid housing stress that could affect the sensor’s frequency response. After reconnection, the signal should be verified at the 3500 rack front panel using the rack’s built-in buffered output test point before the inhibit is released. A short coast-down or bump test on the machine — if operationally feasible — provides a quick functional check of the replacement sensor’s response across the frequency range.

For critical machinery where even a brief inhibit is not acceptable, a hot-swap approach using a parallel monitoring channel — if available in the 3500 rack configuration — can maintain continuous protection during the sensor exchange. Post-installation, the System 1 trend should be monitored for a minimum of 24 hours to confirm stable baseline readings before the work order is closed. All as-found and as-left data, including torque values, cable continuity test results, and post-installation vibration readings, should be recorded in the CMMS to support future reliability analysis.

Retrofit Support FAQ

Q1: Is the 200155-12-CN a direct replacement for the original TrendMaster Pro accelerometer, or are adapter cables required?
The 200155-12-CN is designed as a drop-in replacement with matched connector type and sensitivity. In most standard TrendMaster Pro installations, existing field cables can be reused without modification. However, sites with non-standard cable assemblies or third-party junction boxes should verify connector pinout and shield grounding before installation.

Q2: Does replacing the sensor require reconfiguration of the 3500 rack or System 1 software?
In most cases, no rack reconfiguration is required, as the 200155-12-CN maintains the same sensitivity and signal type as the original unit. However, if the rack’s full-scale range or alarm setpoints were customized for a sensor with different specifications, the configuration file should be reviewed and backed up before the swap. System 1 historian tags and alarm limits are unaffected by the physical sensor replacement.

Q3: What pre-shipment testing is performed, and what documentation is included?
Each 200155-12-CN unit undergoes functional testing prior to shipment, including sensitivity verification and frequency response check. A functional test certificate is included with the shipment. Units are supplied with a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time, and is stock available for urgent requirements?
Stock is maintained to support urgent maintenance requirements. Standard orders are processed and shipped within 3–5 business days. For critical plant shutdowns or emergency breakdowns, expedited shipping options are available. Contact our sales team at admin@knmks.com or +86 18359268345 to confirm current stock availability and lead time for your specific requirement.
