Bently Nevada 190501-02-00-05 Fail-Safe Velocity Transducer

Overview

Bently Nevada 190501-02-00-05 Fail-Safe Velocity Transducer: Fault Protection for Critical Industrial Reliability

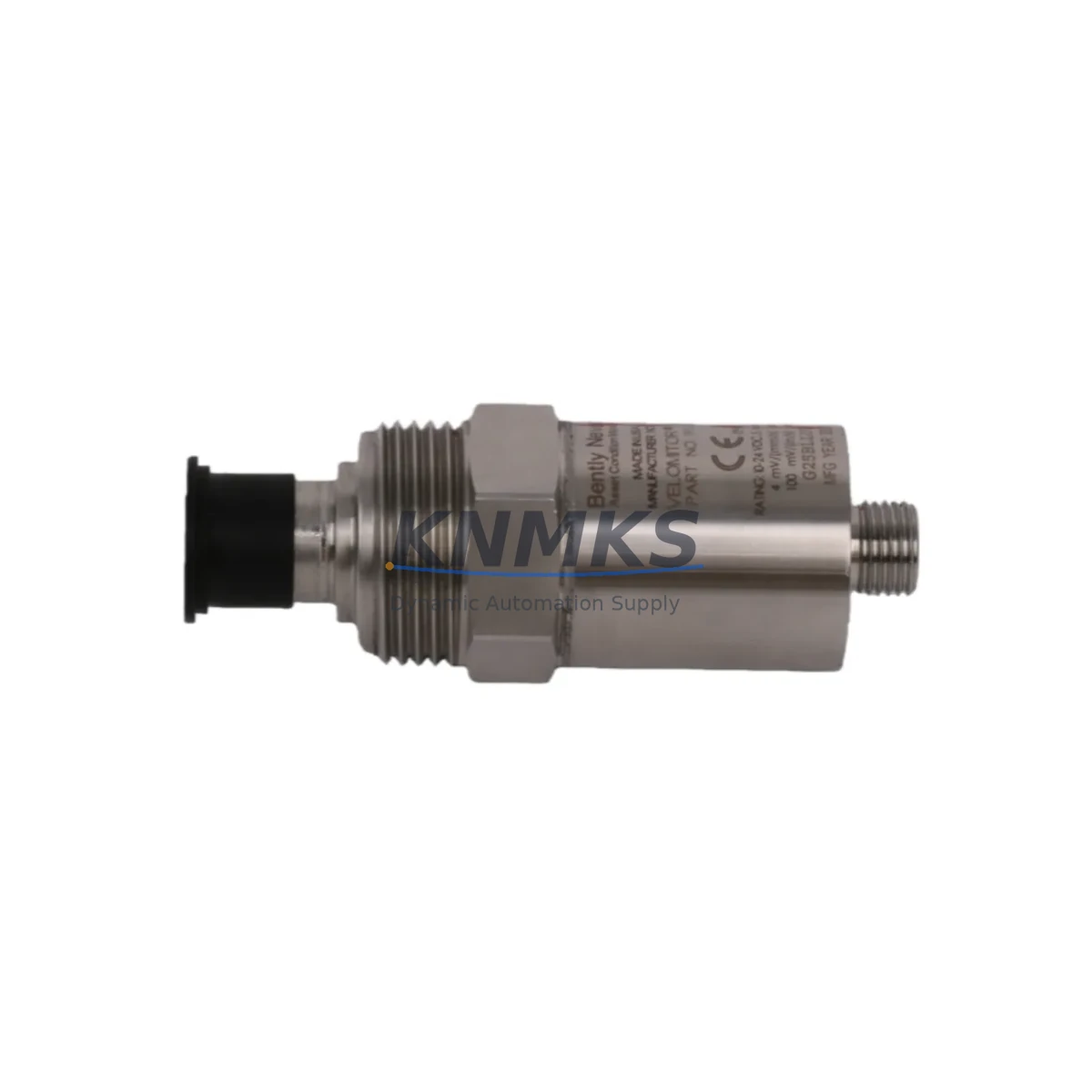

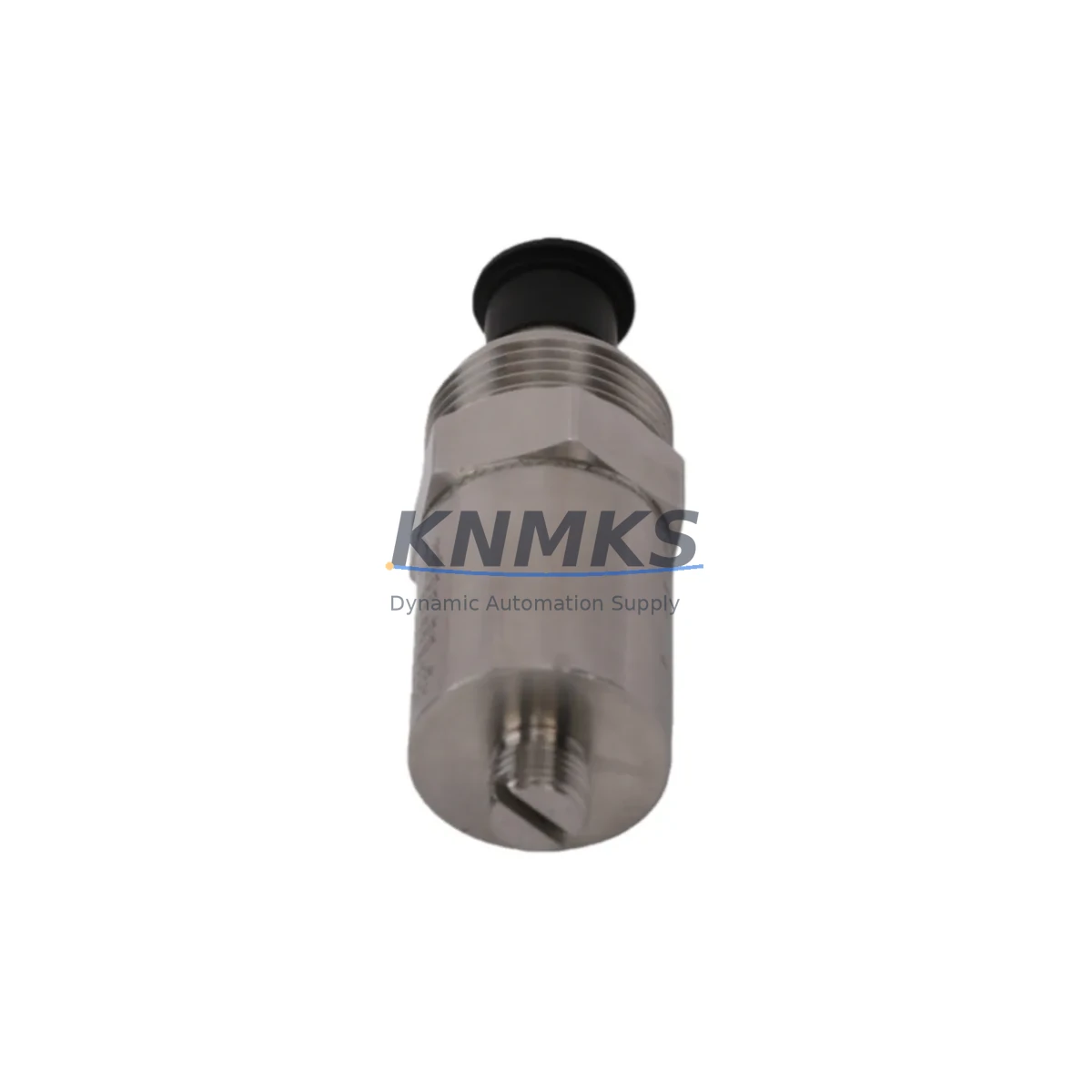

The Bently Nevada 190501-02-00-05 is a Velomitor CT piezo-velocity transducer engineered for fail-safe vibration monitoring in the most demanding industrial environments. Designed to deliver continuous, accurate velocity signals from rotating machinery, this transducer is a cornerstone component in critical protection loops where unplanned downtime, signal drift, or sensor failure carries severe operational and safety consequences. Whether deployed in petrochemical compressor trains, power generation turbines, mining conveyors, or continuous process manufacturing lines, the 190501-02-00-05 provides the measurement integrity that modern safety instrumented systems (SIS) and condition monitoring platforms demand.

Unlike conventional velocity sensors, the Velomitor CT integrates a built-in signal conditioning circuit that converts mechanical vibration into a low-impedance voltage output — eliminating the susceptibility to cable capacitance and electromagnetic interference (EMI) that plagues passive coil-type sensors. In high-EMI environments such as variable frequency drive (VFD) cabinets, high-voltage switchgear rooms, and arc furnace facilities, this active output architecture ensures signal fidelity is maintained across long cable runs without the need for additional signal conditioners or isolation barriers. This directly reduces the risk of false trips, missed alarms, and control loop instability in safety-critical applications.

The transducer’s ruggedized stainless steel housing and hermetically sealed construction make it suitable for continuous operation in environments with heavy dust accumulation, moisture ingress, chemical splash, and mechanical vibration — conditions that rapidly degrade standard industrial sensors. Its wide operating temperature range supports deployment in both cryogenic process areas and high-temperature zones adjacent to furnaces, kilns, or steam turbines, without compromising measurement accuracy or long-term reliability.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the Bently Nevada 190501-02-00-05 velocity transducer operates as part of a layered protection architecture. Its 2-wire, constant-current loop interface connects directly to the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which processes the velocity signal and triggers alarm or trip outputs when vibration thresholds are exceeded. This tight hardware integration ensures that the protection loop response time meets the requirements of API 670-compliant machinery protection systems.

To maintain signal integrity from the transducer to the monitor rack, field installations typically route the sensor cable through Bently Nevada 330130 series extension cables with armored jacketing, providing mechanical protection against abrasion and rodent damage in congested cable trays. In environments with severe EMI from adjacent VFDs or high-current bus bars, supplementary Bently Nevada 990 Series signal conditioners may be deployed at the cabinet entry point to provide galvanic isolation and further noise rejection before the signal reaches the monitor card.

Power supply stability is equally critical in a protection cabinet. The 190501-02-00-05 operates on 18–30 VDC, and its supply rail should be sourced from a dedicated redundant 24 VDC DIN-rail power supply with active current limiting and short-circuit protection — preventing a single power fault from disabling multiple transducer channels simultaneously. For cabinets in areas prone to lightning strikes or utility switching transients, a surge protection device (SPD) rated for signal circuits should be installed at the cabinet entry to protect both the transducer and the monitor inputs from surge-induced damage.

In safety instrumented systems (SIS) architectures, the velocity signal from the 190501-02-00-05 may be voted alongside outputs from Bently Nevada 330500 Series proximity probes monitoring shaft displacement, enabling a 2oo3 or 1oo2 voting logic that prevents both spurious trips and dangerous undetected failures — a key requirement for SIL 2 machinery protection loops in accordance with IEC 61511.

Critical Industrial Safety Applications

Petrochemical & Refinery: Deployed on centrifugal compressors, pumps, and blowers in hydrocarbon processing units where bearing failure or rotor imbalance can trigger fire, explosion, or toxic release. The 190501-02-00-05 provides continuous velocity monitoring that enables early fault detection — allowing planned maintenance shutdowns rather than emergency trips that risk personnel safety and equipment integrity.

Power Generation: Installed on steam turbine bearing housings and generator end shields in coal, gas, and combined-cycle power plants. The transducer’s wide temperature tolerance and hermetic sealing ensure reliable operation adjacent to high-temperature steam lines and in turbine halls with elevated ambient temperatures and acoustic noise levels.

Mining & Mineral Processing: Used on crusher drives, ball mill pinion bearings, and conveyor head pulleys where heavy dust loading, water spray, and mechanical shock are constant. The IP67-rated housing and stainless steel construction resist the aggressive conditions that cause premature failure in standard industrial sensors.

Water & Wastewater Treatment: Monitors pump and blower vibration in wet, chemically aggressive environments. The hermetically sealed design prevents moisture ingress that would otherwise cause sensor drift or complete failure, ensuring continuous process protection in unmanned pump stations.

Metallurgy & Steel: Applied to rolling mill drives, continuous caster pinch rolls, and ladle turret bearings where high electromagnetic interference from arc furnaces and induction heaters demands a sensor with inherent EMI immunity — a core design feature of the Velomitor CT architecture.

Port & Marine: Fitted to crane hoist motors, ship propulsion shaft bearings, and diesel generator sets where salt air, humidity, and vibration from wave action create a challenging operating environment for conventional sensors.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 190501-02-00-05?
The support terms confirmed by quotation cover manufacturing defects, premature electronic failure, and calibration drift attributable to production quality. It applies from the date of shipment and includes replacement or repair at no additional cost. Damage resulting from incorrect installation, overvoltage, or mechanical impact is excluded. Our technical team provides installation guidance to help customers avoid common field errors that void support terms coverage.

Q2: What pre-shipment testing is performed on each unit?
Every 190501-02-00-05 unit undergoes functional verification prior to shipment, including output signal level check at reference vibration frequency, supply current draw measurement, and insulation resistance test on the connector and cable interface. Units sourced from verified supply channels are cross-checked against original Bently Nevada documentation to confirm part number, revision level, and hardware configuration before dispatch.

Q3: Is the 190501-02-00-05 compatible with existing Bently Nevada 3500 Series monitor racks?
Yes. The 190501-02-00-05 is fully compatible with the Bently Nevada 3500/42M Proximitor/Seismic Monitor and other velocity-input cards in the 3500 Series rack. It is also compatible with legacy System 1 condition monitoring software for trend logging and alarm management. Customers migrating from older Velomitor models should verify connector pinout and cable length requirements before installation.

Q4: Can long-term supply and replacement support be arranged for critical plant spares programs?
Yes. We support plant spare parts programs with scheduled inventory reservations, multi-unit blanket orders, and priority dispatch for emergency replacement requirements. For critical assets where sensor failure triggers a production shutdown, we recommend maintaining at least one on-site spare per monitored machine train. Our team can advise on appropriate stock levels based on your installed base and maintenance interval schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

190501-02-00-05

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 190501-02-00-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
