Bently Nevada 1701/15 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 1701/15 Maintenance-Proven Spare Part for Factory Uptime

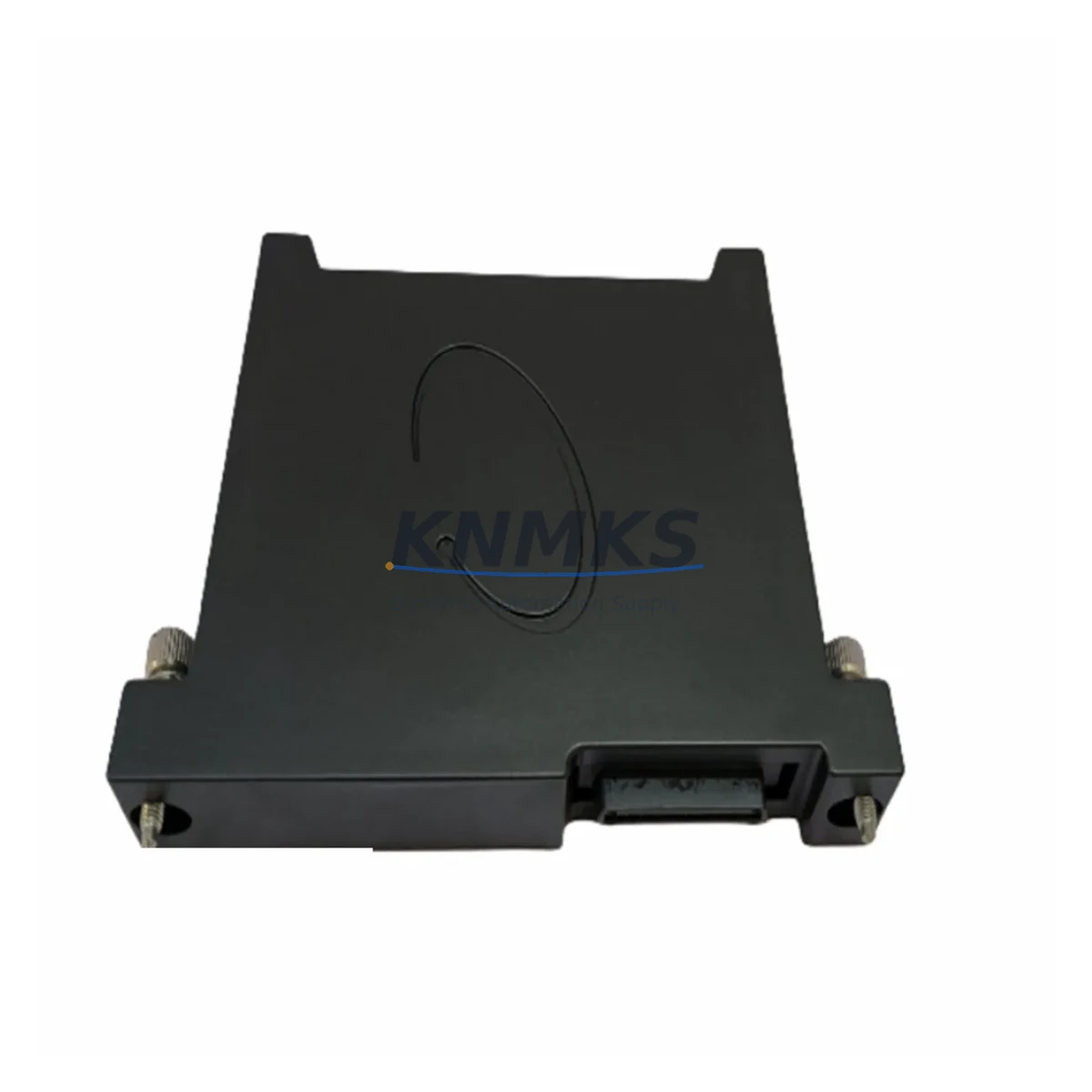

The Bently Nevada 1701/15 is a Proximitor Input Monitor Module engineered for continuous vibration and position monitoring within the 1701 Series condition monitoring platform. As a critical spare part in rotating machinery protection systems — including turbines, compressors, pumps, and motors — the 1701/15 plays a central role in preventing unplanned shutdowns and maintaining plant-wide operational continuity. Sourced as an original spare, each unit is pre-tested, serialized, and shipped with a support terms confirmed by quotation to support both emergency replacement and planned maintenance inventory programs.

For maintenance engineers managing aging DCS or condition monitoring infrastructure, securing a verified 1701/15 spare eliminates the risk of extended downtime caused by obsolete or counterfeit modules. For procurement engineers, our long-term supply commitment and standardized support terms terms reduce sourcing complexity across multi-site operations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for the Bently Nevada 1701/15 requires a systems-level view of the entire condition monitoring loop. When replacing or inspecting this Proximitor Input Monitor Module, maintenance engineers should simultaneously verify the integrity of adjacent components to prevent repeat failures and ensure full system restoration.

Begin with the Bently Nevada 3300 XL Proximitor Sensor or equivalent eddy current probe feeding the 1701/15 — probe gap, cable continuity, and connector integrity directly affect module input accuracy. Inspect the 1701/15’s backplane slot and the 1701 Series rack chassis for corrosion, bent pins, or loose seating that could cause intermittent signal loss. The 1701/40 Power Input Module supplying the rack should be checked for stable DC output voltage within specification; a degraded power module is a common root cause of false alarms or module resets.

For signal integrity, verify the shielded signal cables between the Proximitor sensor and the 1701/15 input terminals — damaged shielding introduces noise that mimics vibration events. If the system interfaces with a DCS or PLC via 4–20 mA output or relay contacts, confirm that the downstream I/O card (such as an analog input module in the control system) is reading within expected range after module replacement. Check associated terminal blocks and field wiring for tightness and insulation condition, particularly in high-vibration environments.

Where the 1701 Series rack connects to a communication gateway or Modbus/OPC interface module, validate that the replaced 1701/15 is correctly recognized by the system configuration software and that no address conflicts exist. For plants running System 1 condition monitoring software, a configuration upload and channel verification step should be part of the post-replacement checklist. Finally, inspect any fuses or circuit protection on the rack power distribution board — a blown fuse upstream of the module is frequently overlooked during emergency replacements.

Site Replacement Workflow

Replacing the Bently Nevada 1701/15 on-site follows a structured sequence to minimize downtime and preserve system compatibility:

Step 1 — Pre-Replacement Verification: Confirm the replacement unit’s part number (1701/15) matches the installed module label and system configuration record. Cross-check firmware or hardware revision if the system documentation specifies a required revision level.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. The 1701 Series platform supports hot-swap on some configurations — verify with your system documentation before removing the module under power. If hot-swap is not supported, coordinate a controlled shutdown window.

Step 3 — Module Removal and Inspection: Remove the 1701/15 by releasing the backplane locking mechanism. Inspect the backplane connector for damage. Document the removed module’s serial number for maintenance records.

Step 4 — Installation and Seating: Insert the replacement 1701/15 firmly into the correct backplane slot. Confirm positive locking engagement. Restore power and observe the module’s status indicators for normal initialization.

Step 5 — Functional Verification: Using the system’s configuration software or front-panel display, verify that the channel is reading the expected Proximitor signal level. Compare against baseline vibration values recorded prior to the fault. Confirm relay outputs and 4–20 mA signals are within normal range at the DCS or PLC I/O card.

Step 6 — Documentation: Update the maintenance log with replacement date, new module serial number, and post-replacement readings. Flag the spare parts inventory system to replenish the consumed 1701/15 unit.

This workflow reduces mean time to repair (MTTR) and ensures the replaced module is fully validated before returning the machine to service — critical for turbine and compressor protection applications where false clearance carries significant safety risk.

Spare Parts Support FAQ

Q1: How long is the support terms on the Bently Nevada 1701/15 spare part?
All 1701/15 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment functional testing to verify signal processing performance and backplane interface integrity before dispatch.

Q2: Is the 1701/15 compatible with all 1701 Series rack configurations?
The 1701/15 is designed for the Bently Nevada 1701 Series platform. Compatibility depends on the specific rack chassis revision and system configuration. We recommend providing your existing system documentation or rack model number when ordering to allow our technical team to confirm slot and revision compatibility before shipment.

Q3: Can you supply the 1701/15 for long-term or blanket purchase orders?
Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for the 1701/15 and related 1701 Series components. This is particularly suited for multi-site operators and OEM maintenance programs requiring guaranteed stock availability over 12–36 month horizons.

Q4: What documentation is provided with each 1701/15 shipment?
Each shipment includes a test report confirming pre-shipment functional verification, a support terms certificate valid for 12 months, and packing documentation with the module serial number. Certificate of Origin and customs documentation are available upon request for international shipments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

1701/15

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 1701/15
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
