Bently Nevada 16710-30 Migration-Ready Interconnect Cable

Overview

Bently Nevada 16710-30 Migration-Ready Interconnect Cable for Legacy Control Systems

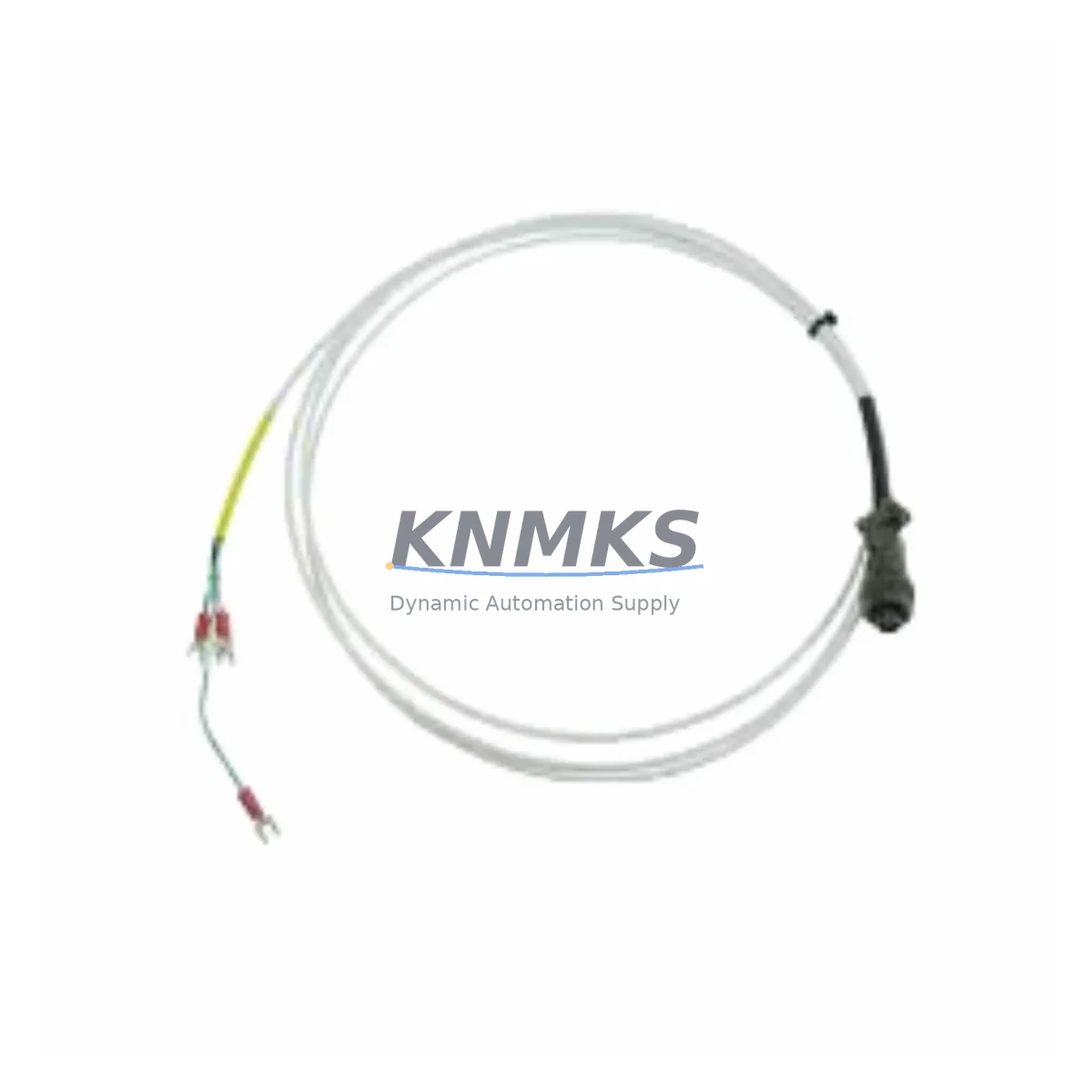

The Bently Nevada 16710-30 is a 30-foot (9.1 m) interconnect cable engineered for use with Bently Nevada 3300 Series and 3500 Series vibration monitoring systems. As legacy machinery protection platforms reach end-of-life or face discontinued spare parts availability, the 16710-30 serves as a critical link in retrofit and upgrade projects — enabling engineers to maintain signal integrity between proximity probes, transducers, and monitor rack modules without rewiring field instrumentation or modifying existing conduit runs.

For facilities operating older 3300 XL or 3300/20 monitor frames alongside newer 3500 rack-based systems, the 16710-30 provides a verified drop-in cable replacement that preserves the original wiring topology. This is especially valuable during phased migration projects where the control room rack is upgraded while field-mounted sensors and junction boxes remain in place. The cable’s shielded construction and standardized connector terminations ensure compatibility with both the legacy 3300/05 proximitor and the current-generation 3500/42M position monitor module.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a machinery protection system retrofit, the 16710-30 interconnect cable is typically one of the first components to be evaluated. In a standard 3300-to-3500 migration, engineers must account for the full signal chain: from the field-mounted proximity probe through the extension cable, into the proximitor (such as the 3300/16 proximitor or its 3500-compatible equivalent), and finally into the monitor module housed in the 3500 Rack. The 16710-30 occupies the extension cable segment of this chain and must be length-matched to the probe’s calibrated gap range.

During control cabinet upgrades, it is common to simultaneously replace the 3500/05 Rack Power Supply to ensure adequate current capacity for the expanded I/O count. Engineers should verify that the total power draw of all installed modules — including the 3500/22M Transient Data Interface, 3500/42M Proximitor/Seismic Monitor, and any 3500/50M Tachometer modules — does not exceed the power supply’s rated output. The 16710-30 itself is a passive component and adds no power load, but its installation often coincides with these broader rack-level changes.

For facilities integrating machinery protection data into a DCS or SCADA platform, the migration may also involve updating the 3500/92 Communication Gateway to support Modbus TCP or OPC-DA/OPC-UA output. In these cases, the interconnect cable replacement is completed in parallel with communication protocol configuration, allowing the field signal path and the data reporting path to be validated together during a single planned outage window. Address mapping for each monitor channel should be documented before the outage begins to avoid delays during commissioning.

Where installation space is constrained — particularly in retrofit applications where the original 3300 frame occupied a different rack unit height than the 3500 system — cable routing and bend radius must be confirmed before ordering. The 16710-30’s 30-foot length suits most standard machine train layouts, but site-specific conduit paths should be measured to confirm no additional extension is required.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any machinery protection system upgrade. For the 16710-30 cable replacement, the recommended approach is to pre-stage all components — including the replacement cable, any new proximitor units, and updated monitor modules — and perform a bench verification of connector continuity and shield integrity before the maintenance window begins.

Original program logic stored in the 3500 rack’s configuration should be exported using System 1 Evolution or the Rack Configuration Software (RCS) prior to any hardware change. This preserves alarm setpoints, danger thresholds, relay output assignments, and channel enable/disable states. If the migration involves replacing a 3300 Series monitor with a 3500/42M, the channel configuration must be re-entered in RCS and verified against the original documentation, as the two platforms use different configuration file formats.

HMI screens connected to the machinery protection system — whether running on a dedicated operator workstation or integrated into a broader DCS display — should be updated to reflect any changes in tag names, channel numbering, or alarm group assignments introduced by the rack upgrade. Coordinating HMI updates with the cable replacement ensures that operators have accurate real-time visibility from the moment the system is returned to service, reducing the risk of missed alarms during the post-commissioning monitoring period.

A structured pre-return-to-service checklist should include: confirmation of probe gap voltage within the proximitor’s linear range, verification of the OK relay state on each monitor channel, functional test of danger relay outputs, and a 15-minute observation period at normal operating speed before releasing the machine to production. This protocol, combined with pre-staged spare components and documented configuration backups, typically allows a 16710-30 cable replacement to be completed within a single 4–8 hour planned outage.

Retrofit Support FAQ

Q1: Is the 16710-30 a direct replacement for the cable used in the original 3300 Series installation?
Yes. The 16710-30 is designed as a compatible replacement for the interconnect cable assemblies used in 3300 Series machinery protection systems. It uses the same connector interface and signal path, allowing direct substitution without field rewiring. Confirm the probe model and proximitor type before installation to ensure the full signal chain remains within calibrated specifications.

Q2: What commissioning steps are required after replacing the interconnect cable?
After installing the 16710-30, verify the proximitor output voltage at the monitor module input terminals to confirm the probe gap is within the linear range (typically –10 VDC ± 2 V for standard 5 mm probes). Check the OK/NOT OK relay output on the monitor module, confirm alarm and danger setpoints are active, and perform a functional test of relay outputs before returning the machine to service.

Q3: Can the 16710-30 be used with both 3300 and 3500 Series monitor modules?
Yes. The 16710-30 is compatible with both the 3300 Series and 3500 Series monitor platforms. This makes it suitable for phased migration projects where field cabling is retained while the rack-mounted monitor modules are upgraded incrementally.

Q4: What are the inventory availability and support terms terms?
The 16710-30 is held availability confirmed by RFQ and available for immediate shipment. Each unit is function-tested prior to dispatch and covered by a support terms confirmed by quotation from the date of shipment. For volume orders or urgent requirements, contact our sales team directly to confirm lead time and reserve allocation.
