Bently Nevada 149992-02 Spare Part for Factory Uptime

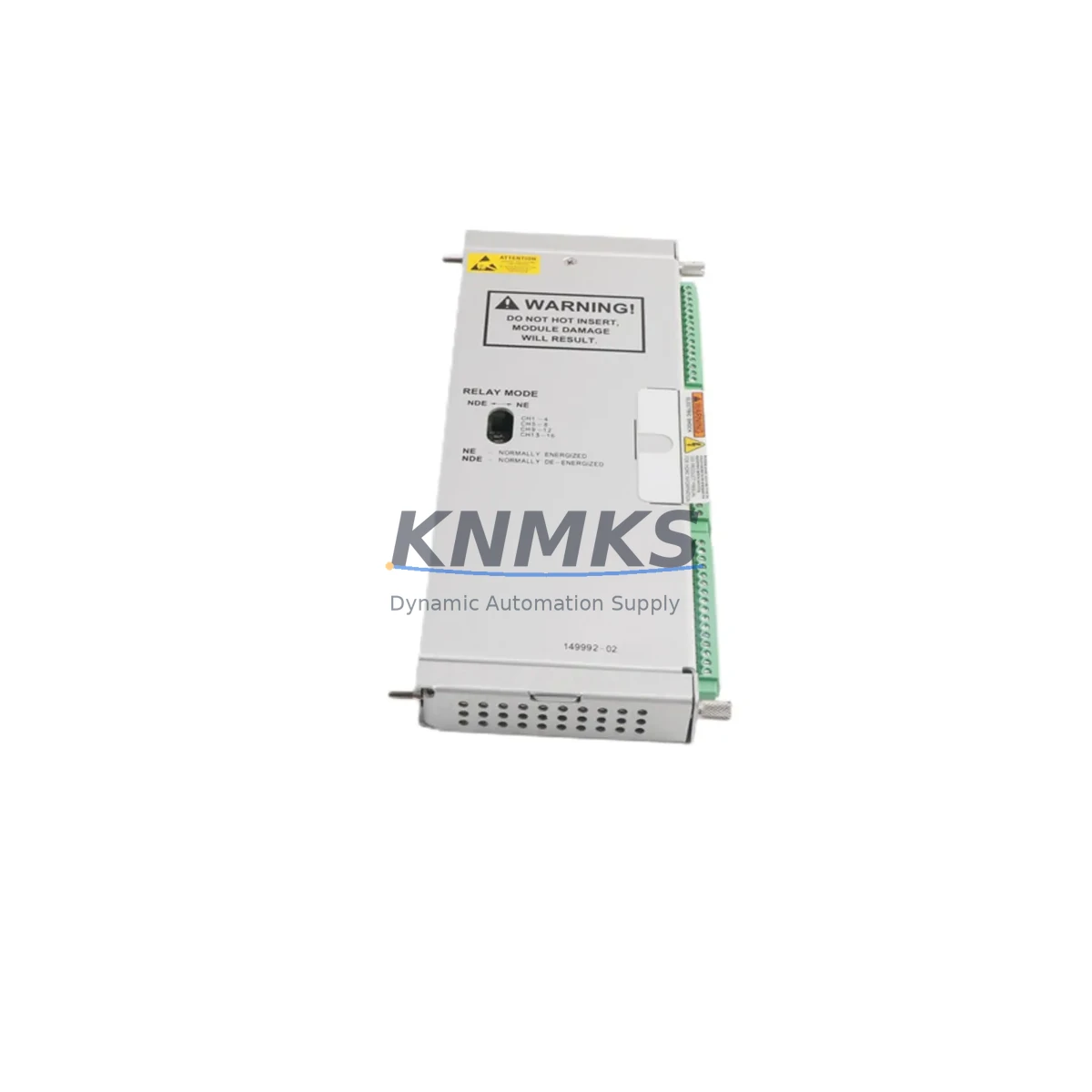

The Bently Nevada 149992-02 is an original relay output module designed for the 3500 Series Machinery Protection System (MPS) — one of the most widely deployed continuous machinery monitoring platforms in rotating equipment facilities worldwide. Whether you are managing a compressor train, steam turbine, centrifugal pump, or gearbox protection cabinet, the 149992-02 serves as a critical output interface between the 3500 rack and your plant’s alarm and shutdown logic. Sourced through verified supply channels, each unit we ship is individually tested, verified for firmware and hardware revision compatibility, and backed by a support terms confirmed by quotation from date of shipment.

For maintenance engineers responsible for rotating equipment uptime, having a verified 149992-02 on the shelf is not optional — it is a fundamental part of any serious spare parts strategy. Relay output modules are among the highest-wear components in a 3500 rack due to their role in driving shutdown relays, alarm annunciators, and interlock circuits. A failed relay output module can silence the entire protection chain, leaving critical machinery unprotected and exposing the plant to catastrophic mechanical failure. Stocking a tested replacement eliminates the risk of extended downtime while waiting for procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 149992-02 relay output module is flagged during a routine 3500 rack inspection or fails during a fault isolation sequence, experienced maintenance engineers know that the module rarely fails in isolation. A thorough site assessment should include the following adjacent components and subsystems:

Begin with the 3500/15 Power Supply Module — relay output modules are sensitive to backplane voltage ripple, and a degraded power supply can cause intermittent relay chatter or false trips. Verify DC rail stability before condemning the relay module itself. Next, inspect the 3500/20 Rack Interface Module (RIM), which governs communication between the rack and the host DCS or safety system; a corrupted RIM configuration can cause relay outputs to latch in an unexpected state.

Check all field wiring terminations at the I/O terminal blocks associated with the relay outputs. Loose or corroded terminals are a common root cause of relay output anomalies in high-vibration environments. If the 3500 rack is integrated with a Modbus or Ethernet/IP communication gateway, verify that the gateway’s relay mapping table has not been corrupted following a firmware update or power cycle event.

For plants running extended machinery protection loops, also inspect the 3500/22M Transient Data Interface (TDI) and any associated 3500/42M Proximitor/Seismic Monitor cards that feed alarm logic into the relay output chain. A misconfigured monitor card can generate spurious relay activations that accelerate contact wear on the 149992-02. Finally, review the 3500/93 Display Interface Module and operator panel wiring if the relay outputs are mapped to local annunciator panels — corroded panel wiring can backfeed voltage into relay contacts and cause premature failure.

Procurement engineers should note that the 149992-02 is a long-lifecycle part with a stable supply chain through verified supply channels. We recommend maintaining a minimum of one spare per active 3500 rack in your facility, with a review cycle aligned to your annual shutdown planning calendar.

Site Replacement Workflow

Replacing a 149992-02 in a live 3500 rack follows a structured sequence to minimize downtime and avoid inadvertent machinery trips:

Step 1 — Pre-replacement verification: Confirm the replacement module’s revision level matches or supersedes the installed unit. Bently Nevada periodically releases hardware revisions; the revision code is printed on the module label. Mismatched revisions can cause configuration incompatibility with the 3500/20 RIM.

Step 2 — Bypass relay outputs: Before extraction, coordinate with the control room to bypass or inhibit the relay outputs associated with the module. This prevents a spurious shutdown signal from reaching the machinery protection interlock during the swap. Use the 3500 rack’s software inhibit function via System 1 or the rack’s front-panel keypad.

Step 3 — Hot-swap extraction: The 3500 rack supports hot-swap of relay output modules. Loosen the captive screws, extract the module, and insert the replacement in a single smooth motion. The rack will automatically re-initialize the new module within seconds.

Step 4 — Configuration restore: If the replacement module requires configuration download, connect via the 3500 rack’s RS-232 or Ethernet port and use System 1 software to push the saved rack configuration. Verify all relay setpoints, time delays, and latching logic are correctly restored.

Step 5 — Functional test: With the machinery in a safe state, perform a relay output functional test by simulating alarm and danger thresholds from the monitor cards. Confirm relay contact closure at the field terminal blocks using a continuity tester or multimeter.

Step 6 — Return to service: Remove software inhibits, confirm normal system status on the System 1 display, and document the replacement in the equipment maintenance log. Return the failed module for failure analysis if root cause investigation is required.

Spare Parts Support FAQ

Q1: Is the 149992-02 compatible with all 3500 Series rack configurations?
The 149992-02 is compatible with the full range of 3500 Series racks, including the 3500/32, 3500/40M, 3500/42M, 3500/44M, 3500/50, 3500/60, and 3500/70M monitor cards. Compatibility is determined by the rack’s backplane revision and the System 1 software version. We recommend confirming your rack’s hardware revision before ordering if you are running a legacy configuration predating 2005.

Q2: What pre-shipment testing is performed on each unit?
Every 149992-02 we ship undergoes a full functional test including relay contact continuity verification, backplane communication handshake test, and visual inspection for physical damage or component degradation. Test records are retained and available upon request. Units that do not pass all test criteria are not shipped.

Q3: Can you support long-term supply for multi-site maintenance programs?
Yes. We support blanket purchase orders and scheduled delivery programs for maintenance teams managing multiple 3500 rack installations across different plant sites. Contact our sales team to discuss volume pricing, consignment stock arrangements, and dedicated inventory reservation for your facility’s annual shutdown schedule.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover all manufacturing defects, relay contact failures, and backplane communication faults that arise under normal operating conditions within the 3500 rack environment. Support requests are processed with a replacement-first policy — we ship a verified replacement unit before requiring return of the failed module, minimizing your downtime exposure. Physical damage caused by incorrect installation, overvoltage events, or environmental contamination is excluded from support terms coverage.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

149992-02
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 149992-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
