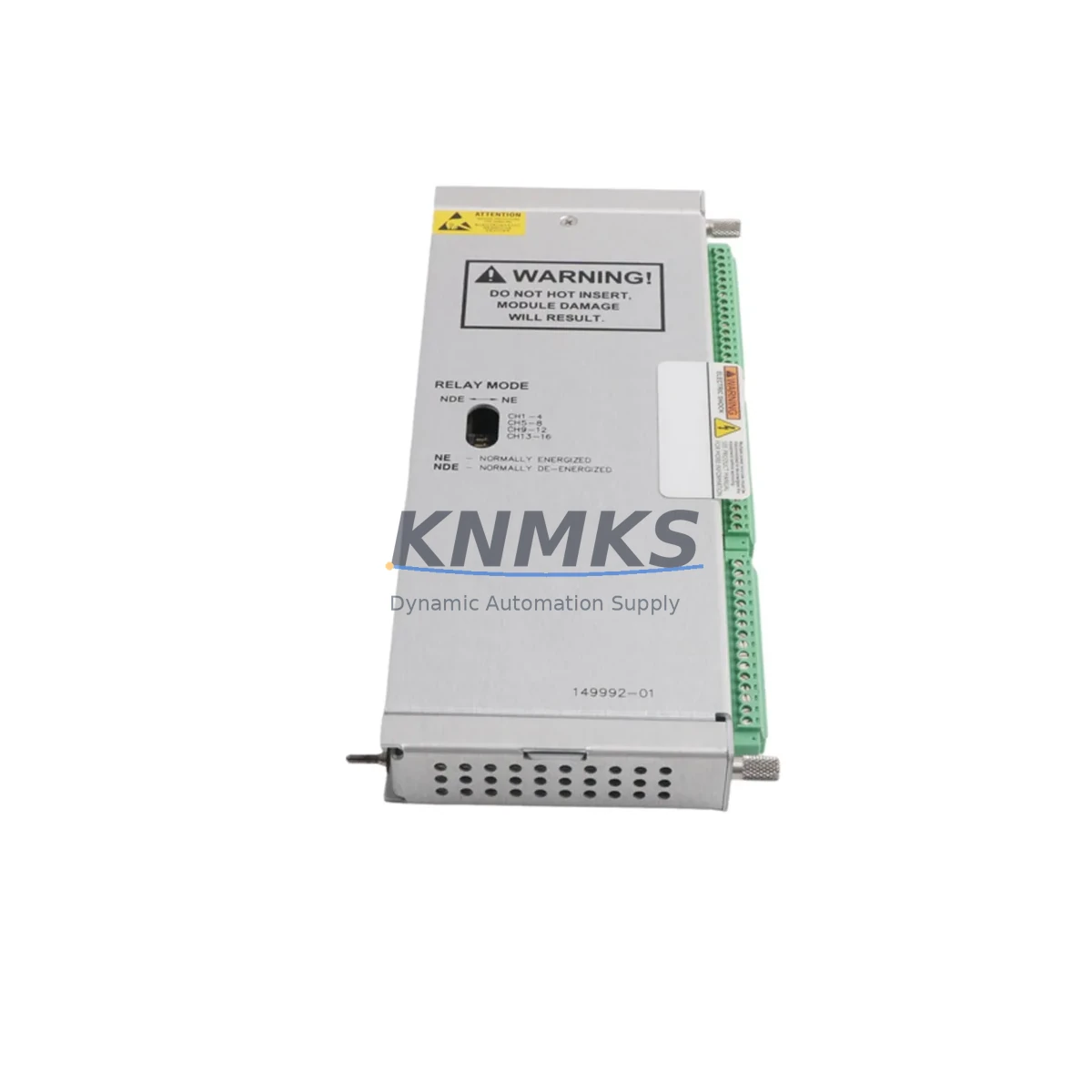

Bently Nevada 149992-01 Fail-Safe Relay Output Module

Overview

Bently Nevada 149992-01 Fail-Safe Relay Output Module: Fault Protection and Critical Industrial Reliability

The Bently Nevada 149992-01 is a Relay Output Module designed for the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed vibration and condition monitoring platforms in continuous process industries worldwide. As a fail-safe relay output device, the 149992-01 serves as the final actuation layer between the monitoring system and the plant’s protective response: triggering alarms, initiating shutdowns, and driving interlock circuits when critical machinery parameters exceed safe operating thresholds.

In high-stakes industrial environments — rotating equipment protection, turbine trip systems, compressor safety loops, and pump monitoring panels — the reliability of the relay output stage is non-negotiable. A single relay failure or spurious output can result in unplanned downtime, equipment damage, or a missed protective action during a genuine fault event. The 149992-01 is engineered to eliminate these risks through robust contact design, deterministic switching behavior, and full compatibility with the 3500 rack architecture.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 149992-01 Relay Output Module does not operate in isolation — it is the actuation endpoint of a complete machinery protection chain. In a properly configured 3500 rack, it works in concert with the Bently Nevada 3500/20 Rack Interface Module, which manages rack-level power distribution and system status, and the 3500/15 Power Supply Module, which provides the regulated DC power essential for fail-safe relay operation. Any instability in the power supply — voltage sag, ripple, or momentary dropout — can cause nuisance trips or, worse, prevent a genuine protective action. Pairing the 149992-01 with a redundant 3500/15 power supply configuration eliminates this single point of failure.

On the monitoring input side, the relay output is driven by processed signals from modules such as the Bently Nevada 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor/Seismic Monitor, which condition raw vibration and position signals from Bently Nevada proximity probes and accelerometers. When these monitors detect an overspeed, high vibration, axial displacement, or differential expansion event, the alarm or danger setpoint is crossed and the 149992-01 relay changes state — driving the trip solenoid, DCS input card, or safety PLC that initiates the protective response.

For facilities integrating the 3500 system into a broader DCS or safety instrumented system (SIS), the relay output contacts from the 149992-01 are typically wired into the digital input modules of platforms such as the Emerson DeltaV SIS or hardwired into the final element circuit of an IEC 61511-compliant safety loop. In these architectures, the relay’s de-energize-to-trip behavior is a fundamental requirement for SIL-rated loop integrity. Surge protection on the relay output wiring — using DIN-rail mounted surge protective devices — is strongly recommended in outdoor substations, long cable runs, or lightning-prone regions to protect both the 149992-01 contacts and the downstream SIS input.

Cabinet thermal management is equally critical. In dense 3500 racks installed in high-ambient-temperature environments, the 3500/05 System Rack fan tray and adequate cabinet ventilation must be maintained to prevent thermal derating of relay contact performance. Installations in petrochemical or offshore environments should also verify that the cabinet IP rating and purge/pressurization system (where required) are appropriate for the hazardous area classification.

Critical Industrial Safety Applications

The Bently Nevada 149992-01 is deployed across the most demanding machinery protection scenarios in global industry:

Petrochemical and Refinery Plants: In crude distillation units, catalytic crackers, and compressor trains, the 149992-01 drives trip solenoids on anti-surge valves and turbine trip headers. Continuous operation at these facilities means any relay failure that prevents a protective trip can result in catastrophic equipment loss or process safety incidents. The fail-safe DTT architecture ensures that a loss of power or module fault defaults to the safe (tripped) state.

Power Generation — Gas and Steam Turbines: Turbine protection systems require relay outputs with deterministic switching times and high contact reliability over millions of operating cycles. The 149992-01 supports overspeed trip, high vibration alarm, and bearing temperature interlock circuits in both simple-cycle and combined-cycle power plants. Its integration with the 3500 system’s Modbus and System 1 communication architecture allows plant operators to monitor relay state and trip history from the control room.

Mining and Mineral Processing: Large SAG mills, ball mills, and conveyor drive trains in mining operations generate extreme vibration and shock loads. The 149992-01 protects the drive-end and non-drive-end bearings of these machines by actuating lubrication system interlocks and drive shutdown circuits when vibration or displacement thresholds are exceeded — preventing catastrophic bearing failures that would require weeks of unplanned downtime.

Water and Wastewater Treatment: High-service pumping stations and blower trains in water treatment facilities rely on the 3500 system for continuous pump health monitoring. The 149992-01 relay output drives pump isolation valve actuators and motor protection relay inputs, ensuring that a bearing failure or seal degradation event triggers an orderly shutdown before secondary damage occurs.

Metallurgy and Steel Production: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains operate in environments with extreme vibration, high ambient temperatures, and heavy electromagnetic interference from large motor drives. The 149992-01’s robust relay design and EMI immunity make it suitable for these harsh conditions, where signal integrity and reliable trip actuation are essential to preventing costly production interruptions.

Port and Marine Applications: Shipboard machinery protection systems and port crane drive monitoring increasingly use the Bently Nevada 3500 platform. The 149992-01 provides the relay output interface for engine room alarm panels and crane drive protection circuits, where the combination of vibration, humidity, and salt-air corrosion demands components with proven long-term reliability.

Safety and Quality FAQ

Q1: What support terms does the 149992-01 carry, and what does it cover?
All 149992-01 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects, relay contact failure, and functional non-conformance under normal operating conditions. Support requests are supported with replacement or repair, and our technical team provides application guidance throughout the confirmed support period.

Q2: How is each unit tested before shipment?
Every 149992-01 undergoes pre-shipment functional verification including relay coil continuity, contact resistance measurement, operate/release voltage testing, and visual inspection for connector integrity and PCB condition. Units are shipped in anti-static packaging with inspection documentation. Surplus-new units are verified against original factory specifications before dispatch.

Q3: Is the 149992-01 compatible with all Bently Nevada 3500 rack configurations?
Yes. The 149992-01 is designed for the standard Bently Nevada 3500 Series rack and is compatible with both the original 3500/05 rack and enhanced rack variants. It interfaces with the 3500 backplane and is fully compatible with the 3500/92 Communication Gateway for Modbus and System 1 connectivity. Always verify the rack firmware revision and module slot assignment with your system documentation before installation.

Q4: Can KNMKS support long-term supply and emergency replacement needs?
Yes. KNMKS maintains standing inventory of the 149992-01 and other Bently Nevada 3500 Series modules to support both planned maintenance programs and emergency breakdown replacement. We offer expedited shipping for critical plant situations and can provide advance replacement units to minimize downtime. Contact our team at [email protected] or +86 18359268345 to discuss stocking agreements or urgent requirements.
