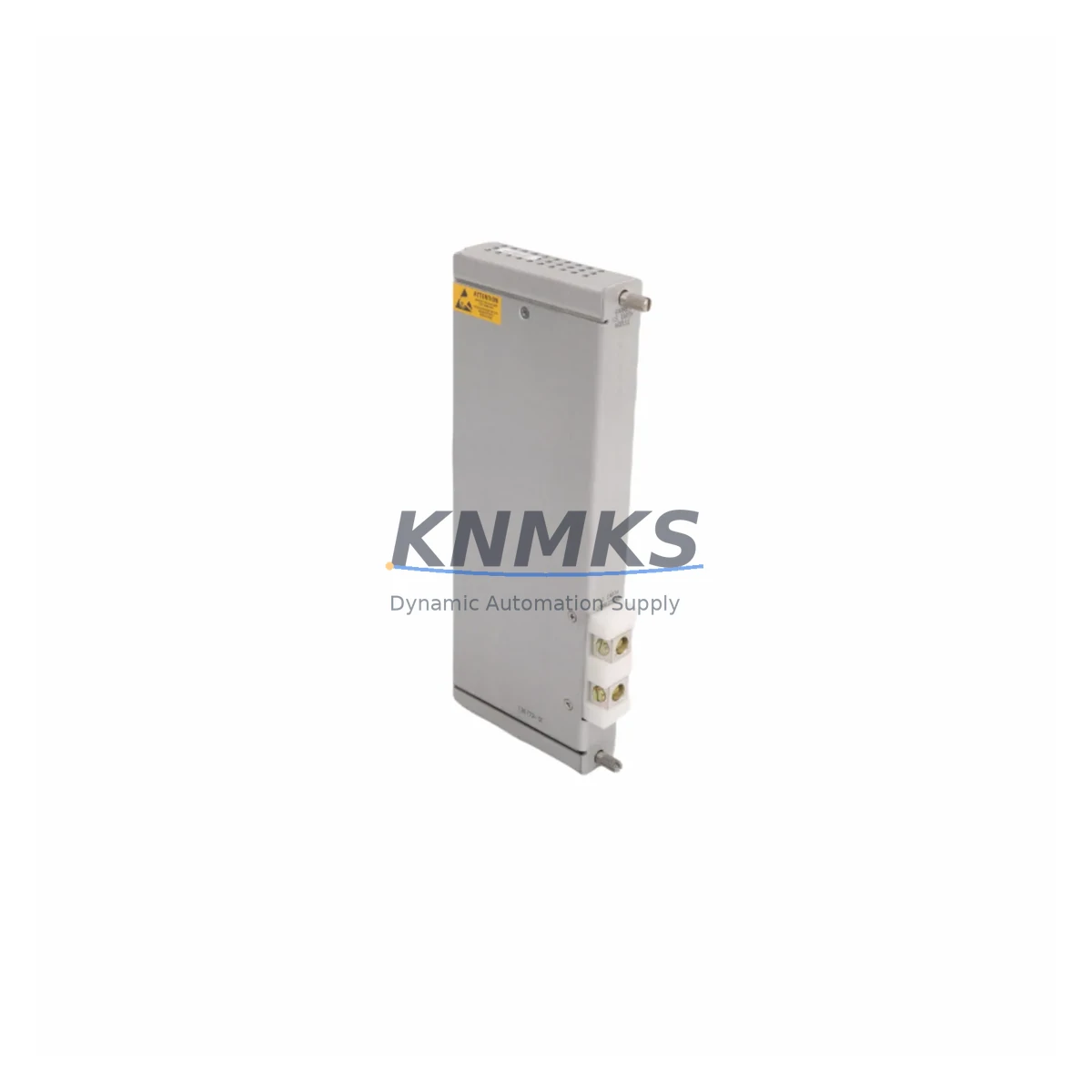

The Bently Nevada 136719-01 is a Barrier Earth Module designed for the 3500 Series Machinery Protection System. It provides the intrinsic safety (IS) grounding reference required for Zener barrier circuits within hazardous-area monitoring installations. In continuous process environments — refineries, compressor stations, offshore platforms, and power generation facilities — this module is a critical component for maintaining signal integrity between field-mounted vibration transducers and the 3500 rack-based monitoring system.

When this module degrades or fails, the IS grounding path is compromised, which can trigger false alarms, mask genuine machinery faults, or cause the 3500 system to enter a fault state that halts monitoring entirely. Maintenance engineers responsible for rotating equipment health — turbines, compressors, pumps, and fans — must treat the 136719-01 as a priority spare in any 3500-based installation. Procurement engineers sourcing long-term supply for legacy Bently Nevada systems will find this module increasingly difficult to source through OEM channels, making verified third-party stock essential for uninterrupted operations.

Our stock of the Bently Nevada 136719-01 is sourced from controlled supply chains, individually inspected, and dispatched with a support terms confirmed by quotation and pre-shipment functional verification. Global dispatch is available with typical lead times of 3–7 business days for in-stock units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 136719-01 Barrier Earth Module is rarely an isolated task. In a 3500 Series rack, the IS grounding path is shared across multiple transducer input channels. When a maintenance team identifies a grounding fault or IS loop anomaly, a structured inspection of the surrounding system is essential to prevent repeat failures and confirm the root cause before returning the machine to service.

Begin by verifying the condition of the Bently Nevada 3500/05 Power Supply Module — a degraded power supply can introduce noise into the IS earth reference, mimicking a barrier earth fault. Next, inspect the 3500/15 or 3500/20 I/O Module associated with the affected transducer channels; connector corrosion or pin damage at the I/O backplane interface is a common co-failure point. Check the 3500/22M Transient Data Interface if the installation includes dynamic data capture, as its grounding path also depends on the IS earth bus integrity.

Field wiring between the 3500 rack and hazardous-area transducers — typically Bently Nevada 330130 or 330180 Series extension cables — should be inspected for insulation breakdown, shield continuity, and connector seating. A compromised cable shield can defeat the IS grounding function even after a new 136719-01 is installed. Similarly, the Zener safety barriers (MTL or P+F equivalents used in the IS loop) should be tested for correct clamping voltage and resistance; a failed barrier can stress the earth module and cause premature failure of the replacement unit.

For installations using Bently Nevada 3500/92 or 3500/94 Communication Gateway Modules, confirm that the communication loop ground is isolated from the IS earth bus as specified in the system wiring diagram. Cross-contamination of these grounds is a known source of persistent IS fault alarms. Finally, inspect the rack backplane and terminal block assemblies for signs of moisture ingress, oxidation, or loose terminations — conditions that are particularly common in offshore and coastal installations.

Maintaining a minimum of two 136719-01 units in your on-site spare parts inventory is recommended for any facility operating three or more 3500 racks. Pair this with a documented IS loop test schedule and a calibrated earth resistance meter to support proactive maintenance rather than reactive replacement.

Site Replacement Workflow

The 136719-01 is a direct replacement for earlier Bently Nevada barrier earth modules used in legacy 3500 rack configurations. Before beginning replacement, confirm the rack is in bypass mode or that the monitored machine is safely isolated — the 3500 system will generate a Not OK (NOK) output during module removal, which may trigger DCS alarms or interlock responses if not properly managed.

Step 1 — Isolation: Place the affected 3500 rack channels in bypass via the rack configuration software (System 1 or Rack Configuration Software). Notify the control room to suppress associated alarms.

Step 2 — Module Removal: Disconnect the IS earth bus connection from the 136719-01. Remove the module from the rack slot. Inspect the slot connector for pin damage or contamination.

Step 3 — Installation: Insert the replacement 136719-01 into the rack slot. Reconnect the IS earth bus. Verify seating and locking mechanism engagement.

Step 4 — Verification: Using the rack configuration software, confirm the IS earth reference is within specification. Perform a loop check on all transducer channels connected to the IS bus. Verify OK status on all affected monitors.

Step 5 — Return to Service: Remove bypass mode. Confirm all channel statuses are OK. Document the replacement in the maintenance management system (CMMS) with the new module serial number and date.

This workflow applies equally when migrating from an older 136719-01 revision to a current-production equivalent. No firmware changes or rack reconfiguration are required for a like-for-like replacement. Compatibility with all standard 3500 rack configurations has been verified.

Spare Parts Support FAQ

Q1: Is the 136719-01 compatible with all 3500 Series rack configurations?
Yes. The 136719-01 Barrier Earth Module is compatible with all standard Bently Nevada 3500 rack configurations, including the 3500/05, 3500/15, 3500/20, and 3500/22M platforms. It provides the IS earth reference required by all Zener barrier-based transducer loops in the 3500 system. If your installation uses a non-standard rack layout, contact our technical team with your rack configuration drawing for confirmation before ordering.

Q2: How do I verify the 136719-01 has failed rather than another IS loop component?
Measure the IS earth bus resistance at the rack terminal. A reading outside the specified range (typically <1 Ω to the facility IS earth) indicates a barrier earth module fault. Also check for IS fault LEDs on the associated I/O modules and review System 1 event logs for IS earth alarm history. If resistance is within spec but IS faults persist, inspect the Zener barriers and field cable shields before condemning the 136719-01.

Q3: What is the recommended spare parts holding strategy for the 136719-01?
For facilities with 1–2 active 3500 racks: hold a minimum of one 136719-01 on-site. For facilities with 3 or more racks or critical rotating equipment (gas turbines, large compressors): hold two units minimum. Given increasing OEM lead times for legacy 3500 components, a 12–24 month forward stock position is advisable. Our B2B supply program supports scheduled replenishment orders with fixed pricing and priority allocation.

Q4: What does the support terms confirmed by quotation cover, and what pre-shipment testing is performed?
Every 136719-01 unit is functionally tested prior to dispatch to verify IS earth reference integrity and connector condition. The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions. Units that fail within the confirmed support period are replaced at no charge, including return shipping. Support requests are processed within 5 business days of receipt of the returned unit. Test records are available upon request for quality-critical procurement requirements.
