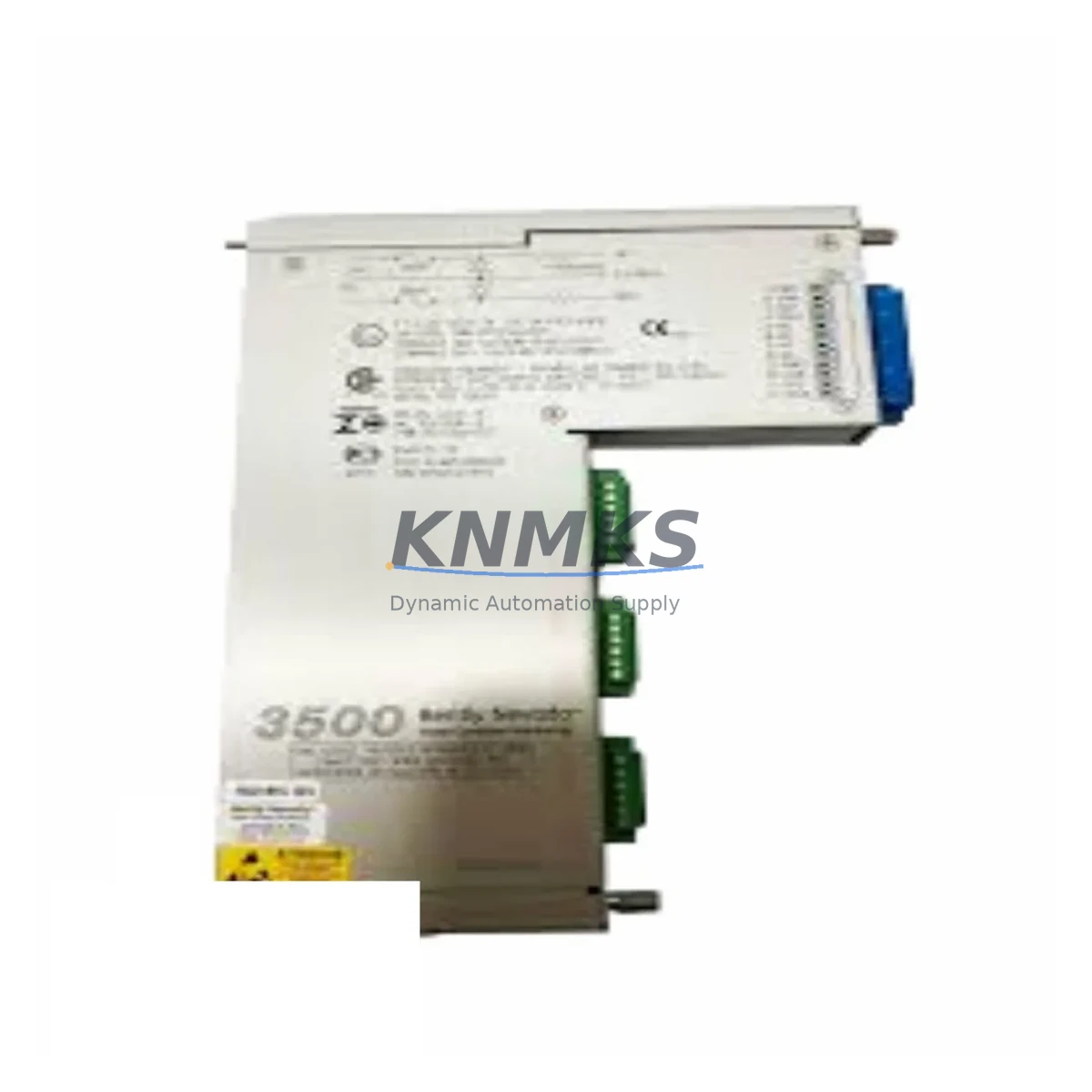

The Bently Nevada 136703-01 is an original I/O Barrier Module designed for the 3500 Series machinery protection and condition monitoring platform. As a critical interface component between field sensors and the 3500 rack system, this module ensures signal integrity, electrical isolation, and safe transmission of vibration, position, and process data across hazardous and non-hazardous plant environments. Maintaining a verified spare of the 136703-01 in your critical spares inventory is a proven strategy for minimizing unplanned downtime and protecting continuous production assets such as turbines, compressors, pumps, and rotating machinery.

For maintenance engineers managing aging 3500 Series installations, the 136703-01 represents a high-priority line item on any annual inspection checklist. Signal drift, barrier degradation, or intermittent channel faults are common failure indicators that warrant immediate replacement. Procurement engineers sourcing this module should verify original Bently Nevada part numbers and request factory test documentation to avoid counterfeit or refurbished units that may compromise system certification and SIL compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 136703-01 I/O Barrier Module, a thorough site inspection of the surrounding 3500 rack assembly is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the integrity of the 3500/20 Rack Interface Module, which governs communication between the rack and the plant DCS or safety system. A degraded rack interface can mask barrier faults or generate false channel alarms that are misattributed to the barrier itself.

Field wiring connected to the 136703-01 should be inspected for insulation breakdown, moisture ingress, and terminal corrosion. The associated 3500 Series terminal blocks and field wiring connectors are common wear items in high-vibration or high-humidity environments and should be replaced as a set during any barrier module swap. Verify that cable shielding is intact and grounded correctly to prevent EMI-induced signal noise from corrupting vibration readings.

The 3500/15 Power Supply Module supplying the rack should be load-tested during the maintenance window. An aging or undersized power supply is a leading cause of intermittent barrier faults and unexplained channel resets. If the power supply is approaching end-of-life, proactive replacement during the same outage window eliminates a second unplanned shutdown. Similarly, the 3500/05 System Monitor should be checked for firmware currency and alarm setpoint integrity before returning the rack to service.

For installations where the 3500 rack interfaces with a Bently Nevada 3300 Series proximitor or accelerometer, confirm that transducer output ranges and sensitivity settings remain within the calibrated window after barrier replacement. Transducer recalibration may be required if the previous barrier had developed a gain offset. Where the 3500 system feeds a plant historian or safety instrumented system, verify that the communication gateway or Modbus/OPC interface module is correctly re-initialized after the barrier swap to restore live data flow to the control room.

Procurement teams should maintain a minimum stock of two 136703-01 units per critical machine train, alongside a buffer of associated signal isolators and fuse protection assemblies used in the field junction boxes. This inventory posture supports same-shift replacement without waiting for international logistics, which is particularly important for remote or offshore installations where lead times can exceed 10 business days.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit and isolate the affected channel at the 3500 rack. Do not power down the entire rack unless required by site safety procedures; the 3500 platform supports hot-swap on select modules, but confirm this for the 136703-01 with your system documentation before proceeding.

Step 2 — Document Existing Configuration: Record all channel configuration parameters from the 3500 Rack Configuration Software (RCS) before removal. Note alarm setpoints, transducer type, full-scale range, and any custom scale factors. This data is required to configure the replacement module identically and avoid nuisance trips on restart.

Step 3 — Physical Replacement: Remove the faulty 136703-01 by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination. Insert the replacement 136703-01, ensuring full seating. Reconnect field wiring to the correct terminals per the as-built wiring diagram.

Step 4 — Configuration Restore and Verification: Using the 3500 RCS, download the saved channel configuration to the replacement module. Verify that all channel parameters match the pre-removal record. Perform a loop check with the connected transducer to confirm signal levels are within expected range before re-enabling alarms.

Step 5 — Return to Service: Re-enable channel alarms, update the maintenance log with part number, serial number, and replacement date, and notify the control room that the channel is back in service. Retain the removed module for failure analysis if root cause investigation is required.

This workflow is applicable to both scheduled annual overhauls and emergency unplanned replacements. Having a pre-configured spare and a documented procedure reduces mean time to repair (MTTR) and supports rapid production line recovery.

Spare Parts Support FAQ

Q1: Is the 136703-01 compatible with all 3500 Series rack configurations?
The 136703-01 is designed for the Bently Nevada 3500 Series platform. Compatibility depends on the specific rack model, monitor module type, and firmware revision in your installation. Always cross-reference the 3500 Series compatibility matrix or consult your system documentation before ordering. We recommend providing your rack model and monitor module part numbers when placing an order so our technical team can confirm fit.

Q2: What testing is performed before shipment?
Each 136703-01 unit is functionally tested prior to dispatch to verify electrical continuity, signal isolation performance, and connector integrity. A test report is available upon request. Units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental specifications. Support requests are processed with return of the defective unit and a brief fault description.

Q4: Can you support long-term or repeat supply of the 136703-01?
Yes. We maintain ongoing stock of the 136703-01 and can support blanket purchase orders, scheduled releases, and emergency spot orders. For facilities managing multiple 3500 Series racks or planning a multi-year maintenance contract, contact our sales team to discuss volume pricing, reserved inventory, and lead time commitments.
