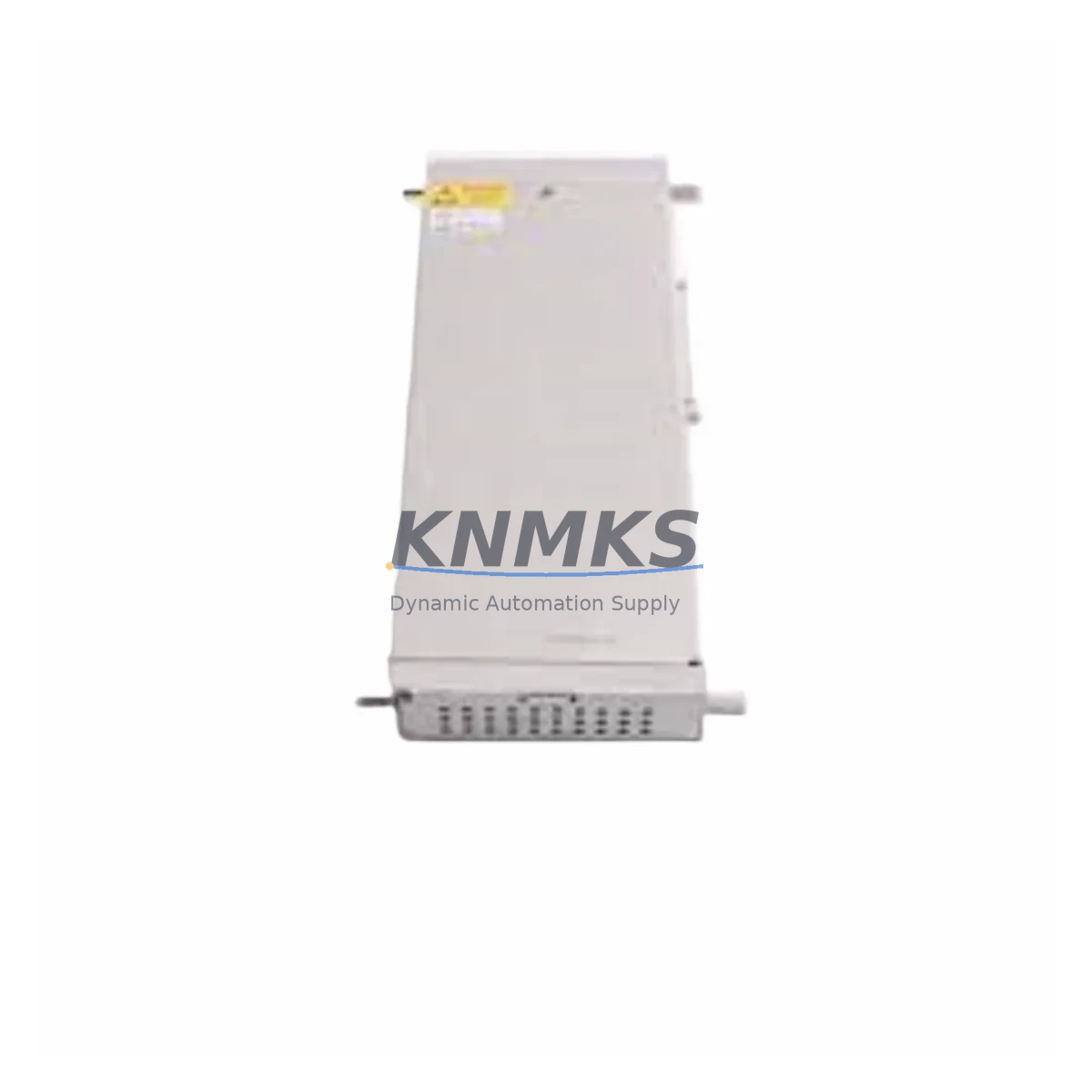

Bently Nevada 136483-01 Migration-Ready I/O Module for Legacy Control Systems

Overview

Bently Nevada 136483-01 Migration-Ready I/O Module for Legacy Control Systems

The Bently Nevada 136483-01 is a critical I/O module within the 3500 Series Machinery Protection System, widely deployed across rotating equipment monitoring platforms in oil & gas, power generation, petrochemical, and heavy industrial facilities. As legacy 3500 Series installations approach end-of-service milestones, the 136483-01 remains one of the most requested retrofit and replacement components for engineers managing system continuity, unplanned downtime reduction, and phased modernization programs.

This module is designed to slot into existing 3500 Series racks without requiring backplane redesign or full system replacement. For facilities operating aging Bently Nevada 3500/15 Power Supply modules or 3500/22M Transient Data Interface units alongside the 136483-01, the compatibility profile is well-established, making it a preferred choice for maintenance teams executing like-for-like replacements under tight outage windows.

When planning a retrofit around the 136483-01, engineers must verify several critical parameters before installation: the rack’s available power budget (particularly when co-installed with high-draw modules such as the 3500/40M Proximitor/Seismic Monitor), terminal block wiring assignments, and whether existing field wiring gauge is compatible with the module’s I/O connector pinout. Mismatched wiring or incorrect terminal torque values are among the leading causes of signal integrity issues during commissioning.

Backplane interface compatibility is another key checkpoint. The 136483-01 communicates over the 3500 Series internal rack bus, and any firmware version mismatch between this module and the 3500/01 Rack Interface Module can result in configuration errors during System 1 software initialization. It is strongly recommended to confirm the rack’s current firmware baseline before deploying a replacement unit, and to have the 3500 Configuration Software version aligned with the module’s embedded firmware revision.

For facilities migrating from older Bently Nevada 7200 Series or 3300 Series platforms to the 3500 architecture, the 136483-01 plays a central role in I/O consolidation. The transition typically involves remapping transducer signal channels, reconfiguring alert and danger setpoints, and validating HMI display tags in the connected System 1 or third-party SCADA environment. Engineers should budget time for full channel-by-channel verification, particularly for proximity probe inputs where gap voltage calibration must be re-established after module swap.

Communication link integrity is equally important. Where the 3500 rack interfaces with a DCS via Modbus RTU or the Bently Nevada TDXnet protocol, the 136483-01 replacement must be followed by a communication link test to confirm that all data points are correctly mapped and that no watchdog timeouts occur during the first 24 hours of live operation. If the facility uses a 3500/92 Communication Gateway Module, its configuration database should be backed up prior to any module-level change.

Installation space confirmation is straightforward for standard 19-inch rack enclosures, but in retrofit scenarios where the control cabinet has been modified or where third-party I/O marshalling panels have been added, physical slot availability and cable management must be assessed before ordering. The 136483-01 occupies a single slot in the 3500 rack and does not require adjacent slot clearance under standard thermal conditions.

All units supplied by KNMKS are subject to pre-shipment functional testing, including power-on self-test verification, I/O channel continuity checks, and firmware version confirmation. Each module ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. In-stock inventory supports short lead times for urgent maintenance and turnaround projects.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Bently Nevada 136483-01 into an existing automation environment requires a structured pre-retrofit assessment. The following considerations apply to the most common deployment scenarios encountered in legacy system modernization projects.

Power and Rack Infrastructure: Before installing the 136483-01, confirm that the host rack’s 3500/15 Power Supply can support the additional load. In racks already populated with modules such as the 3500/40M Proximitor/Seismic Monitor or 3500/50M Tachometer, power headroom may be limited. A rack power audit using the 3500 Series power budget calculator is recommended prior to any module addition or swap.

I/O and Signal Wiring: Terminal block assignments for the 136483-01 follow the standard 3500 Series I/O connector layout. When replacing a failed or discontinued module, technicians should photograph or document the existing wiring before disconnection. For facilities using signal isolators or intrinsic safety barriers in the field wiring loop, verify that the isolator output range remains within the module’s input specification after replacement.

Communication and Protocol Migration: Where the 3500 rack communicates upstream via a 3500/92 Communication Gateway Module, the gateway’s tag database must be exported and verified before the replacement module is brought online. For sites migrating from legacy serial Modbus to Ethernet-based protocols, this is also an appropriate point to evaluate whether a 3500/93 Communication Gateway upgrade is warranted as part of the broader modernization scope.

HMI and SCADA Validation: After module replacement, all associated HMI display pages and SCADA alarm groups should be tested against live process values. Pay particular attention to channel scaling, engineering unit conversion, and alarm deadband settings, which may need to be re-entered if the replacement module’s configuration was not fully preserved in the System 1 database backup.

Programming and Logic Compatibility: For facilities where the 3500 system feeds trip signals into a Safety Instrumented System (SIS) or interlock logic controller, the replacement module’s output relay behavior must be validated against the original functional safety specification. This includes confirming de-energize-to-trip vs. energize-to-trip wiring conventions and verifying that the module’s response time meets the SIS’s required action time.

Downtime Control During System Migration

Minimizing production impact during a 136483-01 replacement requires advance preparation and a disciplined execution sequence. The following approach is recommended for facilities where continuous operation is a priority.

Pre-outage preparation should include a full backup of the 3500 rack configuration using the 3500 Configuration Software, documentation of all field wiring terminations, and a pre-staged replacement module that has been verified for firmware compatibility. Where possible, the replacement unit should be bench-tested against a spare rack or simulator before being brought to site.

During the outage window, the recommended sequence is: isolate the affected rack from the DCS/SCADA communication link, remove the failed module, install the 136483-01 replacement, restore field wiring per the documented termination schedule, and power up the rack in diagnostic mode before re-enabling live process monitoring. This sequence preserves the original program logic in the rack’s non-volatile memory and avoids inadvertent setpoint changes during the swap.

Post-installation, a channel-by-channel functional verification should be completed before the rack is returned to service. This includes confirming that all transducer gap voltages are within specification, that alert and danger setpoints are correctly loaded, and that the communication link to the upstream DCS or System 1 server is re-established without errors. A 24-hour monitoring period is recommended before the outage is formally closed, during which the on-call technician should verify that no nuisance alarms or watchdog faults are generated.

For facilities with redundant monitoring architectures, the replacement can often be executed with the redundant channel remaining in service, further reducing the risk of unmonitored equipment operation during the swap. KNMKS technical support is available to assist with pre-installation planning and post-installation commissioning queries.

Retrofit Support FAQ

Q: Is the Bently Nevada 136483-01 a direct replacement for the original module in my 3500 Series rack?
A: Yes. The 136483-01 is designed as a slot-compatible replacement for the 3500 Series rack. No backplane modification is required. However, firmware version alignment with the host rack’s 3500/01 Rack Interface Module should be confirmed before installation to avoid configuration errors during initialization.

Q: What pre-shipment testing is performed on each 136483-01 unit?
A: Every unit supplied by KNMKS undergoes power-on self-test verification, I/O channel continuity checks, and firmware version confirmation before dispatch. A support terms confirmed by quotation is included, covering manufacturing defects and functional failures under normal operating conditions.

Q: Do I need to reconfigure my DCS or SCADA system after replacing the 136483-01?
A: In most like-for-like replacement scenarios, the DCS/SCADA configuration does not require changes. However, if the replacement module carries a different firmware revision, or if the rack’s communication gateway configuration was not backed up prior to the swap, a communication link validation and tag mapping check is recommended after installation.

Q: What is the typical lead time and do you maintain stock of the 136483-01?
A: KNMKS maintains in-stock inventory of the 136483-01 to support urgent maintenance and turnaround requirements. Lead times for in-stock units are typically short. Contact [email protected] or call +86 18359268345 for current availability and shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

136483-01
3500 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Bently Nevada 136483-01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
